2 канальный цифровой осциллограф 100 МГц дешевые
- Категория: Oscilloscopes >>>
- Поставщик: Shenzhen,Yuntong,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 197.91 $* | 201.88 $* |
| Jul-15-2025 | 160.39 $* | 163.25 $* |
| Jun-15-2025 | 194.72 $* | 198.14 $* |
| May-15-2025 | 192.43 $* | 196.85 $* |
| Apr-15-2025 | 153.42 $* | 156.96 $* |
| Mar-15-2025 | 189.35 $* | 193.50 $* |
| Feb-15-2025 | 188.96 $* | 192.18 $* |
| Jan-15-2025 | 186.13 $* | 190.6 $* |
Характеристики
Product Description

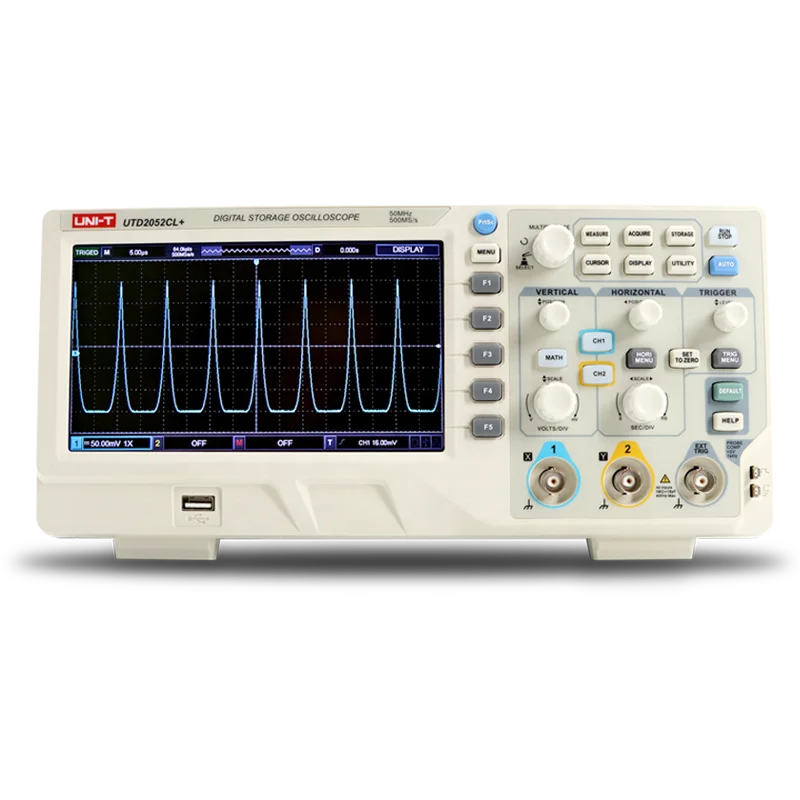

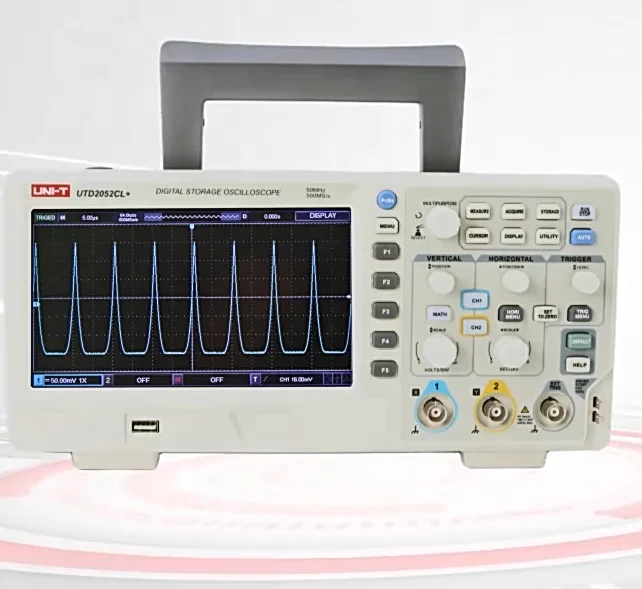

The UTD2000CL+ Series is a market-proven economical digital oscilloscope.
This series of digital oscilloscopes has excellent technical indicators and can meet the main needs of basic testing.
The front panel design is clear and intuitive,fully in line with the traditional instrument usage habits, and is convenient for users to operate.
Support addition, subtraction, multiplication, division, and waveform calculation functions
You can observe the overall situation and details of the waveform
Grade display can view the worst case of changing waveforms, capture rare and abnormal signals
Specification
Model | UTD2052CL+ | UTD2102CL+ | |||||
bandwidth | 50MHz | 100MHz | |||||
Channels | 2 | ||||||
Sampling rate | 500MSa/s | ||||||
Memory depth | 64kpts | ||||||
Waveform capture rate | 5000 wfms/s | ||||||
Rise time | ≤7ns | ≤3.5ns | |||||
Time base scale | 2ns/div~50S/div | ||||||
Vertical Sensitivity (V/div) | 1mV/div~20 V/div | ||||||
Display | 7 inches 64k Color TFT LCD, 800×480 | ||||||
Packing & Delivery
Product net weight | 2.2kg | ||||||
Standard quantity per carton | 2 pcs | ||||||
Standard carton measurement | 450mm× 420mm × 280mm | ||||||
Standard carton gross weight | 8.3kg | ||||||
Delivery time | Generally 3-5 days from in stock | ||||||
Company Profile
Certifications
FAQ
1.Q: Are you trading company or manufacturer?
A: We are UNI-T Original factory. We are the top 5 largest shareholders of UNI-T. We can sell from factory directly.
2. Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shipment.
3. Q: How long is your delivery time?
A: Generally, it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4. Q: Are sample free?
A: Yes, but the shipping cost will be charged. The fee of it will be rebound when we have formal order.
A: We are UNI-T Original factory. We are the top 5 largest shareholders of UNI-T. We can sell from factory directly.
2. Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shipment.
3. Q: How long is your delivery time?
A: Generally, it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4. Q: Are sample free?
A: Yes, but the shipping cost will be charged. The fee of it will be rebound when we have formal order.
