Лидер продаж формовочная машина для производства пружин camless
- Категория: Станок для навивки пружин >>>
- Поставщик: Union,Spring
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 29750.62 $* | 31238.19 $* |
| Aug-17-2025 | 29500.50 $* | 30975.32 $* |
| Jul-17-2025 | 24750.70 $* | 25988.15 $* |
| Jun-17-2025 | 29000.94 $* | 30450.3 $* |
| May-17-2025 | 25250.68 $* | 26513.52 $* |
| Apr-17-2025 | 28500.1 $* | 29925.34 $* |
| Mar-17-2025 | 28250.9 $* | 29663.27 $* |
| Feb-17-2025 | 28000.21 $* | 29400.54 $* |
| Jan-17-2025 | 27750.97 $* | 29138.42 $* |
Характеристики
Product Description

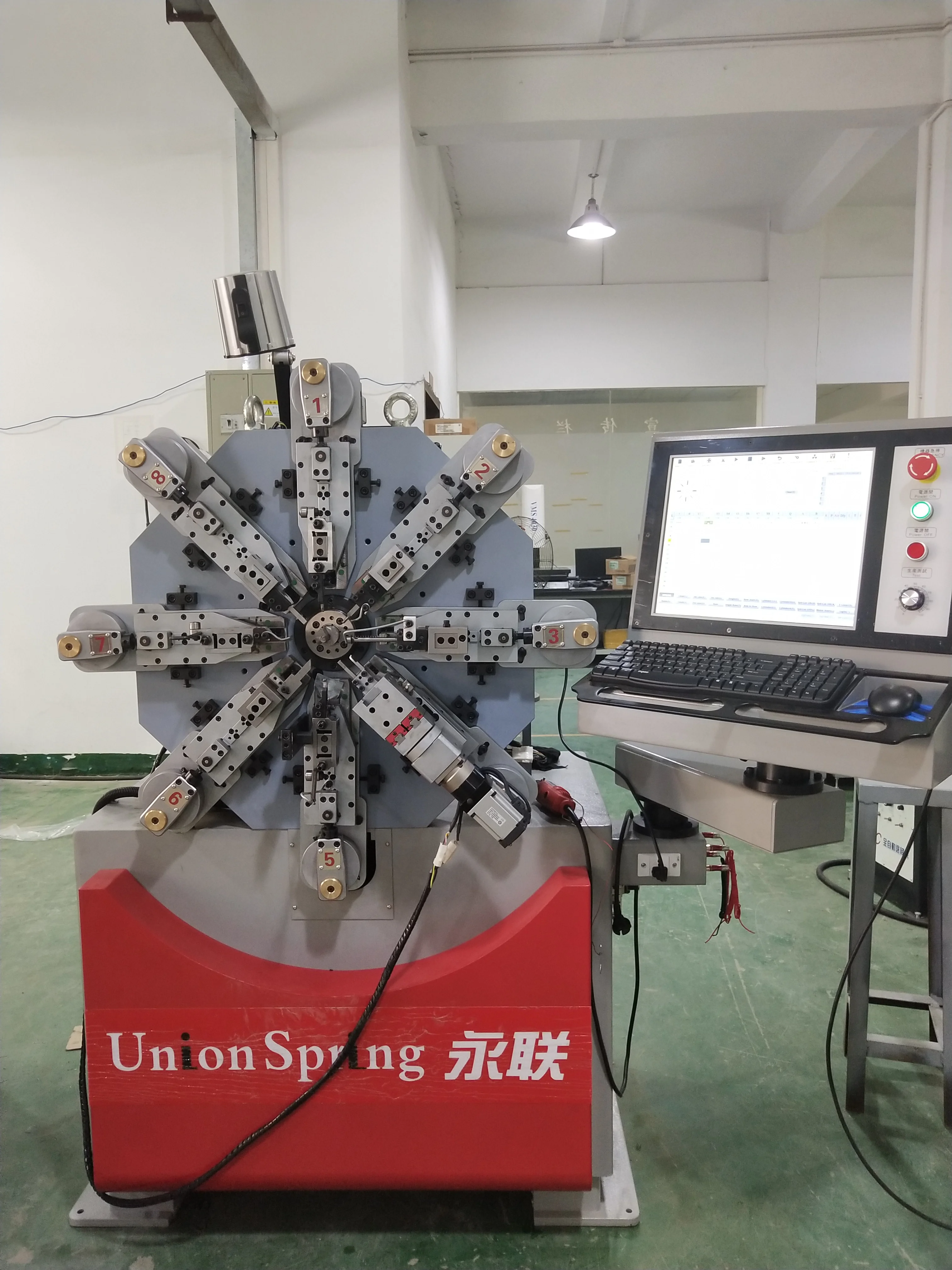

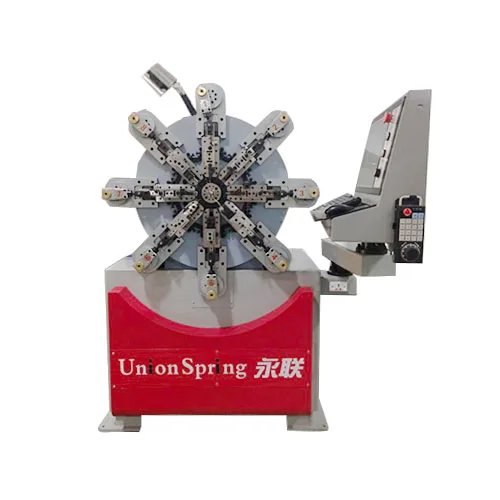

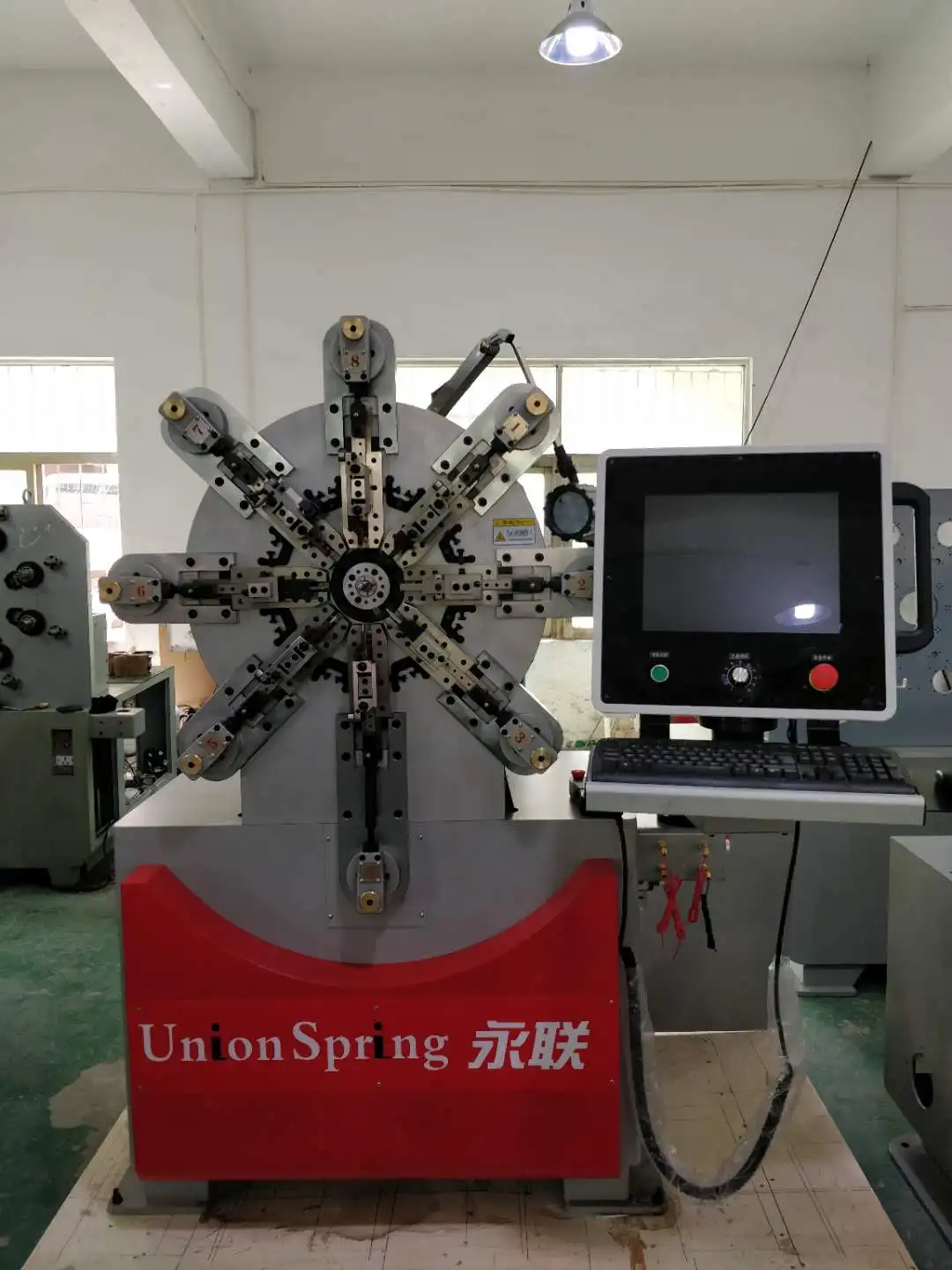

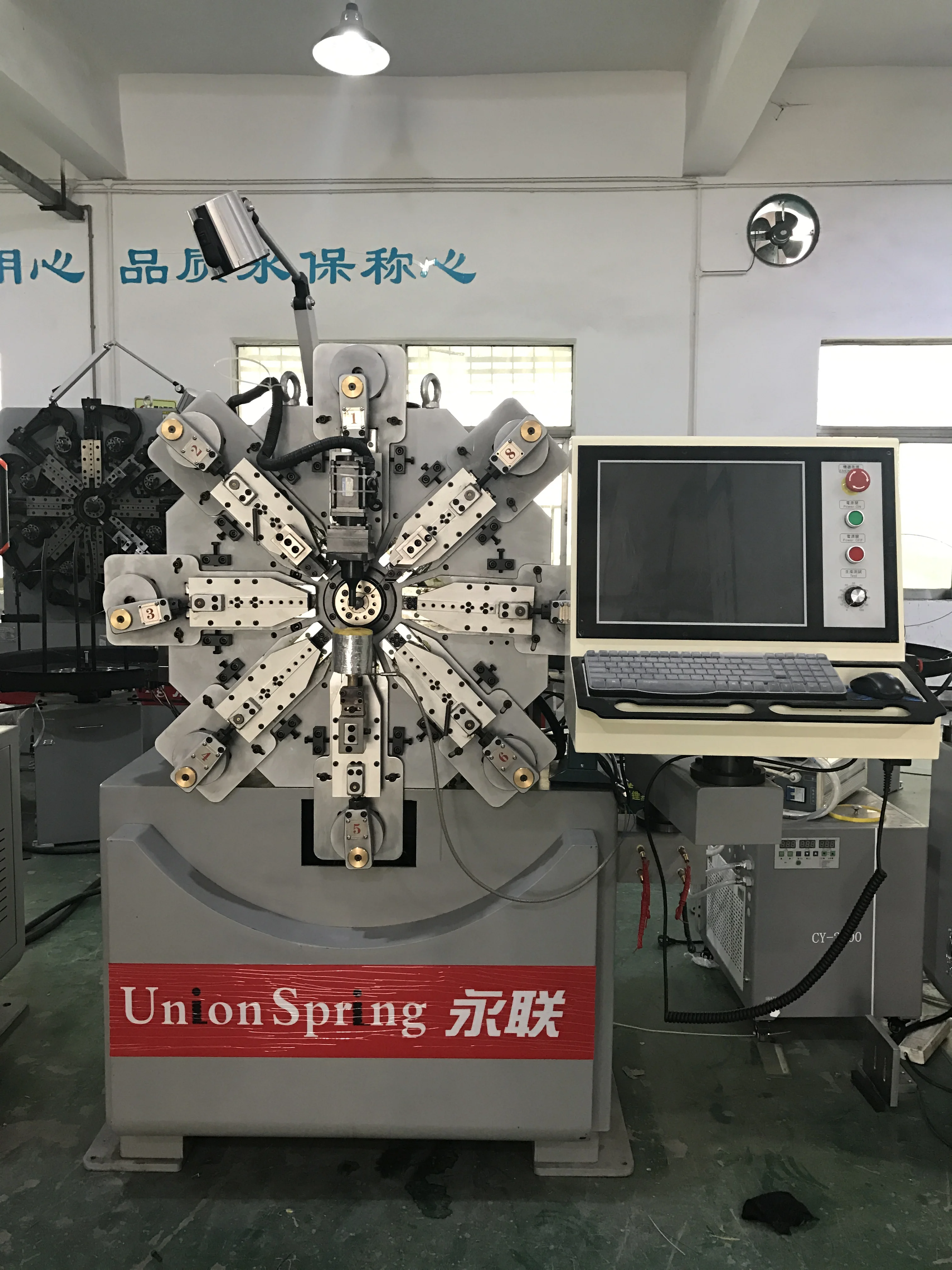

UNION SPRING Camless Spring Machine
Model | US-236 |
Axis | 10 |
Wire Diameter | 0.3-2.5mm |
Wire Wheel Sets | 2sets |
Slide Axis | 0.75KW*8 |
Wire Feeding Axis | 2.0KW |
Rotary Quill Axis | 0.75KW |
Machine Size | 1200*1250*1760mm3 |
Machine Weight | 980KG |
Machine description:
1. Camless spring machine with a unique camless and rockless arm design, the speed of adjustment than the traditional CAM machine is more than 50% faster. Fast production speed, accurate positioning, stable operation and strong expansion.
2. Independent control by multiple groups of servo motors, with the advantages of the traditional 8 position machinery, and also have a group of free hands, is able to move up and down, left and right, easier, faster and more accurate to produce difficult springs.
3. Intelligent module, automatic detection and alarm.Chinese and English display, easy to learn and use.
1. Camless spring machine with a unique camless and rockless arm design, the speed of adjustment than the traditional CAM machine is more than 50% faster. Fast production speed, accurate positioning, stable operation and strong expansion.
2. Independent control by multiple groups of servo motors, with the advantages of the traditional 8 position machinery, and also have a group of free hands, is able to move up and down, left and right, easier, faster and more accurate to produce difficult springs.
3. Intelligent module, automatic detection and alarm.Chinese and English display, easy to learn and use.
Details Images

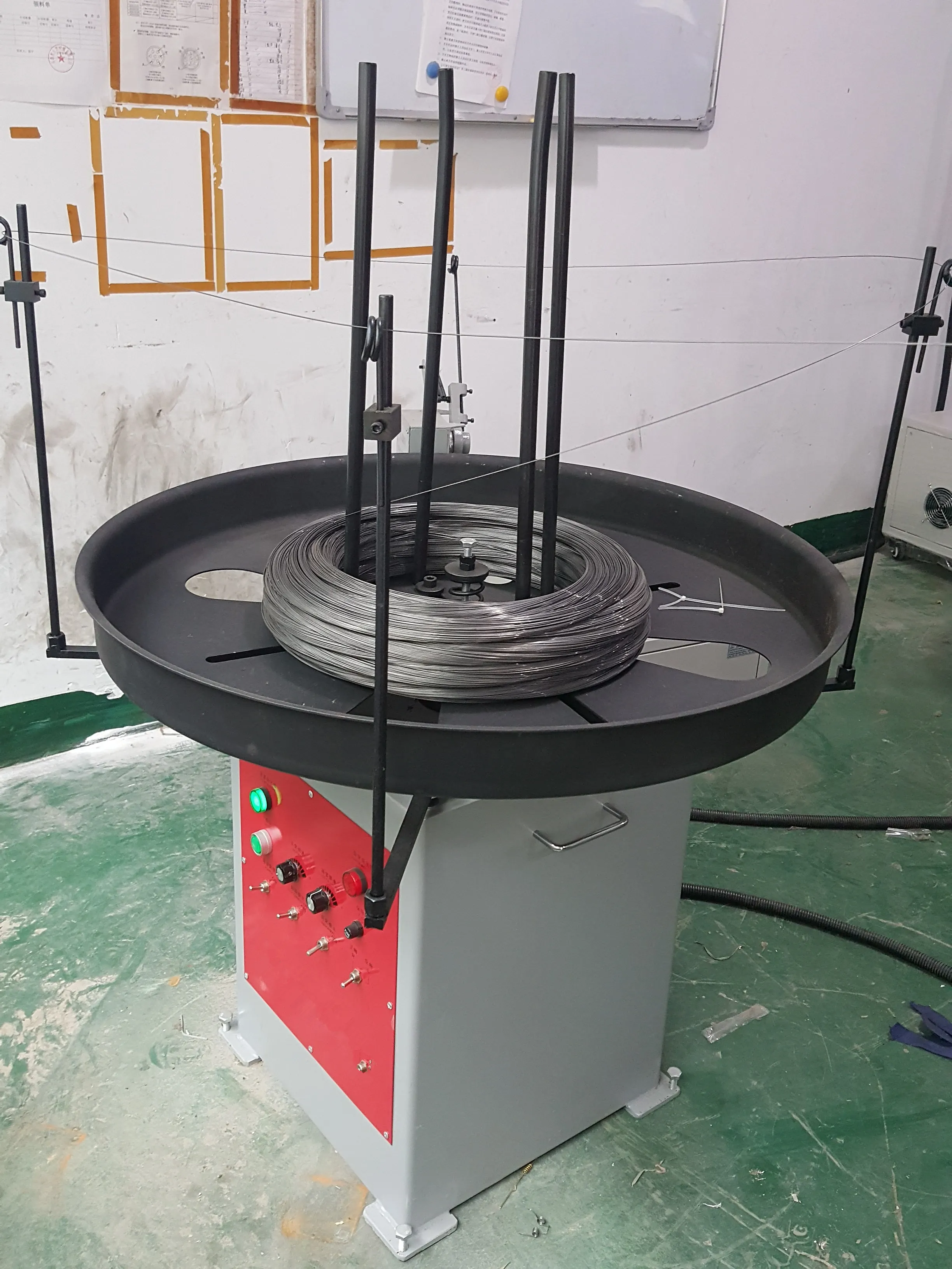

The automatic wire feeder adopts Japanese Panasonic inverter control technology, which has the characteristics of accurate wire feeding, automatic adjustment of wire feeding speed, automatic alarm shutdown, and novel appearance.
Transformer can be used for direct voltage conversion in different countries, the standard is 220V to 380V Customized
The straightening device ensures that the steel wire after straightening has no internal stress and the steel wire is smooth, which facilitates the subsequent processing work.
The eight slides work together, the assembly precision of the parts is high, and the machine runs for a long time.
Japan imported Sanyo Electric .Features: high precision motor, good stability, maintenance free, long use time
Packing&Shipping
Stretch film winding
Exempt wooden box
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Hlep adjust sample
FAQ
Q1: How long you can delivery ?
About 10 days after we received the deposit (30%T/T in advance ,70% T/T before shipment )
Q2: How about your equipment quality?
We guarantee that all equipment are CE&ISO standard and one year warranty, We invite you to visit our factory and inspect the equipment before packing
Q3: How is the service that your equipment beyond the warranty period?
Your project salesman and engineer will mail or telephone visit to you at regular intervals after sales, and will provide
equipment’s lifelong service.
About 10 days after we received the deposit (30%T/T in advance ,70% T/T before shipment )
Q2: How about your equipment quality?
We guarantee that all equipment are CE&ISO standard and one year warranty, We invite you to visit our factory and inspect the equipment before packing
Q3: How is the service that your equipment beyond the warranty period?
Your project salesman and engineer will mail or telephone visit to you at regular intervals after sales, and will provide
equipment’s lifelong service.
