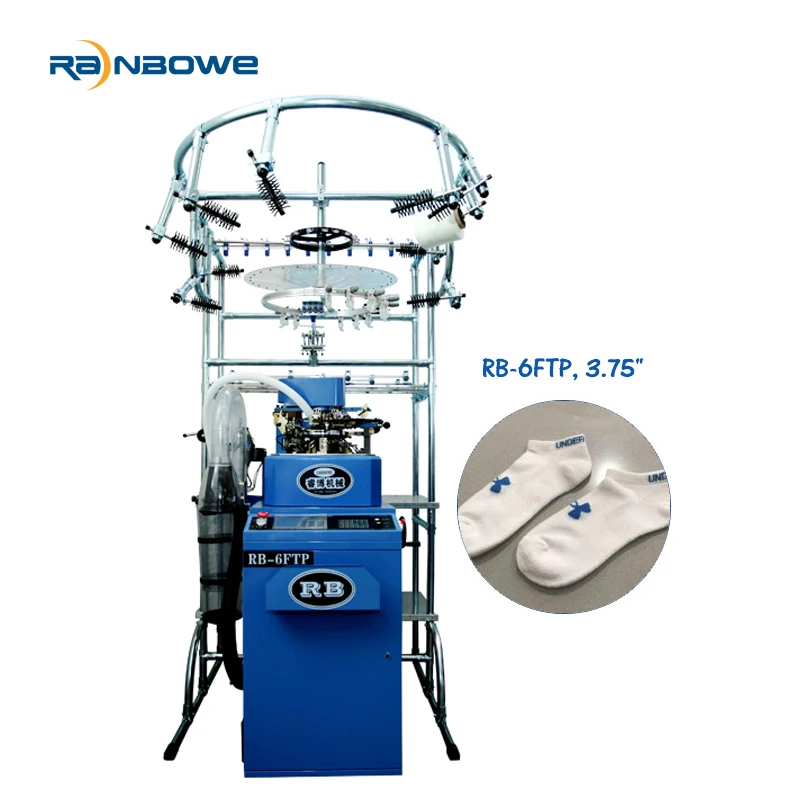

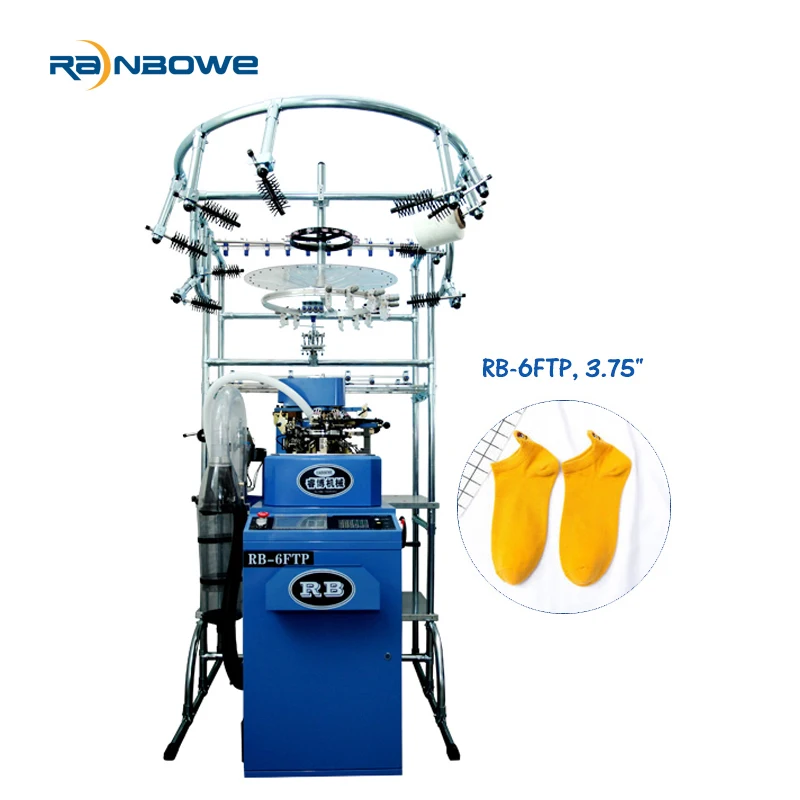

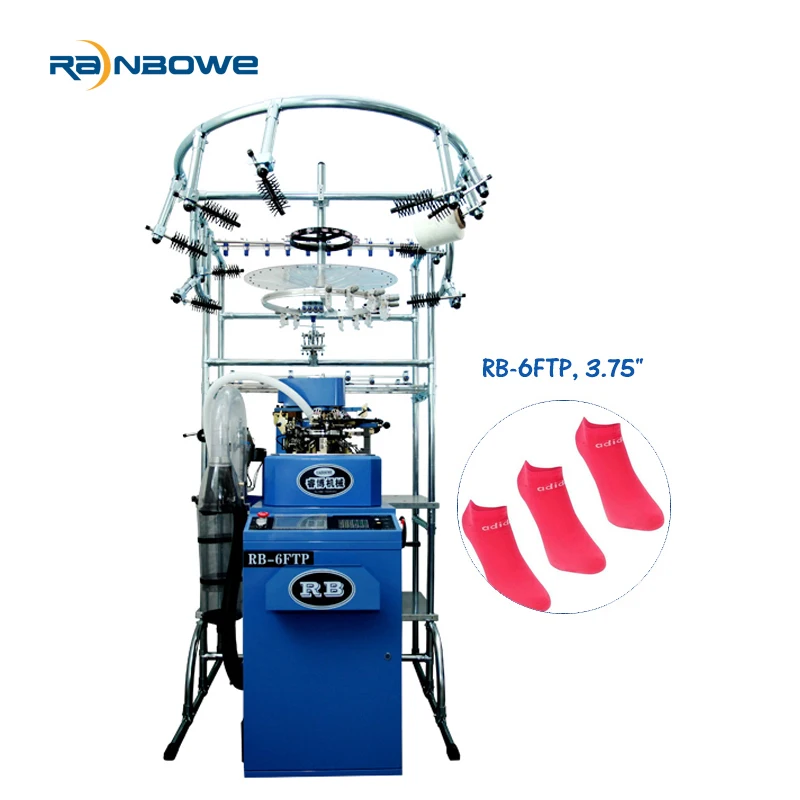

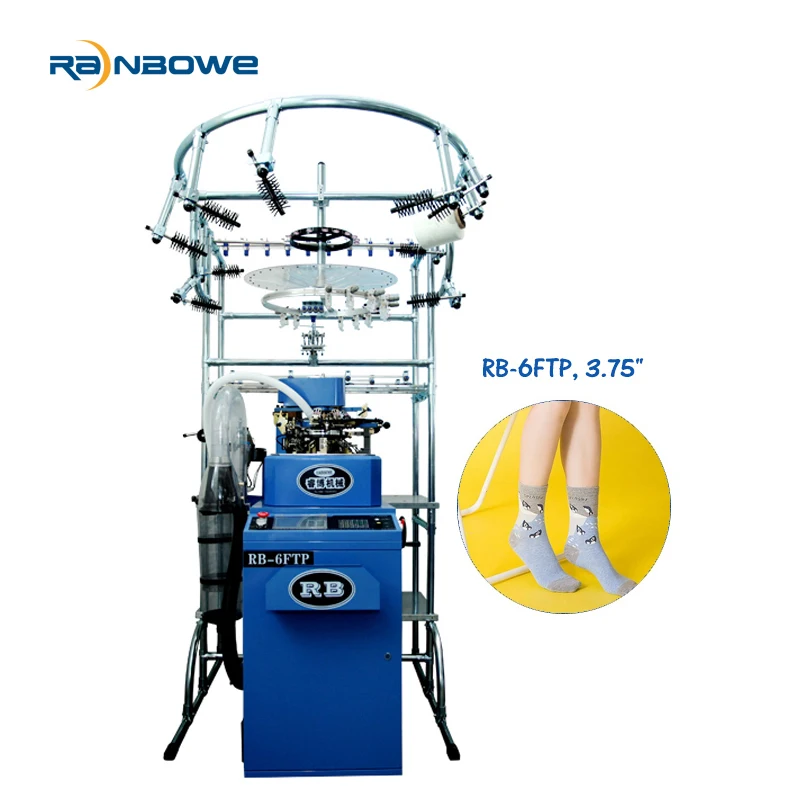

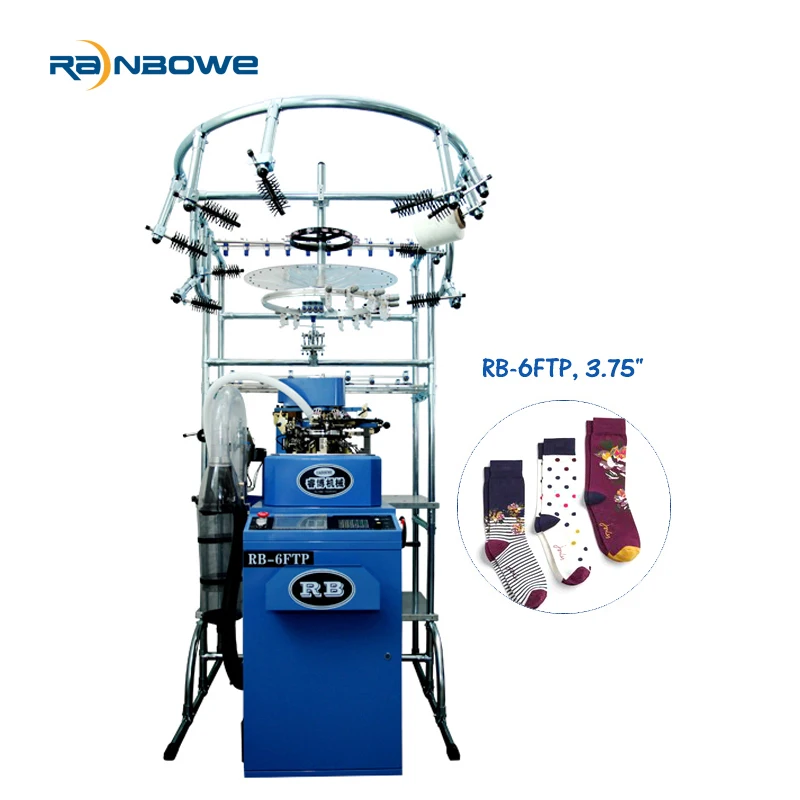

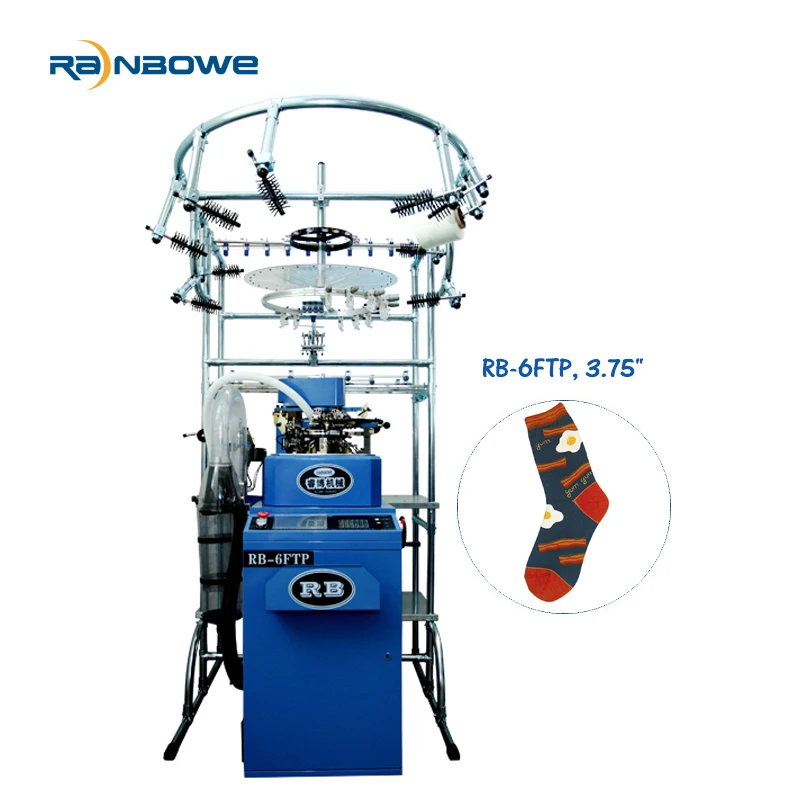

Полностью компьютеризированная 7f жаккардовая машина для вязания носков автоматическая изготовления хлопковых чулочных

Air Compressor, Air Compressor Storage Tank, Filter, Cooling Drier, Stabilizer, Suction Fan Motor
The above-mentioned equipment sizes or power will be different according to different quantity of sock machine For example, the equipment needed for 10 sets of sock machine will be different from 20 sets of sock machine

Sock Toe Closing Machine:

One -motor model 181; Two-motor model 282; Three-motor model 383; Five-motor model 585; Six-motor model 686

Sock Boarding Machine:

Steam Sock Boarding Machine; Electrical Sock Boarding Machine

1. Suction fan motor 1.1kw (for small quantity of sock machine, below 10 sets, individual suction fan motor is suggested, if over 10 sets, central suction fan motor is better, which can help save electricity consumption greatly)
2. Solenoid on main feeders, sub-feeders, valve box
3. Double elastic motors, double elastic feeders
4. Invisible sock function
5. BTSR yarn break sensors
6. LGL or Chinese brand accumulators
7. Robert yarn creels
8. Power: 220V, 3-phase
9. Machine colors: blue or grey

1.Machine is with 8 main feeders and 5 groups of auxiliary feeders, 6 colors can be knitted in one horizontal line, and max. 16 colors can be knitted in one sock
2.Double down pickers, up pickers are adopted, improving and increasing the toe/heel knitting speed, also can knit big or small sock heels, high heels
3.High speed controlling system is adopted with muti-languages: English, Russian, Spanish, Arabic etc. UPS function can keep the running program when electricity fails and can continue the previous program when electricity is on again. And huge qty of pattern files can be stored in the sock machine computer system
4.Automatic lubrication system, making it easy for sock machine maintenance. Besides needle or yarn breakage, electronic error will be shown on the display automatically, lessen the sock defective rate and needle consumption
5.Easy pattern designing software, which can be installed and used on personal computer
6.Branded pneumatic system is adopted, making sure more accurate controlling, quicker movement, longer machine life
7.Double elastic motors are used for more convenient and precise sock density adjustment
8.Running cams are manufactured by our own CNC equipment, making sure the quality, stability, and duration
9.Quality cylinder is used preventing white oily socks
