Вязальная машина для вязания носков

Описание и отзывы

Трекер стоимости

Характеристики

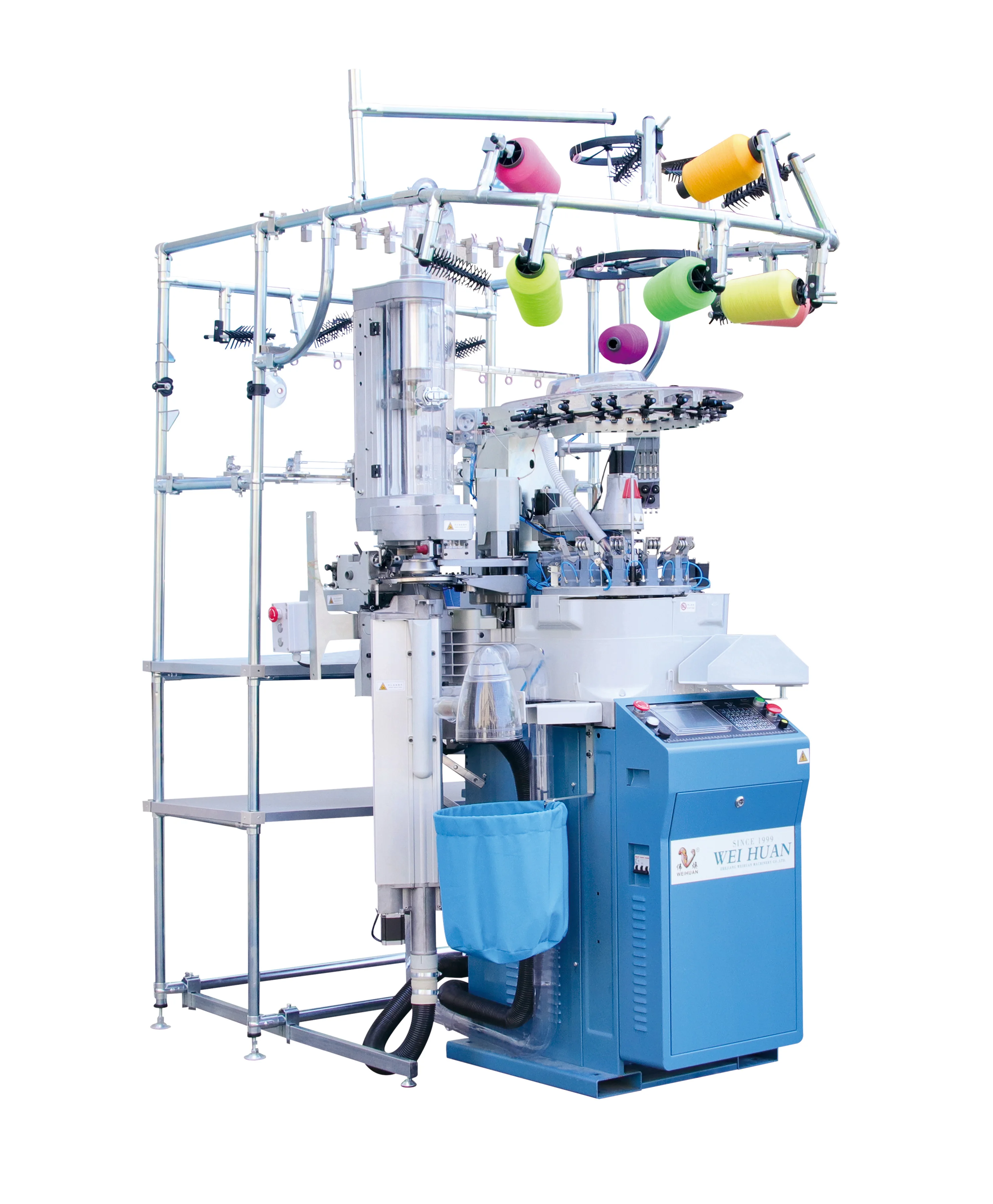

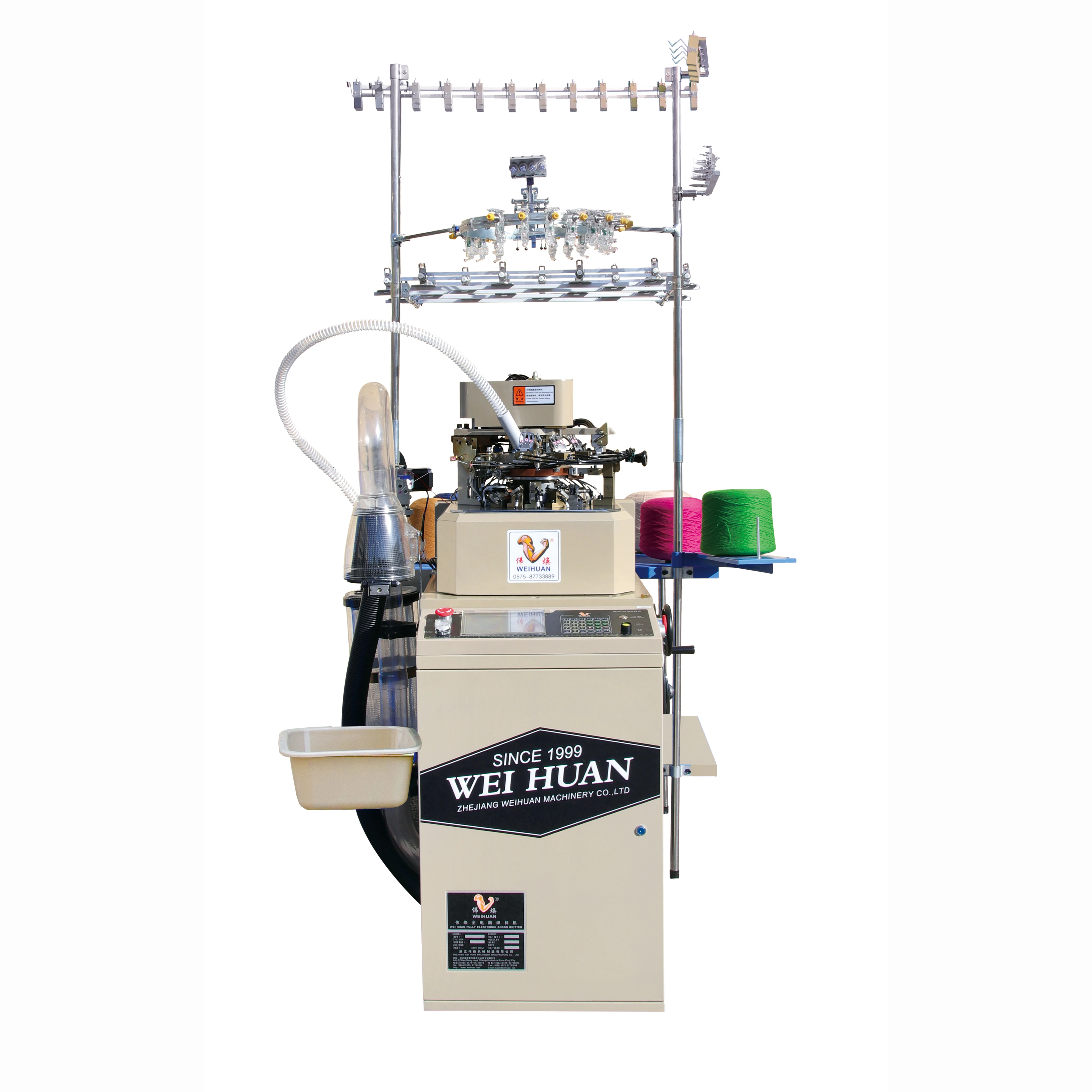

WEIHUAN socks knitting machine

Contactor : Kevin zhou
Whatsapp & Wechat : +18067841986

Main parameter
Model	Cylinder diameter	Needle Range	Running speed	Cylinder	Feed
WH-6F-A	3INCH	42-220needles	230-350RPM	Single Cylinder	One feed  Two feeds
WH-6F-B	3INCH	42-240needles	200-320RPM	Single Cylinder	One feed  Two feeds
6 Actuator		Sock body 200-350RPM		Sock heel:180-280RPM
13 side yarn shuttles		8 Main Pneumatic yarn fingers		Automatic yarn feeding
Option Function			Power Option
Plain function only socks machine Terry function only socks machine Plain&Terry double use function socks machine.			380V,3phrase,50/60HZ 220V,3phrase,50/60HZ 415V,3phrase,50/60HZ



Model	Flower Space(LxWxH)	Package Dimension(LxWxH)	N.W	G.W
WH-6F-A	150x120x240cm	113x75x157cm	300kgs	350kgs
WH-6F-B	150x120x240cm	113x75x157cm	300kgs	350kgs



Feature

Single cylinder One feeder into yarn or two feedeinto yarn ,6 colors in one line, there are 13 colors totain socks pattern

lt can knit High heel big heel. small heel.180degree against sock mouth

two colors for socks heels socks toes

Open Circuit Protect and UPS design: it will continue knitting after suddenly stop

Can buy two Elastic for different  colors



Product  can make

It can knit  terry or plain socks, small 3D cartoon socks,A molding five toes socks,invisible boat socks,

children pantyhose,two feeds machine for cross pattern socks,single welt  socks and so on.
