Машина для запечатывания пива/машина
- Категория: Разливочные машины >>>
- Поставщик: Zhangjiagang,Grandee,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7735.79 $* | 8122.10 $* |
| Aug-19-2025 | 7670.54 $* | 8054.43 $* |
| Jul-19-2025 | 6435.2 $* | 6757.71 $* |
| Jun-19-2025 | 7540.20 $* | 7917.79 $* |
| May-19-2025 | 6565.12 $* | 6893.83 $* |
| Apr-19-2025 | 7410.74 $* | 7781.74 $* |
| Mar-19-2025 | 7345.33 $* | 7712.79 $* |
| Feb-19-2025 | 7280.92 $* | 7644.28 $* |
| Jan-19-2025 | 7215.83 $* | 7576.90 $* |
Характеристики
Beer canning machine / soda water filling sealing machine
Product Description
Machine description :
Beer canning machine / soda water filling sealing machine for equal pressure can filling sealing machine of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip long-distance control system according to the customers’ request. It is the preferred equipment for the medium beer and beverage plant.

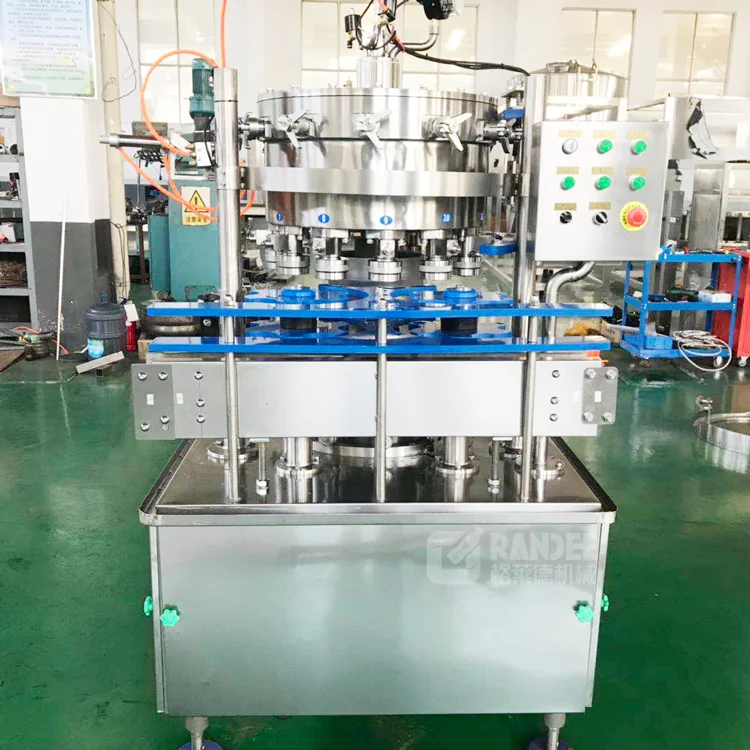

Machine picture of beer can filling machine :
Flow chart of 2000 Cans/hr Soda Water Filling Sealing Line Machine:
Auto depalletizer → Automatic can rinsing machine→Automatic soda water can filling machine→
Automatic can sealing machine→Can warmer(optional)→Blow dryer→Automatic or Manual sleeve labeling machine→Bottle Collection Table

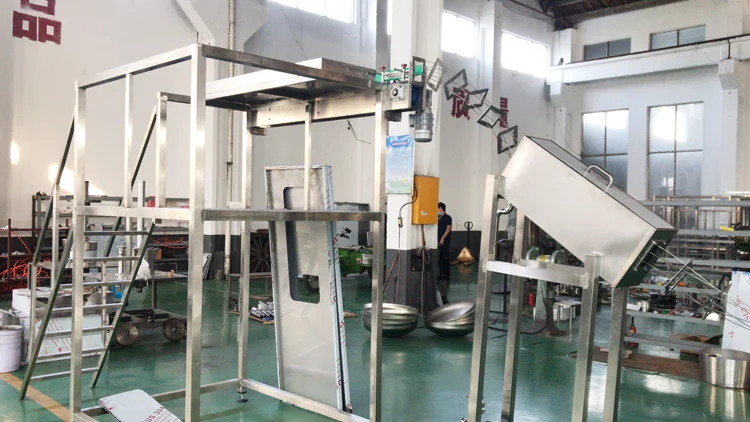

Beer Can Depalletizer

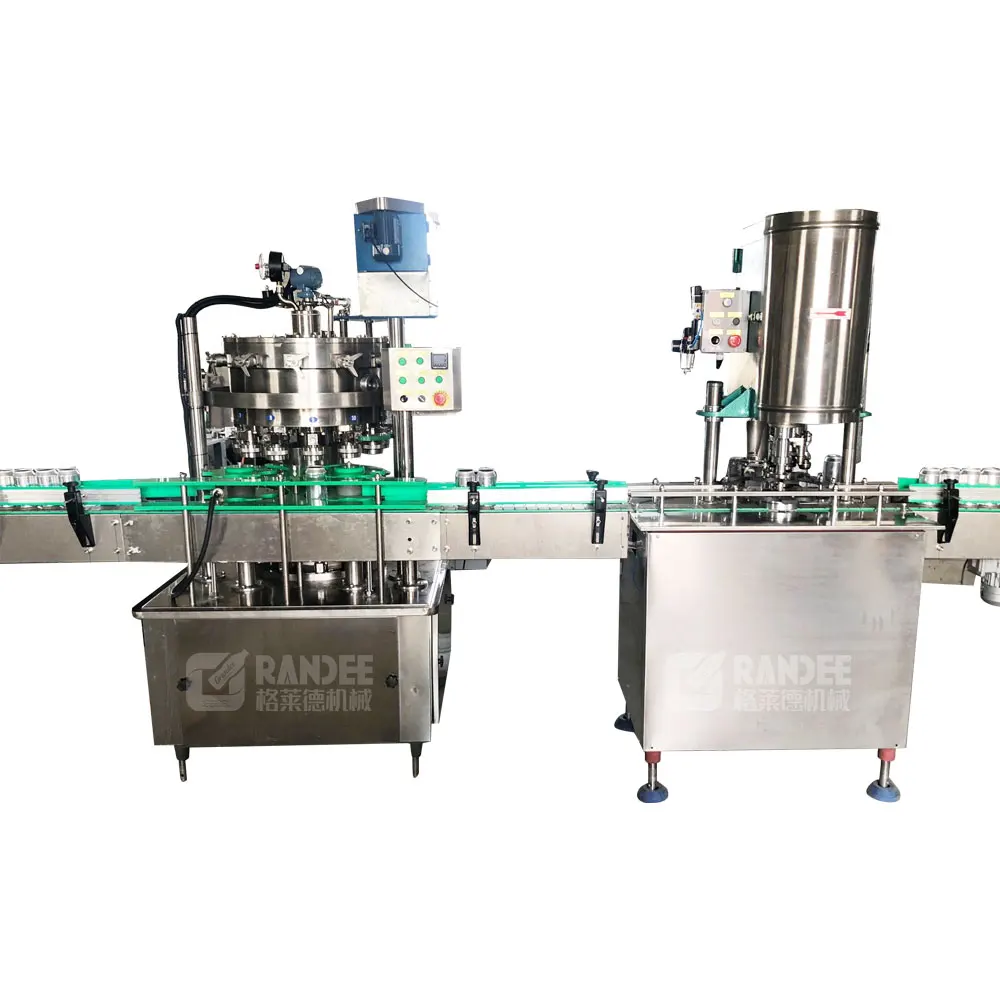

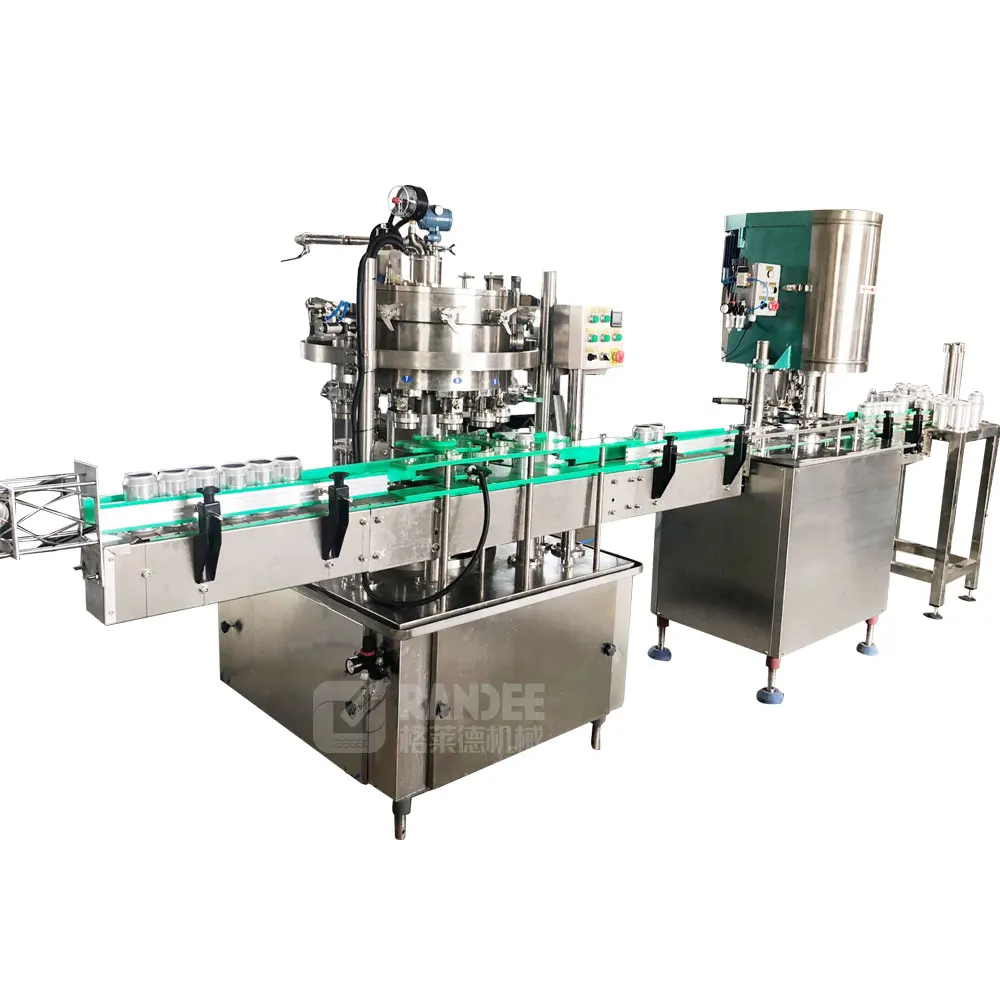

Carbonated Beverage Can Filling and Sealing Machine

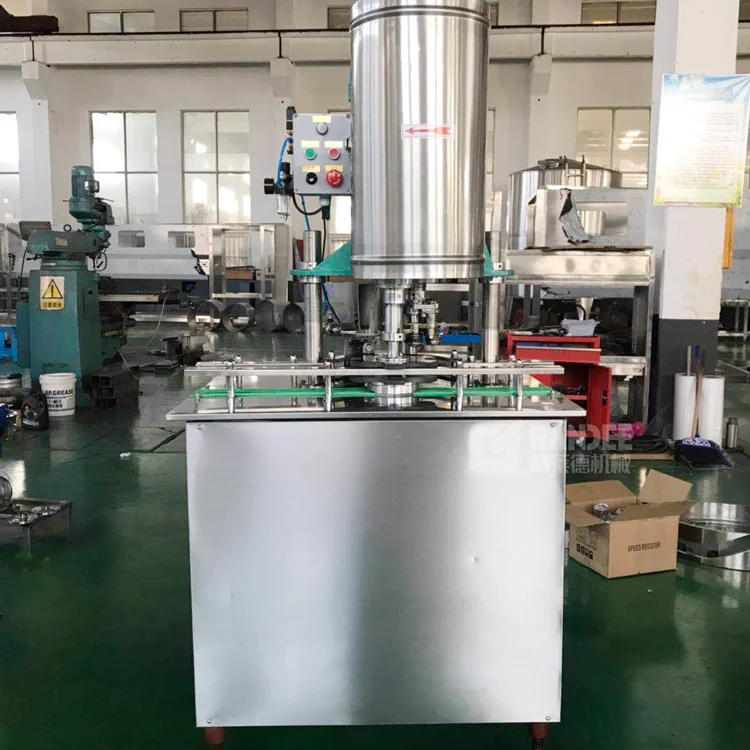

Aluminum Can Sealing Machine
Technical Data:
Type | Capacity (BPH) | Can size (ML) | Motor power (KW) | Dimension (MM) | Weight (KG) |
XGJ | 1000-2000 | 250-750 | 0.37 | 1200x1200x1680 | 200 |
GD-12 | 1000-2000 | 250-750 | 1.5 | 1200x1280x1980 | 300 |
FX-1 | 1000-2000 | 250-750 | 0.75 | 930x700x2130 | 200 |
Detailed Images
Can washing machine The spray can washing machine automatically sprays and sterilizes the inner and outer surfaces of the cans. All materials are stainless steel 304. When flushing the can, first turn the empty can into the can washer, spray it through a porous warm water pipe to the side and downward, and the empty can rotates 0.5 meters to achieve the purpose of cleaning, then come with turning over can into the next conveyor chain. Note that the can should not be interrupted in the slideway to prevent can from being fast and the water can not drained out completely. |  |

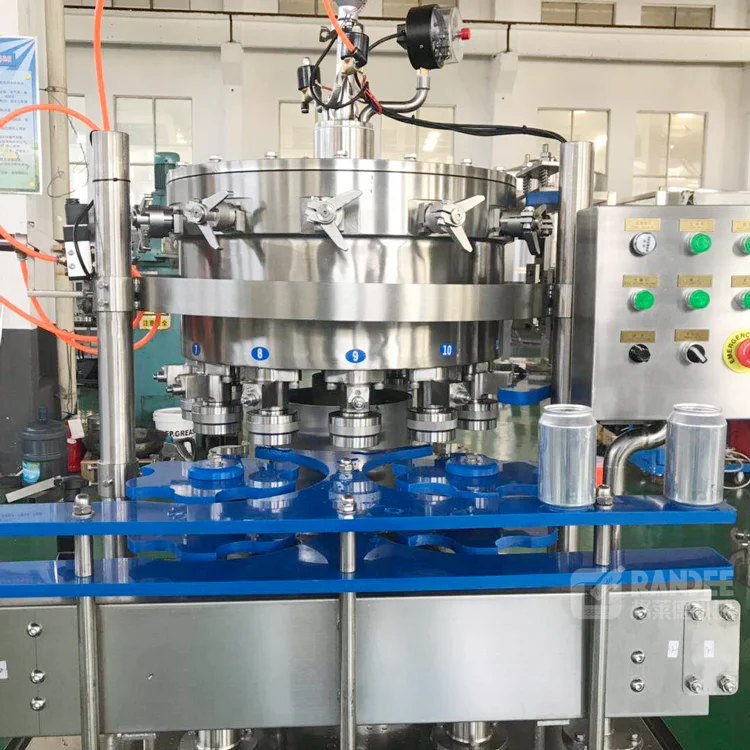

 | Can filling machine Adopt PLC, frequency converter and man-machine interface control system. It has advanced control technologies such as variable frequency speed regulation, automatic filling with cans, no filling without cans, etc. Through various sensors on the device, the accurate production speed and production quantity can be displayed on set it on the touch screen |
Can sealing machine The finished cans are sent to the sealing machine head via a hook chain, and the lid is sent to the mouth of the tank through the cap feeder. When the can supporting mechanism is raised, the indenter presses the mouth of the can, and the sealing wheel is pre-sealed and sealed. After the can is sealed, it is pushed out by the canning mechanism to complete the process of filling and sealing the can. |  |
| Carbonated drink mixing system Blending tank, syrup melting boiler, syrup filter, UV, double filter, carbonation mixer, water chiller, CIP system, etc...
|
Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable soda water or carbonated drink filling machine or complete production line?
A1: Looking for carbonated beverage filling machine in www.grandeemachine.en.alibaba.com
Q2: How to start a soda water factory business ? What's my budget?
A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 10000liters/hr,etc.
Q3: How to confirm the bottle shapes that is very attractive for your customer ?
A3: Confirm the plastic bottle size is 355ml, 500ml, 1000ml,1500ml or 2000ml, then our engineer can design the bottle shapes for you.
Q4: Which kinds of machines included in one complete soda water production line?
A4: PE Resin, injection molding machine, automatic or semi auto plastic blowing molding machine, RO water treatment plant, beverage processing machine, carbonation mixer, water chiller carbonated filling machine, bottle warming machine, sleeve shrink labeling machine or self adhesive labeling machine or OPP labeling machine or rotary labeling machine, semiautomatic or full automatic L type shrink packing machine, high speed shrink packing machine, laser or ink printer, palletizer, pallet wrapping machine.
Q5: Are you a trading company or a manufacturer?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q7: If you buy our machines, can you offer us wear-out spare parts?
A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
