Характеристики

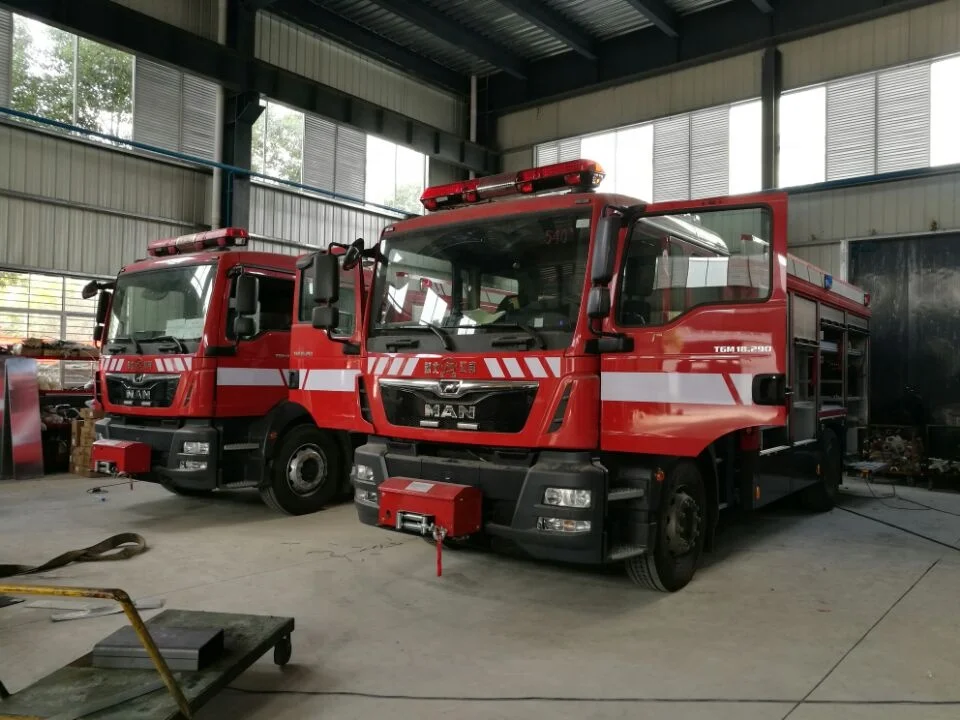

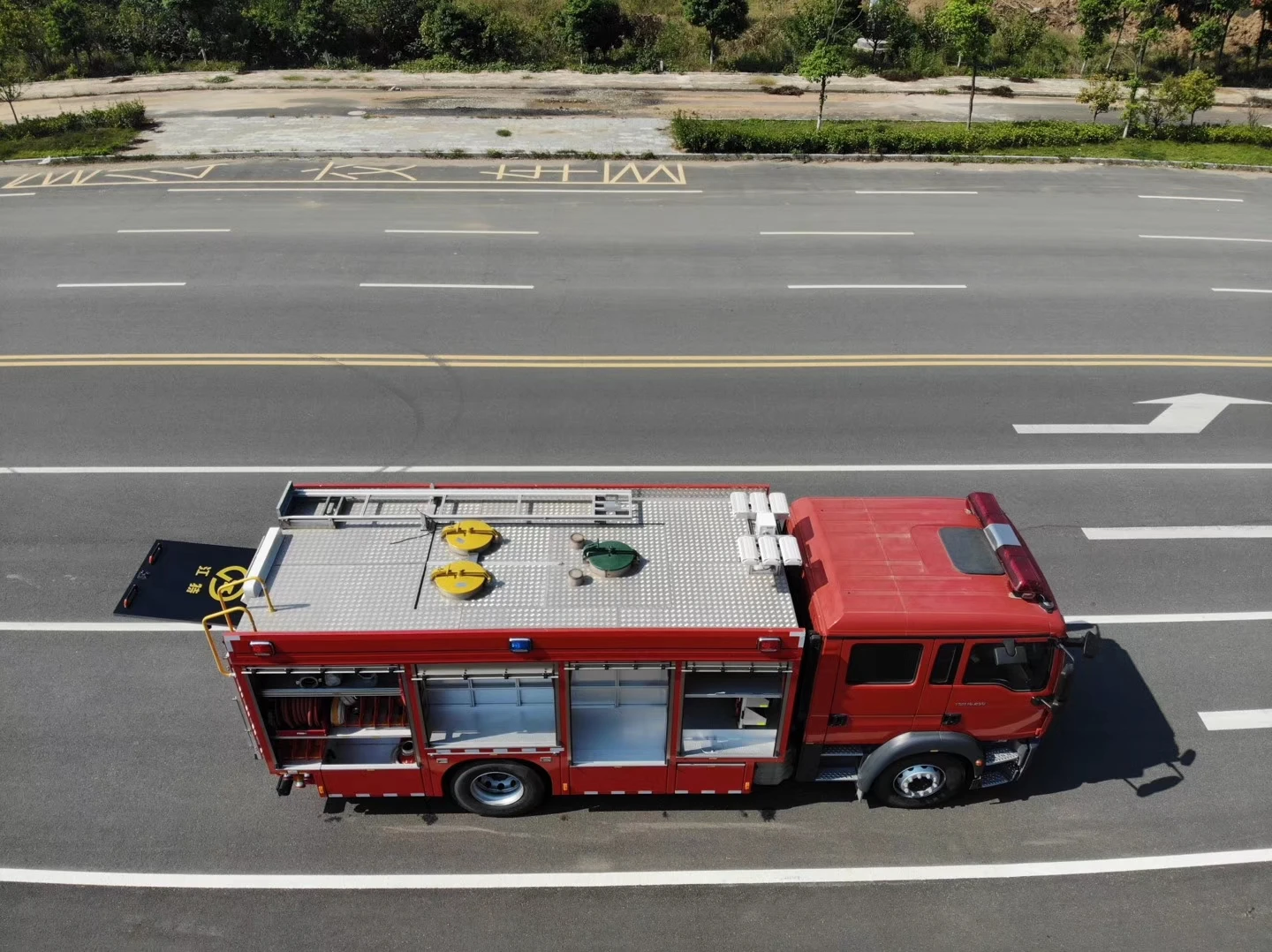

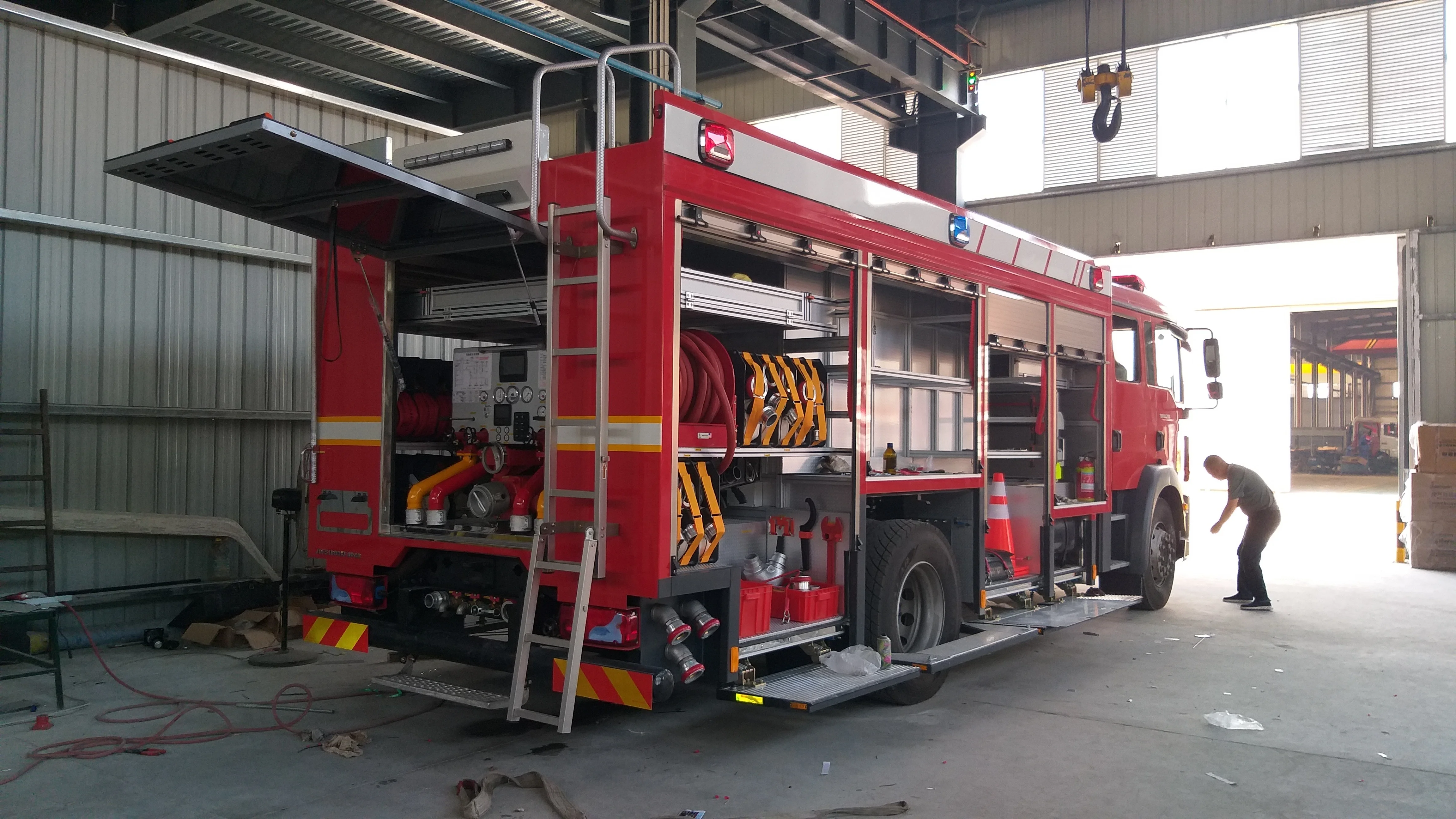

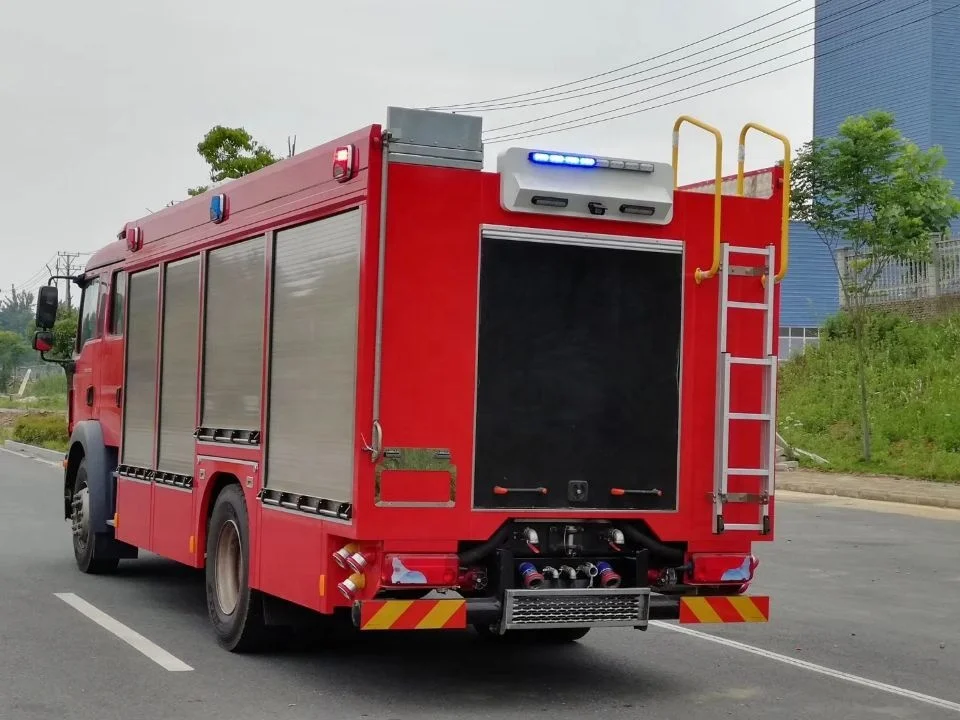

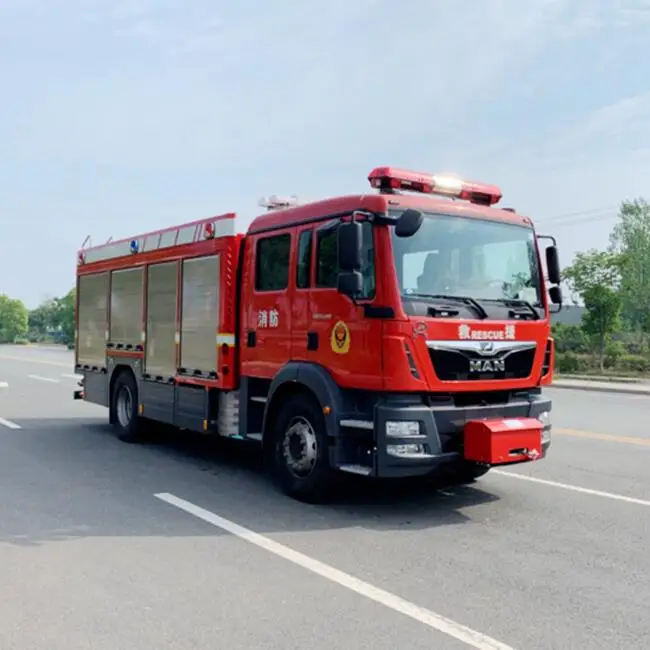

German MAN CAFS fire truck is built on the chassis of TGM18.290 fire truck manufactured by German Man Group. The fire truck consists of crew room and truck body. The crew room is the factory original double raw driving cab which can take 4 crews. The truck is of internal tank structure. The front parts is the equipment box, the middle is the tank, two sides of the tank are equipment boxes, and the rear parts is the pump room. The tank is made of 304 stainless steel tank connected elastically with the chassis. The water tank capacity is 3000kg and the foam tank capacity is 1000kg. Equipped with Compressed Air Foam System used by MicroCAFS3000 fire truck, with rated flow of 50L/S, and 8 CAFS foam nozzle. A 380M hose can be laid up the fire stairs to support two 400L/min flow water nozzle to fight the fire simultaneously using CAFS, with the end muzzle pressure of 5bar. It is widely used by underground, petroleum, chemical, large shopping malls, high-rise residential buildings, cultural relics, railway stations and docks.It is especially water and foam saving, efficient and environment friendly, without any secondary damage. The CAFS is easily operational and maintenance-free. CAFS can be released with one key, and there is no need to clean the foam pump after use.
Advantages of CAFS compressed air foam system for fire fighting vehicles
1. Fast fire extinguishing speed, low reignition, fire extinguishing efficiency increased 5-8 times;
2. Small water damage, easy to protect the scene and fire investigation and evidence collection;
3. Keep the foam for a long time, with good fireproof effect and good smoke cover and barrier;
4. Low loss along the path, light weight of hose, less physical exertion and stronger mobility of firefighters;
5. Under the same flow and pressure conditions, the range is longer, and the vertical fluid supply can reach about 350 meters.
Technical Data | ||||||
Name | Germany MAN 5-Ton CAFS Fire Truck | Dimensions | 9110×2500×3390(mm) | |||

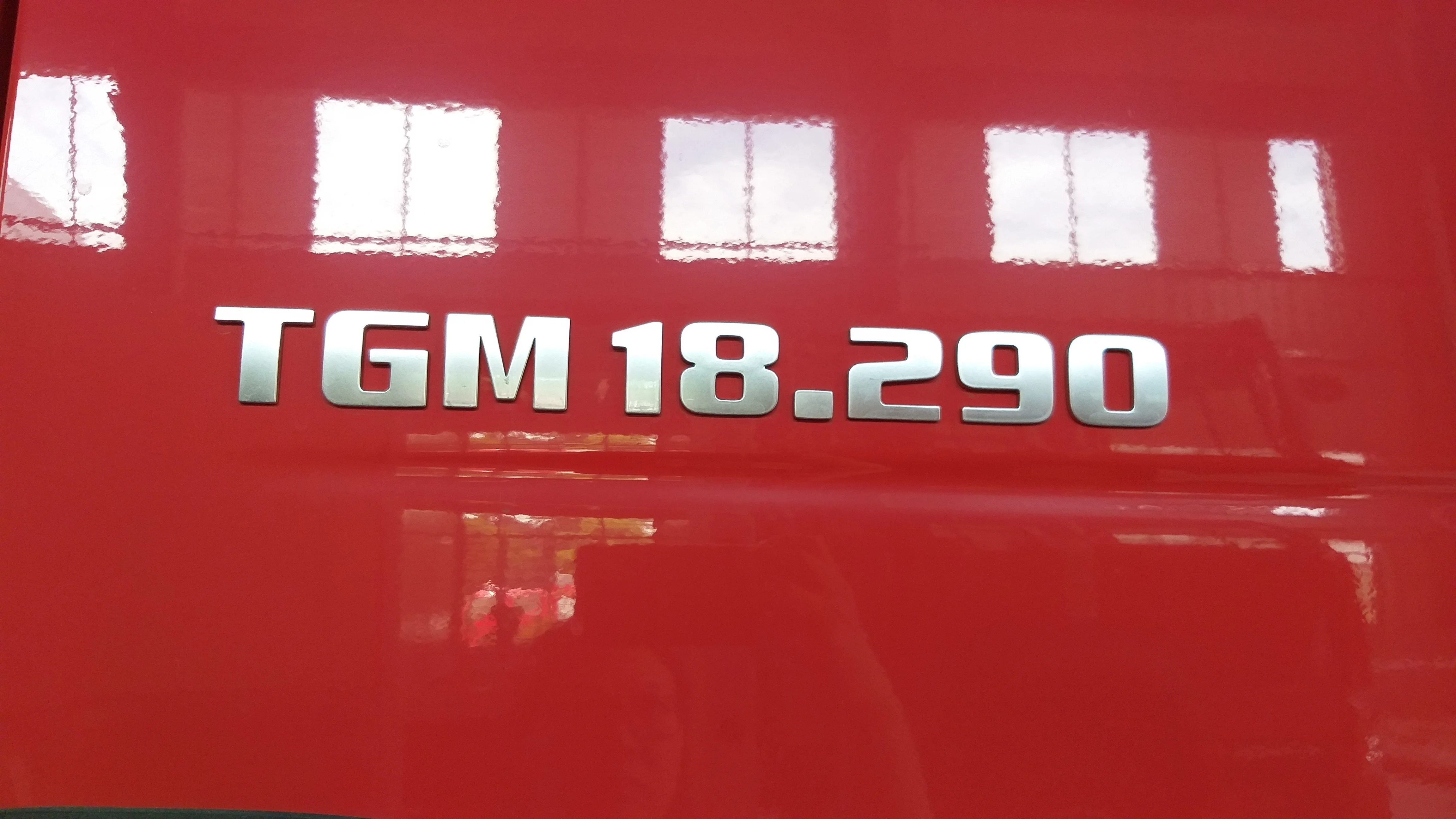

Chassis type | Germany MAN TGM18.290 | Approach/Departure angle | 20/10(°) | |||
Gross weight | 15600(Kg) | Rated load weight | 4350(Kg) | |||
Curb weight | 10800(Kg) | |||||
Chassis | ||||||
Engine | D0836LFLAL | Manufacturer | Germany Man Group | |||
Displacement | 6871 ml | Output power | 216 kw ( 294 hp) | |||
Emission standard | Euro 5 | Top speed | 95(km/h) | |||
Axle number | 2 | F tread | 2066(mm) | |||
Wheelbase | 4725 | R tread | 1802(mm) | |||
Tyre number | 6 | Tyre specification | 295/80 R22.5 | |||
Fuel type | Diesel | Spring plate number | 1/3 | |||
Axle load | 5900/9700 | Crew | 2+4 | |||
Extinguishing System | ||||||
Pump | MicroCAFS3000 | Pump flow | 50L/S 1.0Mpa | |||
Fire monitor | PS60W | Fire monitor flow | ＞1000 L/m | |||
Fire nozzle pressure | ＞6 bar | |||||
1. System introduction:
CAFS, the system that produces commercial-quality CAFS (compressed air foam), USES a mixture of backward suction at different flow
outlets, mixes water, foam and pressurized air with active mixing technology, decompresses the spray foam, and then realizes the
application of multiple injection devices through a casing system.
The foam generating efficiency achieved by the system enables CAFS foam to form homogeneous and stable strong heat dissipation
structure, which is suitable for solid and liquid fire, and can quickly realize heat exchange and achieve rapid cooling effect.
The world's only integrated system, easy to install and control, the whole time access to the fixed system. Can be used according
to the plateau, shore-based, extremely cold, unmanned and other special environment. The only CAFS in the world with flows from 10
to infinity.
2. System advantages:
(1) revolutionary hybrid control technology
High - end German process control system for fire pump results. To realize the high precision mixing of water and foam CEP fire
extinguishing design, without considering the type of foam stock, not affected by water source and consumable, suitable for fresh
water, medium water, seawater and all foam fire stock.
(2) active foam pipeline mixing technology
Different from the passive mixing mode of reverse suction, the active mixing technology can realize the foam decompression and
reduction, increase the number of foam sales, so that the foam pressure loss is zero, multi-form nozzle, and no special design is
required.
(3) compressed air technology
Unique closed pipeline design in compressor. The compressed air and mixture form a two-direction flow with compressed air with
zero turbulence and zero pressure loss, which can automatically adjust the pressure and increase the flow, and finally form a
homogeneous foam that breaks through the traditional form and improves the fire-extinguishing efficiency of foam.
(4) no maintenance, no cleaning, simple care.
CAFS, the system that produces commercial-quality CAFS (compressed air foam), USES a mixture of backward suction at different flow
outlets, mixes water, foam and pressurized air with active mixing technology, decompresses the spray foam, and then realizes the
application of multiple injection devices through a casing system.
The foam generating efficiency achieved by the system enables CAFS foam to form homogeneous and stable strong heat dissipation
structure, which is suitable for solid and liquid fire, and can quickly realize heat exchange and achieve rapid cooling effect.
The world's only integrated system, easy to install and control, the whole time access to the fixed system. Can be used according
to the plateau, shore-based, extremely cold, unmanned and other special environment. The only CAFS in the world with flows from 10
to infinity.
2. System advantages:
(1) revolutionary hybrid control technology
High - end German process control system for fire pump results. To realize the high precision mixing of water and foam CEP fire
extinguishing design, without considering the type of foam stock, not affected by water source and consumable, suitable for fresh
water, medium water, seawater and all foam fire stock.
(2) active foam pipeline mixing technology
Different from the passive mixing mode of reverse suction, the active mixing technology can realize the foam decompression and
reduction, increase the number of foam sales, so that the foam pressure loss is zero, multi-form nozzle, and no special design is
required.
(3) compressed air technology
Unique closed pipeline design in compressor. The compressed air and mixture form a two-direction flow with compressed air with
zero turbulence and zero pressure loss, which can automatically adjust the pressure and increase the flow, and finally form a
homogeneous foam that breaks through the traditional form and improves the fire-extinguishing efficiency of foam.
(4) no maintenance, no cleaning, simple care.
