Характеристики
Production Description
BB series centrifuge is top discharging, hermetic closure type equipment, for plant material extraction from ethanol.
The dry material is put into the bag, and dip in ethanol, flood and do bi-direction wash, and then spin. The working temperature can be as low as -80 ℃, to prevent the ethanol from volatilization.
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate
counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Process overview
The BB series centrifuge is top discharging, floodable jacketed hermetic closure type equipment, with flat bottom basket. The dry material dip in ethanol to flood and wash in two directions, and then spin in one direction. The working temperature can be as low as -80 ℃, to prevent the ethanol from volatilization.
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate
counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Operator fills filter bag with milled plant material and places it in the machine.
The centrifuge is then flooded, and bi-directional agitated for full target compound removal.
After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible.
The alcohol wash is then collected to some container for further processing.
Technical parametersTechnical parameters
The dry material is put into the bag, and dip in ethanol, flood and do bi-direction wash, and then spin. The working temperature can be as low as -80 ℃, to prevent the ethanol from volatilization.
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate
counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Process overview
The BB series centrifuge is top discharging, floodable jacketed hermetic closure type equipment, with flat bottom basket. The dry material dip in ethanol to flood and wash in two directions, and then spin in one direction. The working temperature can be as low as -80 ℃, to prevent the ethanol from volatilization.
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate
counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Operator fills filter bag with milled plant material and places it in the machine.
The centrifuge is then flooded, and bi-directional agitated for full target compound removal.
After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible.
The alcohol wash is then collected to some container for further processing.
Technical parametersTechnical parameters
Model | Motor power (kw) | Max capacity per batch (kg/pound) |
BB-30 | 3.7 | 17/35 |
BB-100 | 7.5 | 50/110 |
BB-150 | 11 | 80/170 |
BB-200 | 11 | 125/280 |
Our obligation
For requirements of markets, our team design and manufacture the centrifuge to carry out oil extration. We are also develping the whole system, which includes:
1. Vessels
2. Centrifuges
3. Filters
4. Tanks
5. Desillation equipments like single effectives evaporators, short parth desillation, rotary disillation equipments.
6. Cooling towers, chillers
7.Valves, pumps, connections, etc.
Features
304 and 316L Sanitary Stainless Steel Construction
Low temperature rating: -40C~-80C
Reinforced Sight Glass
Bi-Directional Agitation
Auto/Manual Controls
Digital HMI Interface
Variable Speed Control
Easy Material Loading/ Unloading
Heavy-Duty Spin Drying
No foundation required
Our advantages
1.Cold temperature operation
2.High recovery rate till 90%+
3.Variable capacity from 10 pounds till 280pounds per batch
4.Less labor needed
5. Low power consumption
6.Small loss
7. A to Z complete line provider
8.Commissioning and training
Application
1. Low temperature ethanol extraction
2.Trim and leaf extraction
3.Any dry biomass extraction
For requirements of markets, our team design and manufacture the centrifuge to carry out oil extration. We are also develping the whole system, which includes:
1. Vessels
2. Centrifuges
3. Filters
4. Tanks
5. Desillation equipments like single effectives evaporators, short parth desillation, rotary disillation equipments.
6. Cooling towers, chillers
7.Valves, pumps, connections, etc.
Features
304 and 316L Sanitary Stainless Steel Construction
Low temperature rating: -40C~-80C
Reinforced Sight Glass
Bi-Directional Agitation
Auto/Manual Controls
Digital HMI Interface
Variable Speed Control
Easy Material Loading/ Unloading
Heavy-Duty Spin Drying
No foundation required
Our advantages
1.Cold temperature operation
2.High recovery rate till 90%+
3.Variable capacity from 10 pounds till 280pounds per batch
4.Less labor needed
5. Low power consumption
6.Small loss
7. A to Z complete line provider
8.Commissioning and training
Application
1. Low temperature ethanol extraction
2.Trim and leaf extraction
3.Any dry biomass extraction

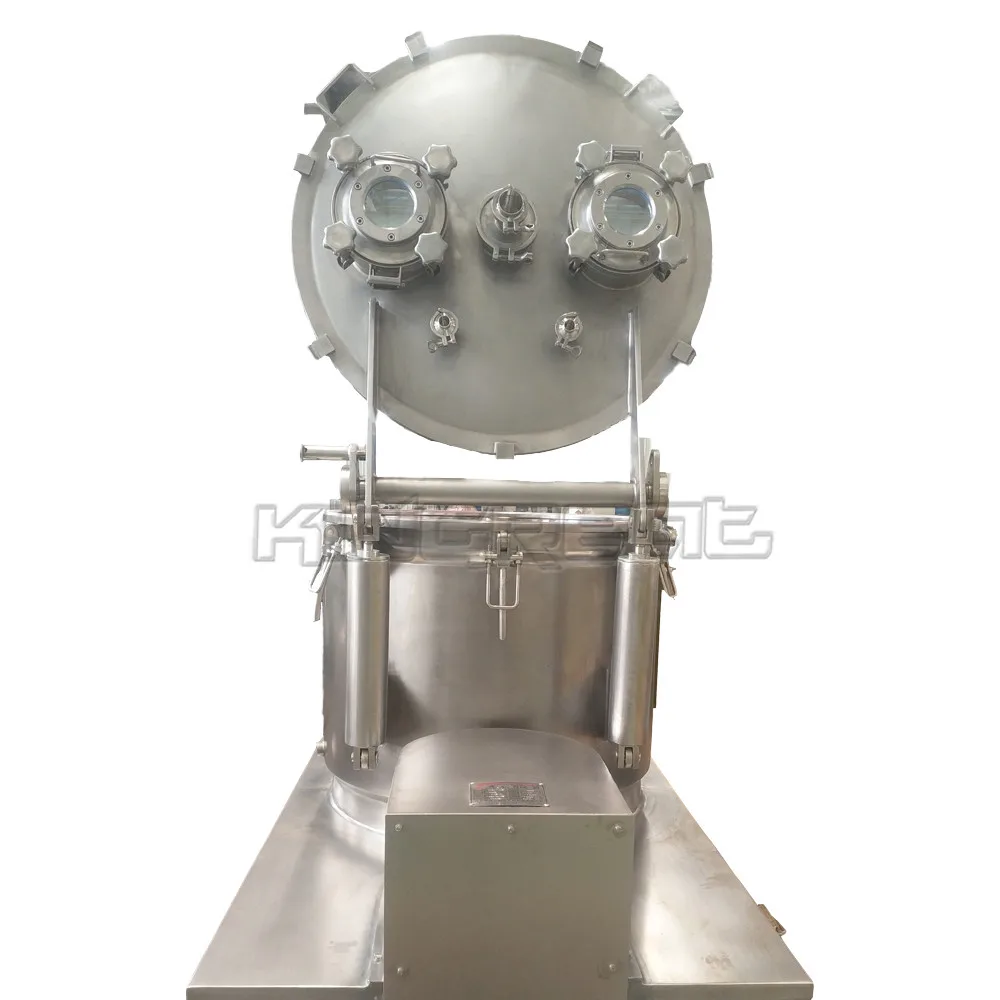

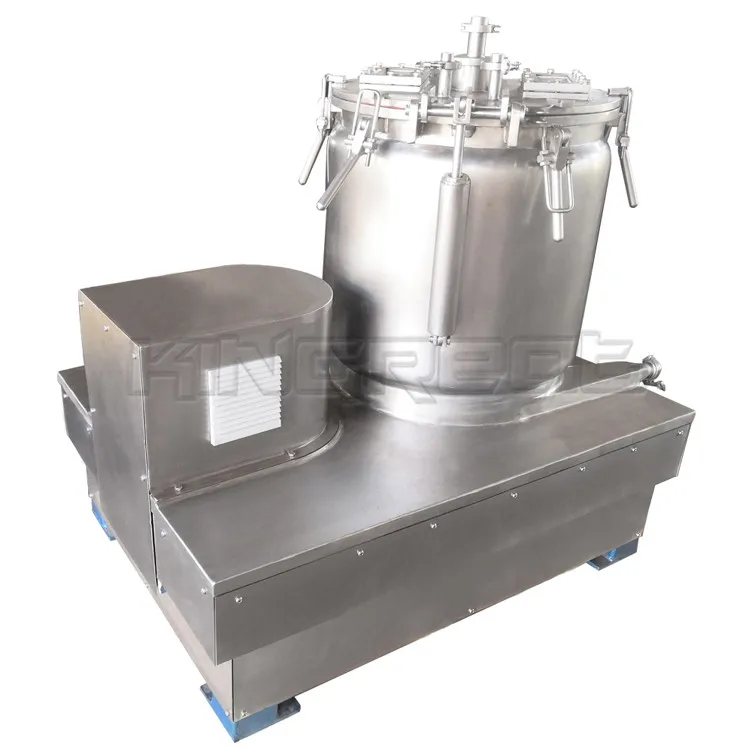

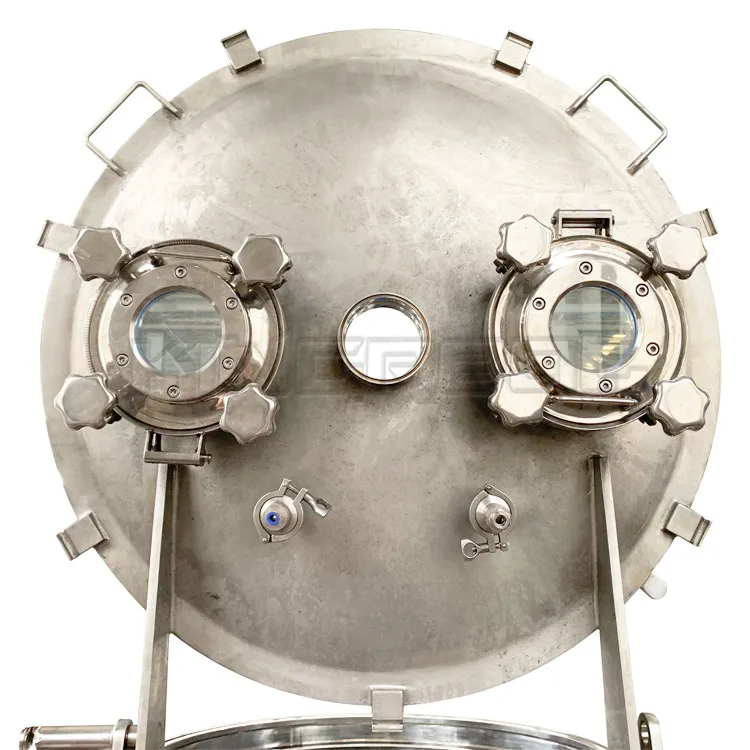

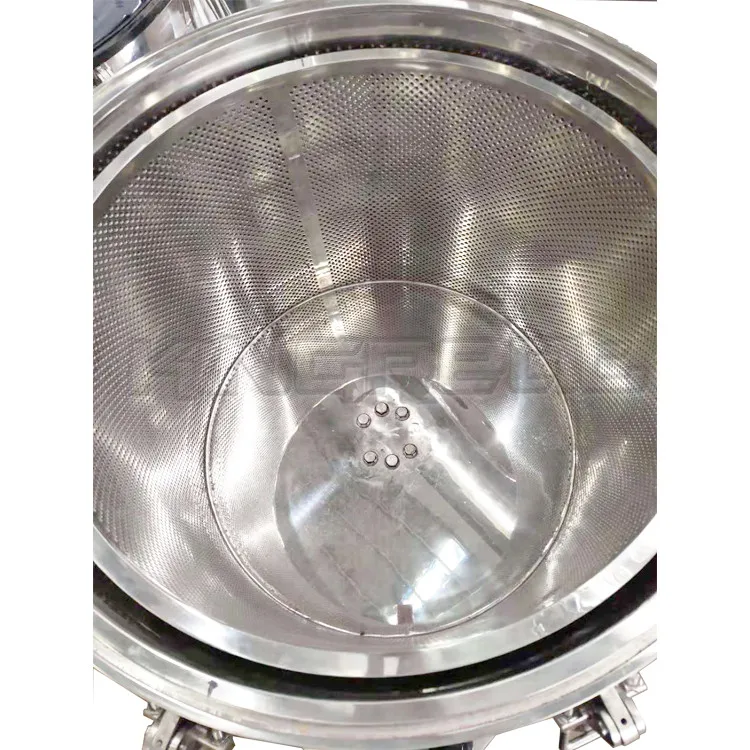

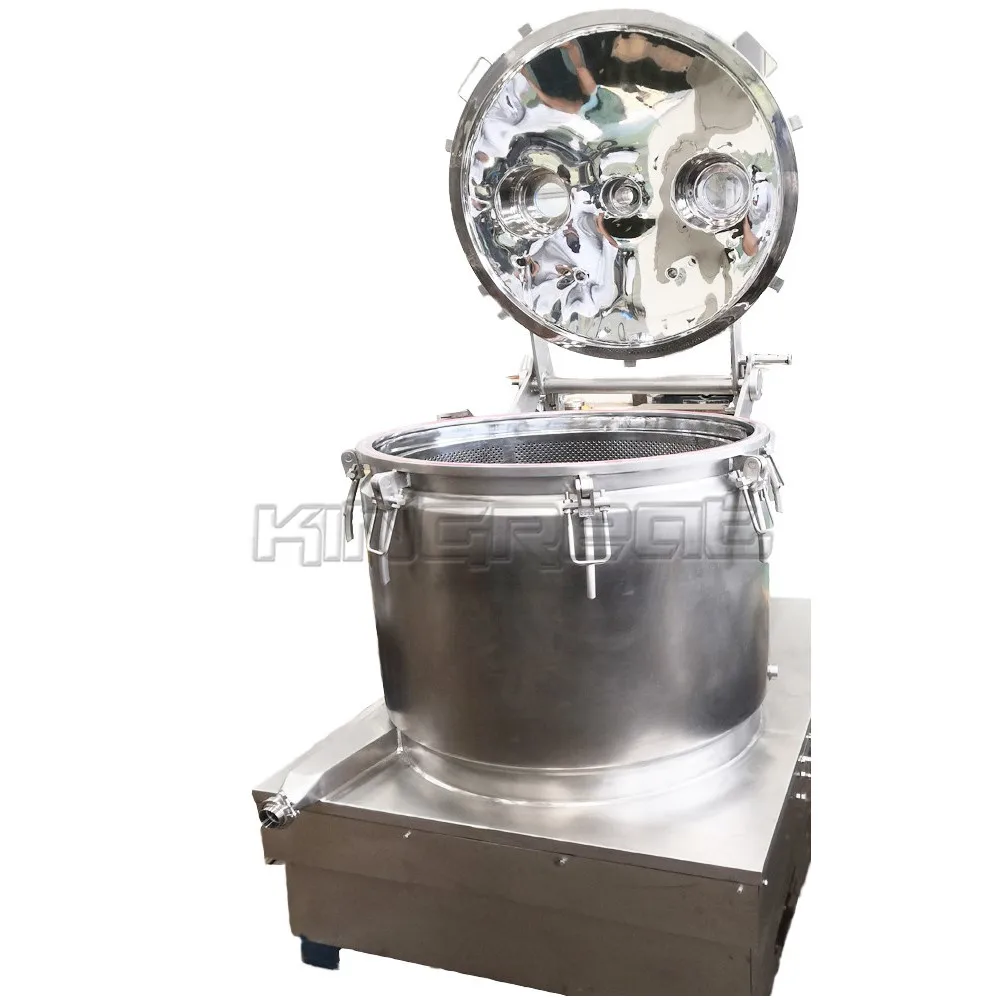

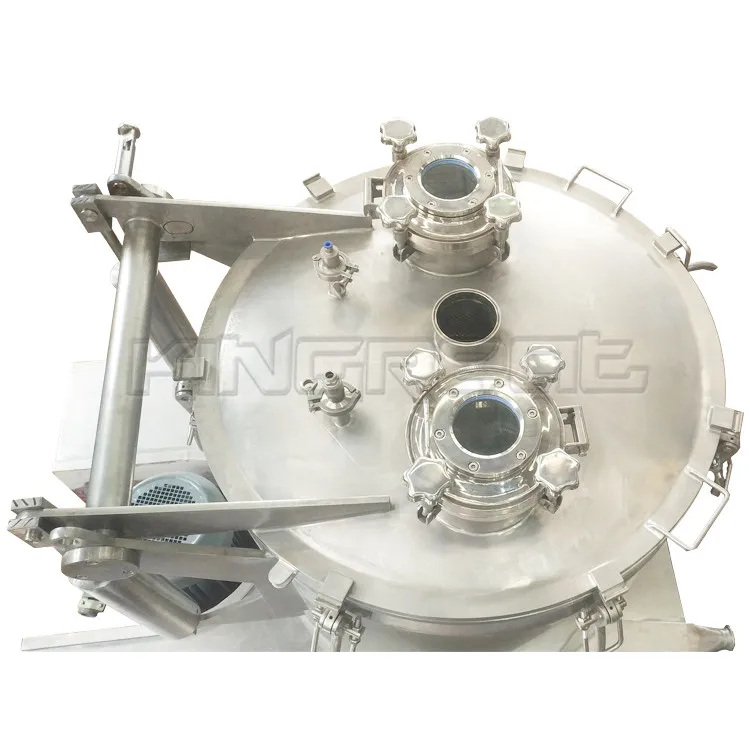

Detailed Images
Packing & Delivery
Customer Photo
Favorable Comment
Good quality!
Easy operation!
In time delivery time!
Nice service!
-------Drew Stephen from USA
Favorable Comment
You are my good friend in China,I will work together with you!
--------Daniel from Brazil
Favorable Comment
Hey guys! It is unbelievable good ! I never depend on such good machine from China!!
-------Vladvoksi from Russia
Our Certifications
Our Exhibition
FAQ
1. How can we visit your factory?
- If you come from aborad, air to shanghai or nanjing airport, or if you arrive shanghai, you can take bullet trian
- If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station
2. Can we visit your end user or contact them?
Yes, we will provide you the name list, and arrange the visit after their approval.
3. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we will upon required.
5. What is your advantage compared with your competitors?
Quality and experience, we are top centrifuge supplier in China,our designs and structures
are analogous to world leader brands.
6. Is your price competitive?
My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the
most favorable, for the same price, my quality is definately superior to other brands
7. Do you have OEM service? Do you sppply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements
8. Do you supply second hand equipments?
No, we don't.
9. Do you have agents or service centre abroad?
We have some partership in several countries as Indonesia, Brzil, USA.
10. What payment mode you accept?
TT, and LC at sight
11. Will you help to go to our site for commissioning and training?
Yes, we can.
Transaction history
Related Products
Our Company
Nanjing Kingreat Machinery Co., Ltd, covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate, BV and CE certificates. Some of our machines gained the new technology invent patent.
We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.
