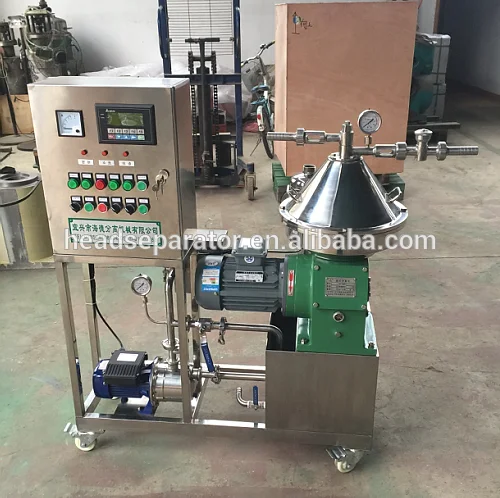

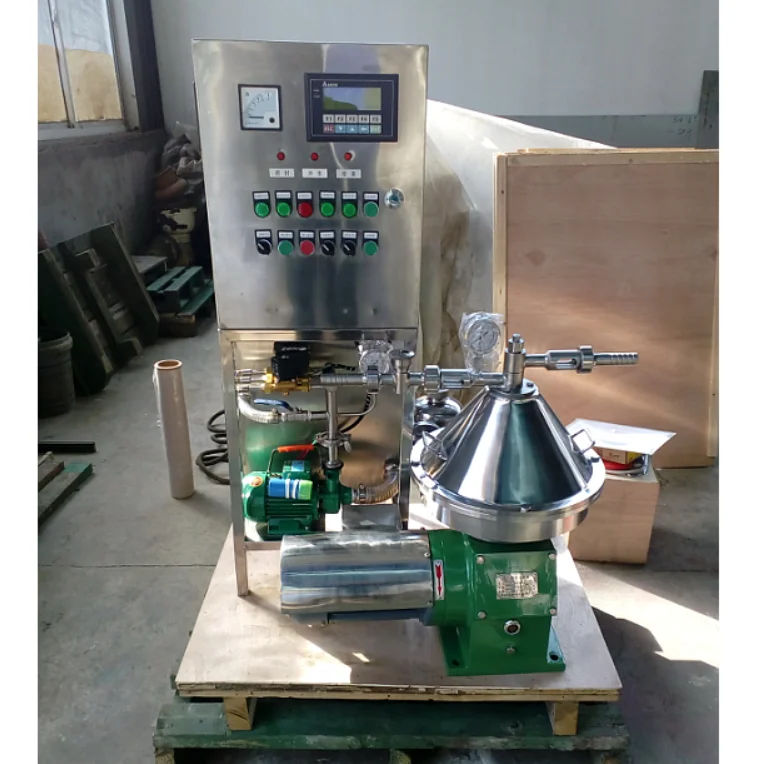

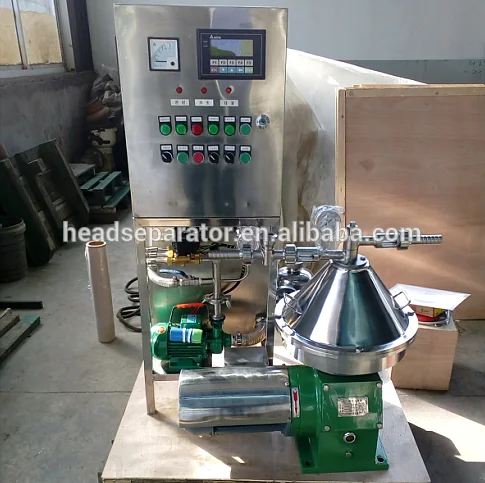

PJLDH-5  beverage separator is the most important equipment

in dairy industry. Mainly used in the purified beverage, and

removal of foreign impurities in the milk. Similar materials

 can also be used for clarification and purification.

 This product absorbs the advantage of the same kind

 foreign product in Germany and Russia. All the parts

 that may contact the feedstock are made of stainless

steel. Availably reduce the chemical effect of the feedstock

 and the machine spare parts.

  Power drive adopts the triction clutch, Transfer power by

the fluid, start reliably, prevent overland. The bearings used

the machineare SKF grade in Sweden., guarantee working

precision of the machine.

The separator adopts the PLC automatic control system,

can carry out automatic de-slugging, ability of fitness is

stronger, automatic degree is high. Easy to adjust, worker

 labor strength is opposite to ease, the solids content ratio in

the mixture fluid is widely.

When working,the sealing water 7 is bumped

Into the sealing room 6,rising the sliding piston,

and sediment ejection hole 3 is shutted down. then, Milk

 to be processed are fed to the bowl from feeding pipe 1, Under

 the effects of centrifugal force, the solids which has heavier

 density is collectedon the bowl wall, After a while, the opening

water 7 is bumped into the opening room 5, falling the sliding

piston,open the sediment ejection hole 3, impurities are desluged

from the bowl. The lighter liquid (mikl) flow along the inner

side of the discs into the passage in the upper distributor,the

lighter liquid is discharged from the machine by the

centripetal pump2. Thus the milk is clarified well. The separator adopts self de-slugging and centripetal pump. Thus the machine can work continuously for a long time, attain good separation effects in long run.

When working,the sealing water 7 is bumped

Into the sealing room 6,rising the sliding piston,

and sediment ejection hole 3 is shutted down. then, Milk

 to be processed are fed to the bowl from feeding pipe 1, Under

 the effects ofcentrifugal force, the solids which has heavier

 density is collectedon the bowl wall, After a while, the opening

water 7 is bumped into the opening room 5, falling the sliding

piston,open the sediment ejection hole 3, impurities are desluged

from the bowl. The lighter liquid (mikl) flow along the inner

side of the discs into the passage in the upper distributor,the

lighter liquid is discharged from the machine by the

centripetal pump2. Thus the milk is clarified well. The separator adopts self de-slugging and centripetal pump. Thus the machine can work continuously for a long time, attain good separation effects in long run.



Mainly technology data

Bowl	mm	230	Bowl speed	r/min	7546
Product	L/h	500	Power	KW	1.5
Output mode	centripetal pump		Output pressure	MPa	0.25
De-sluggingmode	PLC		Impurity in clarified milk		≤2mg/kg, ≤2μmm
Height	Kg	120	Overall dimension	L*W*H	700*550*800
