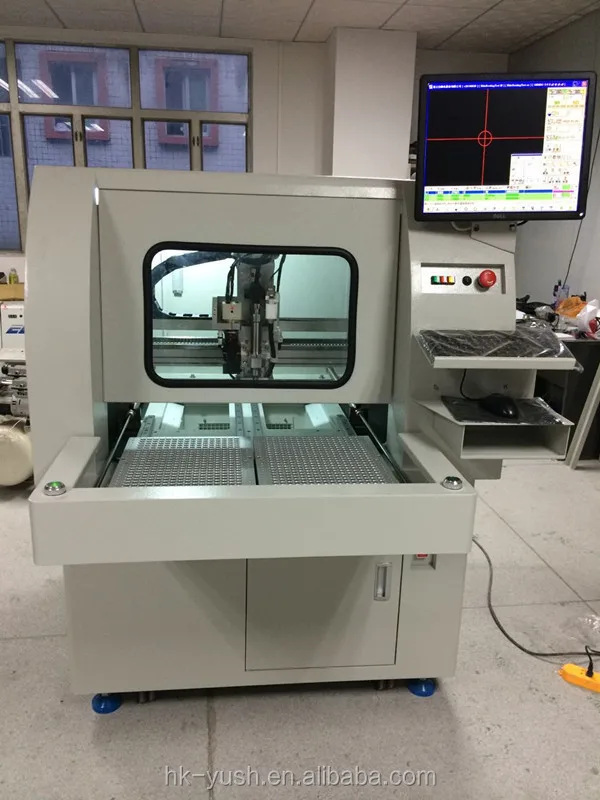

PCB Separator Cutting Machine - YSVC-650

Dimensions (W * D * H) 1220mm * 1450mm * 1420mm
Weight 550KG
Height offset 60 ~ 110mm
Manipulator
Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area (max) 680mm * 360mm * 50mm

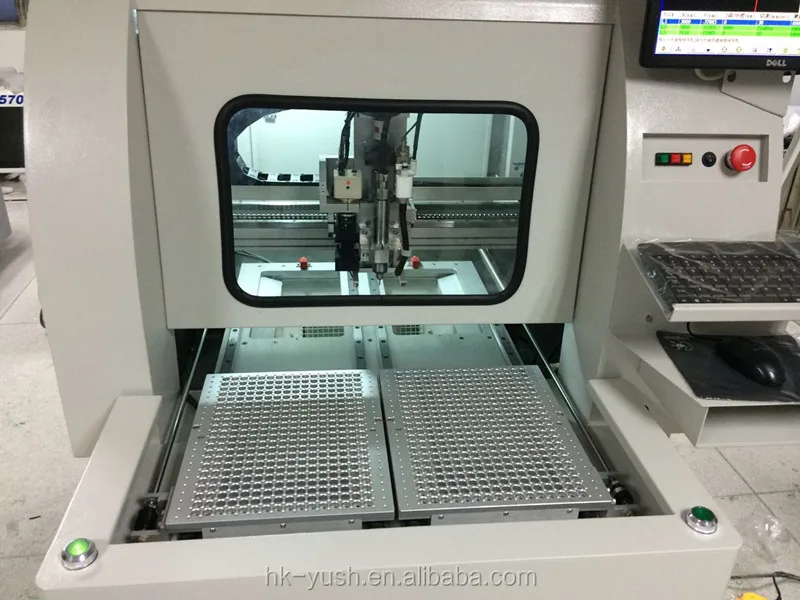

Work station (table)
PCB fixation standard, specialization
PCB loading / unloading manual
PCB size (max) 322mm * 322mm
PCB thick (max) 5mm
Fixturing (fixture)
Rigidity fixturing standard
Fixturing fixation machinery
Spindle Motor (spindle)
Power 400W
Spindle 50000rpm / min
Protect self / wind cooling
Change cutter Specialization

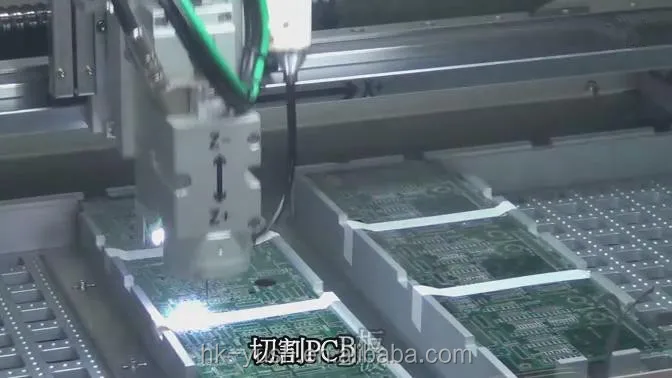

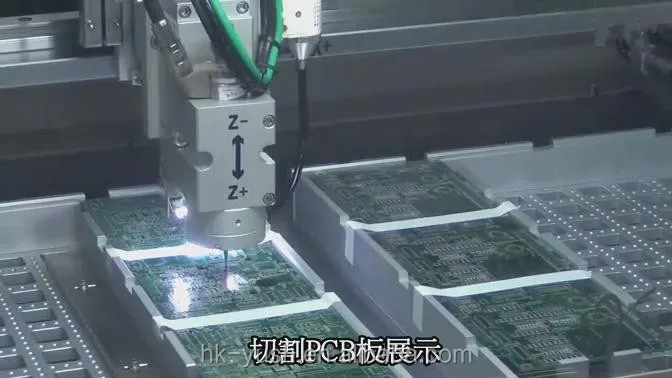

Routing capability
Cutting speed (max.) 100mm / s
Driving speed (max.) 3000mm / s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 2.2KW AC 380V
Vacuum plumb
Utilities
Power 2.2KW AC380V
Air supply (pressure) 2 ~ 5KG / cm2
Programming (program)
Program edit Inline
Function edit Line, arc, circula, U-curve
Program storage HDD

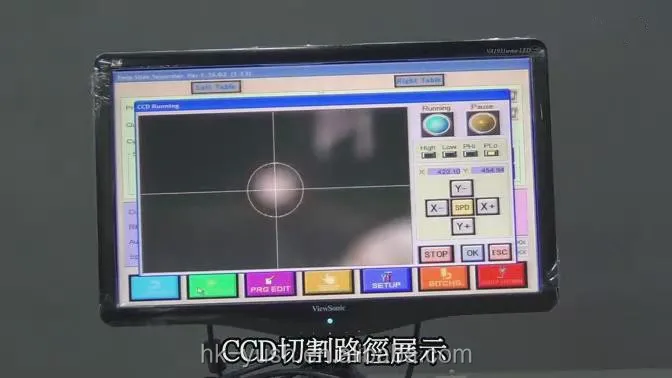

Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button
