Характеристики
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t
Definition

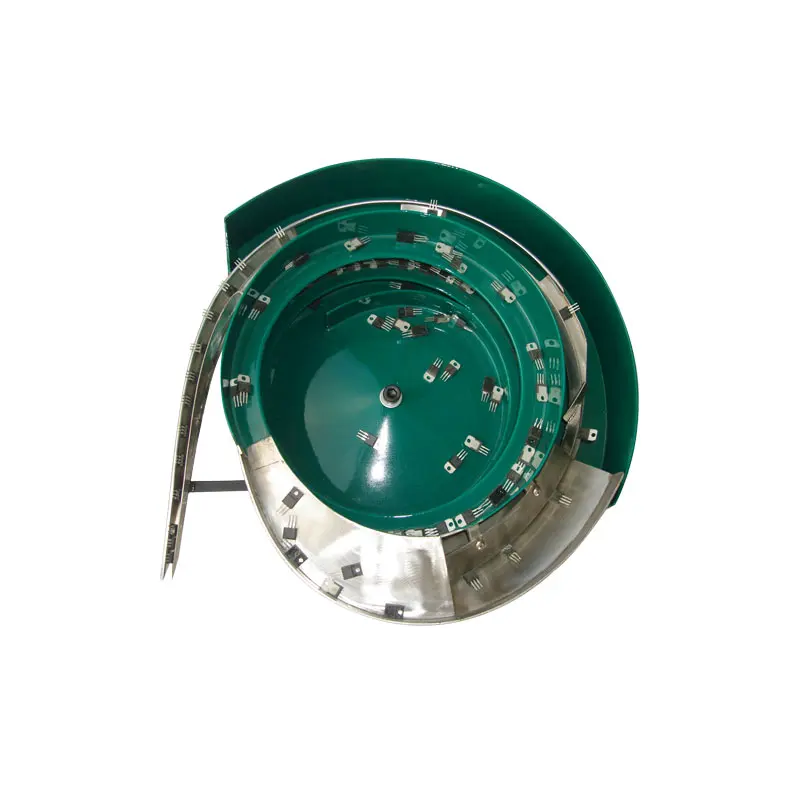

Vibrating disc is an auxiliary feeding equipment for automatic assembly or automatic processing machinery. It can arrange all kinds of products in an orderly way, assemble all parts of the product together with automatic assembly equipment to form a complete product, or complete the processing of workpieces with automatic processing machinery.
\t\t\t\t\t\t\t\t\tShape and size \t\t\t\t\t\t\t
Working principle
There is a pulse electromagnet under the hopper of the vibrating disc, which can make the hopper vibrate vertically, and the hopper is driven by the inclined spring sheet to make torsional vibration around its vertical axis. The parts in the hopper rise along the spiral track due to this vibration. In the process of rising, after a series of track screening or attitude changes, parts can automatically enter the assembly or processing position in a unified state according to the requirements of assembly or processing. Its purpose is to automatically arrange the disordered workpieces in an orderly and directional manner and accurately convey them to the next working procedure by vibration.
There is a pulse electromagnet under the hopper of the vibrating disc, which can make the hopper vibrate vertically, and the hopper is driven by the inclined spring sheet to make torsional vibration around its vertical axis. The parts in the hopper rise along the spiral track due to this vibration. In the process of rising, after a series of track screening or attitude changes, parts can automatically enter the assembly or processing position in a unified state according to the requirements of assembly or processing. Its purpose is to automatically arrange the disordered workpieces in an orderly and directional manner and accurately convey them to the next working procedure by vibration.
Use and installation
Application industry

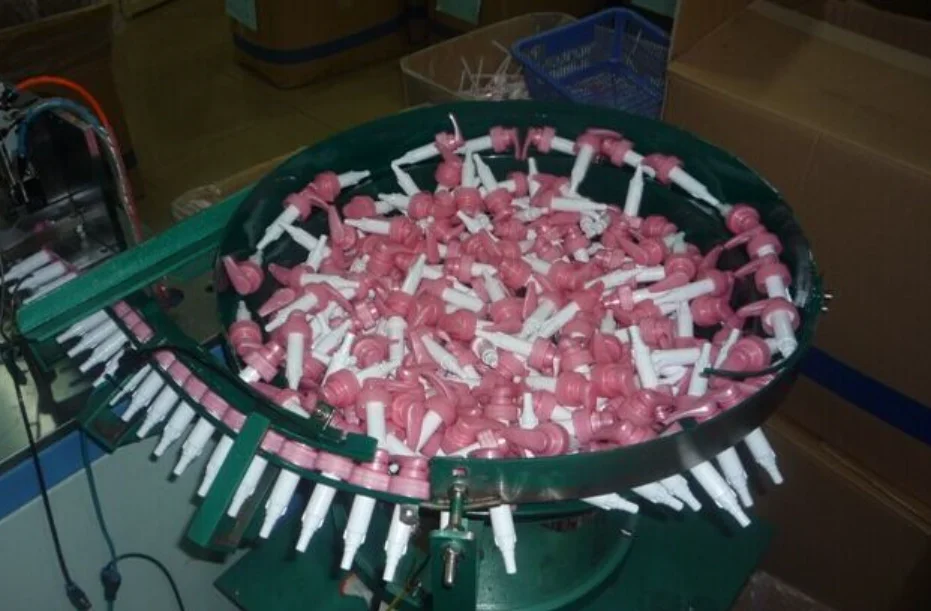

Vibrating discs are widely used in electronics, hardware, plastics, watches and clocks, batteries, food, connectors, medical devices, medicine, food, toys, stationery, daily necessities manufacturing and other industries. They are necessary equipment to solve the supply of industrial automation equipment. Vibrating disc is a modern high-tech product, which can be used for sorting, testing, counting and packaging besides satisfying the directional ordering of products.
classification

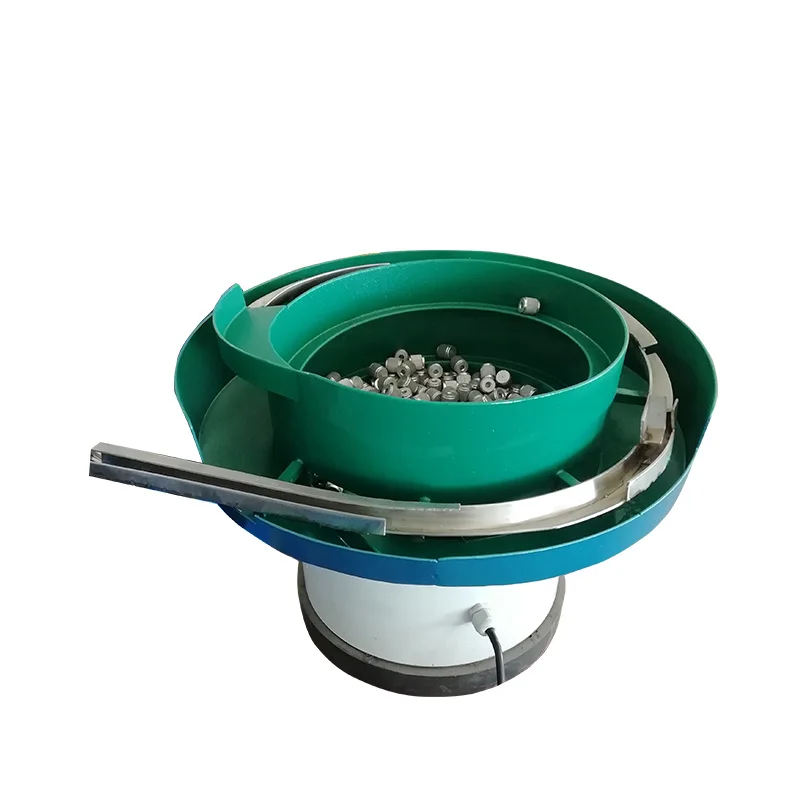

Composition of vibration plate: hopper, chassis, controller, linear feeder.

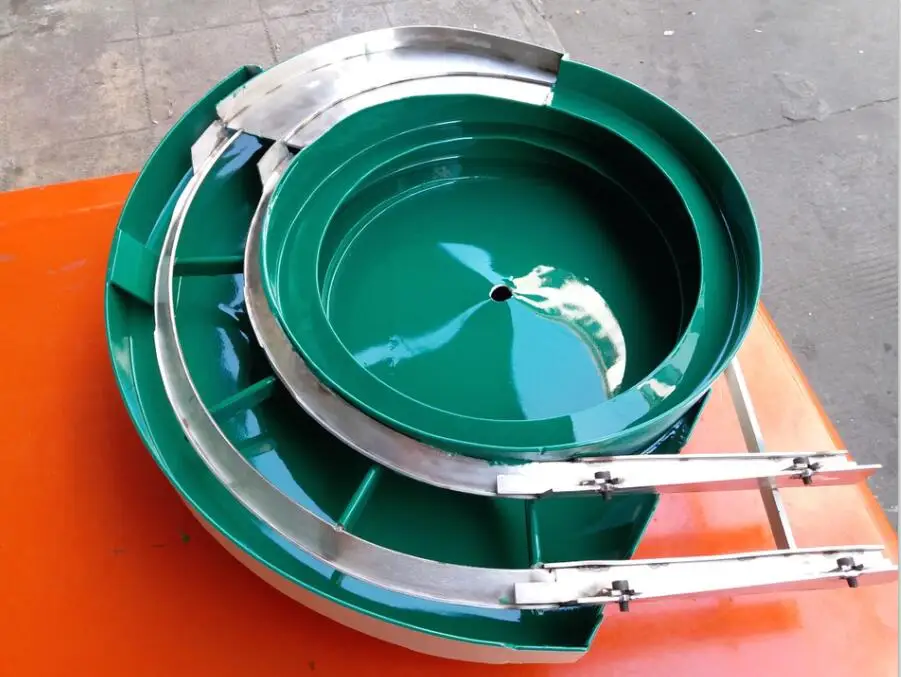

Vibrating disc hopper types: cylindrical hopper, screw, wire hopper, conical hopper, aluminum alloy disk, etc.
Vibration chassis types: positive pull chassis, side pull chassis, piezoelectric chassis, precision chassis, Shengang chassis, quadrangular chassis.
There are five types of vibration disk controller: general controller, polarization controller, frequency modulation controller, slow start controller and digital frequency modulation controller.
Piezoelectric - ordinary - linear feeder types: 100, 120, 130, 140, 180, 200.
Vibration source conveyed by linear motion.
Vibration Platform: Vibration Platform is generally divided into electromagnetic vibration platform and motor vibration platform, mainly for vertical or horizontal vibration, motor vibration platform can also achieve asynchronous three-dimensional vibration. It is mainly used for vibration compaction of granular and powdery materials or vibration of small workpieces which can distinguish direction when falling freely into the assembly position for the next round of processing.
Step one:
1. Buyers provide physical pictures, sizes and materials;
2. Buyers provide the order and direction of discharging materials.
3. Buyers provide discharging speed;
4. Counterclockwise or clockwise;
Step 2: Seller Evaluation Feedback
Material (returned to the buyer with the vibrating disc) should be used for adjusting the vibrating disc.
Step 3: After payment and delivery
1. Sellers begin to order.
2. Video shooting on the test machine;
3. The buyer is satisfied with the final payment.
4. Sellers pack wooden boxes and deliver goods by logistics.
1. Buyers provide physical pictures, sizes and materials;
2. Buyers provide the order and direction of discharging materials.
3. Buyers provide discharging speed;
4. Counterclockwise or clockwise;
Step 2: Seller Evaluation Feedback
Material (returned to the buyer with the vibrating disc) should be used for adjusting the vibrating disc.
Step 3: After payment and delivery
1. Sellers begin to order.
2. Video shooting on the test machine;
3. The buyer is satisfied with the final payment.
4. Sellers pack wooden boxes and deliver goods by logistics.
\t\t\t\t\t\t\t\t\tCompany introduction \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tproduction process \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tDelivery and Logisti \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Vibrating disc failure solutions:
1. Possible reasons for the failure of the vibrating disc to work:
1. Insufficient supply voltage
2. The connection between the vibration disk and the controller is broken.
3. Controller Fuse Burning
4. Coil Burning
5. The gap between coil and skeleton is too small or too large.
6. Parts clamped between coil and skeleton
2. Lack of vibration or too slow vibration of the vibrating disc, sporadic or irregular feeding, the possible reasons are as follows:
1. Spring Break
2. Thin floor
3. Installation countertops are defective and lack of hardness. If suspended on the equipment table, the vibration will be too weak, the thickness of the table should be at least 1-1/2 ", so as not to absorb vibration, the cylindrical foot must be equipped with triangular support.
4. Unlevel Mesa
5. There are sundries in the dish
6. Coil air gap should be as small as possible
7. Too fast machine rhythm causes parts to slip from the vibrating disc.
8. Power grid fluctuation
9. The controller needs to be readjusted to adapt to the fluctuation of power grid.
10. Parts problems: overshoot, bending, oil, etc.
11. The fastening screw of the disc and the base is not tight or misplaced.
12. Too many parts
13. improper adjustment of chassis
14. Material changes should be reworked and chassis re-adjusted.
15. Some problems may arise in the use of air blowing, such as unstable air pressure, air pollution, water or oil. These pollutants will stay on the surface of the vibrating disc, which will slow down the feeding speed or even stop moving. The air source must be clean and dry, equipped with independent regulators and filters. Do not use rigid pipe will reduce the feeding performance. Flexible hoses should be used.
