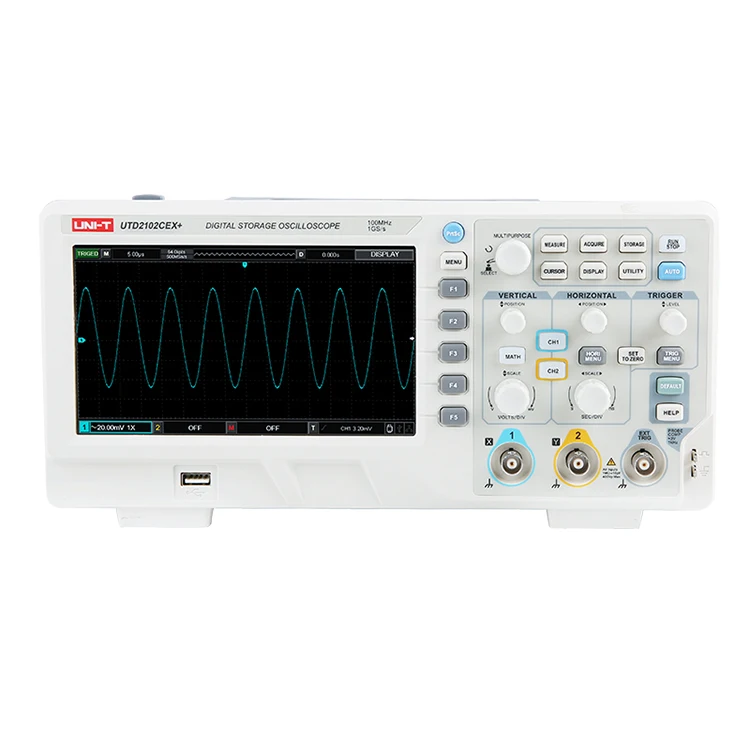

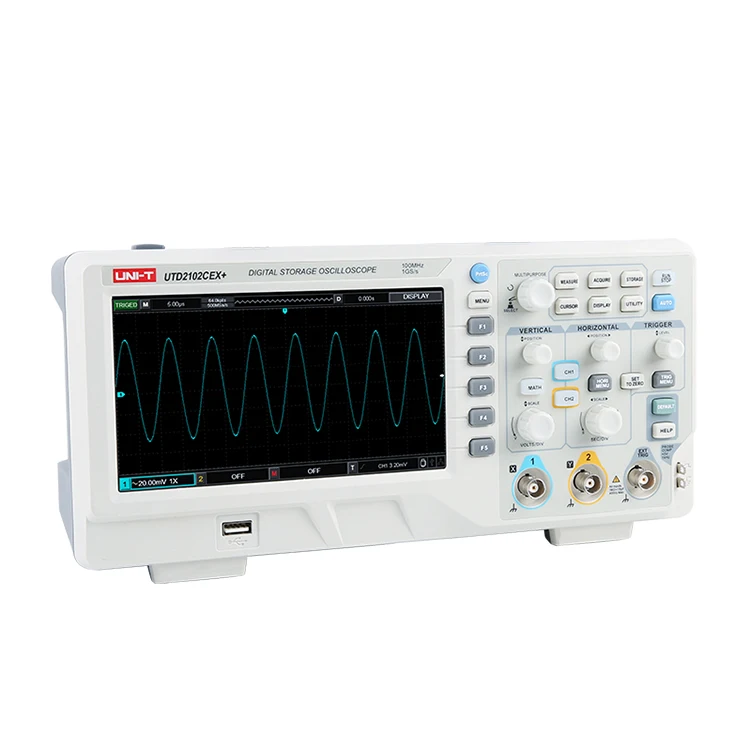

2 канала 100 МГц 1GS/S цифровой осциллограф UNI-T бренд UTD2102CEX + с USB OTG
- Категория: Осциллографы >>>
- Поставщик: Huazheng,Electric,Manufacturing,(Baoding),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.44 $* | 0.61 $* |
| Aug-17-2025 | 0.29 $* | 0.59 $* |
| Jul-17-2025 | 0.0 $* | 0.77 $* |
| Jun-17-2025 | 0.76 $* | 0.3 $* |
| May-17-2025 | 0.72 $* | 0.47 $* |
| Apr-17-2025 | 0.5 $* | 0.51 $* |
| Mar-17-2025 | 0.15 $* | 0.20 $* |
| Feb-17-2025 | 0.45 $* | 0.12 $* |
| Jan-17-2025 | 0.8 $* | 0.15 $* |
Характеристики
2 CHANNEL 100MHZ 1GS/S DIGITAL OSCILLOSCOPE UNI-T BRAND UTD2102CEX With USB OTG Interface
Product Description
1. 2 channels, wide vertical range: 1mV/div~20V/div;
2. 7 inch widescreen LCD display;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveform setups and interface waveform and setup reproduction;
7. Automatic measurement of 32 waveform parameters;
8. Unique waveform record and replay function;
9. Multilingual menu available
Technical specifications:
| Specifications | UTD2102CEX | ||
| Channels | 2 | ||
| Bandwidth | 100MHz | ||
| Sample Rate | 1GS/s | ||
| Rise Time | ≤3.5ns | ||
| Memory Depth | 25kpts | ||
| Waveform Acquisition Rate | ≥2000wfms/s | ||
| Vertical Sensitivity (V/div) | 1mV/div~20V/div | ||
| Timebase Range (s/div) | 2ns/div~50s/div | ||
| Storage | Setup, Wave, Bitmap | ||
| Trigger Modes | Edge, Pluse, Video, Slope, Alternate | ||
| Interface | USB OTG | ||
| General Characteristics | |||
| Power | 100-240VAC, 45-440Hz | ||
| Display | 7 inches 64k Color TFT LCD, 800×480 | ||
| Product Color | White and grey | ||
| Product Net Weight | 2.2kg | ||
| Product Size (W×H×D) | 306mm ×147mm × 122mm | ||
| Standard Accessories | Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 2pcs | ||
| Standard Carton Measurement (L×W×H) | 450mm× 420mm × 280mm | ||
| Standard Carton Gross Weight | 8.5kg | ||
| Optional Accessories | |||
| LA Module | |||
Accessories:
Probe×2 (1×, 10× switchable),
Power Cord,
USB Cable,
PC Software CD,
LA Module (UT-M09)*
