Product Description
100-1000ml Detergent Filling Machine Automatic Liquid Pesticide Filling Machinery
Application:
This type of filler is best suited for liquids with very thin viscosities that do not change with ambient temperature or with batch variation. This machine is also suited for applications where recirculation of the liquid in the fluid path is not desireable. Although this type of filler is used predominantly on products that do not foam, foam may be limited and controlled by subsurface/bottom-up-fill capability.
Examples:
Water, solvents, alcohol, specialty chemicals, paint, inks, corrosive chemicals i.e. acids and bleach.
Advantages:
This is the most economical type of filling machine for a limited range of applications. It is especially well suited for corrosive chemicals.
Data sheets
Data sheets | Details |
Name and model | AXGZ-SZ-6 computer controlled gravity filling machine |
Max filling speed | filling 200ml, 1600~2400pcs/hour, speed will be different when bottle shape and neck size and the filling material forming and other physical property |
Applicable bottle diameter size |
Φ20 ≤D≤Φ100mm |
Applicable bottle height size | 30≤H≤300 mm |
Filling accuracy | filling 80ml-200ml accuracy : ±2ml filling 200ml-1000ml accuracy : ±1% |
Voltage | AC220V, single phase, 50/60HZ |
Power | 0.8KW |
Working pressure | 0.6MP |
Air consumption | 700L one hour (speed 2000 bottles/hour) |
Net weight | 400/600 Kgs |
Machine size(L*W*H) | 2000*1200*2100mm |
Machine direction | from left to right |
Operation process | put products on conveyer—>Block bottles—> sensor count the empty bottle—> 6 bottle come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles |
Object sensor | KEYENCE (Janpan ) |
Cylinders | Airtac or SMC (according customer requirements) |
PLC | Siemens |
Touch Screen | Siemens |
Basic construction | SUS304 stainless steel and anodized aluminum alloy, inside support machine frame is painted steel |
Material contact parts made | SUS304 or SUS316 according order |
Detail image

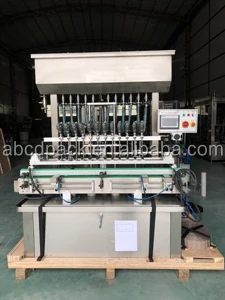

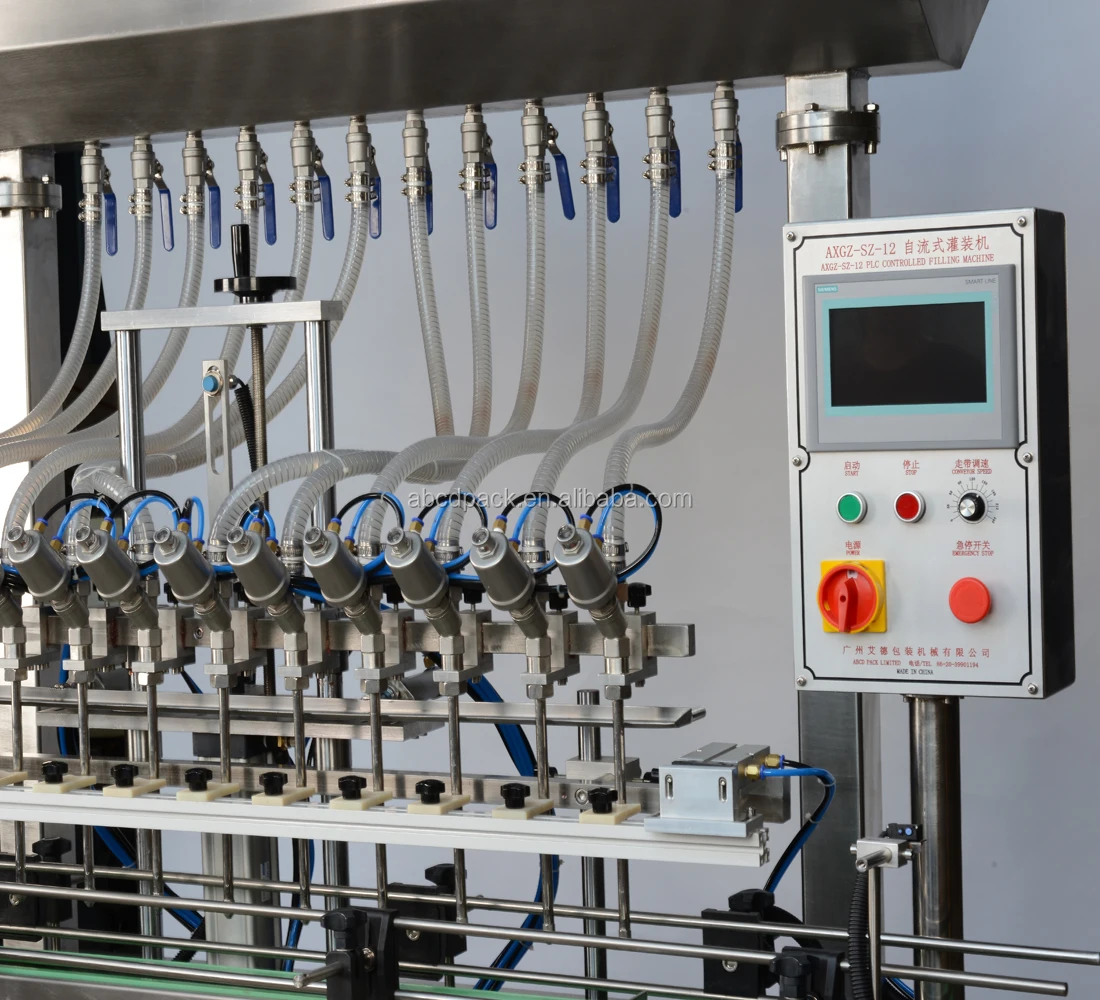

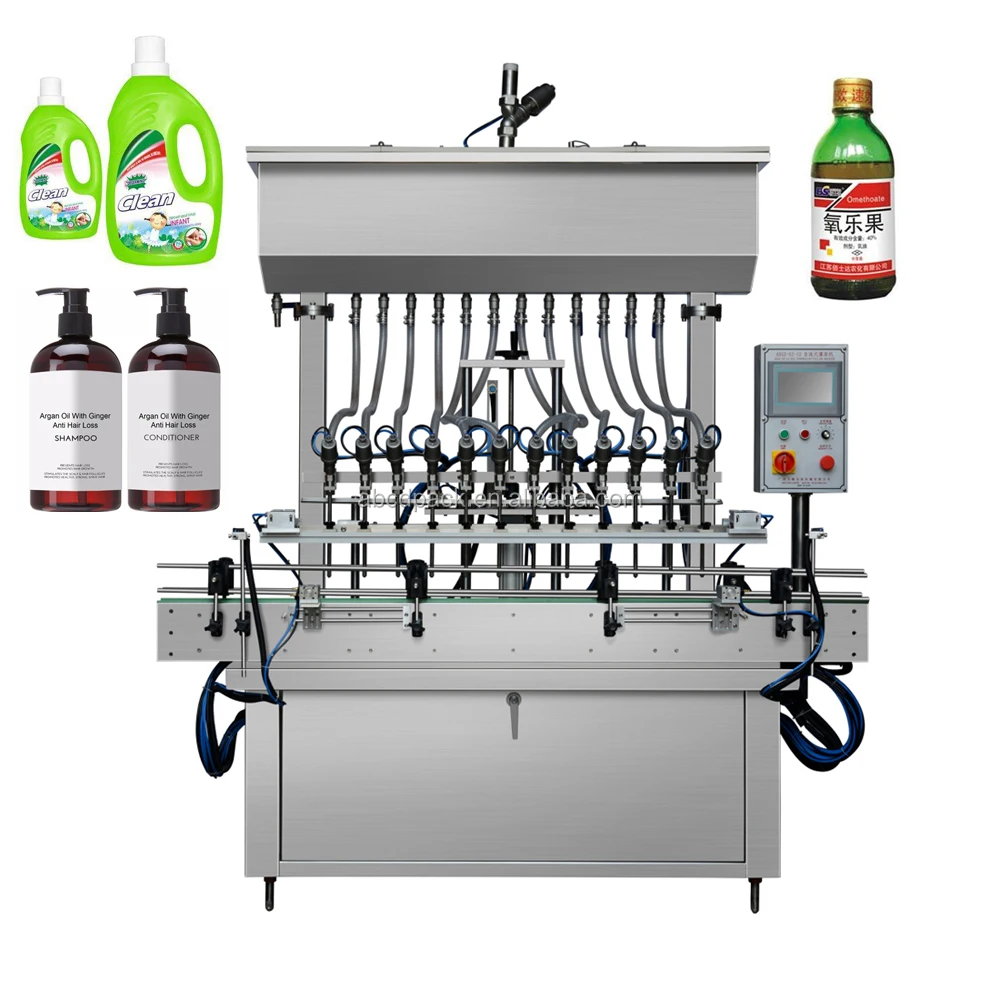

Automatic Liquid Filling Machine

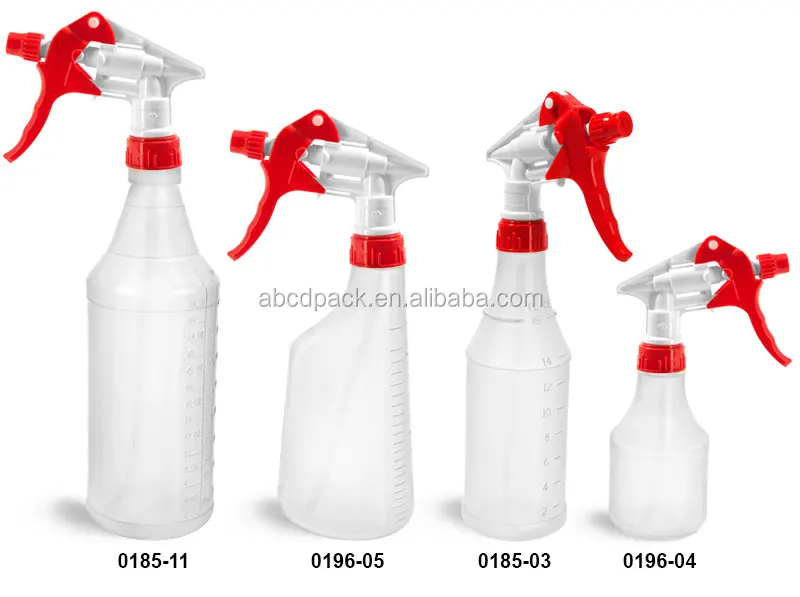

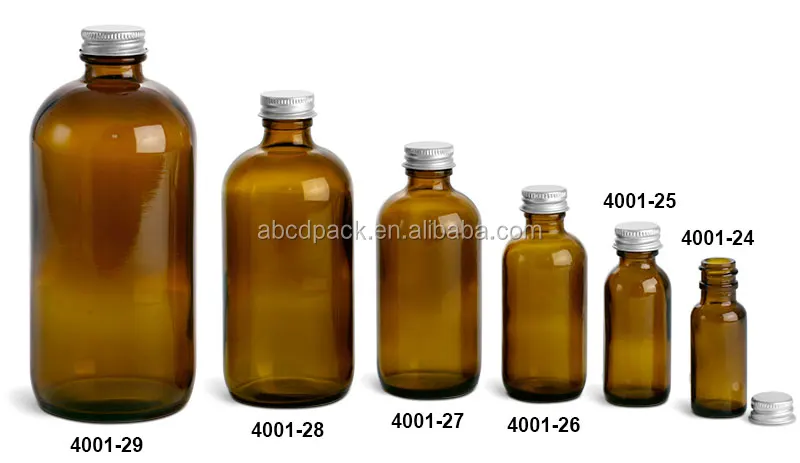

Samples
This liquid filler is also suitable for:
Packaging & Shipping
Packaging Details:
Filling machine packed by packed with seaworthy strong wooden case as the general export package. We use carton as inner packing, in case of damage in the course of carriage, we also can pack it according to clients' requirements
Port: Guangzhou
Lead Time : 30 working days after payment.
