Автоматическая машина для розлива парфюмерного жидкого моющего средства с магнитным насосом 2/4/6/8/10
- Категория: >>>
- Поставщик: Guangzhou,Zhen,Xiang,Smart,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 9437.48 $* | 9909.8 $* |
| Aug-15-2025 | 9357.52 $* | 9825.18 $* |
| Jul-15-2025 | 7851.58 $* | 8244.32 $* |
| Jun-15-2025 | 9199.85 $* | 9659.1 $* |
| May-15-2025 | 8009.55 $* | 8409.80 $* |
| Apr-15-2025 | 9040.14 $* | 9492.0 $* |
| Mar-15-2025 | 8961.99 $* | 9409.37 $* |
| Feb-15-2025 | 8882.53 $* | 9326.62 $* |
| Jan-15-2025 | 8802.70 $* | 9242.69 $* |
Характеристики

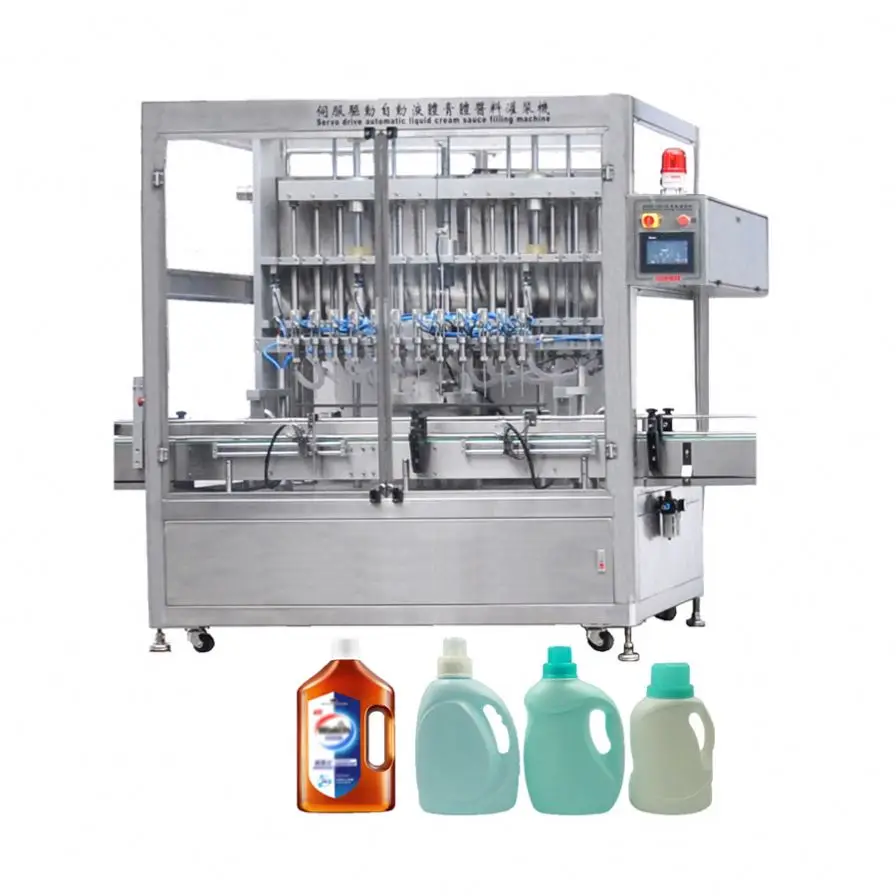

2/4/6/8/10 Heads Magnetic Pump Automatic Perfume Liquid Detergent Filling Machine
Machine Introduction:
The Detergent Filling Machine has the characteristics of compact structure, simple operation, complete functions, low energy consumption and high precision. The number of filling heads is more than 4-12, which can be customized according to user requirements. It can be packaged include lubricating oil, washing liquid, disinfectant, edible oil, glass water and other liquid products.
Machine Advantages:
1. Extremely high filling speed reduces your labor cost by at least 50% every year.
2. Extremely high stability reduces unnecessary material waste by 20%.
3. It is suitable for the filling of various bottle types (including special-shaped bottles) to meet the individual needs of the manufacturer.
4. The filling head is equipped with an anti drip device to prevent dripping, wire drawing and pollution of the bottle mouth during the filling process.
5. Load excellent heat dissipation device to ensure long-term continuous load operation.
Filling nozzle | Filling range | Filling speed |  |
| 1 | 10ml to 100ml | 500-1000BPH | |
| 2 | 50ml to 500ml | 1000-1500BPH | |
| 4 | 500ml to 5L | 1500-2500BPH | |
| 6 | 1L to 10L | 2000-3000BPH | |
| 8 | 5L to 50L | 2500-3500BPH | |
| 10 | 50L | 3000-5000BPH |
| Technical Parameters | |
| Power | 3KW, single phase |
| Program control | PLC+Touch screen |
| Tank | 150L |
| Air pressure | 0.6-0.8MPa |
| Protection | Alarm and stop when lack of liquid |
Main configuration:
1. Frame, machine feet, guardrail materials: 304 Stainless steel
2. Filling nozzle, parts connected with liquid: 316 stainless steel,PTFE
3. Pneumatic Components: Taiwan AIRTAC
4. Program controller: German Siemens
5. HMI: German Siemens 7-inch touch screen
6. Photoelectric Sensors: German LEUZE
7. Relay and air switch: French Schneider
