Лесной барабан дробилка для древесины необработанная
- Категория: Машины для лесного хозяйства >>>
- Поставщик: Gongyi,Xiaoyi,Mingyang,Machinery,Plant
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 9689.82 $* | 9883.90 $* |
| Jul-16-2025 | 7858.23 $* | 8015.63 $* |
| Jun-16-2025 | 9536.0 $* | 9727.14 $* |
| May-16-2025 | 9460.97 $* | 9649.55 $* |
| Apr-16-2025 | 7553.47 $* | 7704.18 $* |
| Mar-16-2025 | 9307.30 $* | 9493.38 $* |
| Feb-16-2025 | 9231.51 $* | 9416.62 $* |
| Jan-16-2025 | 9155.17 $* | 9338.92 $* |
Характеристики
Product Description
The High Capacity Wood Chipper machine is the special equipment of making high quality wood chips for flakeboard, the base of production and export of fiberboard, and papermaking and wood chips plant.
It is widely used in stock workshop section of industrial manufacture.
Model | MY-BX215 | MY-BX216 | MY-BX218 | MY-BX2113 |
Inter size (H*W) | 160*400 | 230*500 | 300*680 | 450*700 |
Blades number (pcs) | 2 | 2 | 2 | 2 |
Knife roller speed (tum) | 592 | 590 | 650 | 500 |
Max Diameter(mm) | 160 | 230 | 300 | 450 |
Woodchips size (mm) | 30 | 30 | 30 | 38 |
Capacity (t/h) | 3-4 | 7-8 | 12-15 | 15-30 |
Main motor power (kw) | 45 | 55 | 110 | 200-250 |
Feed roller motor power | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
Oil pump motor power (kw) | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 |
Weight (kg) | 2990 | 5030 | 7000 | 11840 |
Outline Dimension (mm) | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 |
Converyor motor power (kw) | 3 | 3 | 3 | 3 |
Industrial wood drum chipper is the ideal equipment to make perfect wood chips, logs and small wood can be cut into 20mm-40mm high quality length and uniform chips.
Working Principle
Drum wood chipper machine is the special equipment of producing wood chippers, it included the
machine body, knife/blade roller, the upper and lower feed rollers, belt conveyor, and hydraulic
systems. Knife roller will install two or four, six rotary knives, according to the different thickness
and diameter of the materials which cut. The upper feed roller assembly can use the hydraulic
system to fluctuate within a certain range.
The cut-off qualified pieces fall through the mesh screen hole and are discharged at the bottom. The large material pieces will be cut in the machine again.

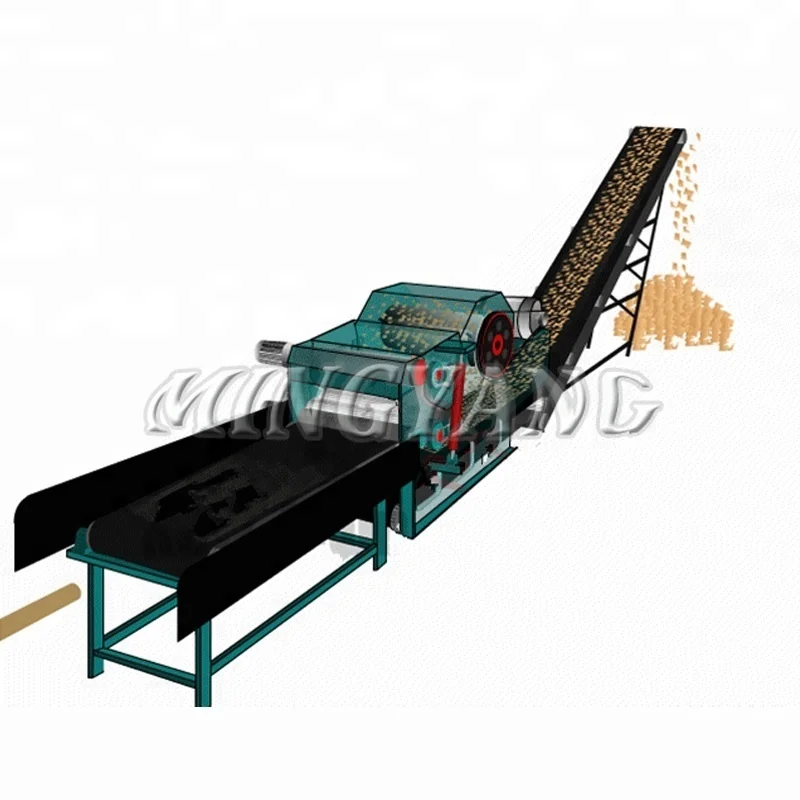

Working Process
The raw materials is clamped and transmitted to the crushing space by the feeding system, then crushed by the fast rotating blades on the roller frequently. The larger wood chips will be processed for several time before discharged from holes on the screen. At last, the wood chips are discharged.

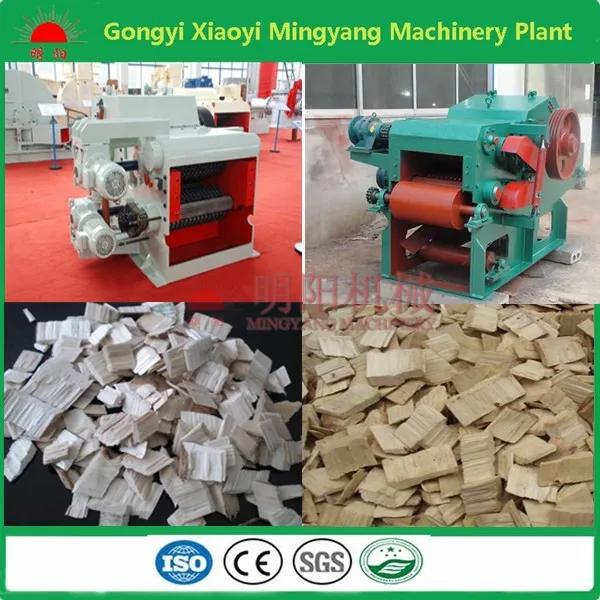

Raw Material
Our eucalyptus wood chip making machine prices is versatile and suitable to chip a myriad of raw materials for wood pelletizing.
Wood materials:it can chip undersized branches, slabs, plump wood, panels manufacturing, leftovers of furniture factories, plant fibers and so on;
non-wood materials: drum chipper is fit for sugarcane stalk, bulrush and bamboo.
