«Только индивидуальное производство» быстрый прототип печатной платы
- Категория: Double-sided PCB >>>
- Поставщик: Shenzhen,Senyan,Circuit,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.58 $* | 0.43 $* |
| Aug-16-2025 | 0.55 $* | 0.83 $* |
| Jul-16-2025 | 0.97 $* | 0.56 $* |
| Jun-16-2025 | 0.56 $* | 0.53 $* |
| May-16-2025 | 0.5 $* | 0.60 $* |
| Apr-16-2025 | 0.69 $* | 0.10 $* |
| Mar-16-2025 | 0.53 $* | 0.44 $* |
| Feb-16-2025 | 0.93 $* | 0.11 $* |
| Jan-16-2025 | 0.24 $* | 0.72 $* |
Характеристики

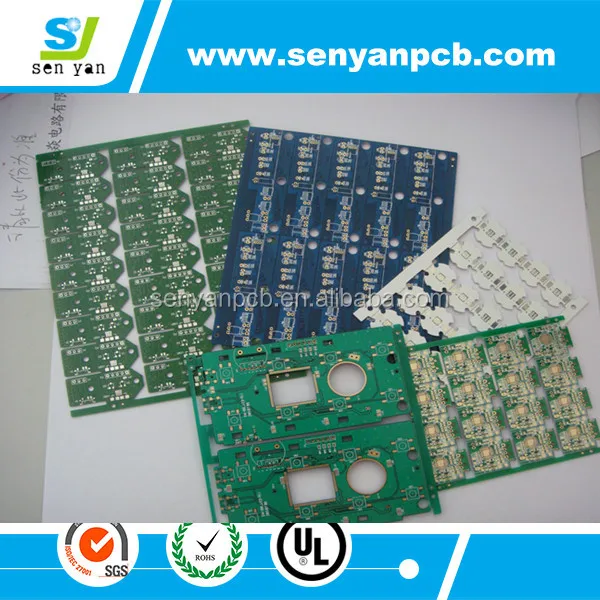

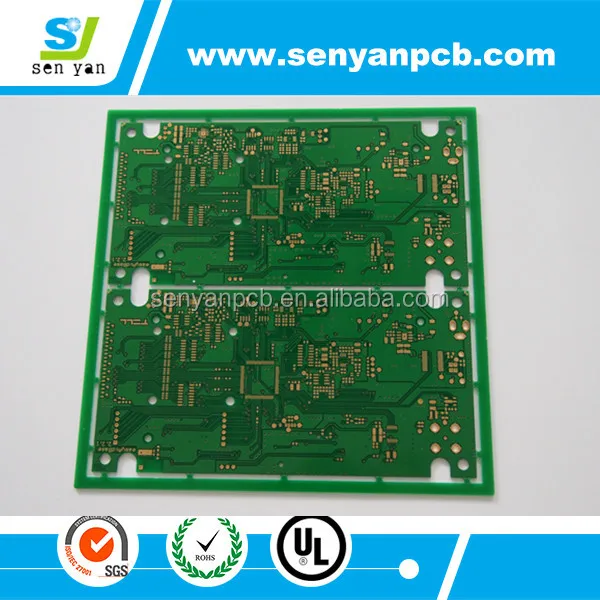

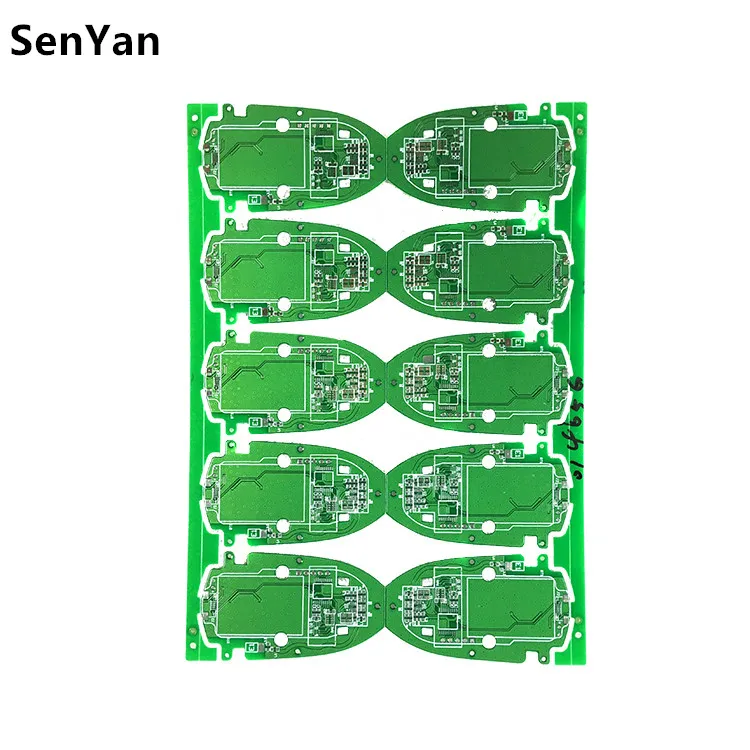

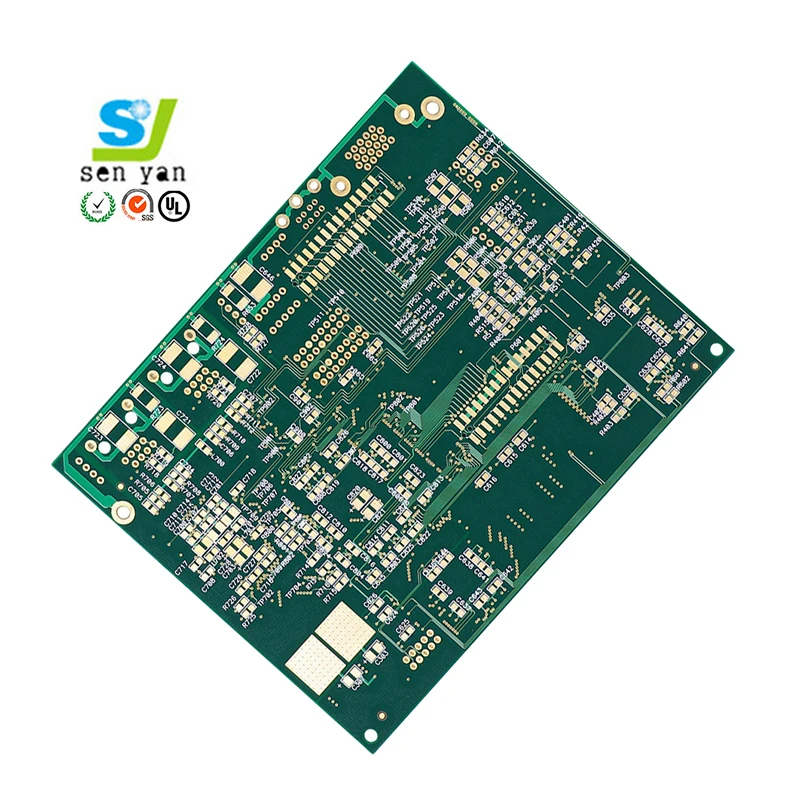

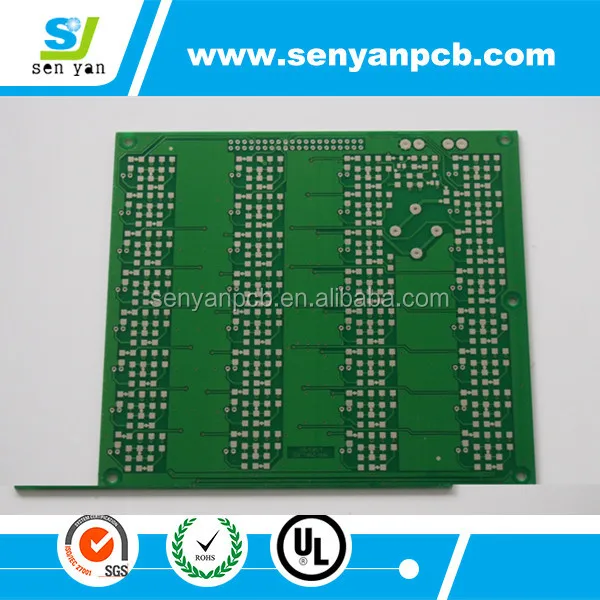

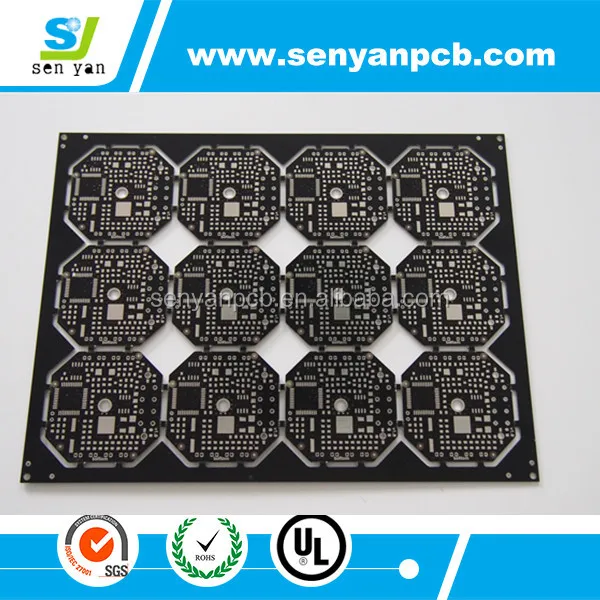

"CUSTOM PRODUCTION ONLY " fast pcb printed circuit board prototype and manufacturing
Product Description
Factory Manufacture Capability
| layer | 1-20 layer |
| Material type | FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
| Board thickness | 0.21mm to 7.0mm |
| Copper thickness | 0.5 OZ to 6 oz |
| Size | Max. Board Size: 580mm×1100mm |
| Min. Drilled Hole Size: 0.2 mm (8 mil) | |
| Min. Line Width: 4mil (0.1mm) | |
| Min. Line Spacing: 4mil (0.1mm) | |
| Surface finishing | HASL / HASL lead free, HAL, Chemical tin, Immersion Silver/Gold, OSP, Gold plating |
| Solder Mask Color | Green/Yellow/Black/White/Red/Blue |
| Tolerance | Shape tolerance: ±0.13 |
| Hole tolerance: PTH: ±0.076 NPTH: ±0.05 | |
| Certificate | UL, ISO 9001, ISO 14001 |
| Special requirements | Buried and blind vias+controlled impedance +BGA |
| Profiling | Punching, Routing, V-CUT, Beveling |
Related products
Certifications
Company Information
Our Services
1. Comprehensive documents audit to prevent mistakes in PCB Gerber and Bom.
2.Suggest best quality replacement with lower price.
3.Engineering support for test and provide suggestions for mass production.
4.Suggest best shipment method.
5.Sign NDA to keep your design safe.
FAQ
1. What is the main application of your PCBA service?
-Industrial commander, and other industrial devices.
-Medical equipment main board.
-Security electronics
-Communicative devices
-New energy electronics
2. Are you a factory or trade company?
Senyan is a manufacturer with PCB factory and assembly factory.
3. What is percentage of your engineering and quality department?
Engineering and Quality department takes 14% of the total employees.
4. Can you provide function test before delivery?
Yes, we have 4 engineers specialized in testing, loading firmware, analyze failure...
5. If I want to get a quotation, what files should I provide?
-We need pcb layout file to quote the PCB cost
-We need pcb layout file and Bom list to quote the PCBA cost.
-If you need us to do function test, please also provide test instruction.
6.What are your payment terms?
-We support Paypal,TT...
7. How to work with you?
- Email and send us the pcb layout file, Bom list.
-We will provide quotation of PCB and assembly in 2 hours and components price in 3-7 days.
-Quotation approval by your side.
-We will issue invoice to you for done payment.
Package & Delivery
