Hot Sale Gypsum Powder Production Line with Annual Capacity 300000tons Per Year

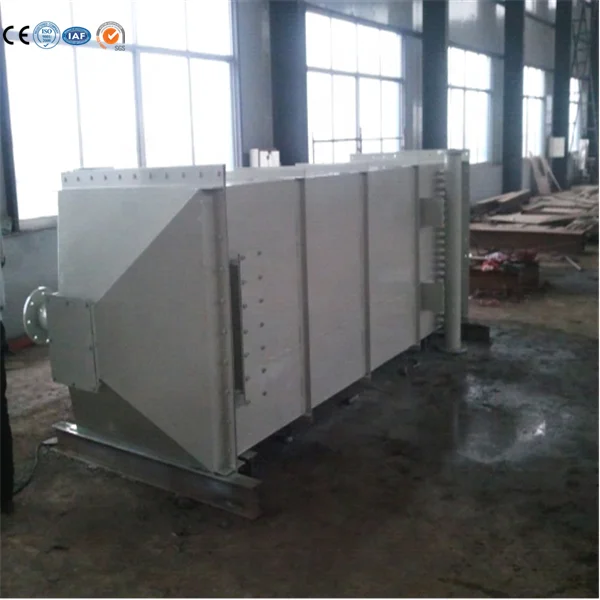

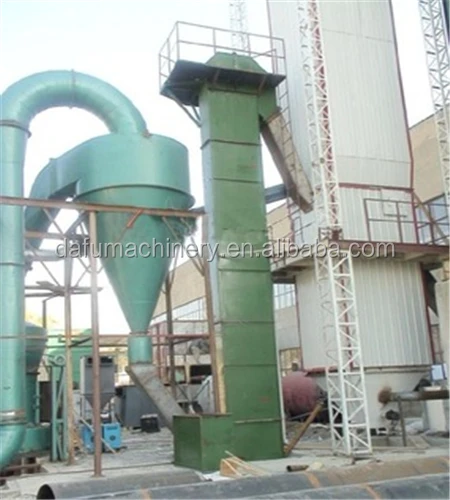

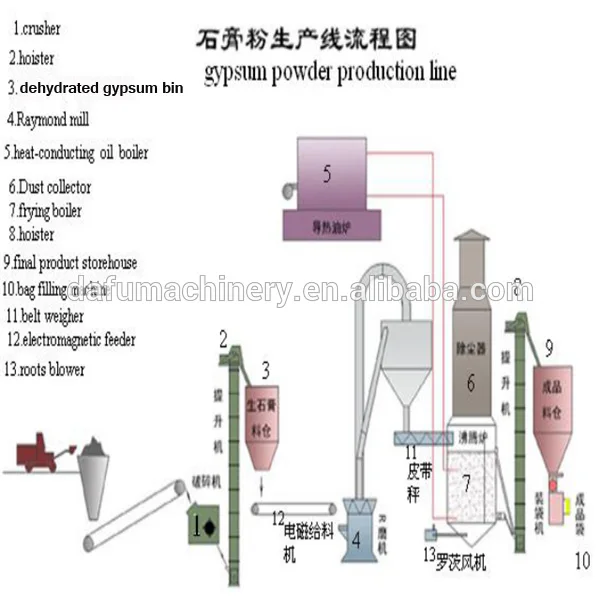

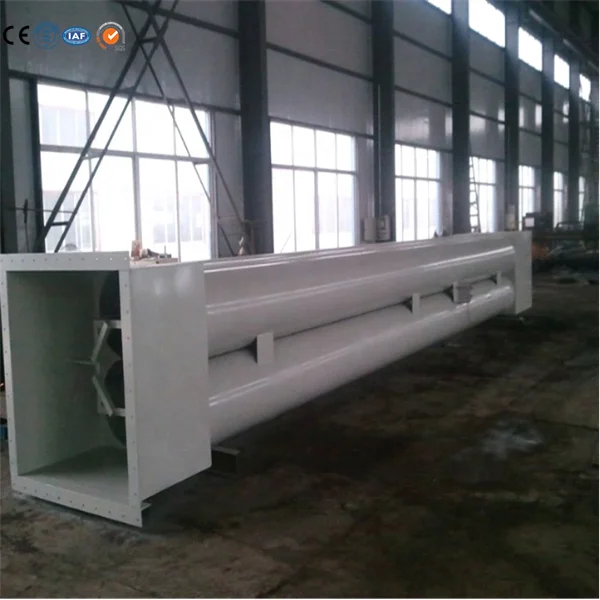

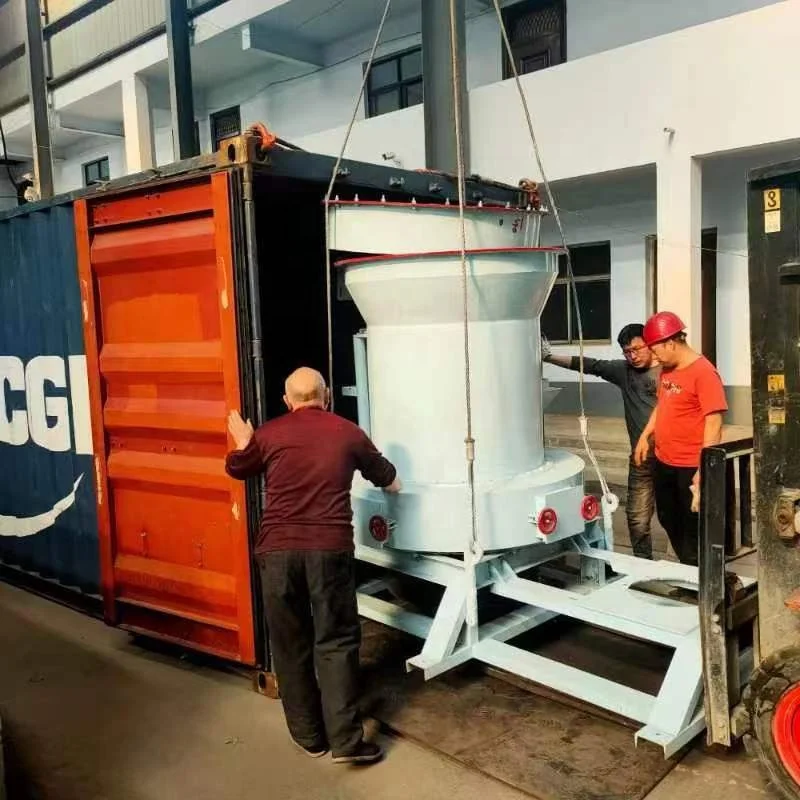

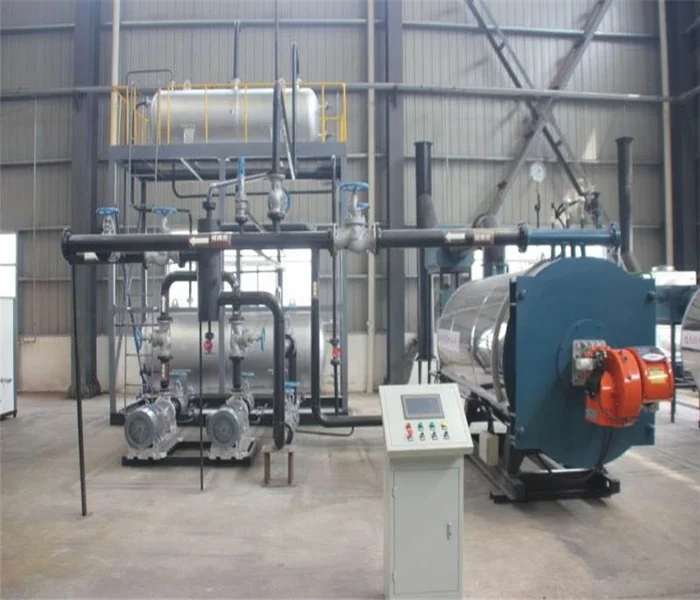

Production Show - gypsum powder production line types of equipment



Specifications of the gypsum powder line



Capacity T/year	Ton/hour	Raw gypsum rock consumption T/year	Heat supplying way	Boiling furnace size
20,000	2.7	24,000	Heat conductive oil or steam	4.5M×1.0M×1.2M
30,000	4.2	36,000		4.5M×1.2M×1.4M
50,000	6.9	60,000		4.5M×1.4M×1.6M
60,000	8.3	72,000		4.5M×1.6M×1.8M
80,000	11.11	96,000		4.5M×1.8M×2.0M
100,000	13.88	120,000		4.5 M×2.0 M×2.2 M
150,000	20.83	180,000		4.5 M×2.2 M×2.4 M
200,000	27.77	240,000		4.5 M×2.4 M×2.6 M
300,000	41.66	360,000		4.5 M×2.6 M×2



Note: The specifications above is just for your reference, pls kindly tell us your capacity, so we can customize it for you!
