Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00
Китай низкая стоимость частотно-регулируемый привод 5.5KW солнечный инвертор насоса моторный накопитель переменного тока диски 3 фазы
- Категория: Солнечный инвертор насоса >>>
- Поставщик: Shenzhen,Veikong,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 107.7 $* | 112.27 $* |
| Aug-19-2025 | 106.71 $* | 111.42 $* |
| Jul-19-2025 | 89.67 $* | 93.78 $* |
| Jun-19-2025 | 104.33 $* | 109.74 $* |
| May-19-2025 | 91.85 $* | 96.84 $* |
| Apr-19-2025 | 103.46 $* | 108.71 $* |
| Mar-19-2025 | 102.84 $* | 107.6 $* |
| Feb-19-2025 | 101.30 $* | 106.88 $* |
| Jan-19-2025 | 100.13 $* | 105.81 $* |
Характеристики

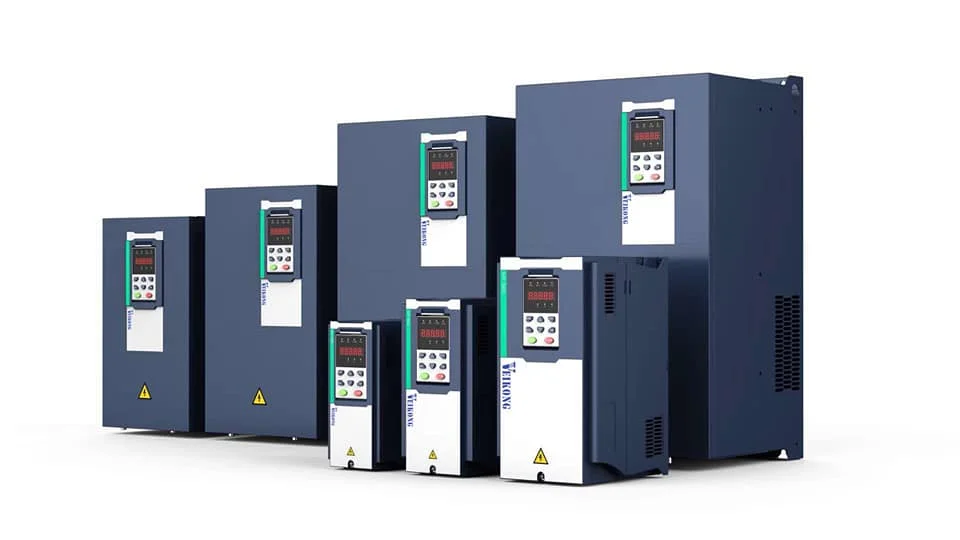

PRODUCT PHOTOS
KEY ADVANTAGE
VFD500-PV Solar pump frequency inverter
1.Cover voltage levels 220V AC and 380V AC.
Support single-phase 220V and three-phase 220V/380V pumps,the power from 0.4KW to 37KW.
2.Easy to use
The inverters automatically start or sleep only after being connected to solar battery panels without any parameter setting.
3.Highly reliable for using multiple protective measures
Including PV over-voltage protection,PV polarity reverse warning,and auto derating against over-temperture,which extend product life.
4.Use advanced MPPT algorithms,ensuring that the solar power tracking efficiency reaches 99%
5.Models of 2.2kW or lower can be configured with boost module,meeting low-voltage work requirements.This reduces the use of solar battery panels and therefore the cost.
6.VFD700-PV series can implement auto switch between solar input and grid input by configuring the boost or auto switching cabinet(meeting lightning protection requirements),implementing 24-hour unattended work.
7.Support the configuration of the GPRS module,which implements remote parameter viewing and control by using the mobile APP.
8.Support the cabinet solution for level IP54.
SPECIFICATION
| 220V | 380V |
Max input DC voltage | 410V | 800V |
Recommended MPPT voltage range | 270~400VDC | 350~750VDC |
Recommended input voltage | 310V | 513V |
MPPT efficiency | 99.9% | |
Input channel | 2 | |
Rated output voltage | 3-phase 220VAC | 3-phase 380VAC |
Output frequency range | 0~60Hz | |
Max efficiency of the machine | 97% | |
Ambient temperature range | -10 °C~50 °C, derating if the temperature is above 40 °C | |
Cooling method | Air cooling | |
Protection degree | IP20 | |
Altitude | Below 1000m; above 1% for every additional 100m. | |
Standard | CE | |

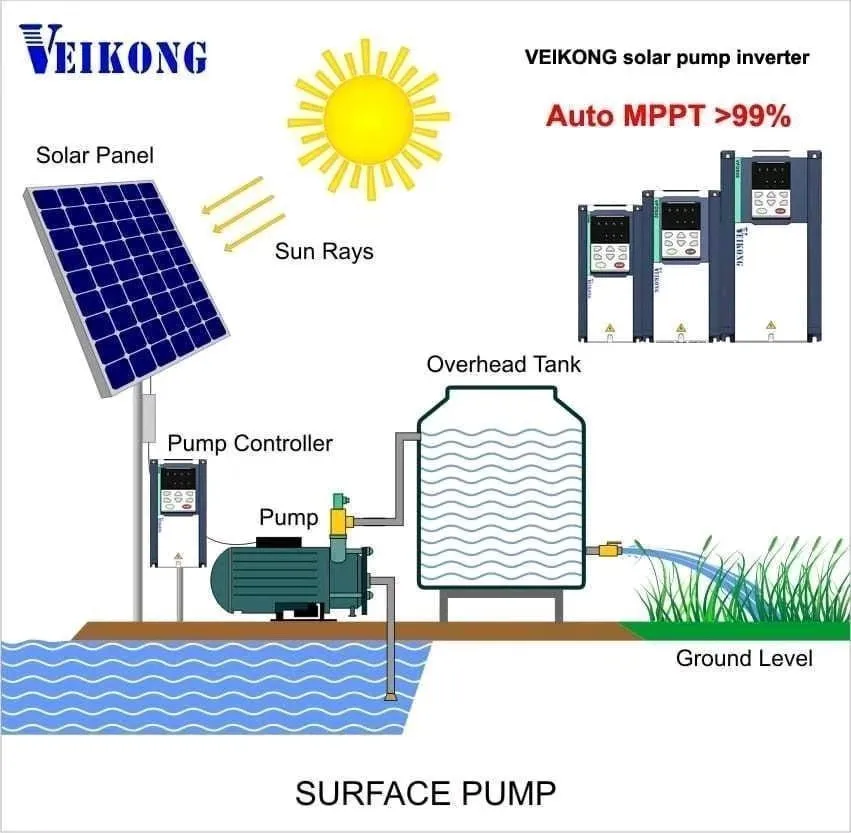

Applications

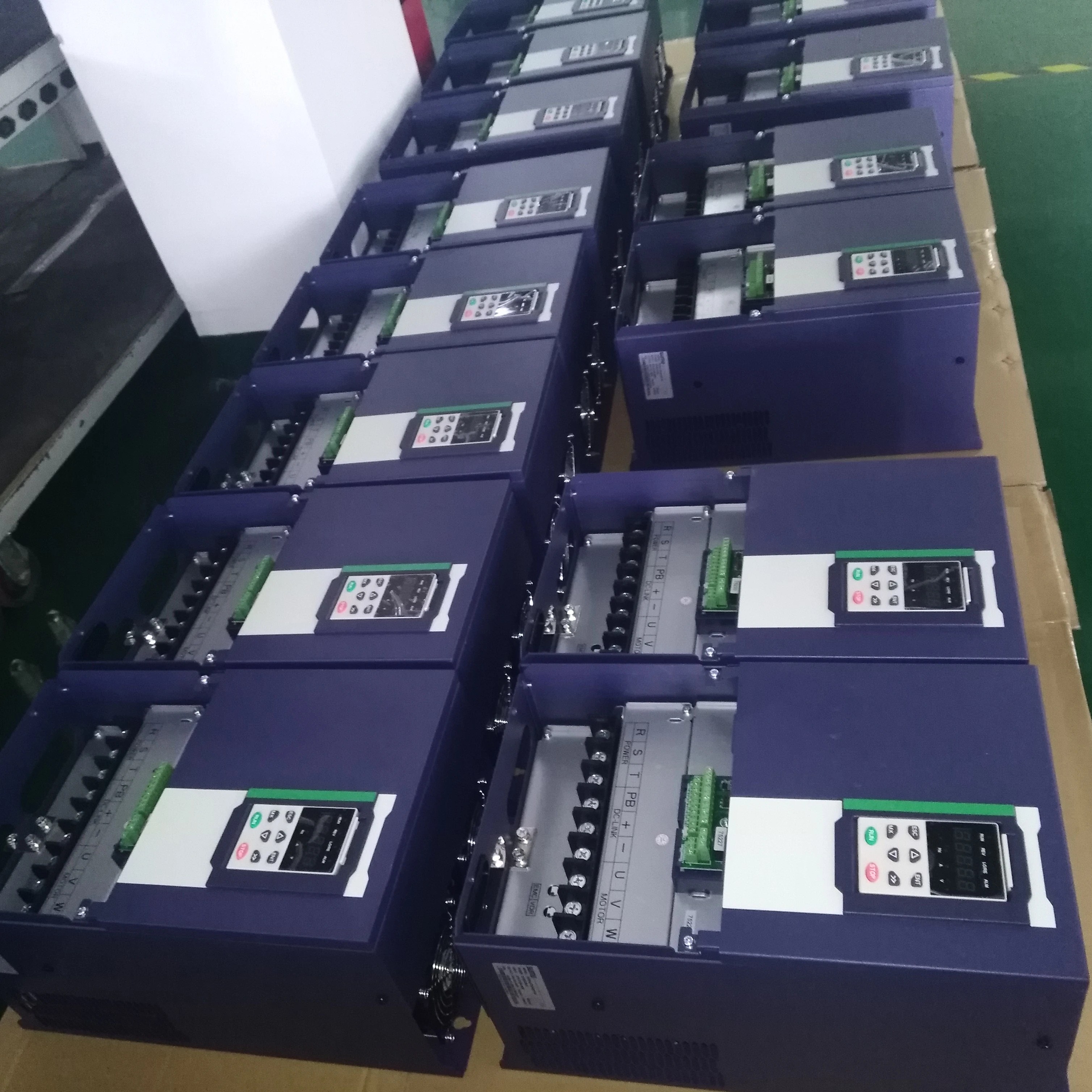

MANUFACTURE PROCESS
CERTIFICATIONS
Packaging & Shipping
