Высокобезопасный протеиновый порошок центробежная распылительная сушилка оборудование для сушки распылением Сертификат ISO
- Категория: Сушильное оборудование >>>
- Поставщик: Jiangsu,Yutong,Drying,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 17850.59 $* | 18743.18 $* |
| Aug-16-2025 | 17700.29 $* | 18585.84 $* |
| Jul-16-2025 | 14850.60 $* | 15593.45 $* |
| Jun-16-2025 | 17400.9 $* | 18270.54 $* |
| May-16-2025 | 15150.13 $* | 15908.94 $* |
| Apr-16-2025 | 17100.18 $* | 17955.31 $* |
| Mar-16-2025 | 16950.66 $* | 17798.86 $* |
| Feb-16-2025 | 16800.8 $* | 17640.81 $* |
| Jan-16-2025 | 16650.21 $* | 17483.79 $* |
Характеристики
spec | ZPG-25 | ZPG-50 | ZPG-80 | ZPG-100 | ZPG-150 | ZPG-200 | ZPG-300 | ||||||||
evaporation capacity(kg/h) | 25 | 50 | 80 | 100 | 150 | 200 | 300 | ||||||||
process amount of material liquid(kg/h) | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | ||||||||
output of finished pcoduct(kg/h) | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 24-42 | 36.8-56.4 | 55-85 | ||||||||
solid content of material liquid( %) | 18-30 | ||||||||||||||
moisture content of finished product( %) | 3-5 | ||||||||||||||
electric power(kw) | 63 | 132 | 153 | 204 | 246 | 330 | |||||||||
heat source | Steam pius electricity | ||||||||||||||
Collecting method of product and its efficiency | Grade one or two or three stage cyclone wet dust remover is greater than or equal to 95% | ||||||||||||||
automatic control meters and instruments | indicator of not air and exhaust air temperature | ||||||||||||||
temperature of air inlet(℃) | 160-220 | ||||||||||||||
temperature of air outlet(℃) | 80-100 | ||||||||||||||
L | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 | ||||||||
overal dimensions(mm) | W | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |||||||
H | 6200 | 6900 | 8000 | 8900 | 10750 | 11900 | 13000 | ||||||||

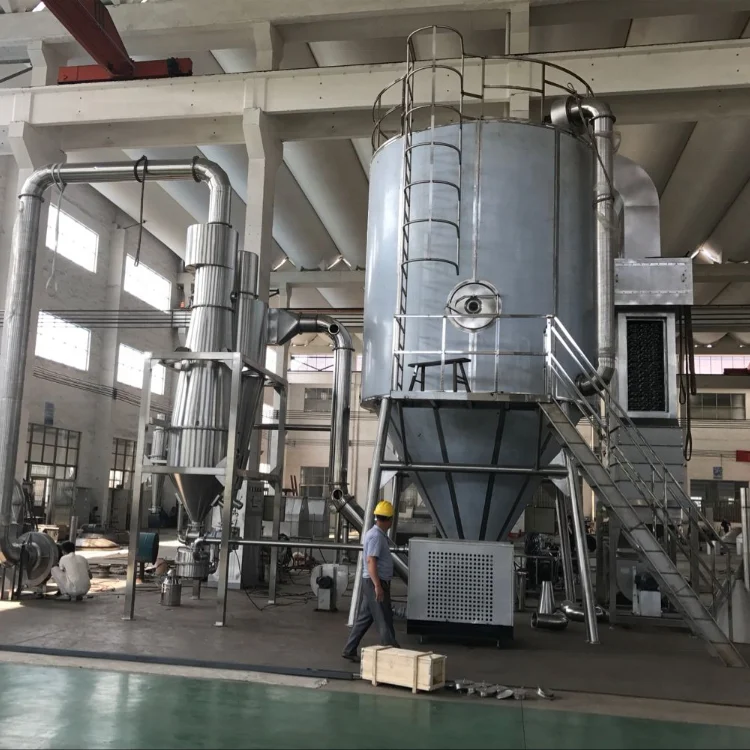

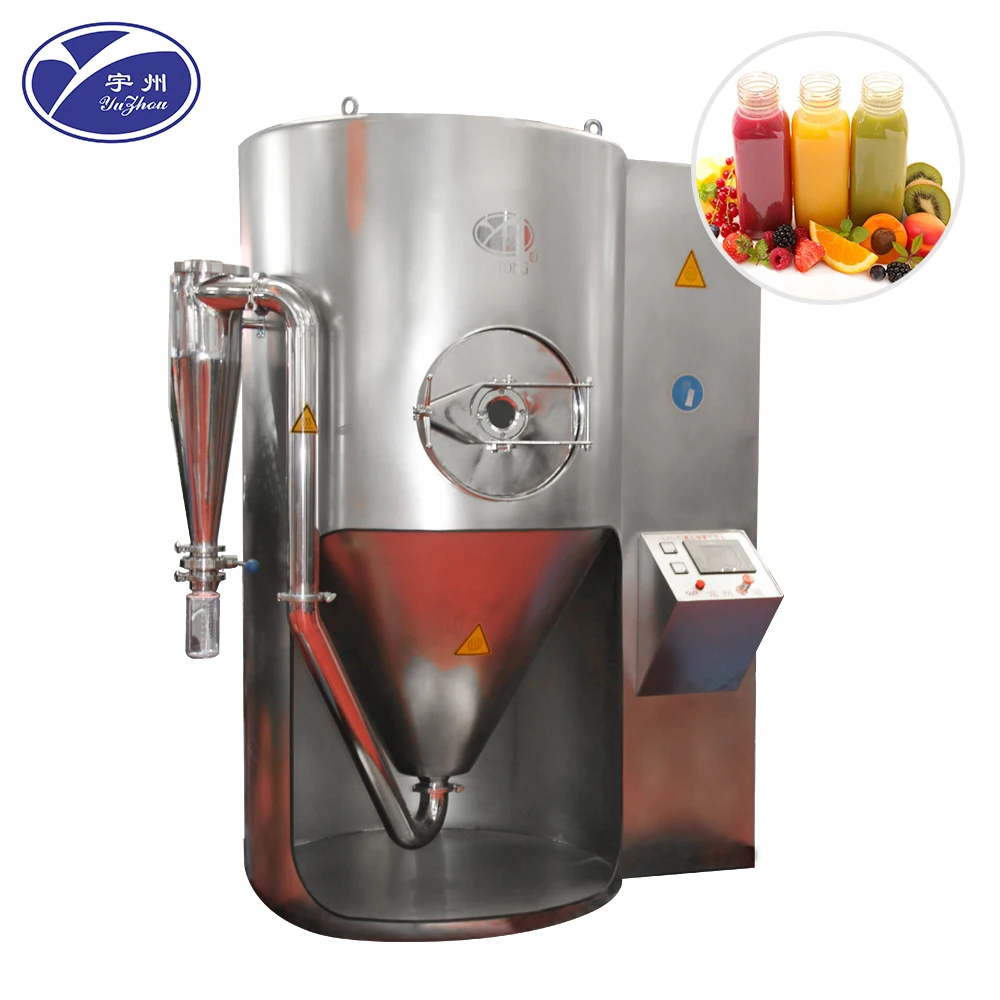

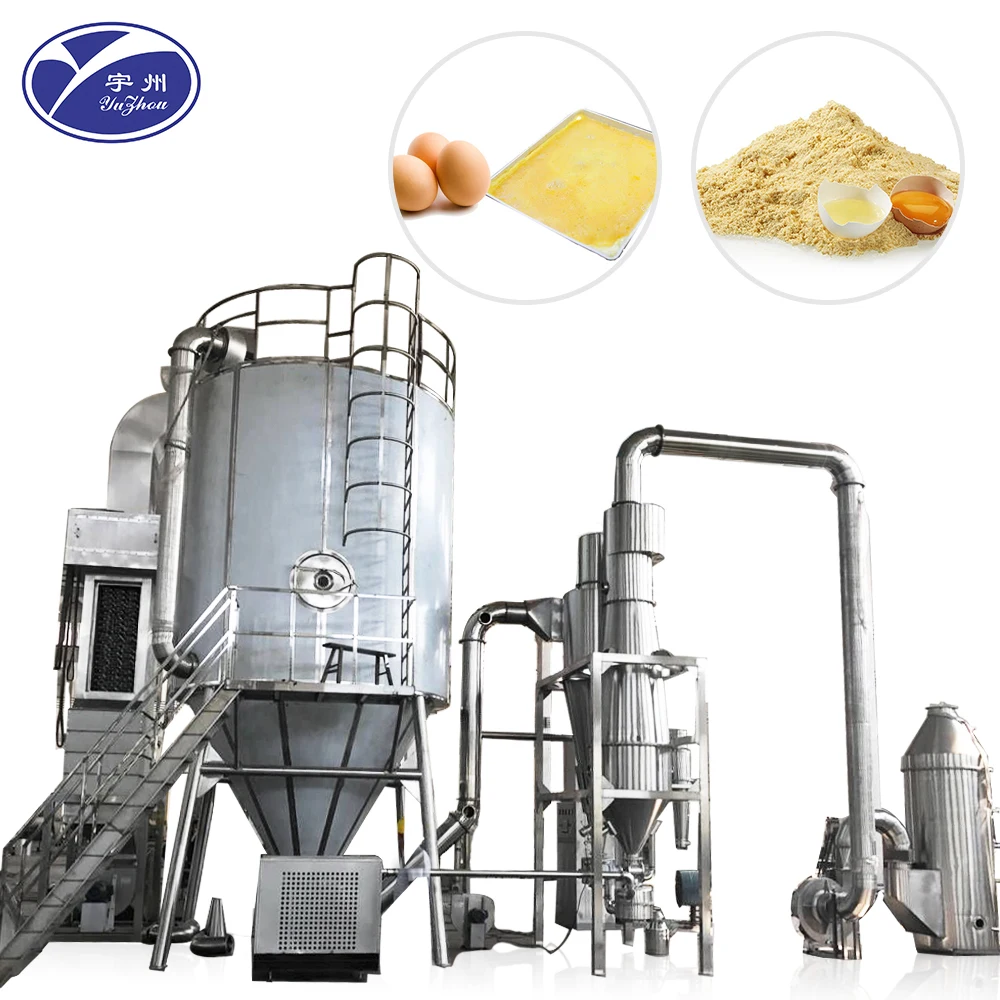

Description of Spray Dryer
The machine adopts full close structure with primary middle and high effect air filter to fit one hundred
thousand grade requirement, the tower body is provide cooling air jacket to make wall temperature less than80 degree, when the material stops on wall will not to be preheated and softened, it increases the powdercollection rate (95%) and will not appear mixing and sticking wall phenomenon.
The machine adopts full close structure with primary middle and high effect air filter to fit one hundred
thousand grade requirement, the tower body is provide cooling air jacket to make wall temperature less than80 degree, when the material stops on wall will not to be preheated and softened, it increases the powdercollection rate (95%) and will not appear mixing and sticking wall phenomenon.
Main Features
1)The tower body is equipped with cool air jacket to reduce inside tower temperature and eliminate productpreheating and soften phenomenon.
2)The atomizer on top of tower is equipped with cooling device to reduce atomizer temperature, at the sameeffectively eliminate material return to the top in eddy current and avoid preheat coking phenomenon.
3)Tower body and pipeline is equipped with manual quick-open cleaning hole
and drainage hole. CIP auto-
matic cleaning device can also equipped if needed.
4)A automatic control constant temperature feeding tank can be equipped.
5)Manual high pressure washing tools can be offered as accessories together with spray dryer.6)All product contact parts are made with Stainless Steel,(or whole parts with stainless steel)7) Product collect way adopts two grade cyclones and water film duster.
8) Air inlet temperature is automatic and continuous control which is interlocked with feeding.9)An air sweeping device can be optional for some products.
1)The tower body is equipped with cool air jacket to reduce inside tower temperature and eliminate productpreheating and soften phenomenon.
2)The atomizer on top of tower is equipped with cooling device to reduce atomizer temperature, at the sameeffectively eliminate material return to the top in eddy current and avoid preheat coking phenomenon.
3)Tower body and pipeline is equipped with manual quick-open cleaning hole
and drainage hole. CIP auto-
matic cleaning device can also equipped if needed.
4)A automatic control constant temperature feeding tank can be equipped.
5)Manual high pressure washing tools can be offered as accessories together with spray dryer.6)All product contact parts are made with Stainless Steel,(or whole parts with stainless steel)7) Product collect way adopts two grade cyclones and water film duster.
8) Air inlet temperature is automatic and continuous control which is interlocked with feeding.9)An air sweeping device can be optional for some products.
Jiangsu Yutong Drying Engineering Co., Ltd is a famous enterprises located in a famous town ofsouth of YANGTSE RIVER,JiaoxiTown, it is establish in 2000 with more than 21 year experience150 workers 16000 square meter .this year we increase the new factory scale.
Yutong specialize in drying, mixing, granulating, evaporating, concentrating and separating equip-ment.
We have undeniable engineer and more than 100 sets machine. Every year we can produce about600 sets machine and also can develop more than 30 types which are selling to all the country.Weemphasize science and technology innovation, early or late we cooperate with many famous
colleges. Our company has developed so quickly that we have accumulated large amount of fundand technical knowledge.
We have undeniable engineer and more than 100 sets machine. Every year we can produce about600 sets machine and also can develop more than 30 types which are selling to all the country.Weemphasize science and technology innovation, early or late we cooperate with many famous
colleges. Our company has developed so quickly that we have accumulated large amount of fundand technical knowledge.
Our company has passed authentication of lSO9001 international quality system.Moreover,ourproduct has acquired “high quality recommendation certificate" issued by American international
quality authentication committee and “East China excellent technical product certificate " issued byJiangsu Science and Technology Association.Our company emphasizes visualization and createbrand, so we have been evaluated as both“AAA" enterprise by Jiangsu international qualification
company and “regard contract and keep faith" enterprise by inaustry ana conmerte ueparuhen.
quality authentication committee and “East China excellent technical product certificate " issued byJiangsu Science and Technology Association.Our company emphasizes visualization and createbrand, so we have been evaluated as both“AAA" enterprise by Jiangsu international qualification
company and “regard contract and keep faith" enterprise by inaustry ana conmerte ueparuhen.
We have implemented a strict and complete quality system, which ensures each product meet
quality requirement of customers. In addition,all of our product before shipping must do testing.
quality requirement of customers. In addition,all of our product before shipping must do testing.
Recently we export machine to Germany USA, UK Cyprus,Russia Uzbikistan Poland, Australia,Serbia, Ukraine, Mexico, Argentina, Peru, Brazil, Paraguay,Malaysia,Vietnam, Thailand, Philip-pines, Singapore,Taiwan, Hong Kong, Turkey, Saudi Arabia, Sultan of Oman, Kenya, Bangla-desh...
Q: Delivery period:
A: Around 20-60 days, delivery perious will vary from different types of machin-ery,
A: Around 20-60 days, delivery perious will vary from different types of machin-ery,
Q: Payment of terms:
A: Acceptable payment of terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment,and rest 70% after FAT but before
shipment
A: Acceptable payment of terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment,and rest 70% after FAT but before
shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new, and we design and manufac-ture as per approbation by user;
We guarantee every set of our machine after shipment is have guarantee
period 15 months, during warranty period we will provide technician debuggingonsite, or free spare parts caused by the malfunction of machines.
We guarantee we reply the user's bewilderment within 24 hrs after receive noti-fication.
A: We guarantee all the machines are brand new, and we design and manufac-ture as per approbation by user;
We guarantee every set of our machine after shipment is have guarantee
period 15 months, during warranty period we will provide technician debuggingonsite, or free spare parts caused by the malfunction of machines.
We guarantee we reply the user's bewilderment within 24 hrs after receive noti-fication.
Q: Package of merchandise:
A: First pack with plastice membrane wrap on the surface of machines,external we use plywood case, finall load in container.
A: First pack with plastice membrane wrap on the surface of machines,external we use plywood case, finall load in container.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology andchoose model and type of machines for users, and give feasible advice of eachmaterial.
Secondly we thank for you if you visit our factory to do FAT before shipment,give us your advice and we modify the machine if not meet the user's satisfac-tion.
Last, we will dispatch at least 1 experienced and responsible technician togo to abroad for guide commissioning and train the operators. lf no need onsitecommissioning, we provide video guidance.
A: First we invite you to visit our factory, and negotiate the tecnnology andchoose model and type of machines for users, and give feasible advice of eachmaterial.
Secondly we thank for you if you visit our factory to do FAT before shipment,give us your advice and we modify the machine if not meet the user's satisfac-tion.
Last, we will dispatch at least 1 experienced and responsible technician togo to abroad for guide commissioning and train the operators. lf no need onsitecommissioning, we provide video guidance.
Q: Which information do you require then you could choose model subse-quently?
A: We need to know the information as below:
What is your material name?
What is the initial moisture percentage before drying?What is the residual moisture percentage after drying?
What is the heating temperature your material can undertake during dryingprocess?
What is the heating source, steam, electricity, natural gas or others?Last but important, what is capacity how many kgs/h before drying or afterdrying?
A: We need to know the information as below:
What is your material name?
What is the initial moisture percentage before drying?What is the residual moisture percentage after drying?
What is the heating temperature your material can undertake during dryingprocess?
What is the heating source, steam, electricity, natural gas or others?Last but important, what is capacity how many kgs/h before drying or afterdrying?
