GMP Разработанный фармацевтический гранулятор жидкости кровать
- Категория: Drying Equipments >>>
- Поставщик: Liaoning,SINOPES,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 22608.52 $* | 23738.40 $* |
| Aug-15-2025 | 22418.12 $* | 23539.60 $* |
| Jul-15-2025 | 18808.88 $* | 19748.56 $* |
| Jun-15-2025 | 22038.2 $* | 23140.51 $* |
| May-15-2025 | 19188.7 $* | 20147.35 $* |
| Apr-15-2025 | 21658.91 $* | 22741.37 $* |
| Mar-15-2025 | 21468.66 $* | 22541.71 $* |
| Feb-15-2025 | 21278.49 $* | 22342.29 $* |
| Jan-15-2025 | 21088.75 $* | 22142.18 $* |
Характеристики

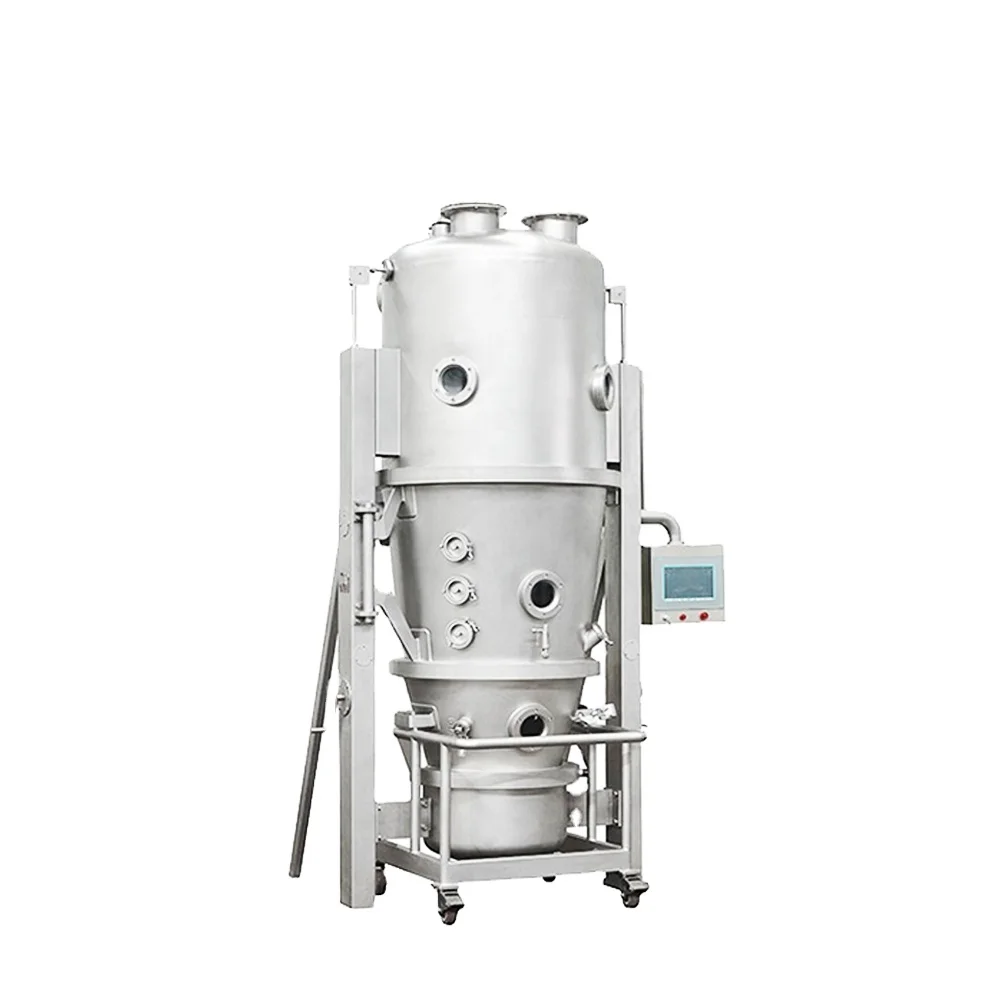

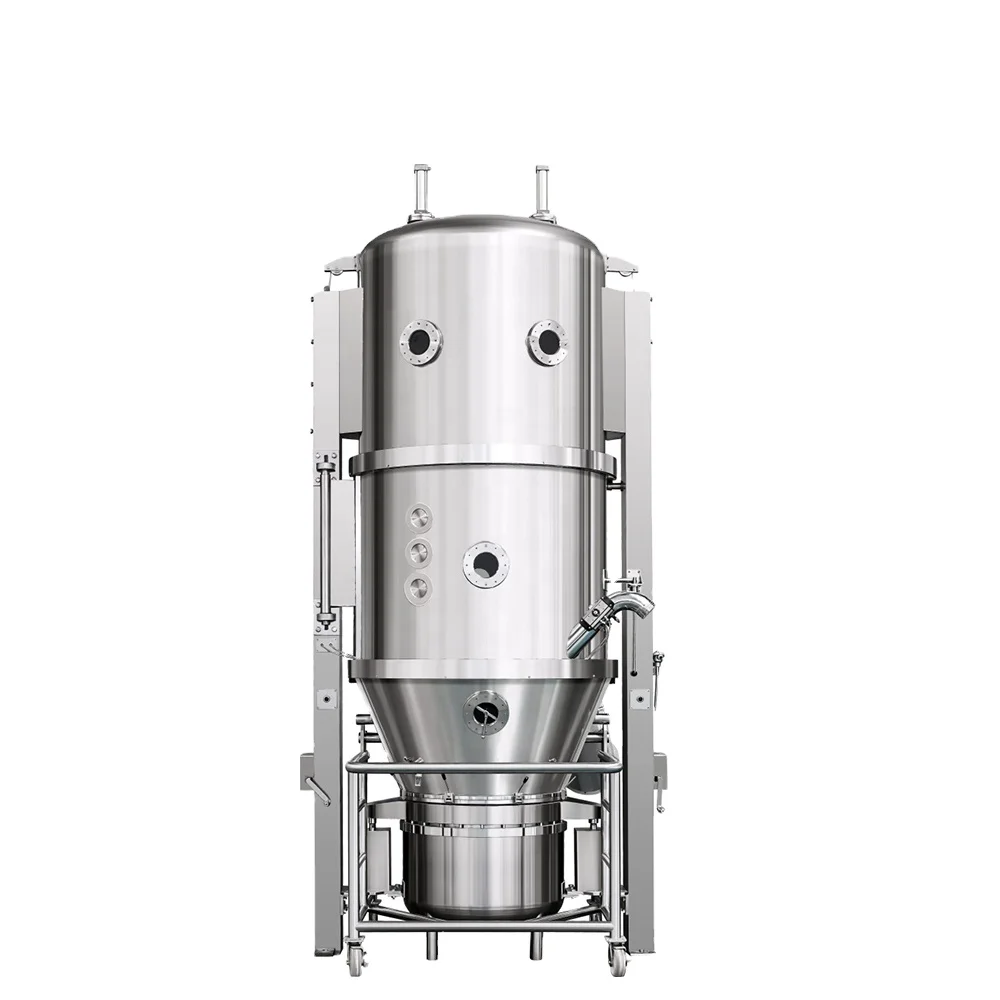

Products Description
Introduction
This machine is suitable for drying of powder and granules. The principle of action is based on: Put the raw material into the fluid bed.
The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
Mixing-granulating-drying in one-step.
Adopting double chamber filtering bags system, removing dust completely.
This machine is suitable for drying of powder and granules. The principle of action is based on: Put the raw material into the fluid bed.
The cold air is drawn into the fluid bed through the pre filters and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater.
The material is fluidized in the fluid bed regularly . The evaporating moisture is drawn out by the fan.
Features
The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
Mixing-granulating-drying in one-step.
Adopting double chamber filtering bags system, removing dust completely.
Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
Can choose 2 bar explosion-proof design.
Designed, manufactured and laid out by GMP.
Technical data
Can choose 2 bar explosion-proof design.
Designed, manufactured and laid out by GMP.
Technical data
Item /Specification | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | 800-1000 | |||||||
Capacity (Kg /batch) | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | By client | |||||||
Scope of application for liquid(g/cm3) | <1.3 | |||||||||||||||
Material yield rate (%) | ≥99 | |||||||||||||||
Qualified rate of end products (%) | ≥85 | |||||||||||||||
Container volume (L) | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 | ||||||||
Diameter r(mm) | 500 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | ||||||||
Power of fan (Kw) | 3 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | ||||||||
Power of supply liquid motor (Kw) | 0.37 | |||||||||||||||
Pressure of steam (Mpa) | 0.4-0.6 | |||||||||||||||
Consumption of steam (Kg/h) | 18 | 35 | 60 | 120 | 140 | 180 | 310 | 400 | ||||||||
Pressure of compressed air (Mpa) | 0.4-0.6 | |||||||||||||||
Consumption of compressed air (m3/min) | 0.3 | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.1 | 1.5 | ||||||||
Working temperature (℃) | Normal temperature -120℃ could adjust | |||||||||||||||
Noise (DB) | Installed separated with fan ≤75 | |||||||||||||||
Overall dimension of machine (L×W×H) | refer to installation drawing or customers room | |||||||||||||||
Recommend Products
Why Choose Us
Company Information
LIAONING SINOPES Machinery Co.,Ltd,is located in liaonig is the company specialized in design and manufacturing of high performance packing solution.Our products includes vertical packing machine,horizontal packing machine,powder Packaging Machine,Grain Packaging Machine,Liquid Packaging Machine,and package production line.It is widely used in food, hardware,industrial, plastic, paper,chemicals, agriculture products,daily necessities, disposable supplies,and so on.

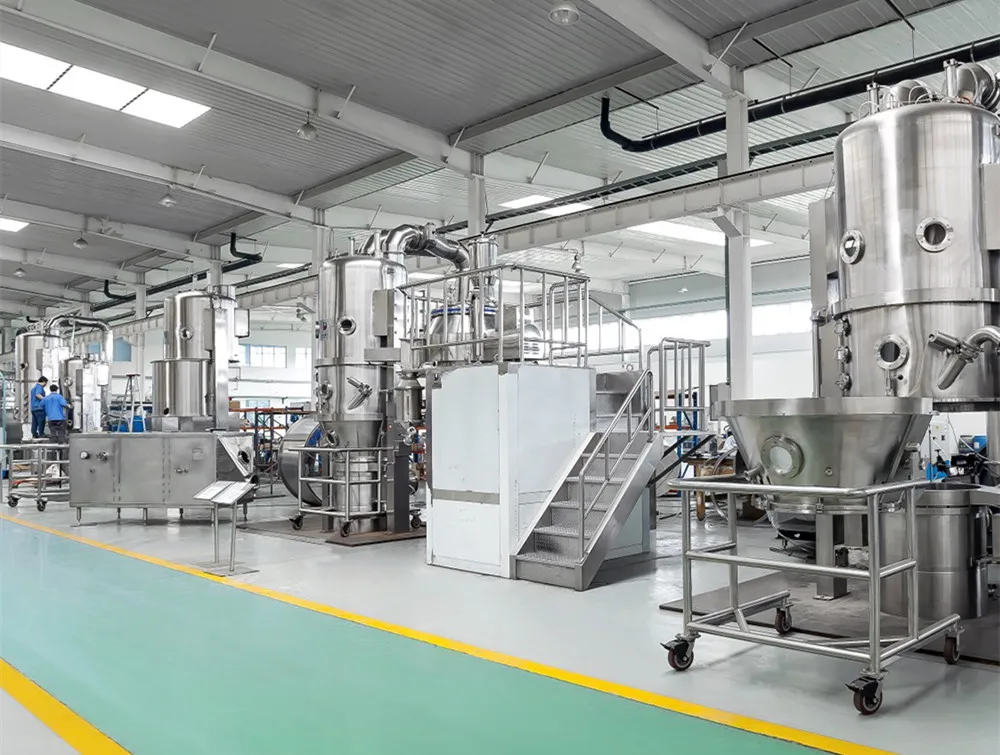

Onsite Photos--our office
Packaging & Shipping
FAQ
Service before Sale
1. 24 hours on line for quick response: reply within 2 hours for any inquiry.
2. Free solutions consultation.
3. Free sample testing.
4. Visit our factory is welcome.
Service on Sale
1. Strict QC for each assembling process, testing and assembled machines.
2. Assembling pictures / testing videos during production is available.
3. Pack well with standard export wooden case after you confirm the machine is OK for shipment: Cleaning---Oil---Wrapping---Fixed tightly in wooden case.
4. Delivery on time.
Service after Sale
1. Free training.
2. Operation manual and videos for installation, setting, debugging, maintenance
3. Free online communication with our engineer available.
4. Quick answers within 2 hours for any questions.
5. Engineer is available to send to your factory for services if neccessary.
6. During warranty, if any defects or malfunctions which have been proved to be caused by our side, we are obliged to supply technical assistance to the buyer to ensure their normal production and send spare parts for replace as free, but the buyer should pay the transport charges.
