Инфракрасная газовая горелка HD162 для сушки

Описание и отзывы

Трекер стоимости

Характеристики

Product name: Infrared Propane Gas Burner Paint Drying Oven

Why do you choose Catalytic infrared burners(heater)???

1. Save above 20% energy than common gas buners(heater)

2. Zero harmful emmision

3. Pre-mixed, naturally aspirted burner, no need of air blower, air fan or fire chamber

4. Installed in all direction of  an oven

5. Completed thermostat controlling system!



Now we have following sizes for different sizes oven:



MODEL	Dimension	Weight	Gas Type	Heat Output		Consumption
	mm	kg		KW/h	Kcal/hr	NG(m3/h)	LPG(kg/h)
FY41	280*80*70	3.1	NG/LPG	2.1	1800	0.17	0.16
HD61	423*80*94	3.8	NG/LPG	2.4	2030	0.18	0.18
HD81	555*80*115	5.8	NG/LPG	3.1	2700	0.24	0.24
HD82	219*164*108	4.8	NG/LPG	3.1	2700	0.24	0.24
HD101	690*80*115	6.9	NG/LPG	3.9	3380	0.3	0.29
HD162	570*130*175	8	NG/LPG	6.3	5400	0.49	0.47
HD242	840*130*175	11.7	NG/LPG	9.4	8120	0.75	0.71
HD262	930*130*175	13	NG/LPG	10.9	9360	0.8	0.82



We, Chongqing Haodong Technology Co,.ltd is a professional manufacture of catalytic infrared burner&heaters in China.

Catalytic infrared burner use rare-earth as catalyst, which can help to save above 10% energy than non-catalytic heaters.

And at the same time it can prolong the use life of ceramic plate.

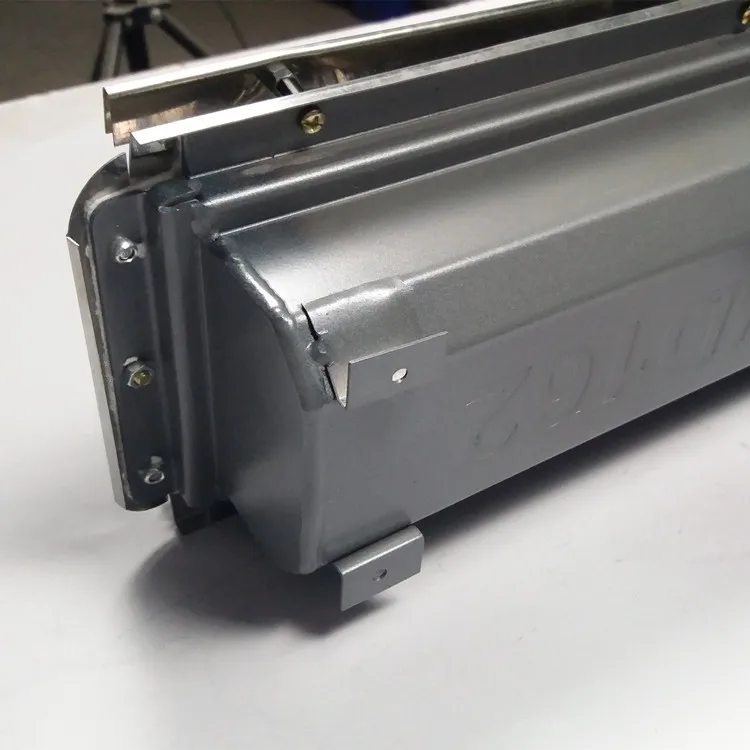

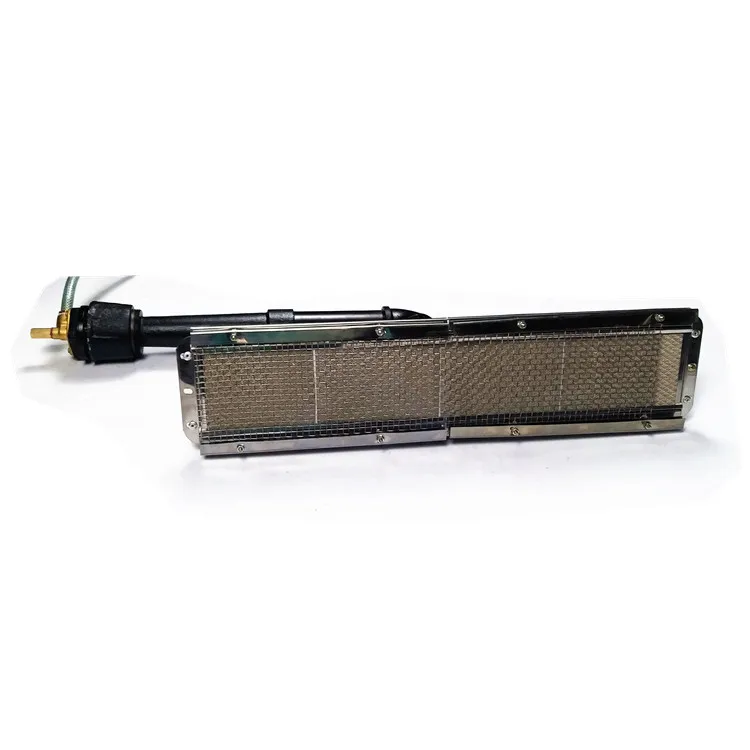

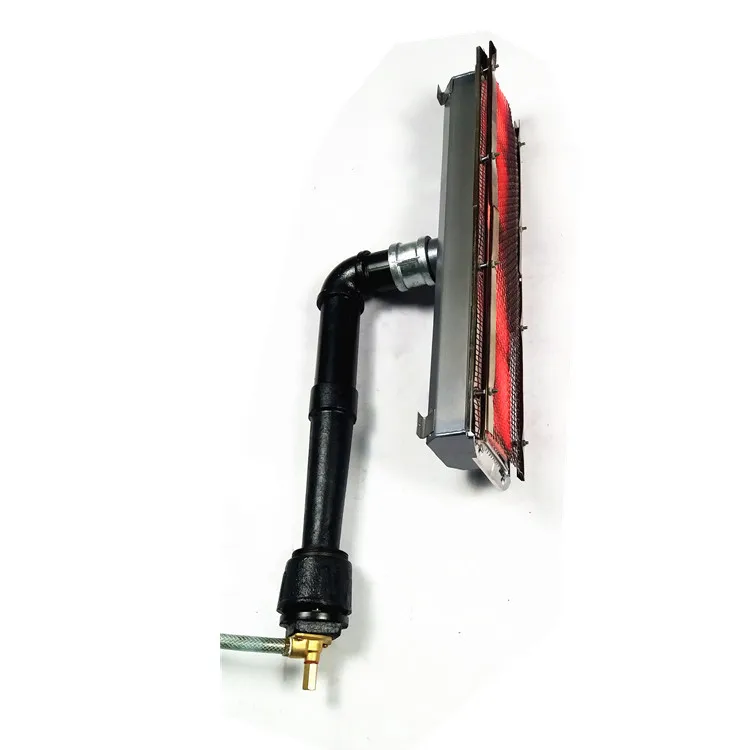

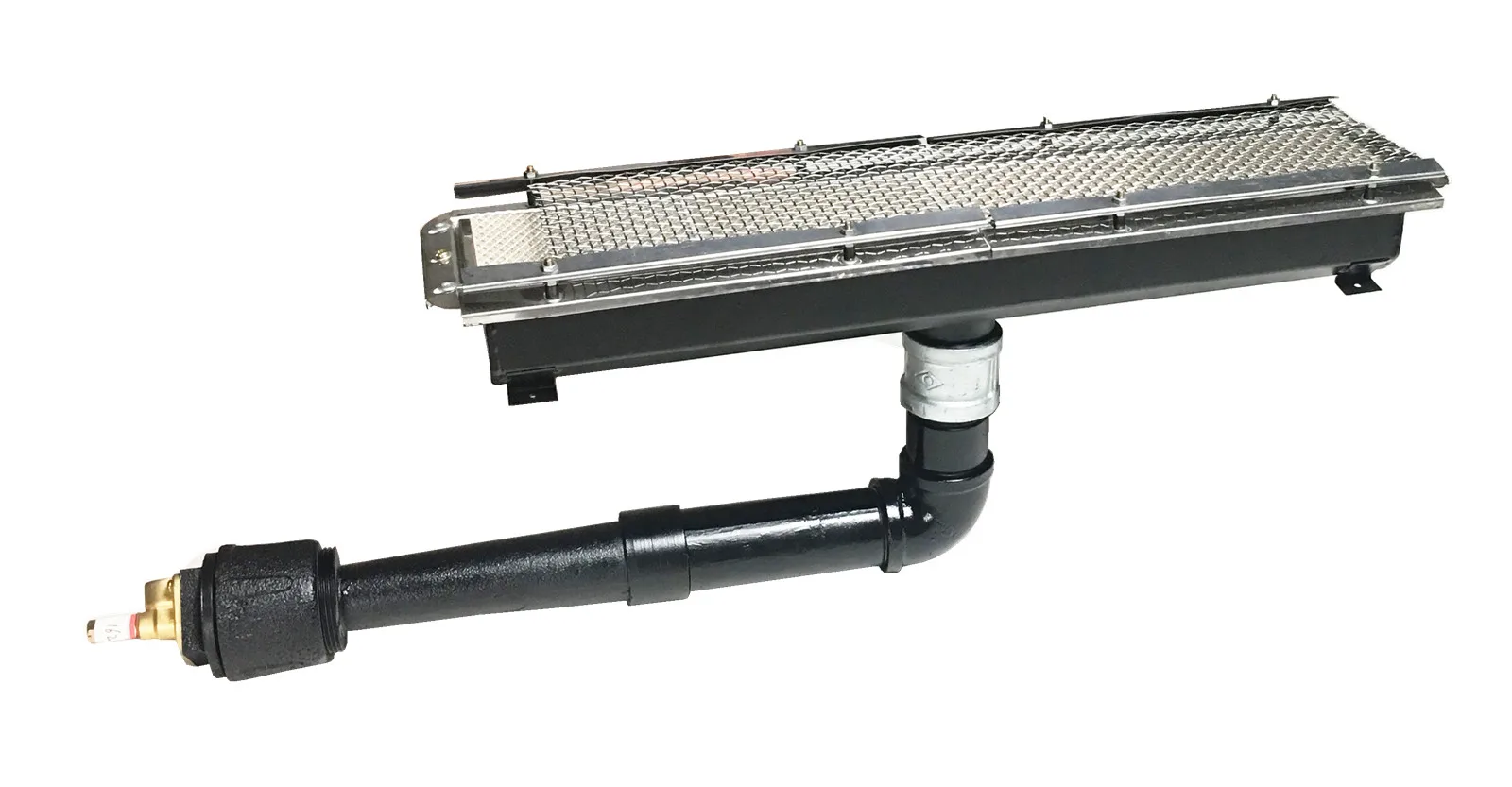

Photos:



Material:

1. Shell: Cast Iron

2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated

3. Nozzle: brass

4. Up cover: stamped stainless iron



Use scope

Used in all kinds of industrial oven,industrial dryer

Now the most widely applications:

1. powder coating curing oven

2.food baking oven

3.glove dipping drying oven

4. Welding preheating







CommonSystem



We have three accessoreis for this burners:

They are mainly used to realize auto igntion,help to keep stable temprature and protect from gas leakage.



For the whole system, it manly has following three parts:

1.Pressure regulator and gauge—they are used to reach a working pressure at 3000~5000pa for our burners.

2.Electric cabinet( thermostat)—to control burners and temperatures of oven

3.Burners and three accessories—every burner need three accessories, electric pulse igniter, ignition pin and solenoid valve. They are mainly used to realize auto-ignition, help to keep stable temperature and protect from gas leakage.

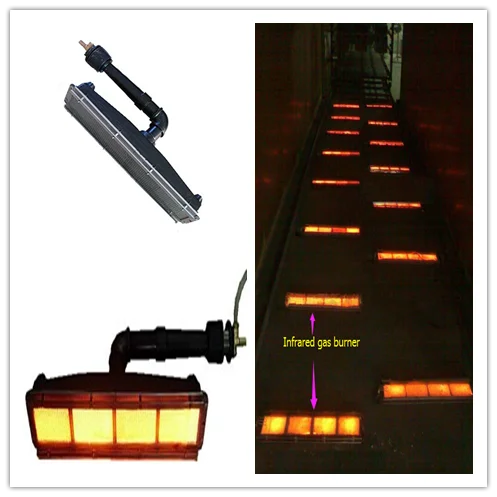

Following is the most popular use in tunnel oven:

                                         Gas Storage                                                                                  Oven outsides



                                                        Oven Inner sides                                                                      Oven bottoms

                                                                                           Thermostat  Controllers





Any quesitons or requirement, just contact us!
