Product Description

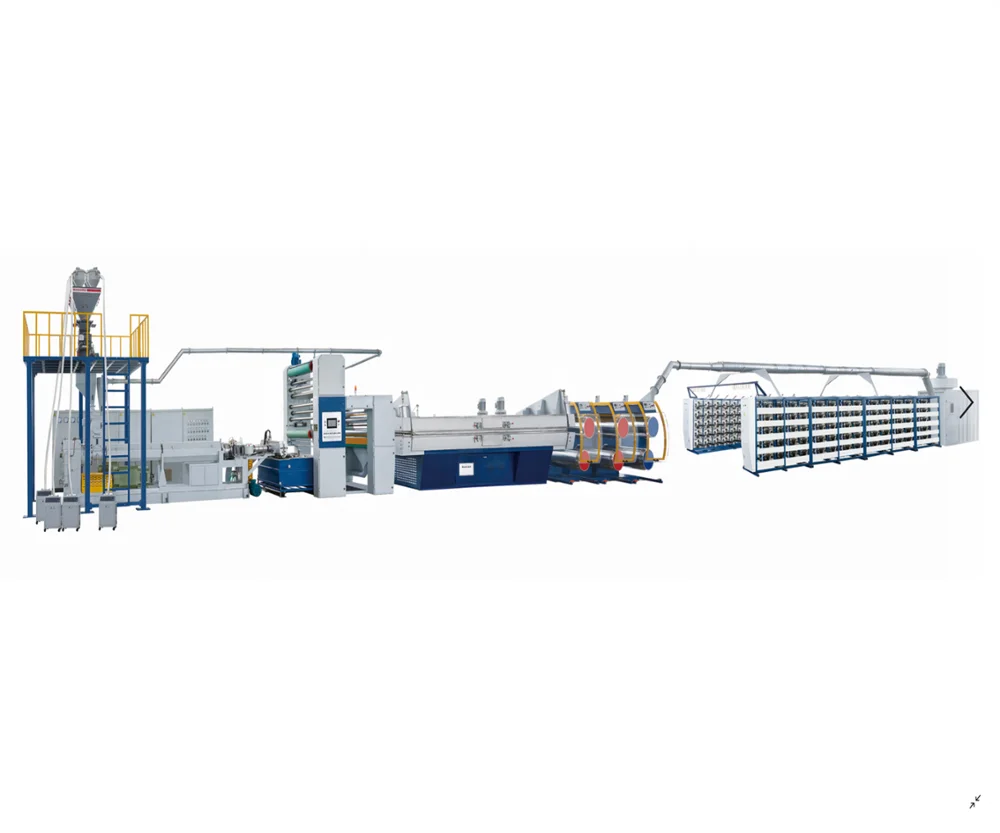

PLASTIC EXTRUSION FLAT FILM STRETCHING LINE
Innovative Design, 30% electricity saving !
Model | SJPL-Z90*33-1100 | SJPL-Z100*33-1300 | SJPL-Z110*33-1600 | SJPL-Z120*33-1800 | ||||
Max. Extrusion Volume | 280kg/h | 360kg/h | 420kg/h | 500kg/h | ||||
Extruder Motor Power | 75KW | 90KW | 110KW | 132KW | ||||
Screw Diameter | Φ90mm | Φ100mm | Φ110mm | Φ120mm | ||||
Die Lip Length | 1100mm | 1300mm | 1600mm | 1800mm | ||||
Max. Production Speed | 300m/min | 300m/min | 300m/min | 300m/min | ||||
Number of Winder | 184 Spindles | 224 Spindles | 256 Spindles | 304 Spindles | ||||
Overall Dimensions (L*W*H) | 34000*3000*3200mm | 36000*3800*3300 mm | 38000*5000*3500 mm | 42000*5000*3600 mm | ||||
Related with the melt pump | ||||||||
Related with the fiberness of raw material and finished products | ||||||||
Optional Device
(1) Multiple Component Dosing Unit;
(2) Melt Pump System;
(3) Equipment for Processing HDPE;
(4) Extended Hot Air Oven;
(5) Chilling Godet System;
(6) Streching Section with;
(7) Additional Godets;
(8) Oil Heated Annealing Godets;
(9) Film Thickness Detecting System;
(10) Fibrillator;
(11) Winder Monitoring System;
(12) Automatically Controlled Flat Die;
(13) Three-folding Device;
(14) Water Chiller;
(15) Cooling Tower.
Main Features
1) Haul-off System
Special design stable flow device and water remove systenm create the condition for high speed production;
2) Stable High Efficiency Stretching Device
Modular design and flexible match by different request, get high quality tape;

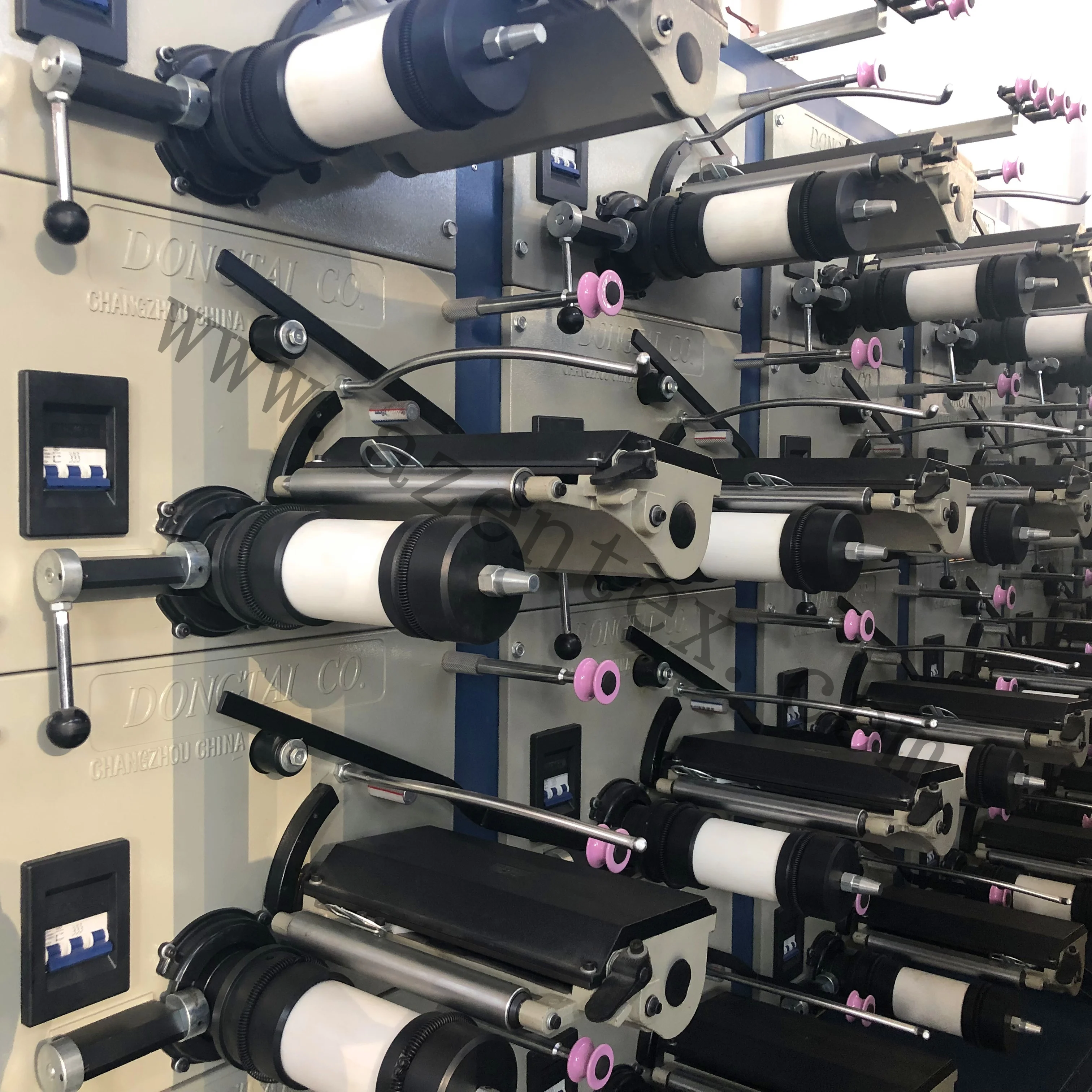

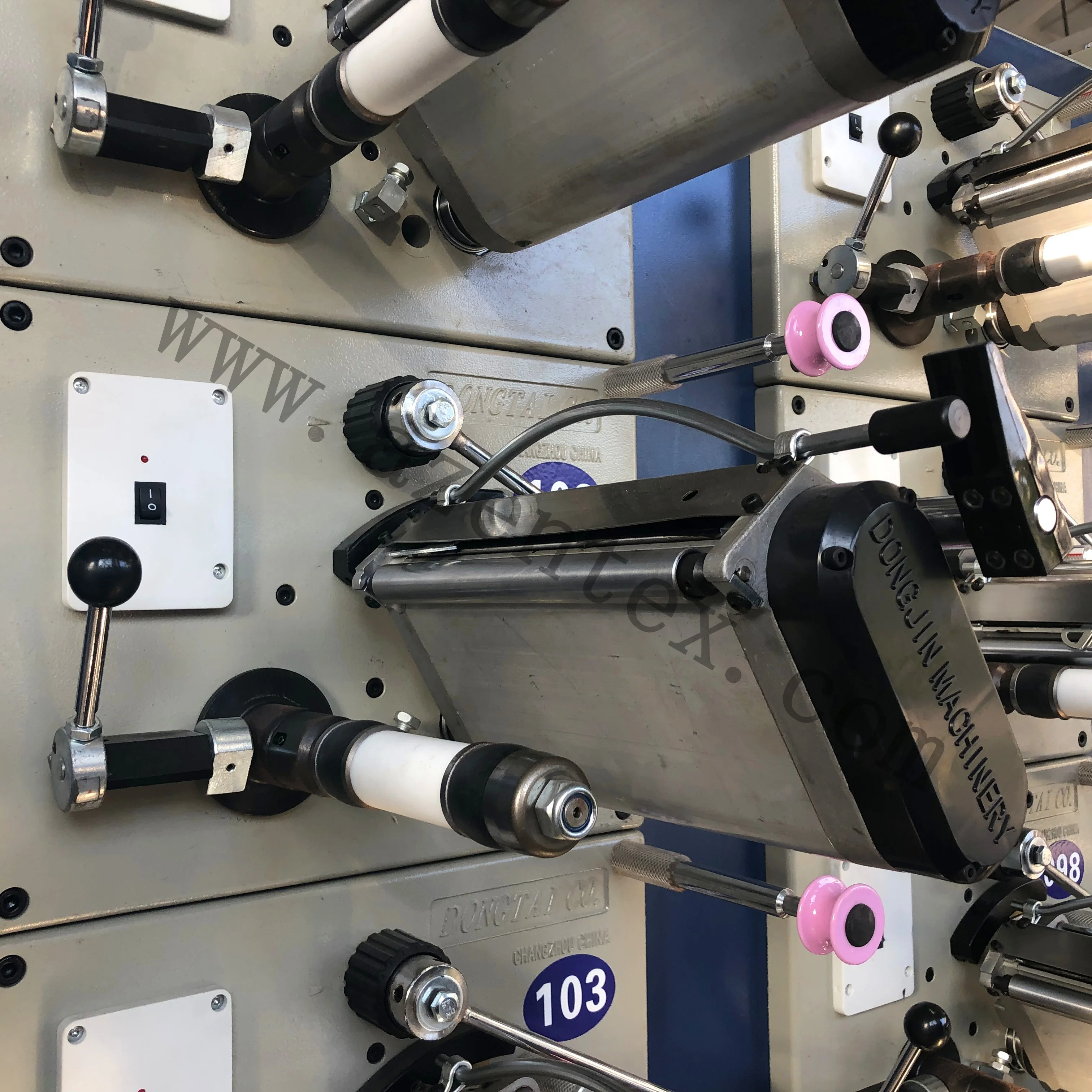

3) High Speed Winder
