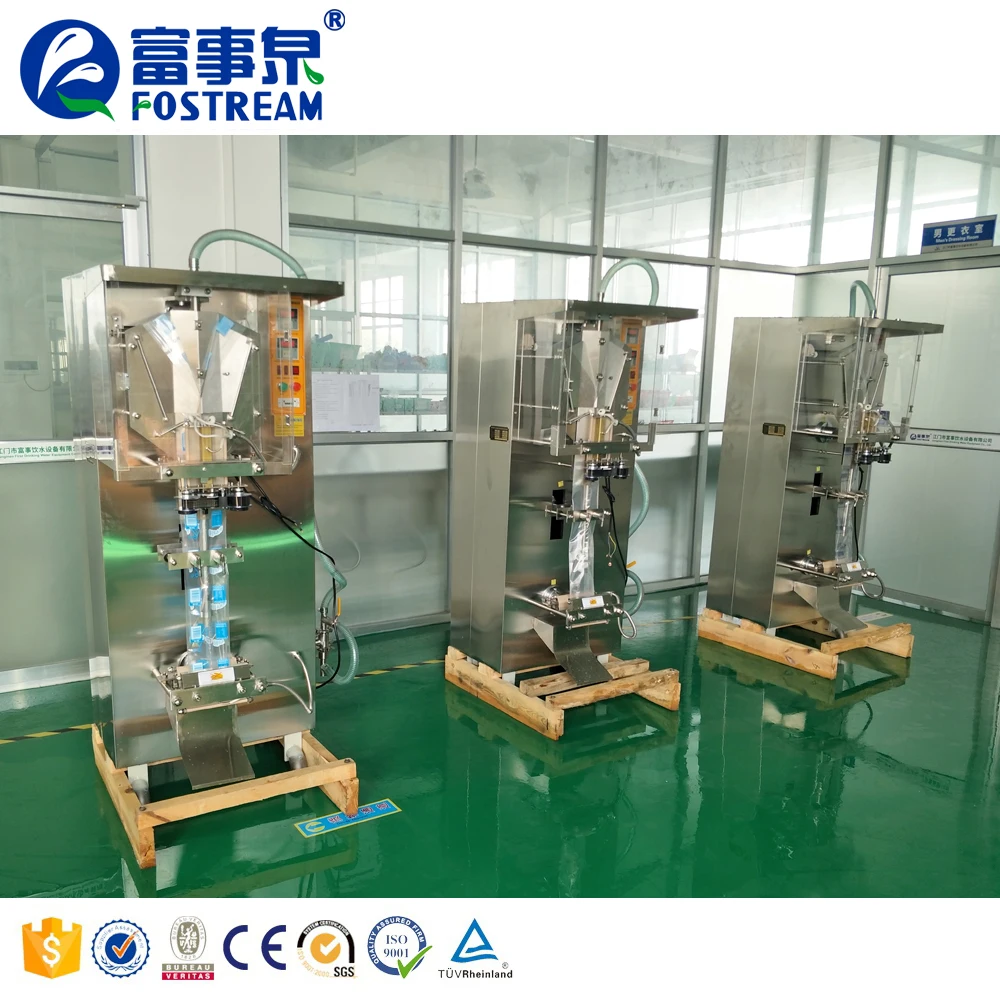

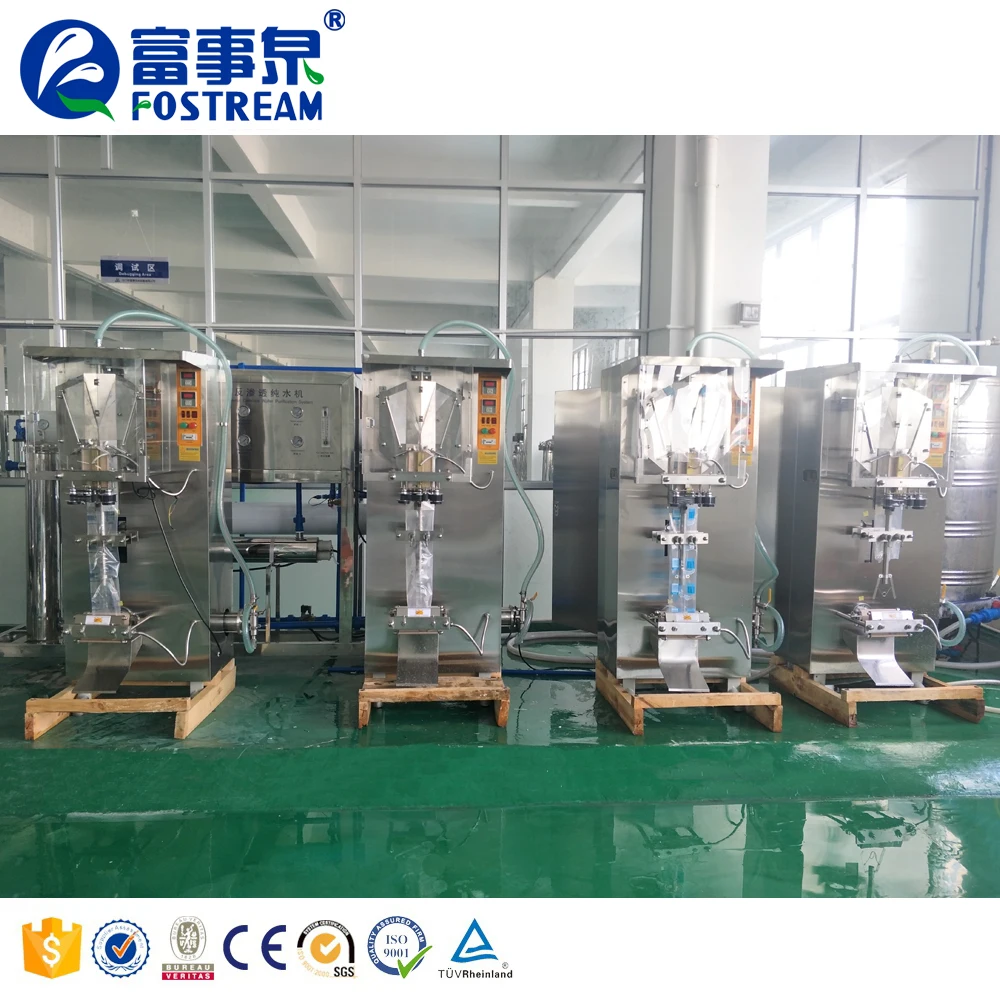

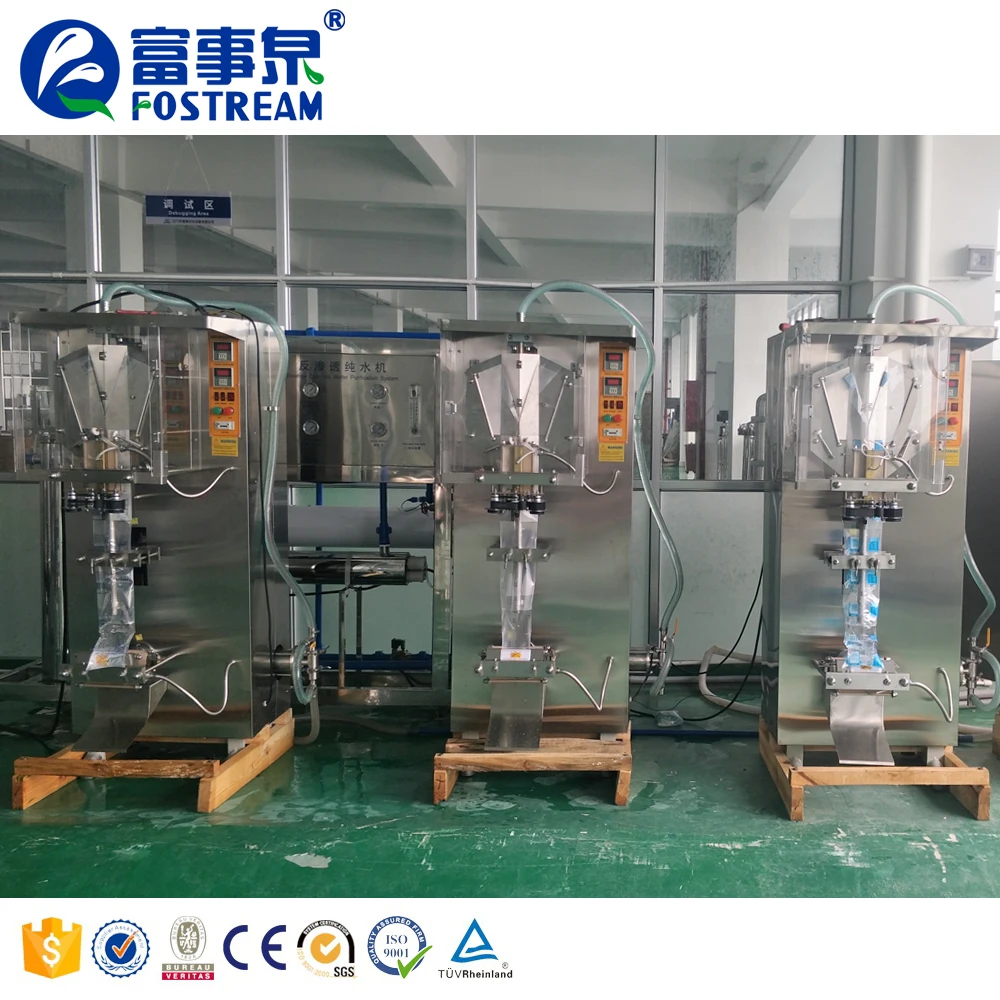

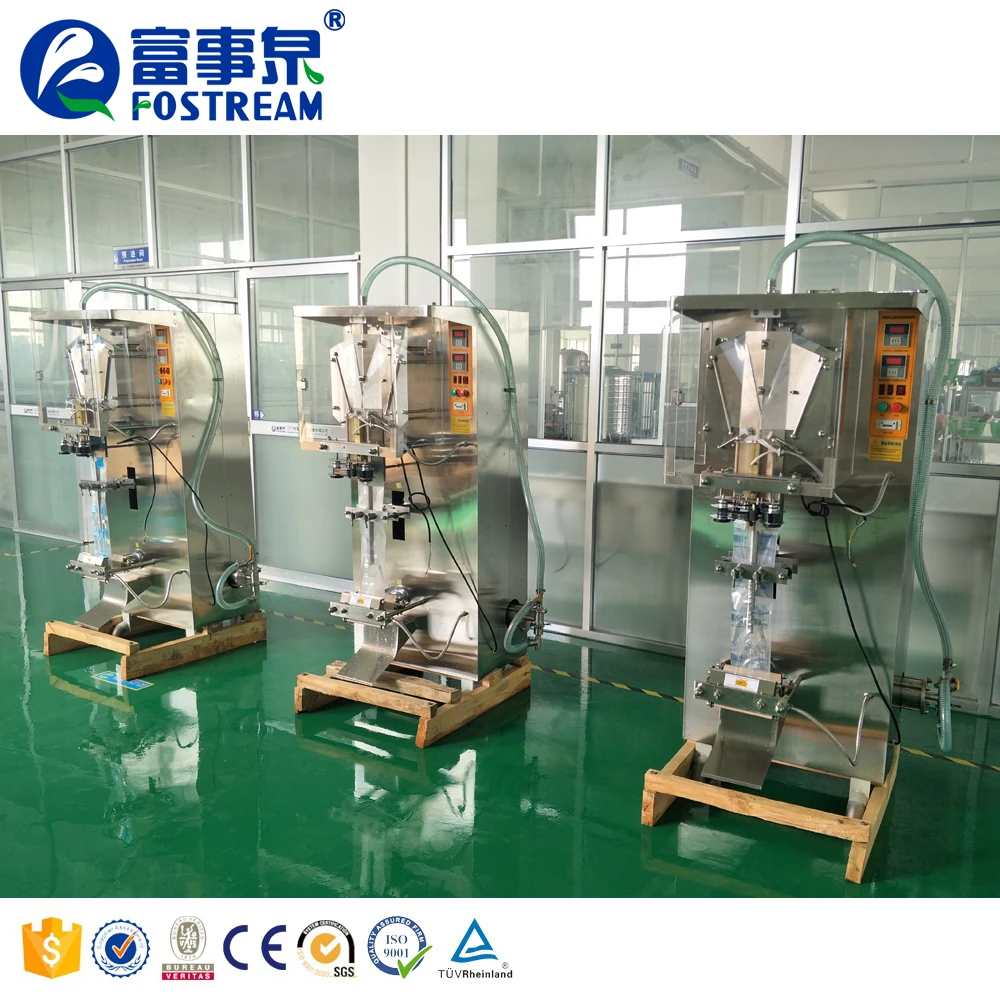

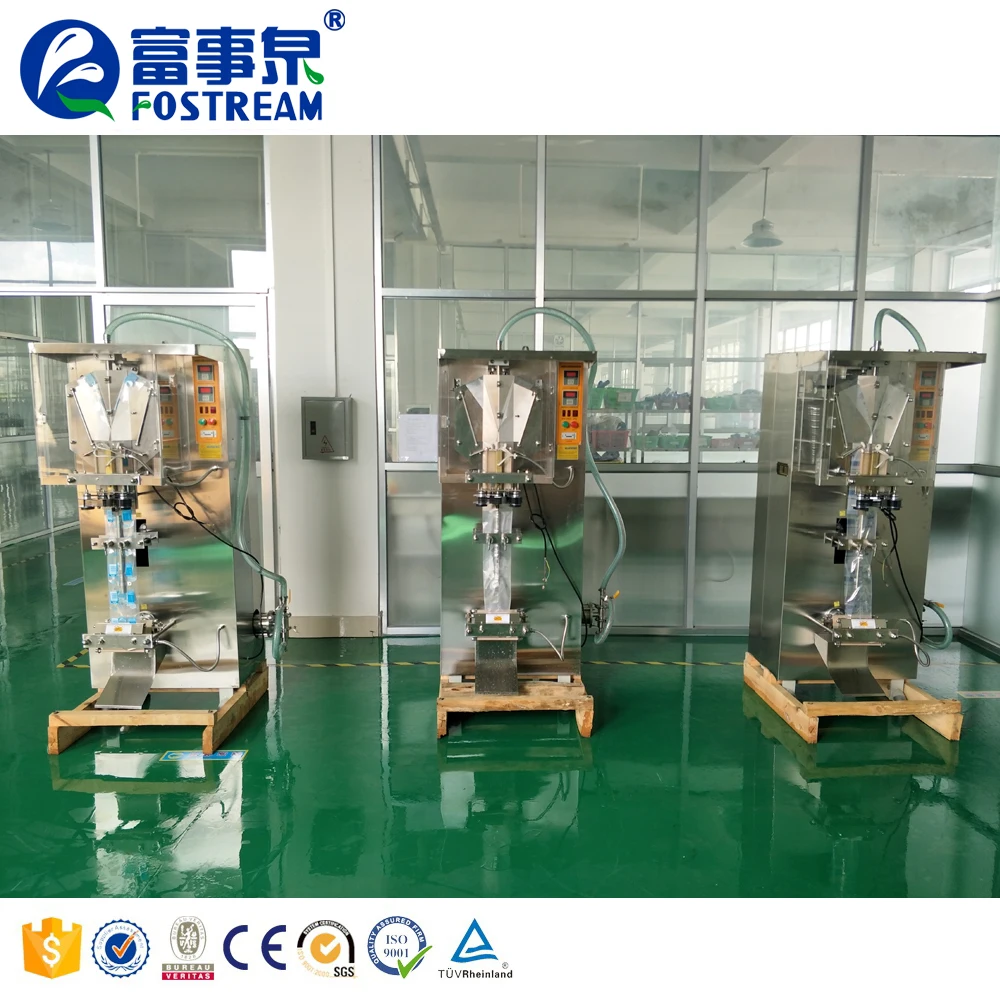

Real Scene Shoots
Jiangmen First Drinking Water Equipment Co., Ltd.
NO.1 Water Production Line on Alibaba
16 Years Alibaba Gold Supplier
18 Years Professional Experience
12500 Square Meters Standard Factory
257000 USD Alibaba Trade Assurance
108000000 Yuan RMB Registered Capital
CE, SGS, BV Product Quality Certification
ISO 9001:2008 Quality Management System
Address: No. 141 (Factory), Lubian Industrial Zone, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China
Welcome to China! Welcome to our factory!
Product Description

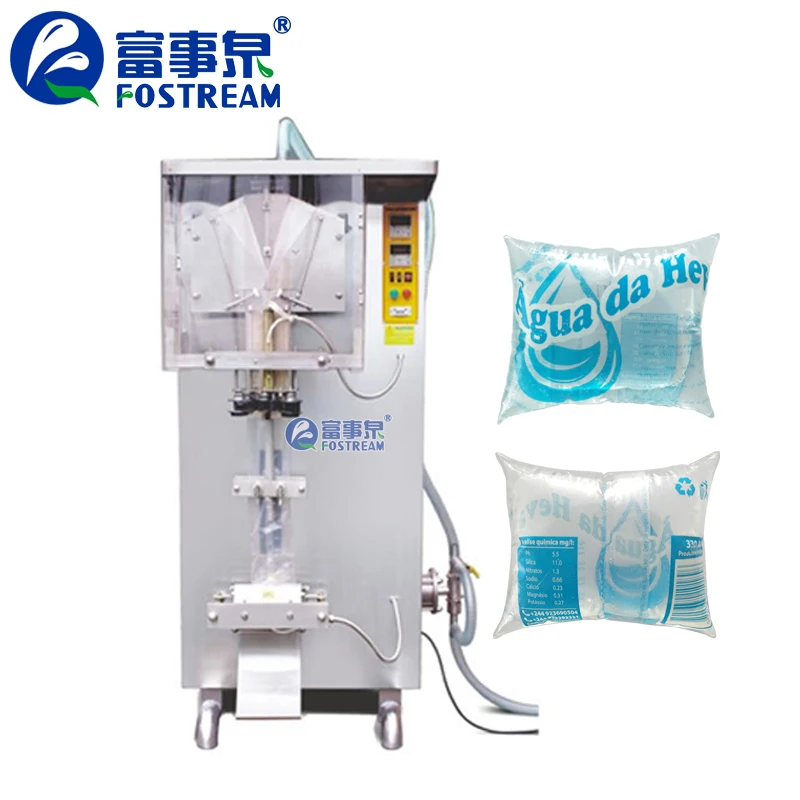

Automatic Plastic Pouch Liquid Sachet Water Filling Machine It is applicable for packing the liquid like pure water, mineral water, fruit juice, milk, soy milk and coconut milk etc.
1) Basic features of the sachet filling packing machine:
Auto Film Feeding+ Vertical Forming Sealing + Horizontal Sealing + Quantitive Filling + Uv System + Date Coding / Counting
2) Structure of the machinery:Basic Type: SJY-1000 Series Technical Specification
01. Frame and Liquid Contacting parts are S.S304. Equipped with water pump for the water filling purpose and motor and speed reducer control unit for the speed control of the film distribution system.
02. Film dispensing unit: is composed of film setting system, film guiding SS304 steel post, vertical thermal heating sealing rubber and the copper system, horizontal thermal sealing and cutting system. The film will be
forming according to the film setting process, to make the bags ready for filling water.
03. Filling unit: is composed of water pump, inlet control valve, Quantities will be depending on the piston type filler.
04. Auto sealing system: is composed of the film inlet guiding post, wheel, and the thermal heating modular, thermal heating tube, temperature controller, and pressure adjusting spring valve.
05.Film output system: is composed of SS304 sliding rail plate.
06.Electrical control system: is composed of control panel, wiring, and the AC contactor system.
07.UV sterilizer and date coder is equipped on the machine
08.Data counting unit is equipped on the front panel.
09.Photo sensor for the speed control and the logo position correcting system will be equipped on the SJY-ZF1000 Series
Basic Type: FS-1000 & FS-2000 Series Technical Specification
| Model | FS-1000 | FS-2000 |
| Bag Making Length | 50-150mm | 50-250mm |
| Bag Making Width | 40-150mm | 40-175mm |
| Packing Use Film Width | 100-320mm | 100-380mm |
| Packing Volume | 50-550ml | 200-1000ml |
| Packing Speed | 1800-2200Sachets/Hr | 1000-1300Sachets/Hr |
| Total Power | 1.6KW | 2.5KW |
| Dimension | 880*760*1800mm | 1050*850*2050mm |
| Weight | 275KGS | 380KGS |
| Film distribution type | Gear Moving Mechanical Control | |
| Monitoring Sensor | NO | |
| Option Solutions | Ribbon Date Coding Is Available: $40 Additional | |
| Anti-Dust Cover is Available: $30 Additional | ||
Luxury Type: FS-1000LX & FS-2000LX Series Technical Specification
(with Photocell)
| Model | FS-1000LX | FS-2000ZFLX |
| Bag Making Length | 50-150mm | 50-250mm |
| Bag Making Width | 40-150mm | 40-175mm |
| Packing Use Film Width | 100-320mm | 100-380mm |
| Packing Volume | 50-550ml | 200-1000ml |
| Packing Speed | 1800-2200Sachets/Hr | 1000-1300Sachets/Hr |
| Total Power | 2.1KW | 2.5KW |
| Dimension | 1050*850*1800mm | 1050*850*2050mm |
| Weight | 375KGS | 380KGS |
| Film distribution type | Motor Control depending on different sachet size, Film sending length is precise | |
| Monitoring Sensor | Photocell Sensor : Can cut & seal 100% elegant according to Film Logo &AD Pre-printed | |
| Option Solutions | Touch Screen Function :$480 Additional | |
| Ribbon Date Coding Is Available: $40 Additional | ||
| Anti-Dust Cover is Available: $30 Additional | ||
Sachet Water Filing Production Line
--Sachet Water Machine
--RO Water Purification Machine
Free Package Design
Finished Products
Transaction History
Our products are sold well not only in domestic, but also in Chile,Venezuela,Egypt,Peru,Maldives,United States,Brunei Darussalam,Saudi Arabia,Kenya,Panama,Cambodia,Bhutan,Bolivia,Bulgaria,Nicaragua,Dominican Republic,Somalia,Australia,Switzerland,Mozambique and other countries.
| If you want to know more about our transaction history. Pls click | VIEW MORE > |
FAQ
Q1.Are you a factory or trading company?
A1.We are a professional water treatment and filling equipment manufacturing factory that set up for 17 years.We always pay attention to the development of the industry !.We can give a discount according to the quantity of machine you purchase.
B1.At the same time,we take effective measures to control the production process for ensuring the quality of products.
Our products are certified.And we can supply SGS, BV, TUV, ISO9001, ISO14001, OHSAS18001, CE certification.
C1,Website: http://www.fostream.com Website on alibaba: https://jmangel.en.alibaba.com
Q2.Where is your factory located? How can I visit there?
A2:Our factory is located in No.141 Plant, Qingnian Road, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China, All our clients, from home or abroad, are warmly welcome to visit us!
Q3.What products does your company offer by yourself?
A3:We are specialized in RO water treatment machines, Sachet water production line, Small bottle filling production line and 5 gallon filling production line etc.
Q4: How can I know your machine works well?
A4: Before delivery, we shall test the machine working condition for you.
Q5: Do you have technical support after we purchased your machines?
A5: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
