Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00
Высокая со слежением за максимальной точкой мощности эффективность 220v 4kw 3 фазы солнечный инвертор водяного
- Категория: Солнечный инвертор насоса >>>
- Поставщик: Shenzhen,Kewo,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 167.38 $* | 175.97 $* |
| Aug-15-2025 | 165.68 $* | 173.18 $* |
| Jul-15-2025 | 139.67 $* | 146.73 $* |
| Jun-15-2025 | 162.25 $* | 170.56 $* |
| May-15-2025 | 141.34 $* | 148.4 $* |
| Apr-15-2025 | 160.93 $* | 168.26 $* |
| Mar-15-2025 | 158.63 $* | 166.71 $* |
| Feb-15-2025 | 157.34 $* | 165.20 $* |
| Jan-15-2025 | 155.47 $* | 163.63 $* |
Характеристики
Product Description

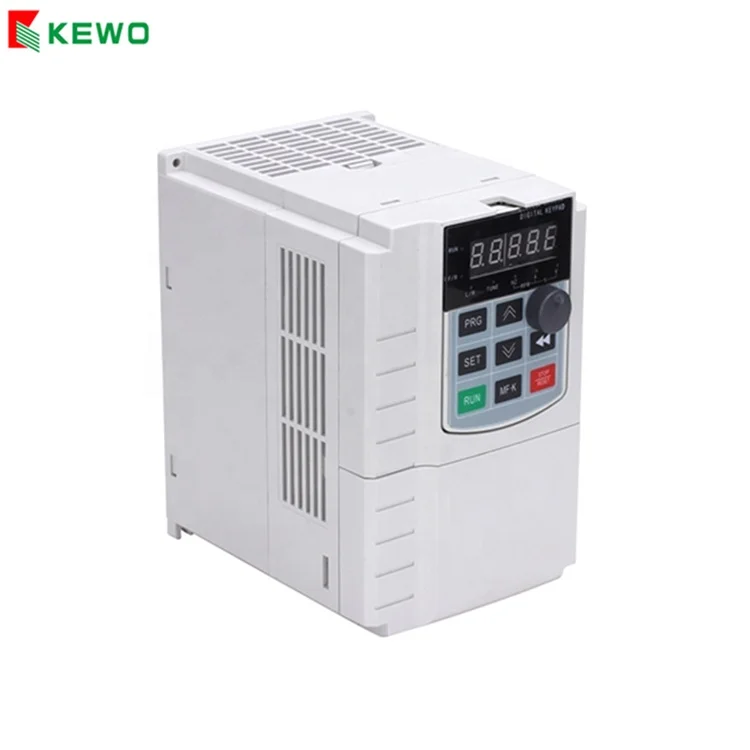

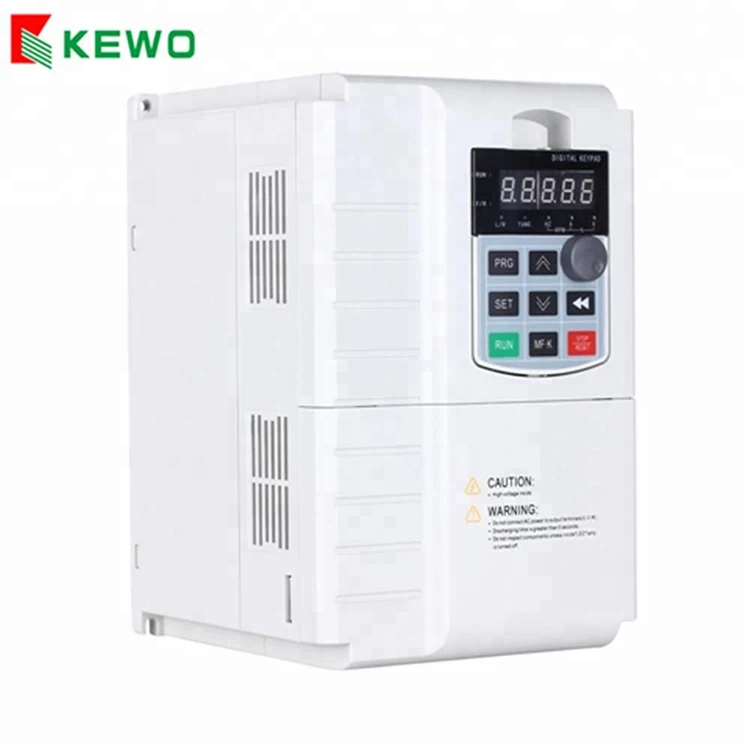

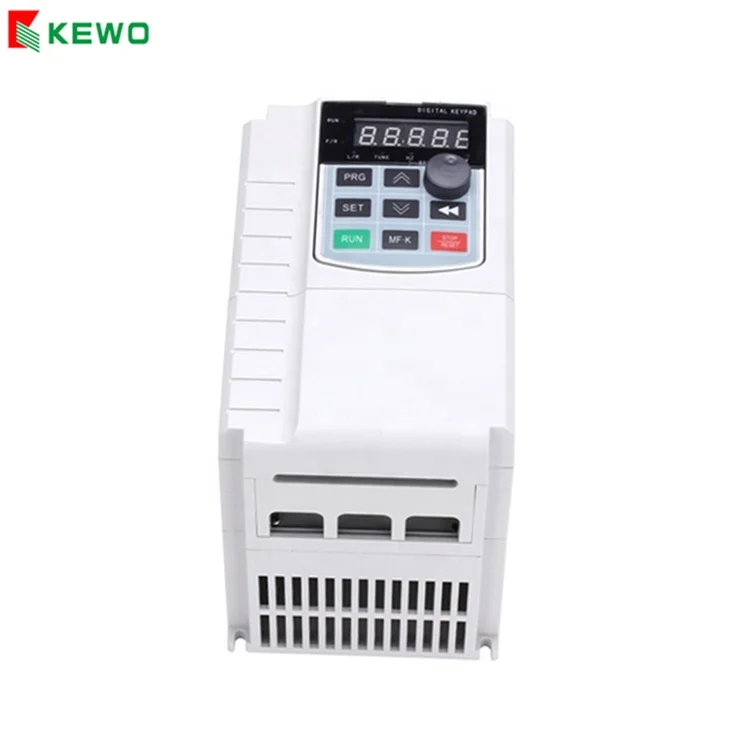

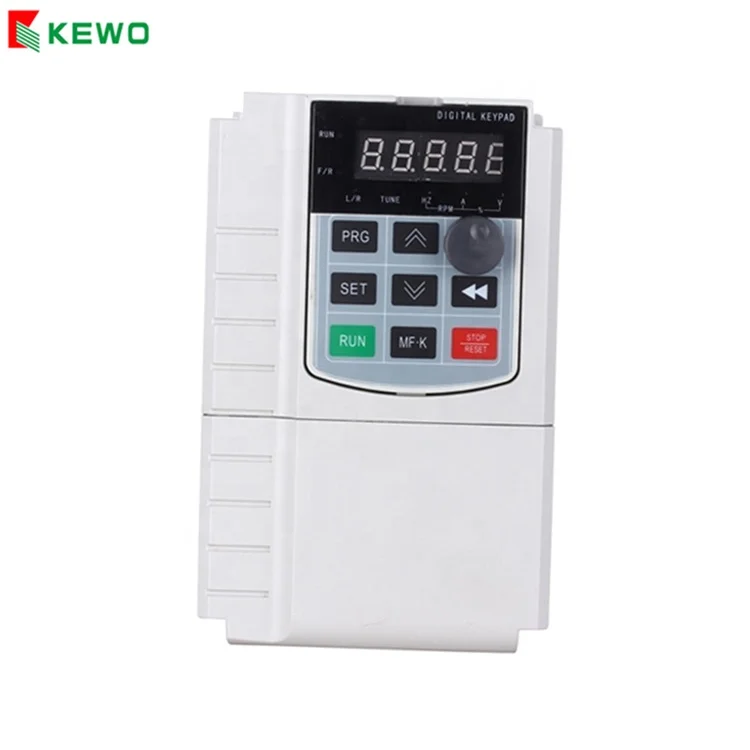

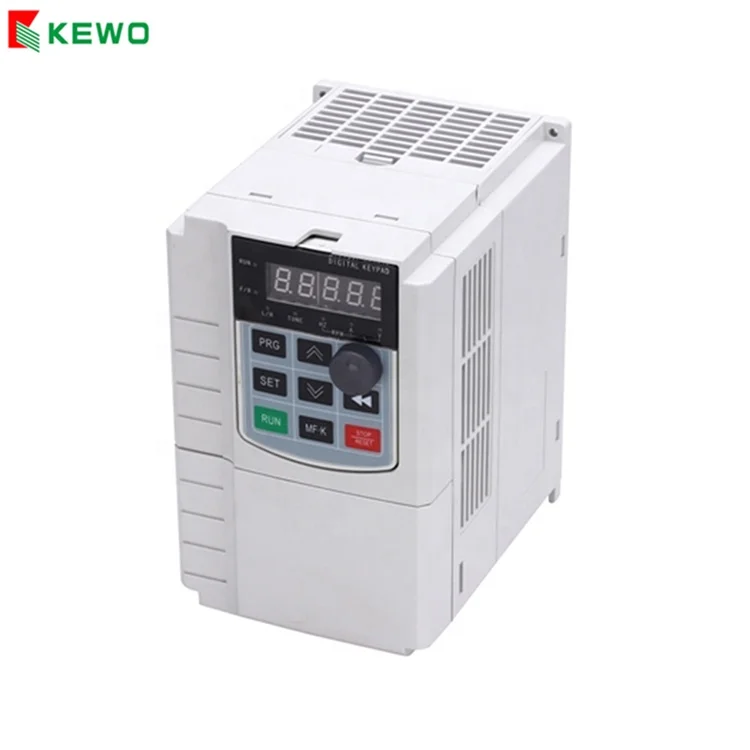

KEWO SG320 Solar Pump Inverter
Fully automatic system using variable speed drive compatible with AC, 1 /3-phase, submersible and surface mount pumps, and high efficiency PMSM Pumps. The system is composed of a PV generator, a pump and a solar pump drive. Based on the design philosophy that it is more efficient to store water rather than electricity, there is no energy storing device such as storage battery in the system.
KEWO Solar Water Pumping Solution is a fully automatic system designed to provide water at affordable cost for people with limited or no access to electricity. It uses the most advanced S300/3200 variable speed drive to regulate the speed of a 3-phase AC motor depending upon the solar energy available from the solar panel.
KEWO Solar Water Pumping Solution is a fully automatic system designed to provide water at affordable cost for people with limited or no access to electricity. It uses the most advanced S300/3200 variable speed drive to regulate the speed of a 3-phase AC motor depending upon the solar energy available from the solar panel.
Descriptions and Features
1. Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99.6%
2. Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
3. The working voltage of solar panel can set by manual or MPPT automatically tracking
4. Compatible with dual power input, AC grid and DC power supply input
5. Built in automatic sleep-wake up function
6. The PQ (power/flow) performance curve enables calculating the flow output from the pump
7. Digital control for fully automatic operation, data storage and protective functions
8. Intelligent power module (IPM) for the main circuit
9. LED display operating panel and support remote control,LCD display coming soon.
10. Low water probe sensor, and water level control function
1. Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99.6%
2. Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
3. The working voltage of solar panel can set by manual or MPPT automatically tracking
4. Compatible with dual power input, AC grid and DC power supply input
5. Built in automatic sleep-wake up function
6. The PQ (power/flow) performance curve enables calculating the flow output from the pump
7. Digital control for fully automatic operation, data storage and protective functions
8. Intelligent power module (IPM) for the main circuit
9. LED display operating panel and support remote control,LCD display coming soon.
10. Low water probe sensor, and water level control function
Specification
SG320-2S | 150-450Vdc input,for 0.75-4KW 220Vac pumps |
SG320-4T | 250-800/900Vdc input,for 0.75-132KW 380Vac pumps |
Output frequency range | 0~60Hz. |
MPPT efficiency | Above 99.6% |
Ambient temperature range | G-type for submersible pumps, 150% rated current for 60s, 180% rated current for 2s |
P type for general pumps, 120% rated current for 60s, 150% rated current for 2s | |
Protection function | 1.Phase loss protection 2. phase short circuit protection 3.ground to phase circuit protection 4.input and output short circuit protection 5.Stall protection 6. Dry run (under load ) protection 7. Motor maximum current protection 8. Low input power protection 9. Lowest stop frequency protection 10. Strong lightning protection |
Running mode | MPPT or CVT ( A and Q MPPT maths) |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Application
Customer Photos
