Настраиваемая машина для розлива бутылок с пипеткой 5-30 мл 10 Автоматическая производственная


Поделиться:


Цена:8 000,00 $ - 20 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 9520.96 $* 9996.93 $*
Aug-16-2025 9440.35 $* 9912.60 $*
Jul-16-2025 7920.31 $* 8316.25 $*
Jun-16-2025 9280.54 $* 9744.65 $*
May-16-2025 8080.79 $* 8484.99 $*
Apr-16-2025 9120.8 $* 9576.9 $*
Mar-16-2025 9040.12 $* 9492.24 $*
Feb-16-2025 8960.1 $* 9408.9 $*
Jan-16-2025 8880.75 $* 9324.47 $*

Характеристики

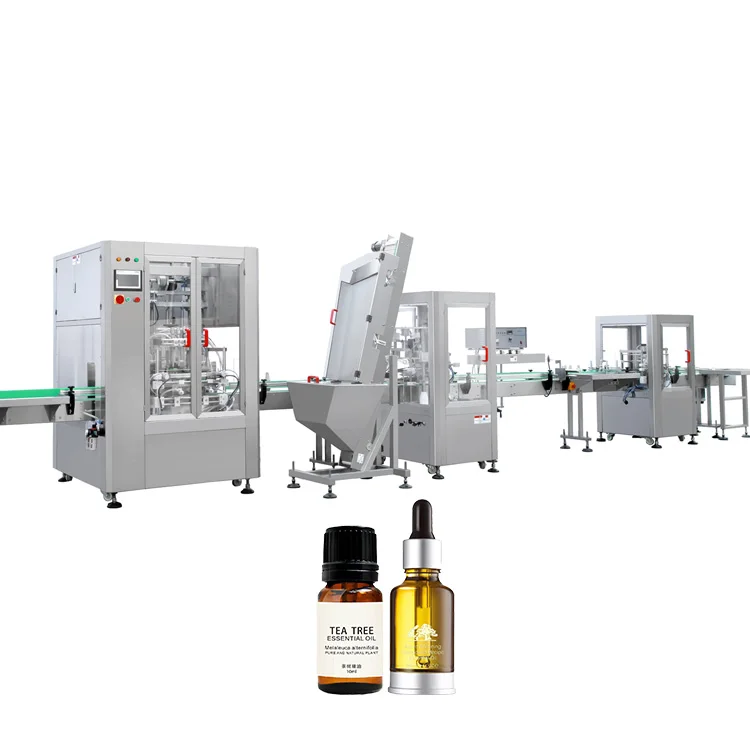

Customizable 5-30Ml 10Ml Dropper Bottle Filling Machine Automated Production Line






Product Show












Product Description




6 Head Filling, Capping, Labeling, Shrinking Line

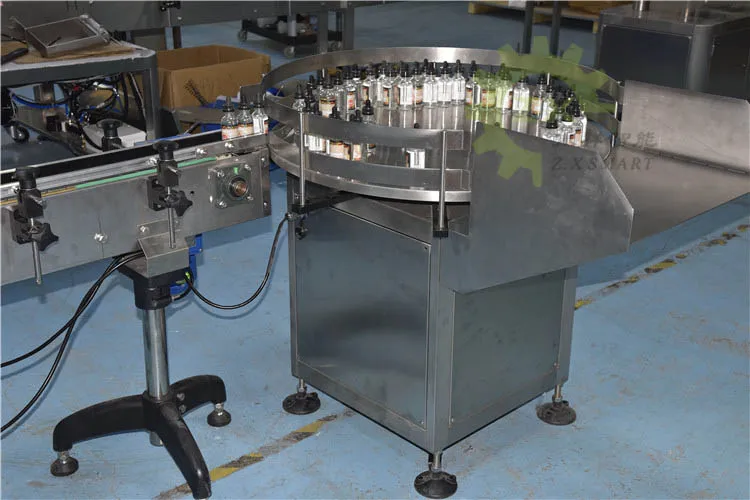

Bottle Feeding Turn Table Technical


Parameters



Suitable specifications According to customer samples
Diameter 800mm, H: 800±25mmc
Material 304 SUS
Power 220V, 140W, 50HZ, Single phase
Motor 140 China brand
Speed control Electronic speed governing

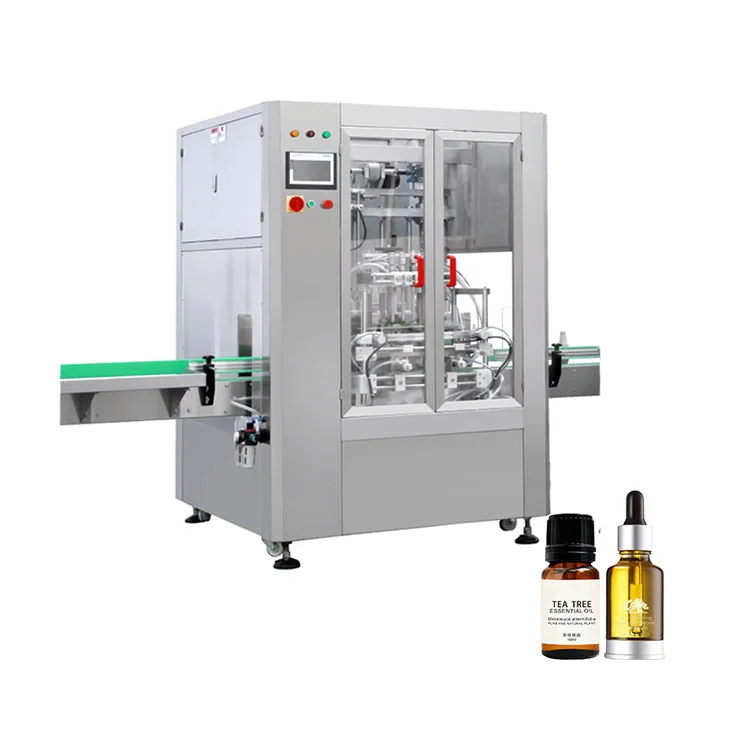

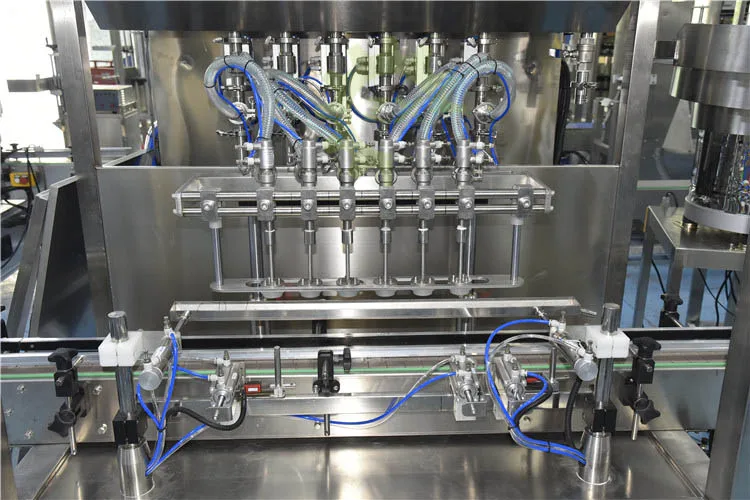

6 Head Piston Filling Machine Technical Parameters
 Filling nozzle6
 Filling volume10-100ml
 Filling speed40-50BPM based on 50ml bottle
 Filling precision±1%
 Frame material304 SUS
 Program controlPLC+ touch screen
 Filling nozzle, tank, parts connected with liquid316#, silica gel, POM
 Air pressure0.6-0.8Mpa
 Conveyor82mm POM chain belt, 0-15m/min, H : 800±25mm
 Conveyor motor750W frequency speed governing motor
 Power2
 Tank150L, with liquid level, the input pipe installed into the bottom to prevent foam

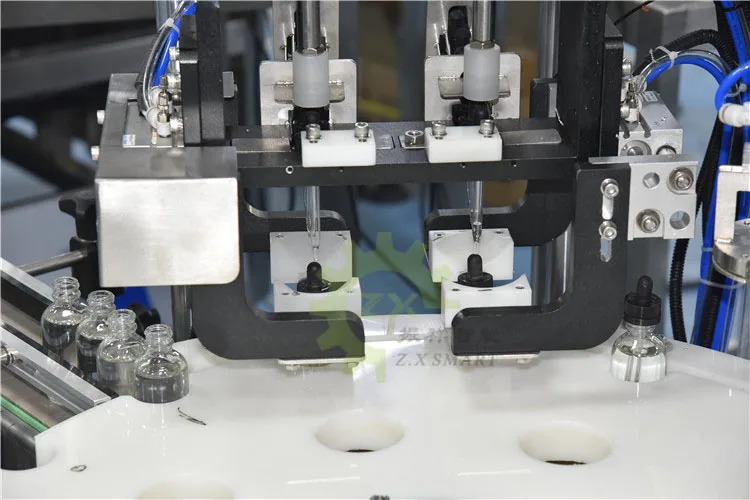

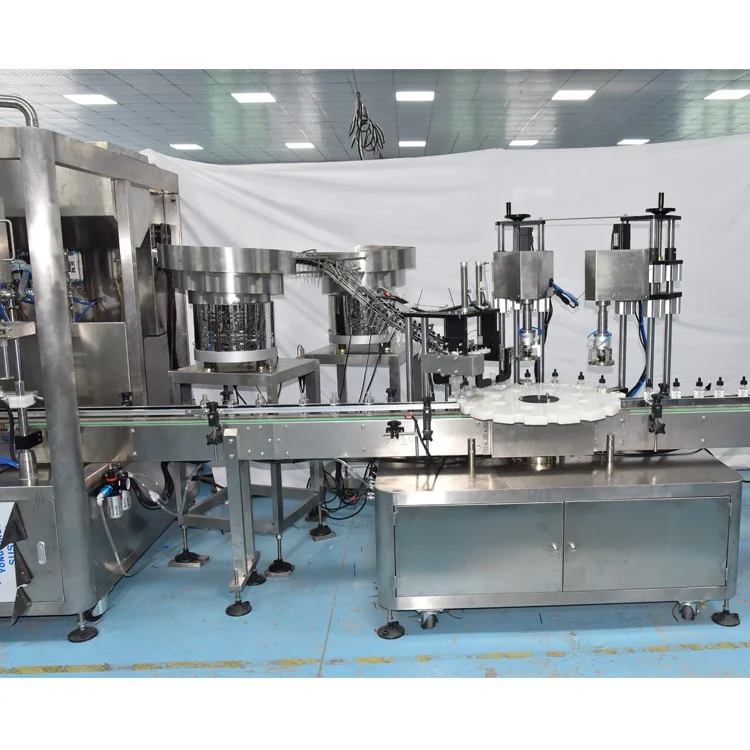

Double Station Cap Fetch And Screw


Capping Machine



 Capping distributor way Vibration shaking plate( different types need exchange the set)
 Suitable bottles According to customer samples
 Cap feeding way Pneumatic fetch
 Capping way Servo drive screw capping
 Capacity 40-50BPM
 Material 304 SUS
 Program control Share with filling machine
 Conveyor Share with filling machine
 Power 900W
 Air pressure 0.6-0.8Mpa













































Labeling Machine Technical Parameters
 Suitable bottles According to customer samples
 Suitable label Sticker roll label, not transparent
 Capacity >50BPM
 Labeling precision ±1mm
 Conveyor 82mm POM chain belt, 0-15m/min, H:800±25mm
 Power 220V, 600W
 Program control PLC + touch screen
 Roll label inner diameter 76mm, Max outer diameter:300mm





Equipment Brief Introduction


This Production Line is a whole Automatic essential oil filling capping machine production line solution;
The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Would Be Customized According To The Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.





Please contact our office guy to confirm the product parameter before payment .













Product Details








Related Products





















Company Information








FAQ


2(1)_04_03.jpgQ:What industry is your product suitable for?
A:The product line we develop and produce is suitable for the production of various, liquid, paste, powder, solid products. The specific product materials, functions, specifications and production capacity can be customized according to customers' products and requirements.
Q: What if the machine fails during use?
A:Our products will be carefully inspected and ensured before delivery, and we will provide the correct instructions for use of the products; in addition, our products support lifetime warranty warranty service, if there are any questions during the use of the product, please consult our work. personnel.
Q: When can I get my machine after paid?
A: The delivery time of a production line is generally 60 days; the product is about 15-30 days.We will deliver it on time as the date we agreed both side.
Q: How can I install my machine when it arrives?
A: We will provide installation videos and tutorials, or send our engineer to your side ASAP you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q:What payment do you accept?
A: We generally use T/T or L/C, and we can negotiate the payment method.
