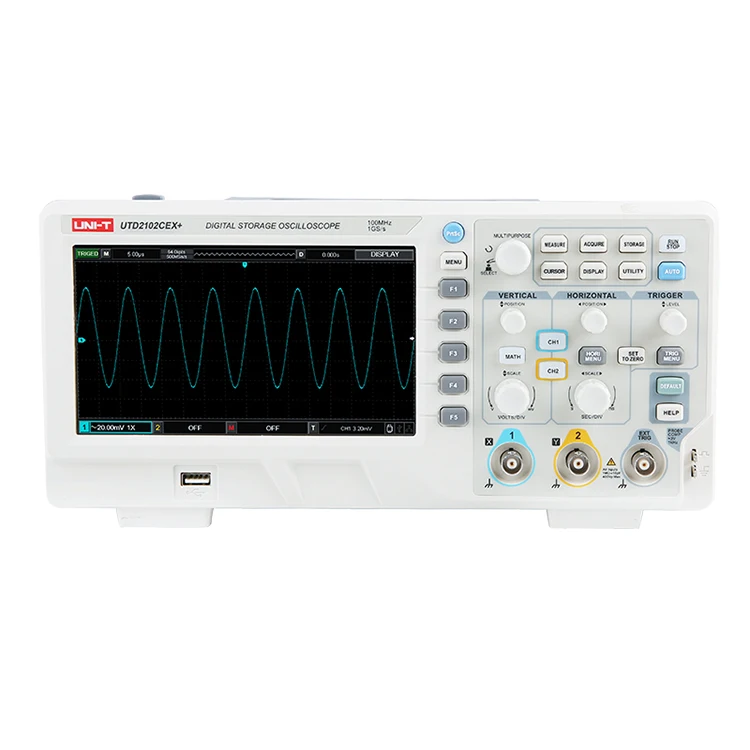

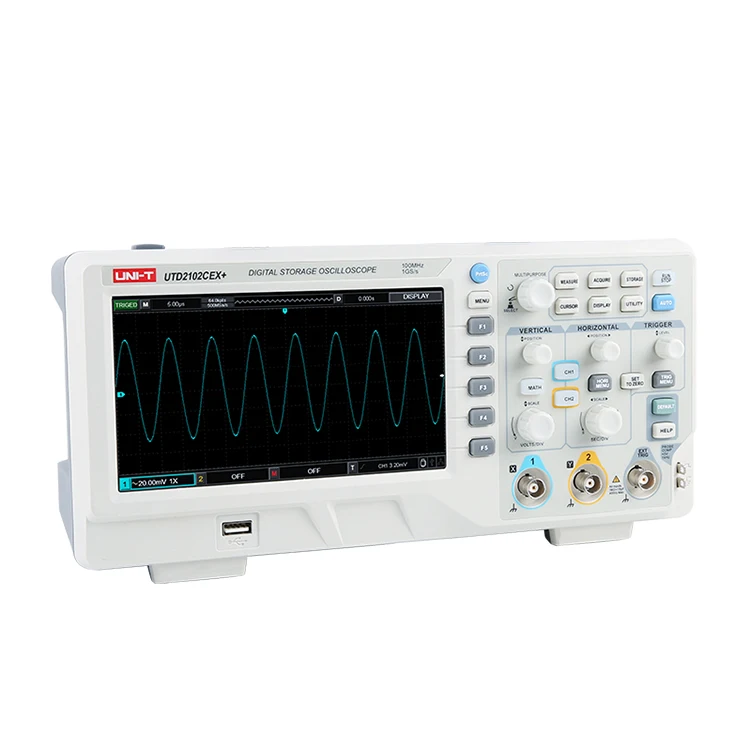

Осциллограф uni-t 2102CEX + utd цифровой осциллограф 100 МГц

Осциллограф uni-t 2102CEX + utd цифровой осциллограф 100 МГц

Категория: Осциллографы >>>
Поставщик: Huazheng,Electric,Manufacturing,(Baoding),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.17 $*	0.25 $*
Aug-18-2025	0.54 $*	0.61 $*
Jul-18-2025	0.83 $*	0.58 $*
Jun-18-2025	0.45 $*	0.71 $*
May-18-2025	0.6 $*	0.3 $*
Apr-18-2025	0.40 $*	0.65 $*
Mar-18-2025	0.82 $*	0.96 $*
Feb-18-2025	0.74 $*	0.9 $*
Jan-18-2025	0.12 $*	0.15 $*

Характеристики

osciloscopio uni-t 2102 cex utd digital oscilloscope 100mhz price

Product Description

1. 2 channels, wide vertical range: 1mV/div~20V/div;
2. 7 inch widescreen LCD display;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveform setups and interface waveform and setup reproduction;
7. Automatic measurement of 32 waveform parameters;
8. Unique waveform record and replay function;
9. Multilingual menu available

Technical specifications:

Specifications	UTD2102CEX
Channels	2
Bandwidth	100MHz
Sample Rate	1GS/s
Rise Time	≤3.5ns
Memory Depth	25kpts
Waveform Acquisition Rate	≥2000wfms/s
Vertical Sensitivity (V/div)	1mV/div~20V/div
Timebase Range (s/div)	2ns/div~50s/div
Storage	Setup, Wave, Bitmap
Trigger Modes	Edge, Pluse, Video, Slope, Alternate
Interface	USB OTG
General Characteristics
Power	100-240VAC, 45-440Hz
Display	7 inches 64k Color TFT LCD, 800×480
Product Color	White and grey
Product Net Weight	2.2kg
Product Size (W×H×D)	306mm ×147mm × 122mm
Standard Accessories	Probe×2 (1×,10× switchable), Power Cord, USB Cable, PC Software CD
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	2pcs
Standard Carton Measurement (L×W×H)	450mm× 420mm × 280mm
Standard Carton Gross Weight	8.5kg
Optional Accessories
LA Module
