SINOTRUK HOWO 4X2 /6X4 6 колес для малышей с изображением пожарной машины 5000 литров пены резервуар воды
- Категория: Fire Trucks >>>
- Поставщик: Hubei,Chusheng,Vehicle,Imp.&Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.58 $* | 0.94 $* |
| Aug-19-2025 | 0.76 $* | 0.42 $* |
| Jul-19-2025 | 0.63 $* | 0.38 $* |
| Jun-19-2025 | 0.50 $* | 0.89 $* |
| May-19-2025 | 0.29 $* | 0.28 $* |
| Apr-19-2025 | 0.81 $* | 0.2 $* |
| Mar-19-2025 | 0.40 $* | 0.26 $* |
| Feb-19-2025 | 0.57 $* | 0.96 $* |
| Jan-19-2025 | 0.37 $* | 0.97 $* |
Характеристики
SINOTRUK HOWO 4X2 /6X4 6 wheels fire truck 5000liters foam water tank fire truck for sale
Product Description
Description of our fire fighting truck
Chassis: HOWO, Dongfeng, ISUZU, Shacman, JAC, JMC etc
Driving type: 4x2 , 6x4, 8x4, left hand drive / right hand drive
Foam tank: 1cbm, 3cbm, 5cbm etc
Water tank: 3cbm, 5cbm, 8cbm, 10cbm, 12cbm etc
Parameters of the fire fighting truck:
RHD Euro II HOWO 4x2 290hp 10000 liters water tank fire fighting truck parameters | |||||||
Chassis | |||||||
Cabin | Brand: SINOTRUK HOWO | ||||||
HW70 , double cab, 4x2 left hand drive, | |||||||
with air conditioner, could sit 5-6 fire fighter | |||||||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm: 11000*2500*3425 mm | ||||||
Wheel base: 4600 (mm) | |||||||
Overhang (front/rear): 1500/2300(mm) | |||||||
Approach angle: 33° | |||||||
Departure angle: 17° | |||||||
Weight in KGS | Curb Weight:14050 kg | ||||||
Max. driving speed(km/h) | 90 | ||||||
Engine | Brand | Sinotruk HOWO | |||||
Model | WD615.87 | ||||||
Horse Power | 290 HP | ||||||
Emission | 9624 ml, Euro II | ||||||
Gearbox | HW13710CL, 10 Forwards gear & 2 reverse gear | ||||||
Tire | 12R22.5, 10 pcs+1 spare tire | ||||||
Driving axle | ST16 | ||||||
Front axle | HR7 brake | ||||||
Brake | Oil brake | ||||||
PTO | Clamping take force | ||||||
Steering | ZF8098 | ||||||
Upper parameters | |||||||
Water tank volume | 10000 liters | ||||||
Manhole in the tank | DN450 | ||||||
Thickness | 4mm | ||||||
Material | Carbon steel and high tensile steel | ||||||
Normal pressure fire fighting pump | |||||||
Type of pump | Centrifugal pump | ||||||
Minimum fire fighting pump flow | 30L/S | ||||||
Minimum pressure | 1.0Mpa | ||||||
Flow (L/S) | Outlet pressure(Mpa) | Rated speed(r/min)
| Crank power (kw) | Suction depth(m) | |||
30 | 1 | 3010 | 50 | 3 | |||
21 | 1.3 | 3340 | 55.2 | 3 | |||
15 | 1 | 3000 | 38.6 | 7 | |||
Fir fighting fixed water cannon in the top of truck | |||||||
Diameter (mm) | φ100 | ||||||
Flow (L/min) | 30L/min | ||||||
Max range (m) | ≥ 60m | ||||||
Working pressure(Mpa) | ≤0.7 MPa | ||||||
Vertical rotation angle( degree) | -30~70 | ||||||
Horizontal rotation angle (degree) | 360 | ||||||
Size(mm) | 1000*340*600 | ||||||
Weight (kg) | ≤ 50 | ||||||
Pipe system | |||||||
Pipe Line inlet | 2 inlet, φ125 inlet in the pump;φ65 inlet in the back of pump | ||||||
Pipe Line outlet | 2 outlet, φ65, in the back of pump | ||||||

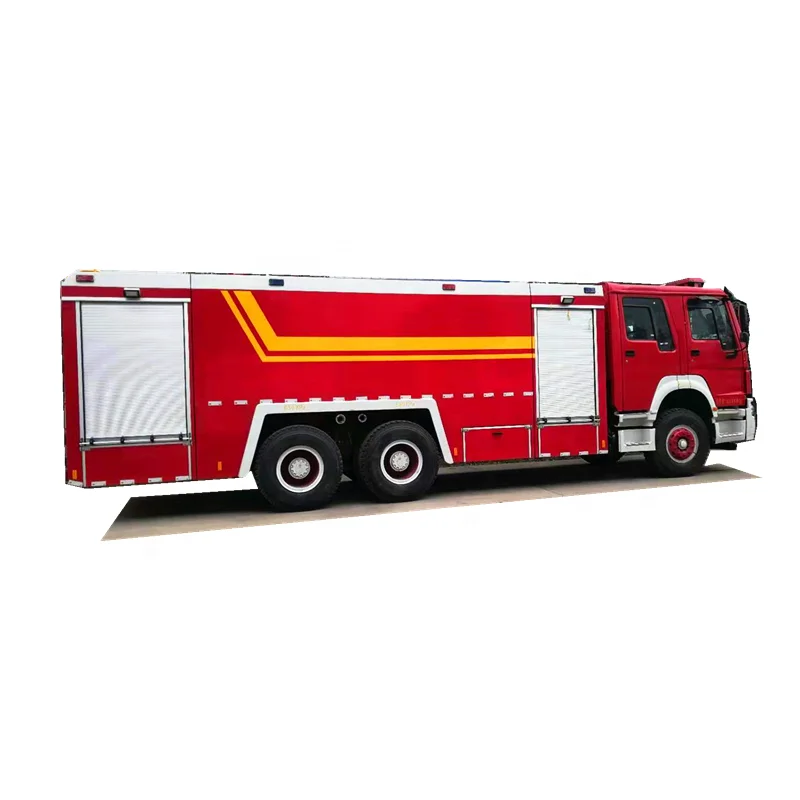

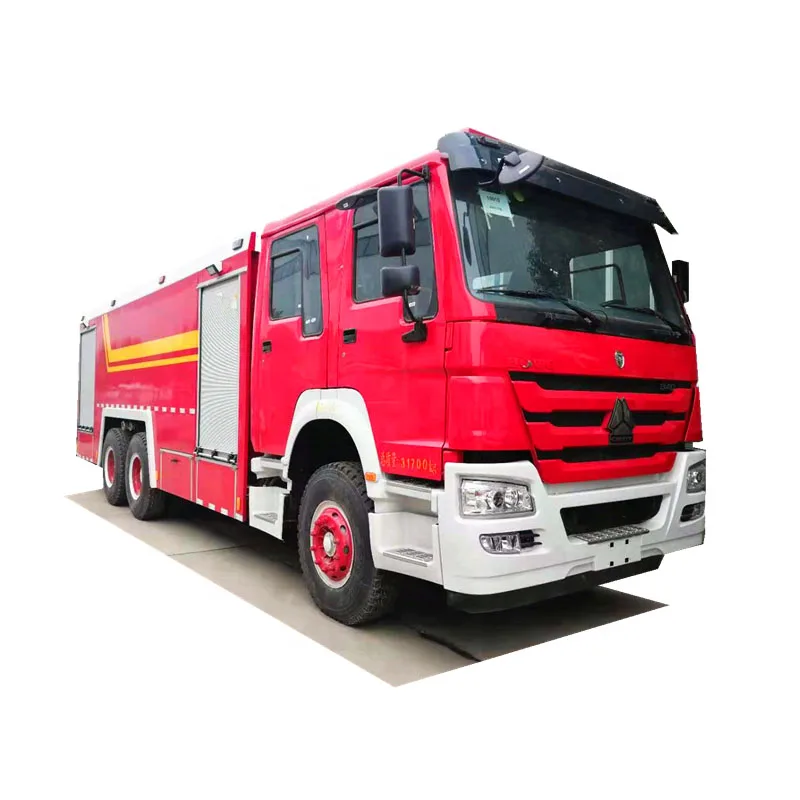

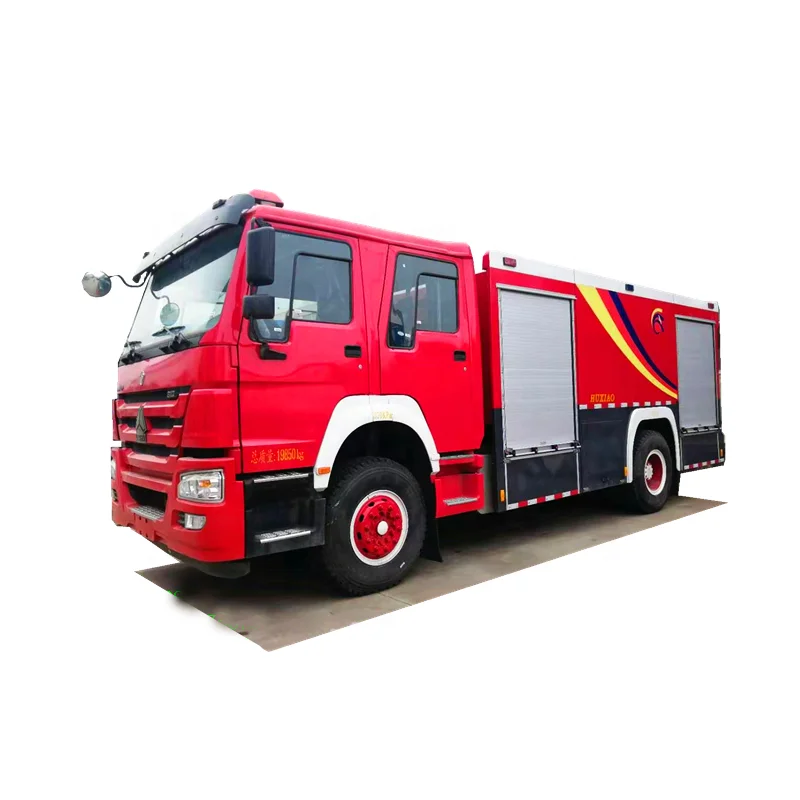

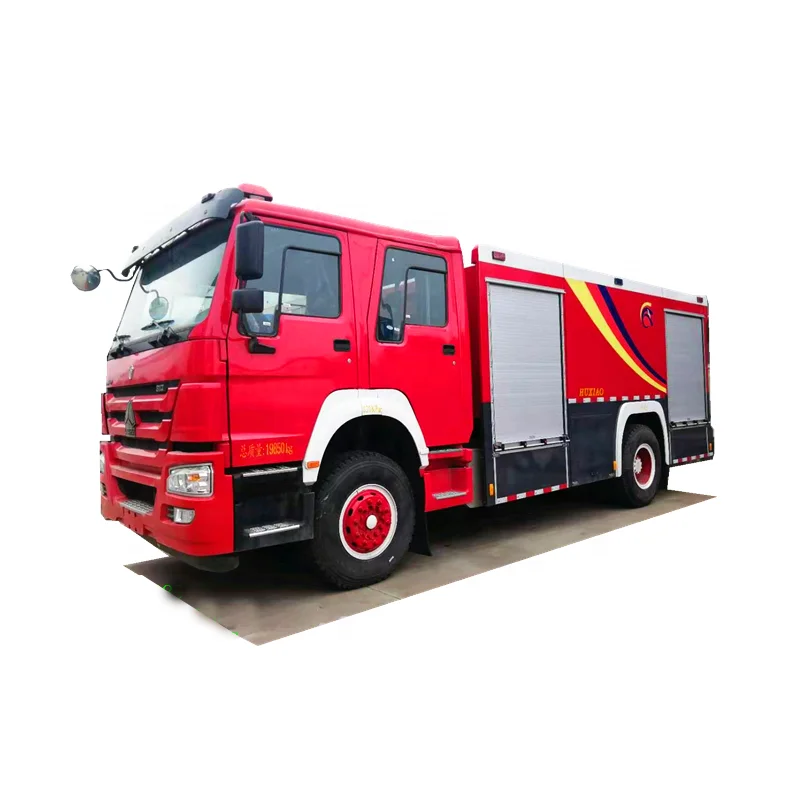

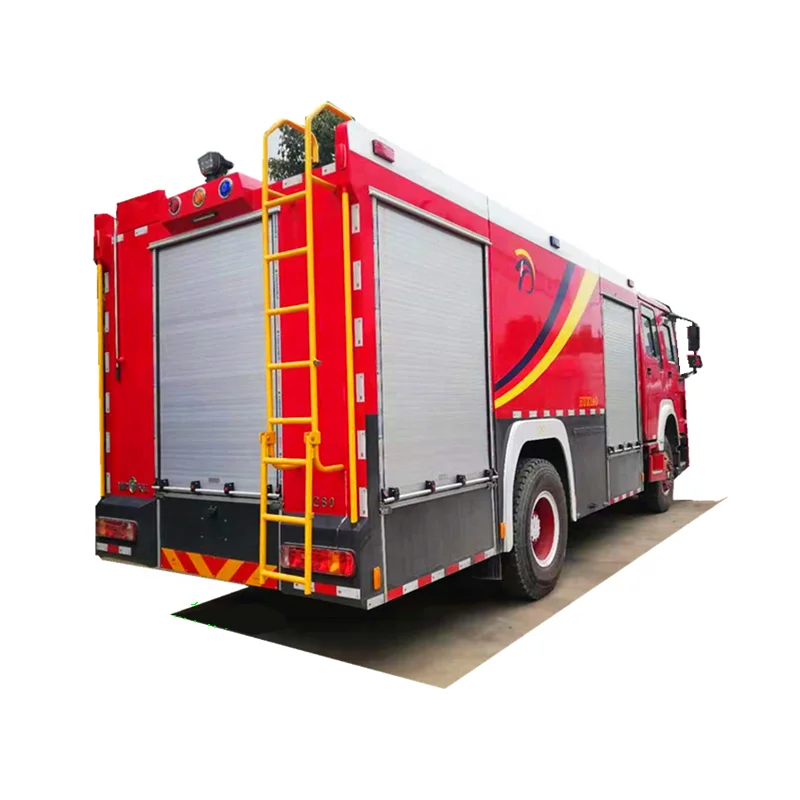

Detailed image
Details of the fire fighting truck:
Spares parts for fire fighting truck:
Packing and shipping
Company Information
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
