Устройство для ламинирования оса OM-K6 Edge PRO аппарат ремонта телефонов стеклянный ламинатор с жк-дисплеем встроенный вакуумный удаления

Описание и отзывы

Трекер стоимости

Характеристики

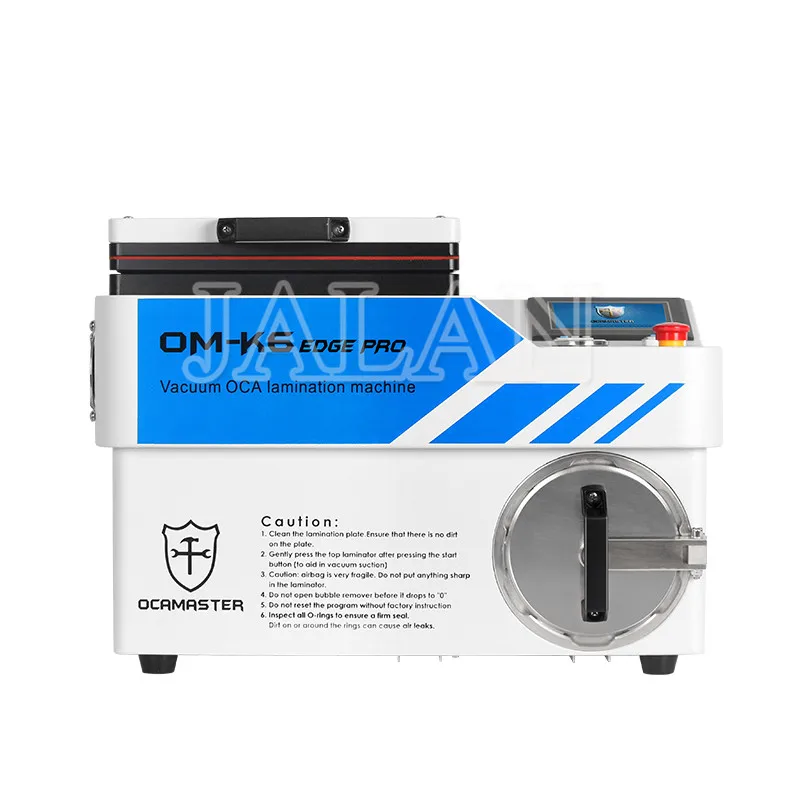

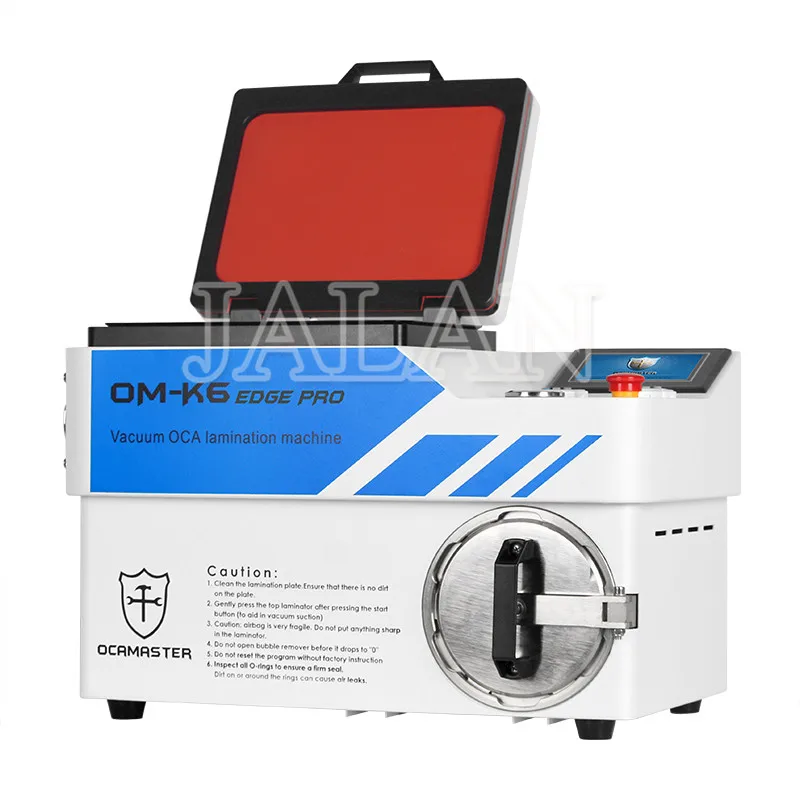

OM-K6 Edge PRO OCA  lamination machine for phone repair glass laminator LCD phone repair machine built-in Vacuum bubble remover



Description:

1.Supply:AC110V,AC220V

2.Pressure:6kg/cm

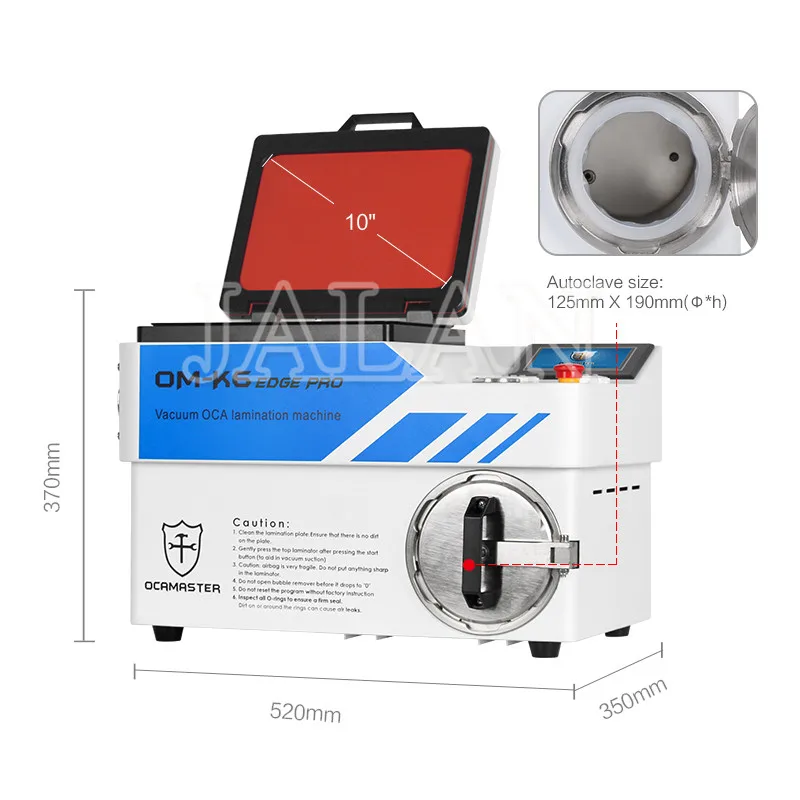

3.Dimensions:565*395*435mm

4.Color:White&Blue
5.Rated Current:16A
6.Working Temp:45C
7.Ambient Temp:40C

8.laminating plate size:10 inches

9.no need bend flex cable when lamianting

10.auto setting mode: when laminating can chosse auto mode for edge or flat screen.

11.Application: for all cell phone including edge repairing for Iphone,Samsuang,Huawei,LG,HTC,etc.

Operating video link: https://youtu.be/ka9hsRTBMtY



Pay attention to:

    1.K6 edge Pro use an outside vacuum pump, the vacuum and compressor system is separated, you can start vacuum laminating and bubble removing at the same time.

    2.The outside vacuum pump of K6edge Pro is not oil-free, you have to put vacuum pump oil  before use it, but the performance of this outside vacuum pump is very good, it can generate a very pure vacuum for the lamination which can resist the delay bubbles.

    3.It designed with air bag technology, soft to soft lamination apply to all kind of screens lamination (Apple, Samsung,Huawei, Xiaomi, VIVO, OPPO,LG, HTC...)

    4.The laminator plate size is 10 inches, bubble remover size is 7 inches maximum.

    5. It's very easy to operate this machine through the 5 inches controlling panel.

    6.The laminator and bubble remover has 2 independently temperature controlling system.

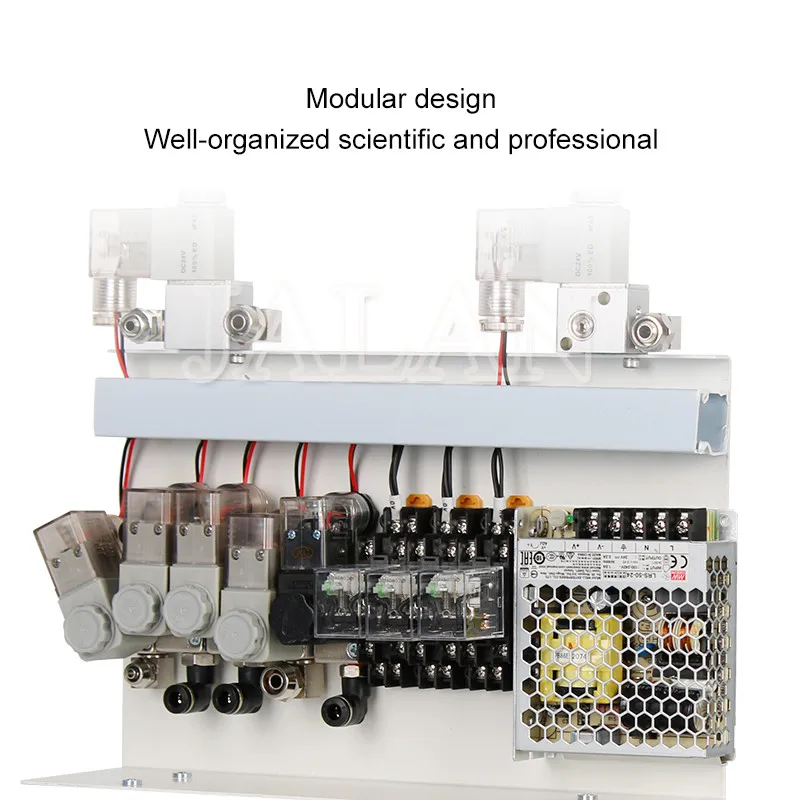

    7.All the electric components are selected from the big brand with very good quality.

with 5 years of exceptional experience in lcd repair & service. Please contact me to get professional lcd repair assistance for your business,

youtube channel    https://www.youtube.com/c/NancyLiulcdrepair
