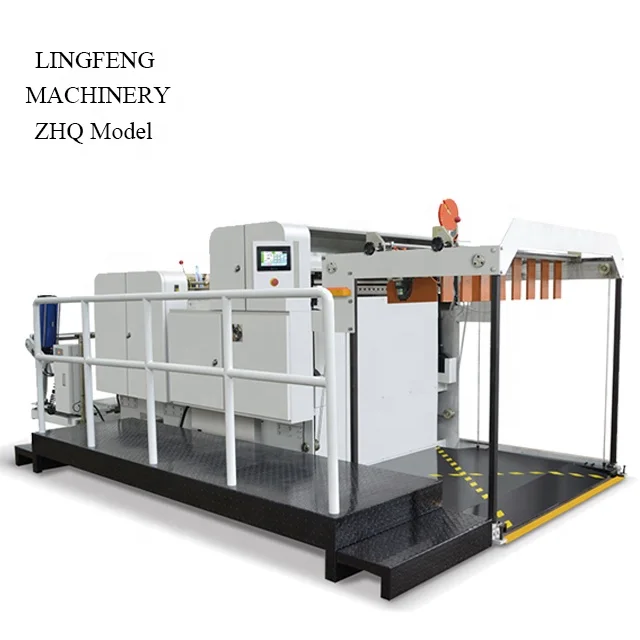

ZHQ Series 1100/1400/1600mm Full Automatic Paper Cross Cutting Machine with Stacking

Feature:

This Machine suitable for different kinds 60-450gsm thickness reels paper,different kinds plastic film, main use for producing sheet from reels . So it is roll to sheet cutting machine.
This machine model special suitable for paper and plastic film counting the quantity then delivery to the table.

1) This Machine adopt Servo Motor (INVT,CHINA),PLC(Panasonic,Japan) Touch Screen (Weinview,Taiwan China)control system, auto counting quantity, auto stop when reached your set quantity , auto tension control and auto conveyor belt etc function.

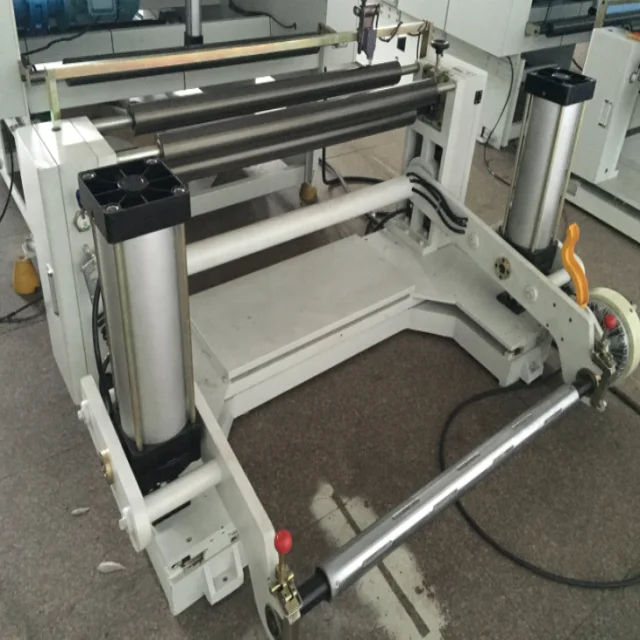

2) Machine Standard Unwinding device adopt auto pneumatic loading system(Standard 3 inch air shaft), it can loading 1.2Ton roll weight.
Option : 3/6 inch shaft-less device, extra charge 3000USD difference .

3) Machine Conveyor device adopt newest technology to guarantee delivery thin paper quality and effect.

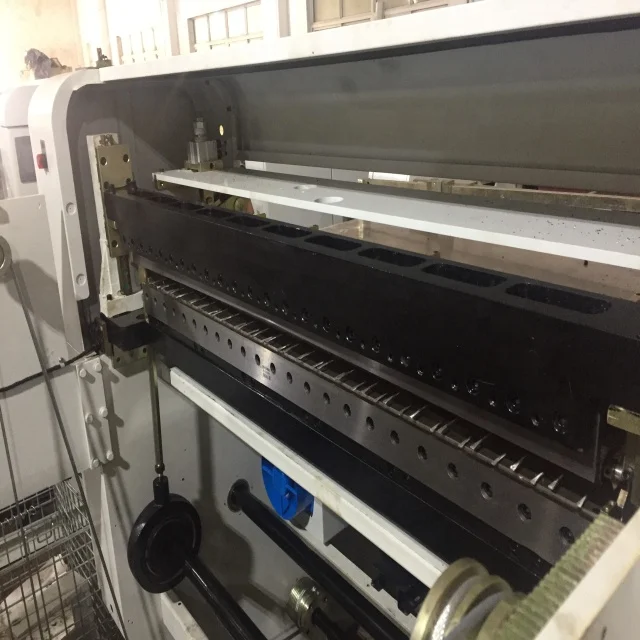

4) Paper cutting device adopt high precision and quality Germany cutting blade to guarantee durability and use life.

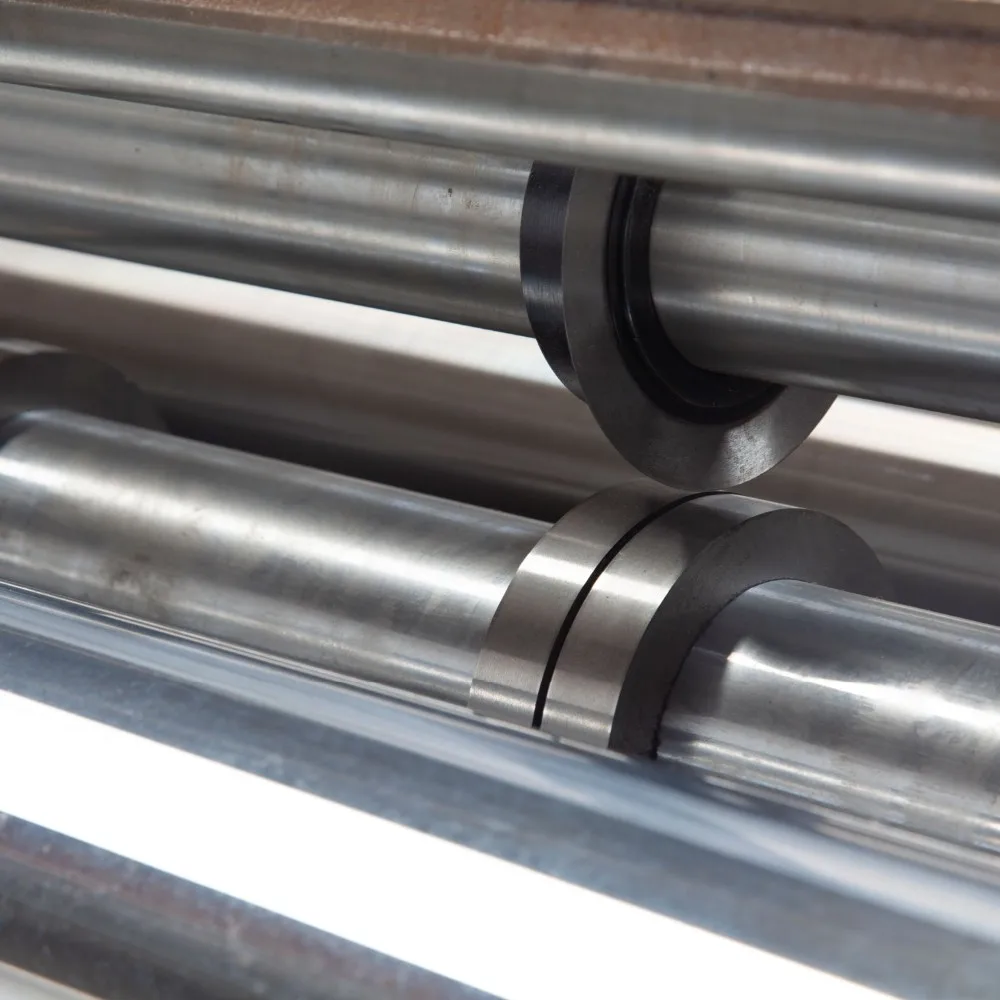

5)Option for Slitting blade, some customer want machine can producing Multi line, so machine have option for slitting big wide raw material then cut it to get Multi line product.
6)Option for printing sensor, some customer want to cutting exact printed material ,so we have option for Germany or USA brand printing sensor.
7) Machine has Three Motor (One Servo Motor to control cutting length, One Normal Motor to control cutting blade move, One Normal Motor to control material feeding)

Specification:

Model	ZHQ-1100	ZHQ-1400	ZHQ-1600
Maximum Cutting Wide	1100mm	1400mm	1600mm
Cutting Length Range	300-1200mm	300-1200mm	300-1200mm
Cutting Precision	±0.2mm	±0.2mm	±0.2mm
Material Thickness	60-450gsm	60-450gsm	60-450gsm
Cutting Precision	100-160cut per mins	100-160cut per mins	100-160cut per mins
Machine Size	633019001900mm	633021001900mm	633024001900mm
Voltage	380V50HZ	380V50HZ	380V50HZ
Machine Weight	2500KG	2700KG	3000KG

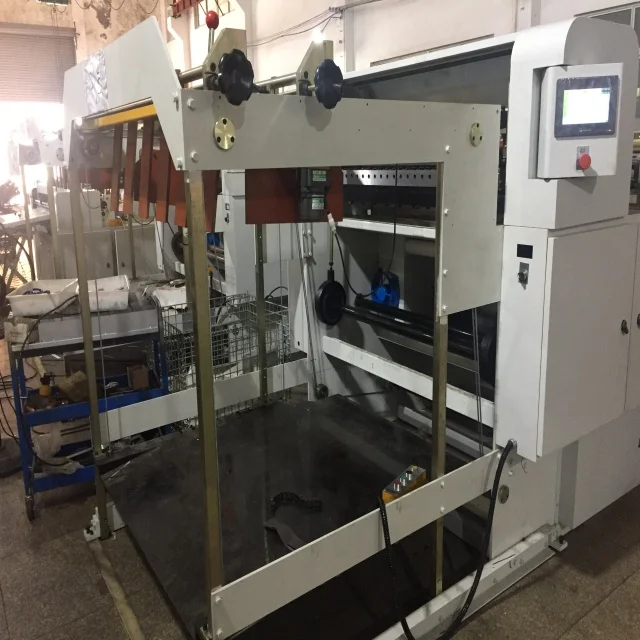

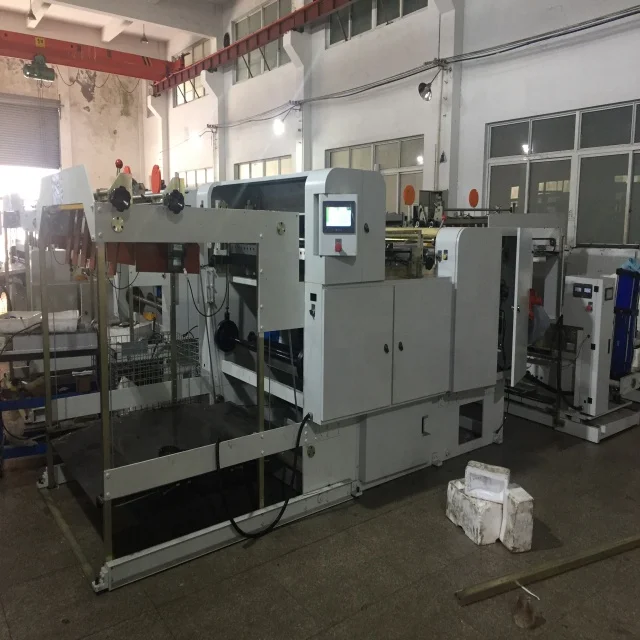

Machine Details:

Packaging:

Company Information

1. 20 YEARS TECHNOLOGY EXPERIENCE AND PROFESSIONAL WORKER TEAM
2.FOCUS ON PAPER ROTARY CUTTING MACHINE, CROSS SHEET CUTTING MACHINE, SLITTING REWINDING MACHINE,REWINDING MACHINE,PAPER BOX FORMING MACHINE,PAPER CUP MAKING MACHINE,PAPER BAG MAKING MACHINE ETC
3.PROVIDE PROFESSIONAL 24H TECHNOLOGY SUPPORT ONLINE
4. 20DAYS DELIVERY TIME FOR STANDARD MACHINE ORDER
5.SUPPORT OEM SERVICE,PROFESSIONAL ENGINEER TECHNOLOGY SUPPORT.

6.OWNNER WORKSHOP

1111111

FAQ

1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
