WZFQ-A 1100/1300/1600 Full Automatic 400 meter High Speed Paper Slitting Rewinding Machine

Introduce:

This Machine main use on packaging industry;it can according customer require to slitting rewinding different specification roll. Whatever it is printed material or white material. High Speed and Accuracy is it’s advantage.

Suitable for 30-400 g/m2 Paper such as crepe paper,condenser paper,capacitor paper, bull paper, double-face adhesive tape,paper label ,plastic label,coated paper; some PVC,BOPP ,PE etc plastic film can suitable for also.

Main Feature:

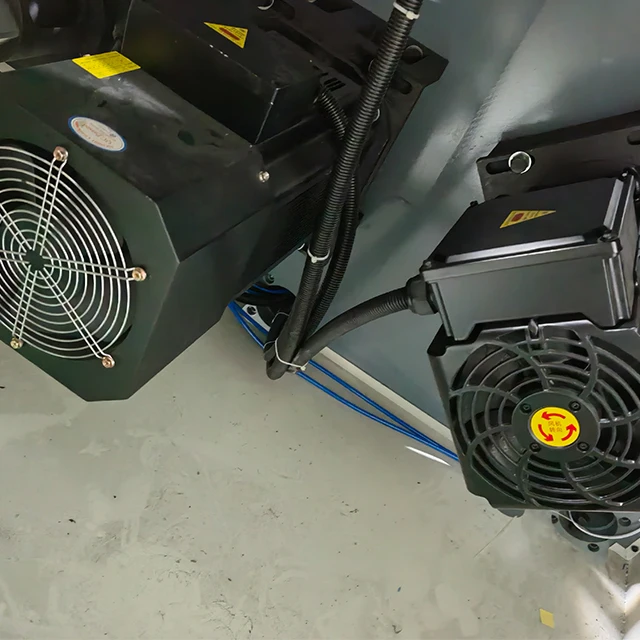

1) Machine adopt 3 sets servo motor to control, it can guarantee machine working very stable.
2) Machine adopt Siemens PLC brand, through PLC to adjust parameter( include meter, tension, blower etc).

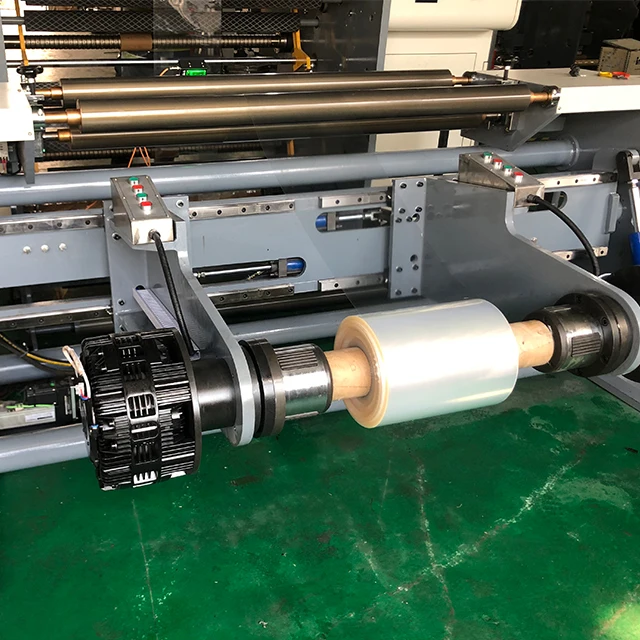

3) Unwinding&Rewinding device adopt 3 inch shaft, pneumatic loading system.
4)Unwinding device have EPC control, through import sensor to correct edge of feeding , to guarantee feeding is very exact .
5)Standard machine slitting blade adopt circular slitting blade(SKD material). standard free give 10 sets
6) Rewinding device adopt pneumatic loading system, automatic up and down and easy to control.
7) Machine has automatic counting meter, automatic stop ,automatic alarm etc function.

Machine Specification:

Model	WZFQ-A-1100	WZFQ-A-1300	WZFQ-A-1600
Max.Unwinding Wide	1100mm	1300mm	1600mm
Max.Unwinding Diameter	1400mm	1400mm	1400mm
Max.Rewinding Diameter	1000mm	1000mm	1000mm
Rewinding Roll Width	30-1100mm	30-1300mm	30-1600mm
Minimum Slitting Width	30mm	30mm	30mm
Max.Unwinding Roll Weight Option: Hydraulic Loading	1200KG 2000KG	1200KG 2000KG	1200KG 2000KG
Machine Working Speed	300-400meter per mins	300-400meter per mins	300-400meter per mins
Maximum Machie Speed	450meter per mins	450meter per mins	450meter per mins
Machine Volatge	380V50HZ	380V50HZ	380V50HZ
Machine Power	22KW	22KW	30KW
Machine Size	5500mm32001900mm	5500mm35001900mm	5500mm37001900mm

Machine Details:

Option: Hydraulic Loading, Extra Cost: 3000USD
