Полностью автоматическая машина для розлива и фруктовых яблочных соков оборудование производственная
- Категория: Разливочные машины >>>
- Поставщик: Zhangjiagang,Baiji,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 14280.78 $* | 14994.4 $* |
| Aug-18-2025 | 14160.14 $* | 14868.36 $* |
| Jul-18-2025 | 11880.98 $* | 12474.41 $* |
| Jun-18-2025 | 13920.96 $* | 14616.97 $* |
| May-18-2025 | 12120.83 $* | 12726.96 $* |
| Apr-18-2025 | 13680.28 $* | 14364.42 $* |
| Mar-18-2025 | 13560.11 $* | 14238.0 $* |
| Feb-18-2025 | 13440.11 $* | 14112.20 $* |
| Jan-18-2025 | 13320.96 $* | 13986.89 $* |
Характеристики
Product Description
Complete automatic fruit apple juice beverage making filling capping bottling plant machine equipment production line
We supply complete solution for the juice filling line, including Water treatment system / Juice mixing system / UHT Sterilizer / Washing filling capping machine / Pasteurization / Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system
Technical parameter | ||||||||||
Model | RCGF8-8-3 | RCGF14-12-5 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-8 | |||||
Capacity(for 500ml) | 2000 | 3000-4000 | 4000-6000 | 8000-10000 | 10000-12000 | |||||
Suitable bottle shapes | PET circular or square | |||||||||
Bottle diameter(mm) | Dia50-Dia115mm | |||||||||
Bottle height (mm) | 160-320mm | |||||||||
Compressor air | 0.3-0.7Mpa | |||||||||
Filling type | hot filling | |||||||||
Rinsing pressure | >0.06Mpa <0.2Mpa | |||||||||
Application | fruit juice | |||||||||
Total power (KW) | 4.4kw | 4.4kw | 4.4kw | 5.2kw | 6.2kw | |||||
Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | |||||
Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | |||||
Weight(kg) | 2500kg | 3200kg | 4000kg | 4500kg | 6500kg | |||||

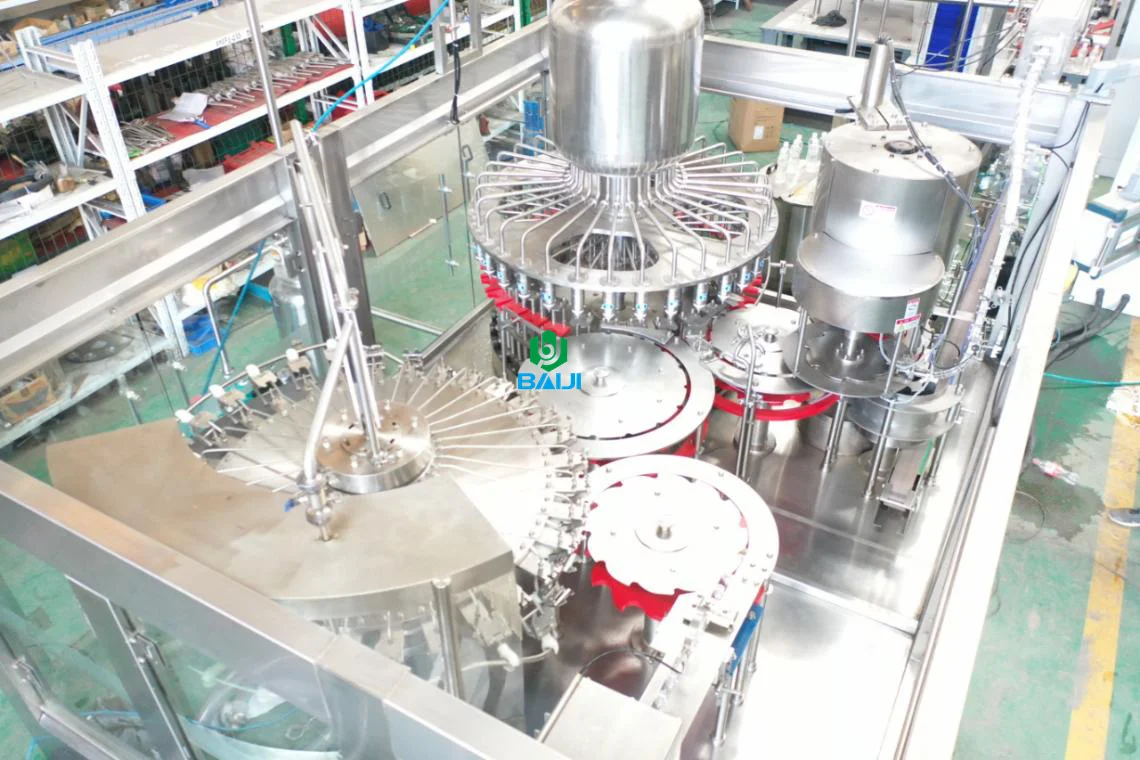

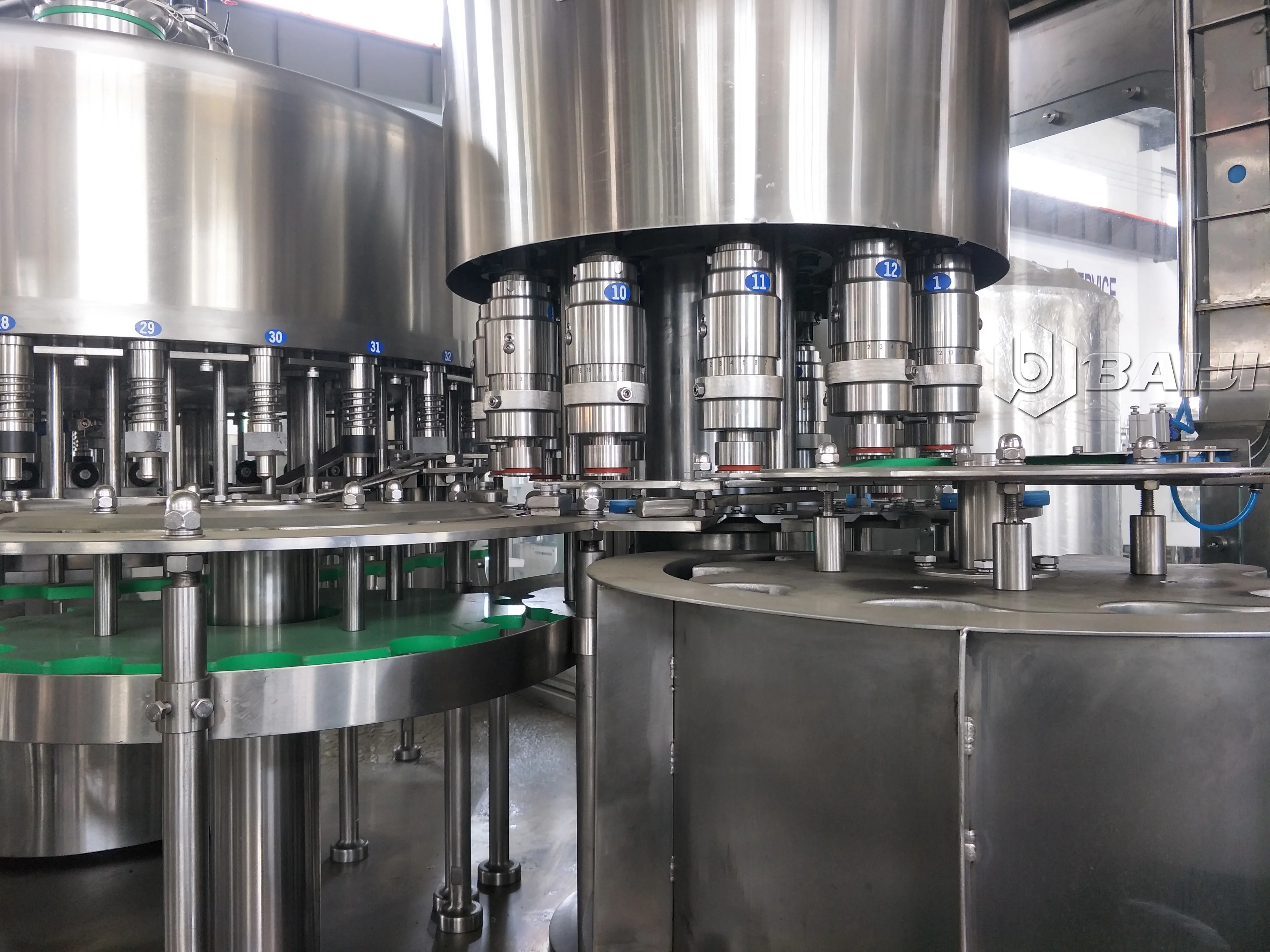

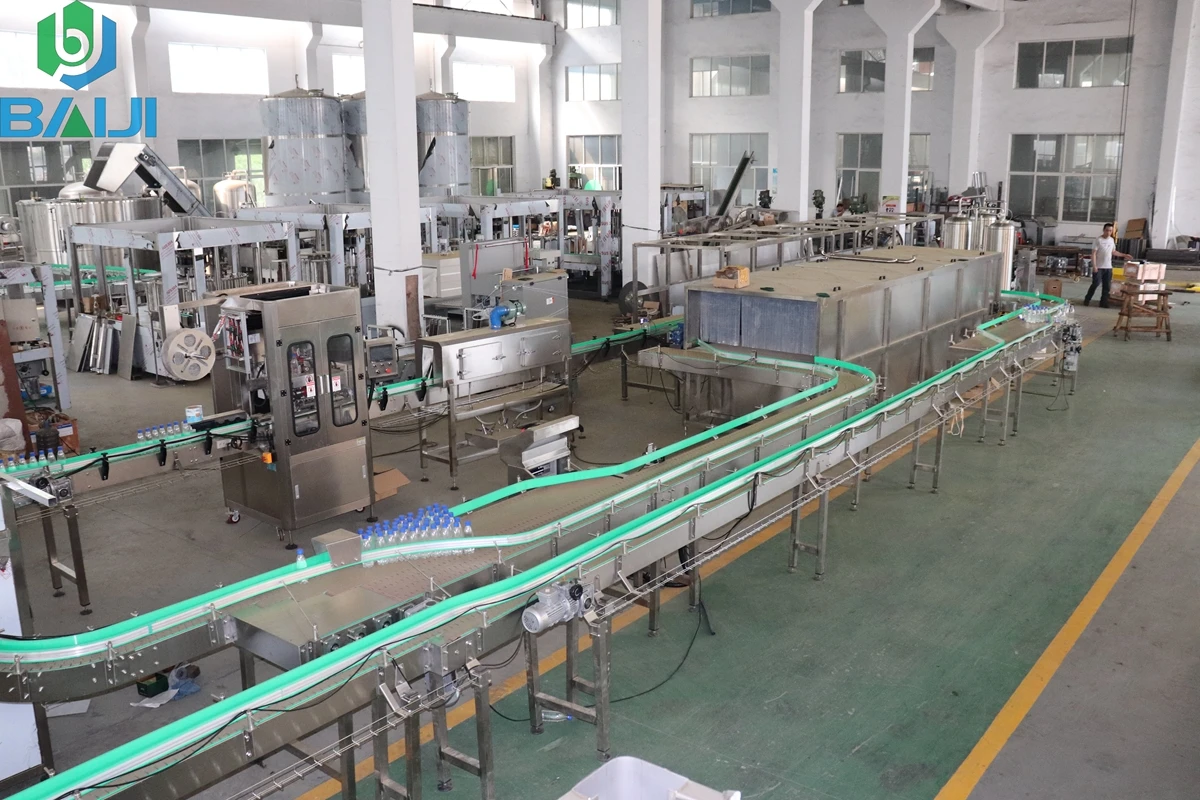

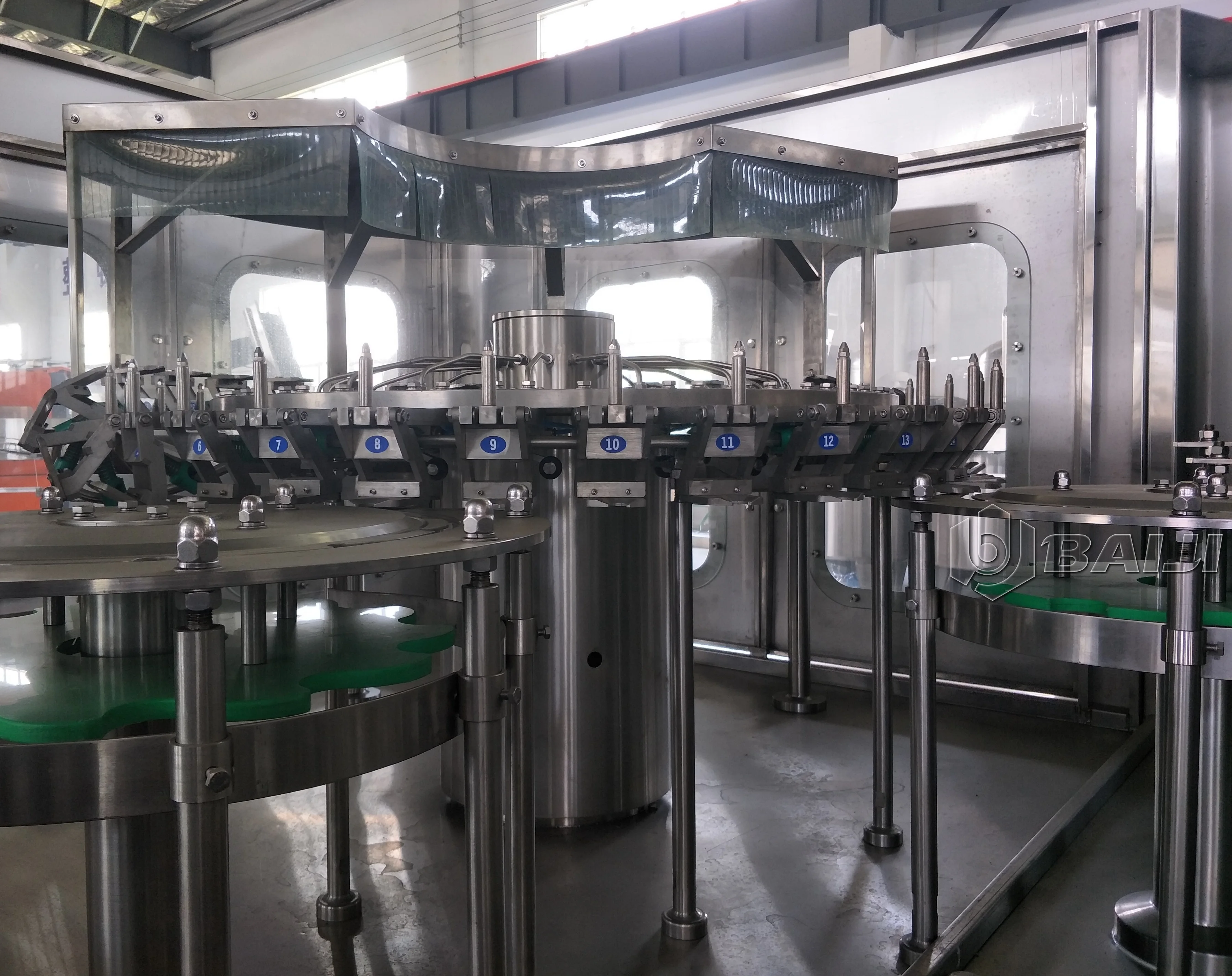

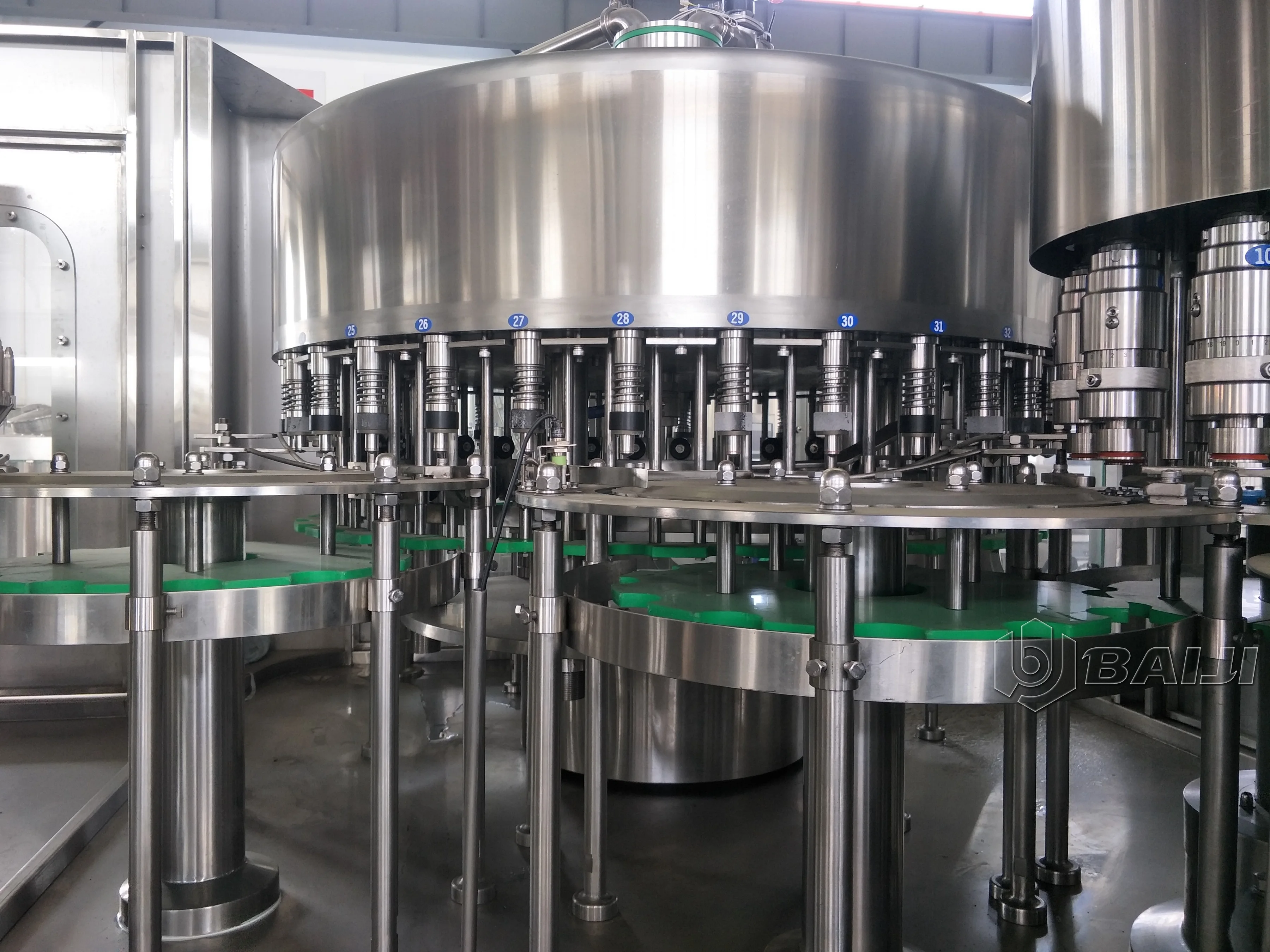

\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t
Processing included: quartz sand filter, active carbon filter, sodium ion exchanger, precision filter, RO (Reverse Osmosis), UV sterilizer, finished water tank
Fruit juice washing machine → Juice crusher and extractor → Colloid mill → Double filter → sugar melting tank → syrup filter → Blending tank → Double filter → Temporary storage tank → Homogenizer → Temporary storage tank → Vacuum degasser → Super high temperature sterilizer(UHT) → Heat insulation tank
Main Features
* If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
* Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan'sMitsubishi, France Schneider, OMRON.
Name | Brand |
PLC | Siemens |
Inverter | Siemens |
Contactor | Siemens |
Touch screen | Siemens |
Motor | ABB |
Pneumatic parts | FESTO |
Electrical parts | Schneider |
When enter the spray tunnel, water with the function of high-pressure pump, uniformly spray on the bottle body. The bottles move slowly in the chain, when they are out the tunnel, they can reach the normal temperature, then achieve the purpose of cooling.
This machine adopts international advanced technology, cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated.
PE film wrapping machine
You can have different group style. I.e. 500ml bottle, we do 4*6. 1500ml bottle, we do 3*4.
It is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the pure water bottle, mineral water bottle, carbonated drink bottle, juice hot fill bottle and oil bottle etc.
Related Products
Turnkey Solution
Zhangjiagang Baiji Machinery CO., Ltd is a company which has specifically manufactured beverage machine for more than 10 years. Our company holds the right of independent import & export, and enjoys a good reputation in national and aboard markets.
Our company is specialized in manufacturing carbonated drink production line, mineral water filling labeling and packing machine, pure water filling production line, juice or tea drink hot filling production line, milk filling and packing production line, edible oil filling and capping machine, wine production line. The drink can be PET bottled, 5 gallon barreled, easy open canned, glass bottled and so on.
Packing&Delivery
Certifications
