Характеристики
YONGFA 12V/24V/36V/48V AUTO 50A PWM SOLAR CHARGE CONTROLLER 4USB
New Features
1. Clock timing function
2. Built-in four 5V 2.1A USB interfaces
3. Extreme Low Power Consumption
4. Built-in IR self-learning infrared remote control to turn the DC loads on and off
5. Display digital LCD with backlight
6. Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)
7. Light control mode,Time control mode
8. Reverse protection,short circuit protection
9. Designed for 12V/24V/36V/48V auto solar power system
10.Hanging style design makes it convenient to install
11.Available in 50A
12.Simple options,automatic memory retention of users' settings
2. Built-in four 5V 2.1A USB interfaces
3. Extreme Low Power Consumption
4. Built-in IR self-learning infrared remote control to turn the DC loads on and off
5. Display digital LCD with backlight
6. Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)
7. Light control mode,Time control mode
8. Reverse protection,short circuit protection
9. Designed for 12V/24V/36V/48V auto solar power system
10.Hanging style design makes it convenient to install
11.Available in 50A
12.Simple options,automatic memory retention of users' settings
Working Mode
There are several common working mode of PWM solar controller:
1. Button Mode (Manual switching load)
2. Light Controlled Mode (Load switch is controlled by solar panels
photosensitive control and timing control)
3. Light control turn on delay off mode.
4. Circulation model (With Clock Fuction)
5.0-24 hours optical mode,switch,wireless remote control mode,etc load mode optional
Protection
All kinds of complete protection,stable and reliable(charging over voltage protection,charging flow protection,over-current protection,load load short circuit protection,under-voltageprotection)
Application
solar charger controller of light and night away less than 10 ma power flow, ideal for small power solar products, such as solar street lamp light, streetlight, DC Load, illumination, solar power system and so on.
Technical Parameters
| solar charger controller | SYT6-40A | SYT6-50A | SYT6-60A |
| to adapt to the battery | 12V/24V/36v/48v,battery<16V:12V,Battery>18V:24V | ||
| Maximum charging voltage | 12V:18-24V Standard specifications solar panels(24V battery*2) | ||
| Maximum charging current | 40A | 50A | 60A |
| Maximum charging voltage | Low:14.2V,Default:14.5V,High:15.2V | ||
| The largest output current | 42A | 54A | 66A |
| Low voltage protection voltage | 10.5V(24 battery*2) | ||
| Low pressure recovery voltage | 12.5V(24 battery*2) | ||
| Load overload automatic recovery | 30S | ||
| Double USB output | 5V 2.1A | ||
| Load relating to open time | 0-24 hours can choose | ||
| Infrared remote control distance | >5m | ||
| Size | 188mm*108mm*45mm | ||
| Weight(KG) | 0.5 | ||

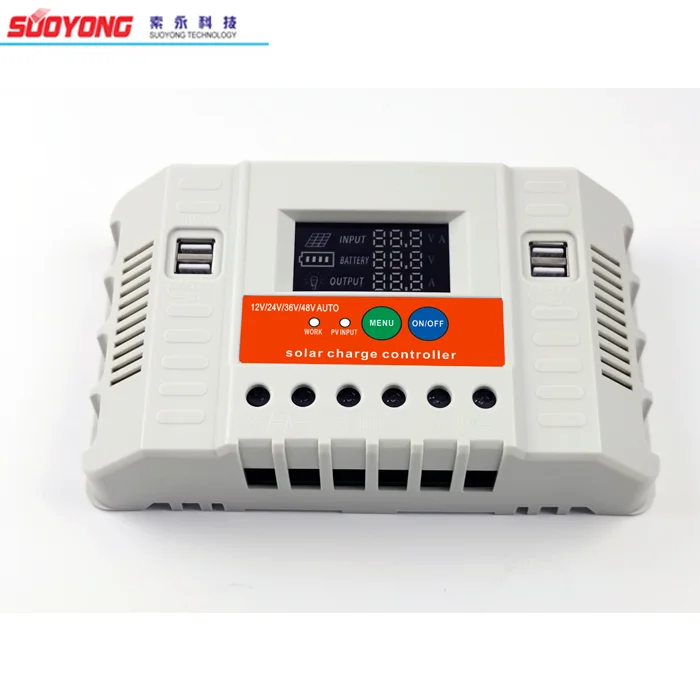

Product Photos
