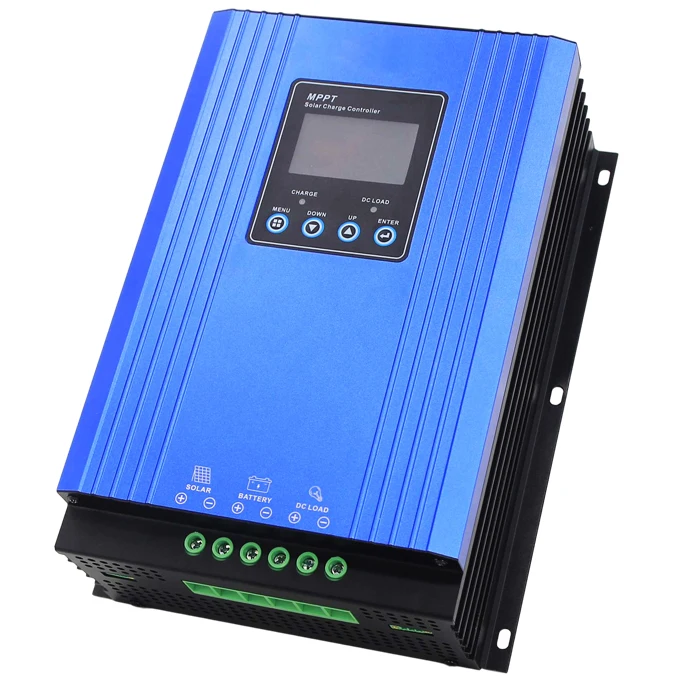

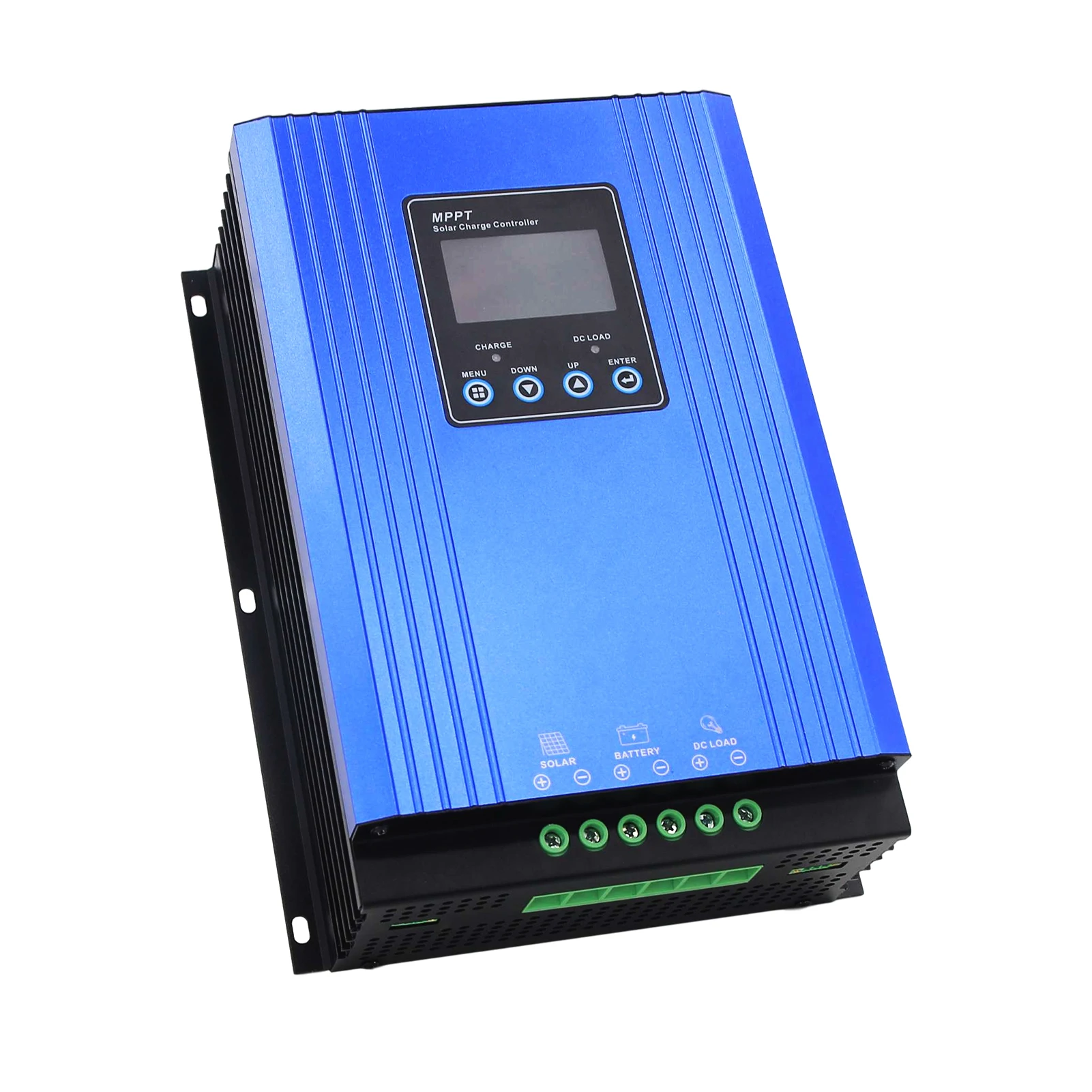

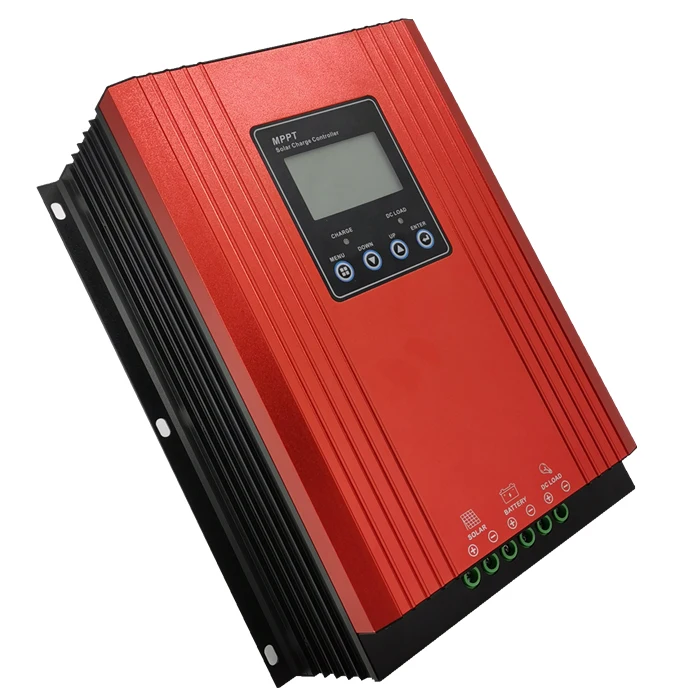

2020 Newest price 48V100A solar charge controller price 24V48V100A MPPT controller

Features :

1. PV array Max input up to 150V DC.
2. Regulatory mechanism of temperature compensation.
3. Charging current can be manually regulated according to battery capacity .
4. LCD screen Display with backlight.
5. Built in solar power generation histogram.
6. Designed for 12V/24V/48V solar power system.
7. Built-in RS485 solar data monitoring interface(Only available in 40A/60A/100A).
RS 485 communication interface sense multi-machine communication within the distance of 1km, the host computer allows user to check the operating parameters intuitively.
8. Applicable for 3 types of batteries,charging program can be selected.
Support Lead acid battery,Colloid storage battery,LiFePO4 Lithium battery.
9. DC output mode can be regulated.
10. Excellent heat dissipation design and cooling fan of intelligent control.
11. Maximum power tracking technology can significantly increase the energy utilization rate of the solar system and can reach 97% of transfer efficiency.
12. Quick scan the entire I-V curve, can track the maximum power point within several seconds.
13. Overcurrent protection,Short circuit protection,Overcharge protection,Overdischarge protection and Overload protection.



Specifications:

Model		SMT-48100
Product Category	System Voltage	12V24V36V48V Auto-reconnition
	Controller type	MPPT (Maximum Power Point Tracking)
	MPPT efficiency	≥99.5%
	Standby power	≤3W
	Heat-dissipation	Fan cooling,the fan speed is regulated by temperature
Input Data	Max PV input volatge	DC 150V
	Start Charge Voltage	12V system DC18V 24V system DC34V 36V system DC48V 48V system DC65V
	Low Input voltage protection	12V system DC16V 24V system DC30V 36V system DC45V 48V system DC60V
	Over Voltage Protection Point	DC 150V
	Max PV input Power	12V system 1400W 24V system 2800W 36V system 4200W 48V system 5400W
Charging Charateristics	Battery Types	Lead acid battery , Gel battery ,AGM battery ,lithoum battery
	Rated Charge Current	100A
	Charge Method	3 stages: Constant Current , Constant Voltage ,Floating Charge
Load Charateristics	Load Voltage	Same as battery voltage
	Rated Load Current	30A
	Load Control Mode	On,off, PV control ,Dual time control , PV+Time control
Display & Communication	Display	LCD
	Communication	RS485
Others	Protections	Input / output overvoltage ,undervoltage,reverse connection, overcharge,short circuit protection
	Opeeration Temperature	- 20℃ ~ +50℃
	Storage Temperature	- 40℃ ~ +70℃
	Ingress Protection	IP21
	Max connection cables	25MM2
	Net Weight (KG)	6
	Gross Weight (KG)	7
	Product Size (mm)	320*240*120
	Packing Size (mm)	410*280*180
