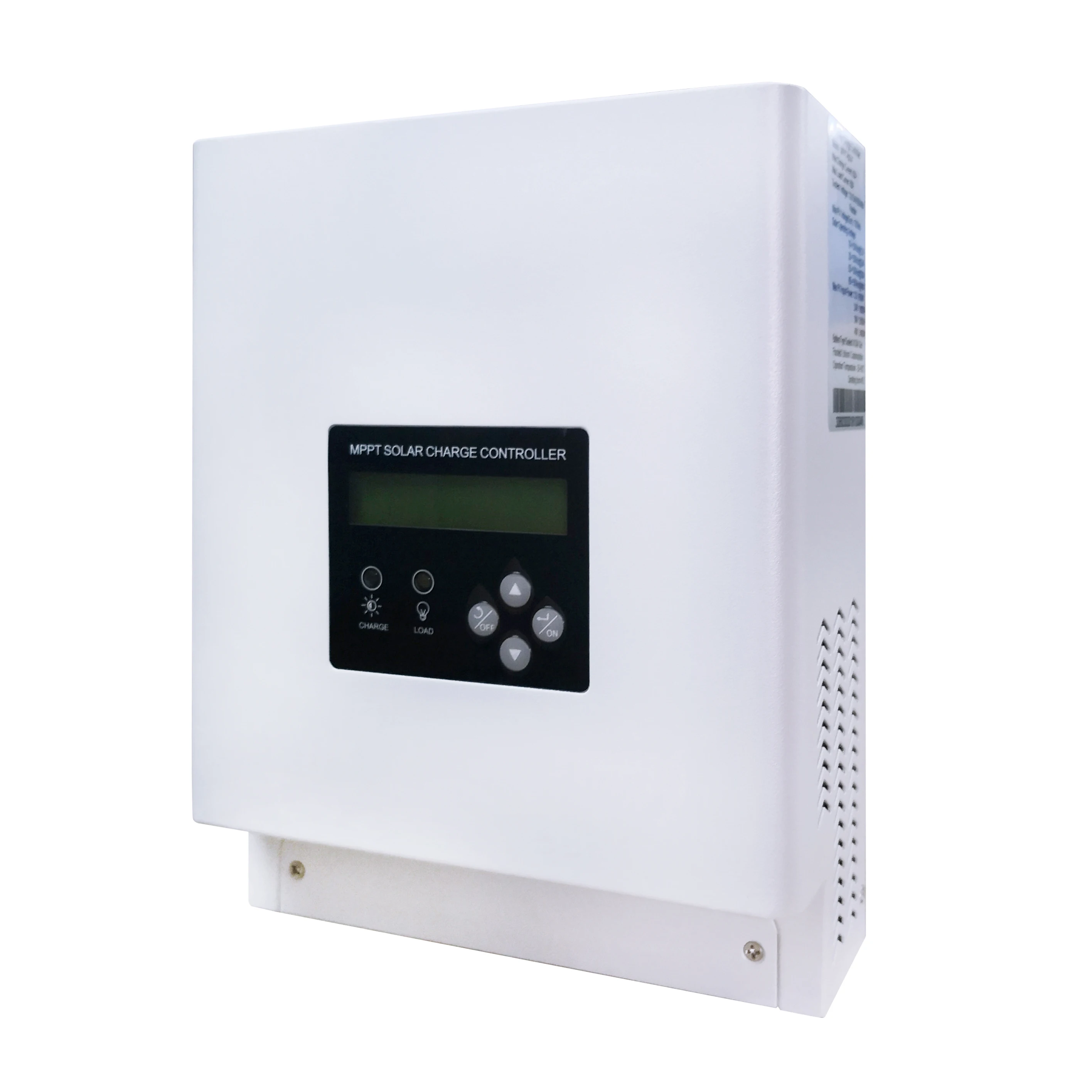

Слежением за максимальной точкой мощности 60A солнечные панели mppt Контроллер заряда 12V 24V 36V 48V MPPT регулятором солнечного зарядного устройства
- Категория: Solar Charger Controllers >>>
- Поставщик: Anhui,Ingotta,Solar,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 121.90 $* | 127.70 $* |
| Aug-15-2025 | 120.38 $* | 126.63 $* |
| Jul-15-2025 | 101.72 $* | 106.5 $* |
| Jun-15-2025 | 118.8 $* | 124.88 $* |
| May-15-2025 | 103.66 $* | 108.27 $* |
| Apr-15-2025 | 116.50 $* | 122.44 $* |
| Mar-15-2025 | 115.54 $* | 121.49 $* |
| Feb-15-2025 | 114.10 $* | 120.34 $* |
| Jan-15-2025 | 113.33 $* | 119.1 $* |
Характеристики
Model | 30A | 40A | 50A | 60A |
PV Operating Voltage | 18~100Vdc@12V 35~100Vdc@24V 50~100Vdc@36V 60~100Vdc@48V | 18~150Vdc@12V 35~150Vdc@24V 60~150Vdc@48V | ||
Max. PV input power | 12V 400W | 12V 600W | 12V 700W | 12V 900W |
24V 800W | 24V 1200W | 24V 1400W | 24V 1800W | |
36V 1300W | 36V 1700W | / | / | |
48V 1700W | 48V 2300W | 48V 3400W | 48V 3400W | |
Rated input current | 30A | 40A | 50A | 60A |
Self consumption | 2W | 3W | ||
Protection | PV array short circuit, over charging,battery reverse polarity,output short circuit | |||
Battery charging | ||||
Battery Type | Sealed Gel AGM Flooded Lithium Battery | Sealed Gel AGM Flooded | ||
Charge algorithm | 4 stage: Bulk, Absorption, Float, Equalize charging | 3 stage: Bulk, Absorption, Float | ||
Bulk charge voltage | Sealed: 14.4V AGM 14.2V Gel:14.2V Flooded:14.6V User defined:10-15V | |||
Float charge voltage | Sealed/Gel/AGM:13.8V Flooded:13.7V User defined:10-15V | |||
Communication | ||||
Communication Port | RS485 | RS485(Standard) Ethernet RS232 Optional with On line monitoring system | ||
Physical | ||||
Net weight | 2kg | 3kg | ||
Gross weight | 2.2kg | 4kg | ||
Dimension | 410*220*62MM | 280*180*89MM | ||
Cooling | Dual fan cooling | Fan cooling | ||
Environment | ||||
*Technical data for 12V system at 25℃, twice in 24V system rate, triple in 36V System rate and quaduple in 48V system rate | ||||
