ET310A цифровой осциллограф мультиметр набор осциллографов Ручной

General characteristics:

display:128 x 128 dot matrix is a graphic FSTN LCD

observation area: 71.7mm X 71.7mm

backlight: white, adjustable brightness two levels

input resistance:10MΩ

battery: 1000mAH lithium polymer battery

Charging time:2-3h

working hours: about 10 hours

storage capacity: 100% of DMM data and DSO waveforms

use environment: 0 ~ +40 degrees Celsius; <75%

storage conditions: -10 ~ +60 degrees Celsius; <90%

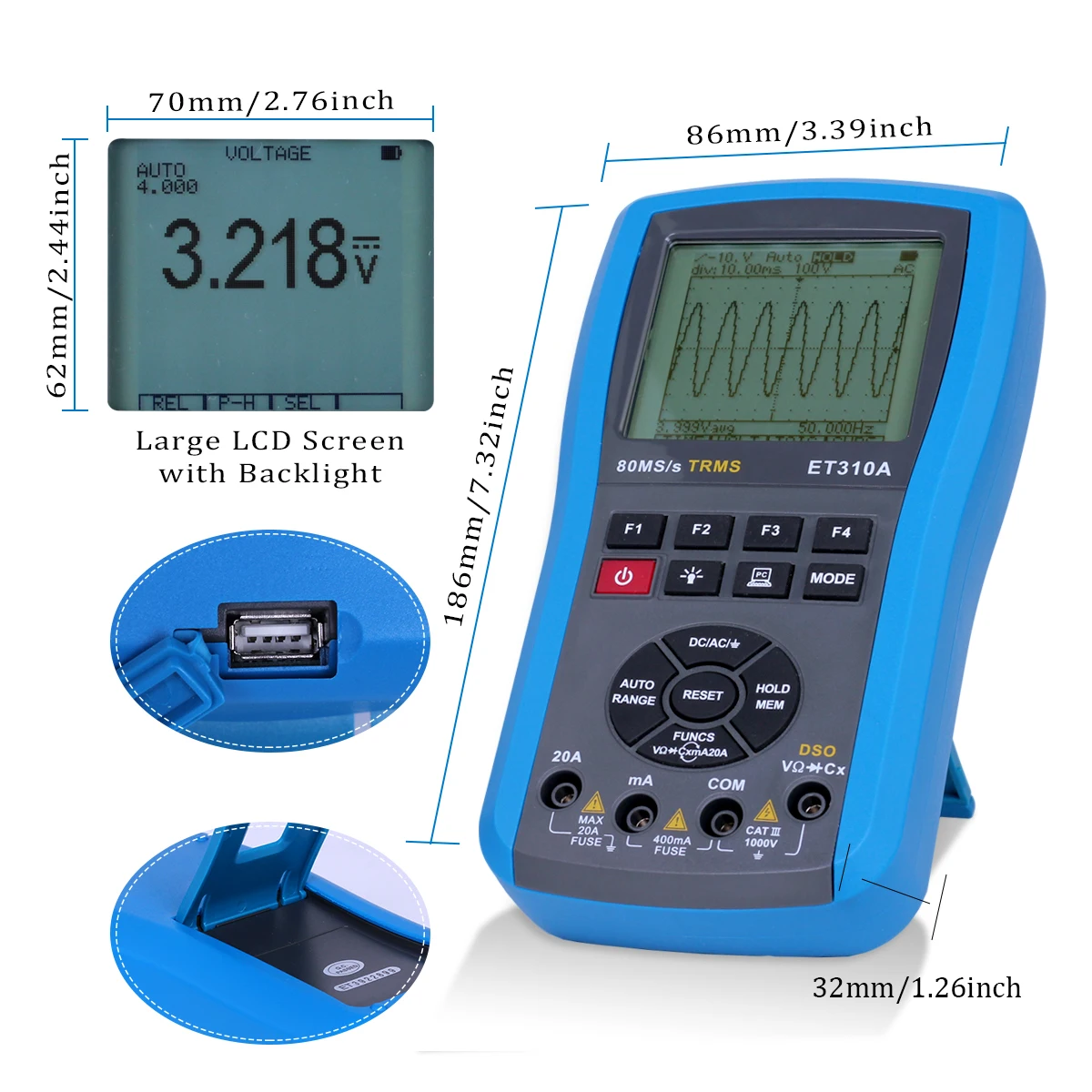

Dimensions: 86mm X 186mm X 32mm

weight: 325g (excluding other accessories)

power adapter: 110V~250V; 7.5V/500mA, switching power supply

80M sampling/20MHz analog bandwidth digital storage oscilloscope (DSO)- combined with 4000-code auto-range true RMS digital multimeter (DMM),-one-button conversion oscillometric function

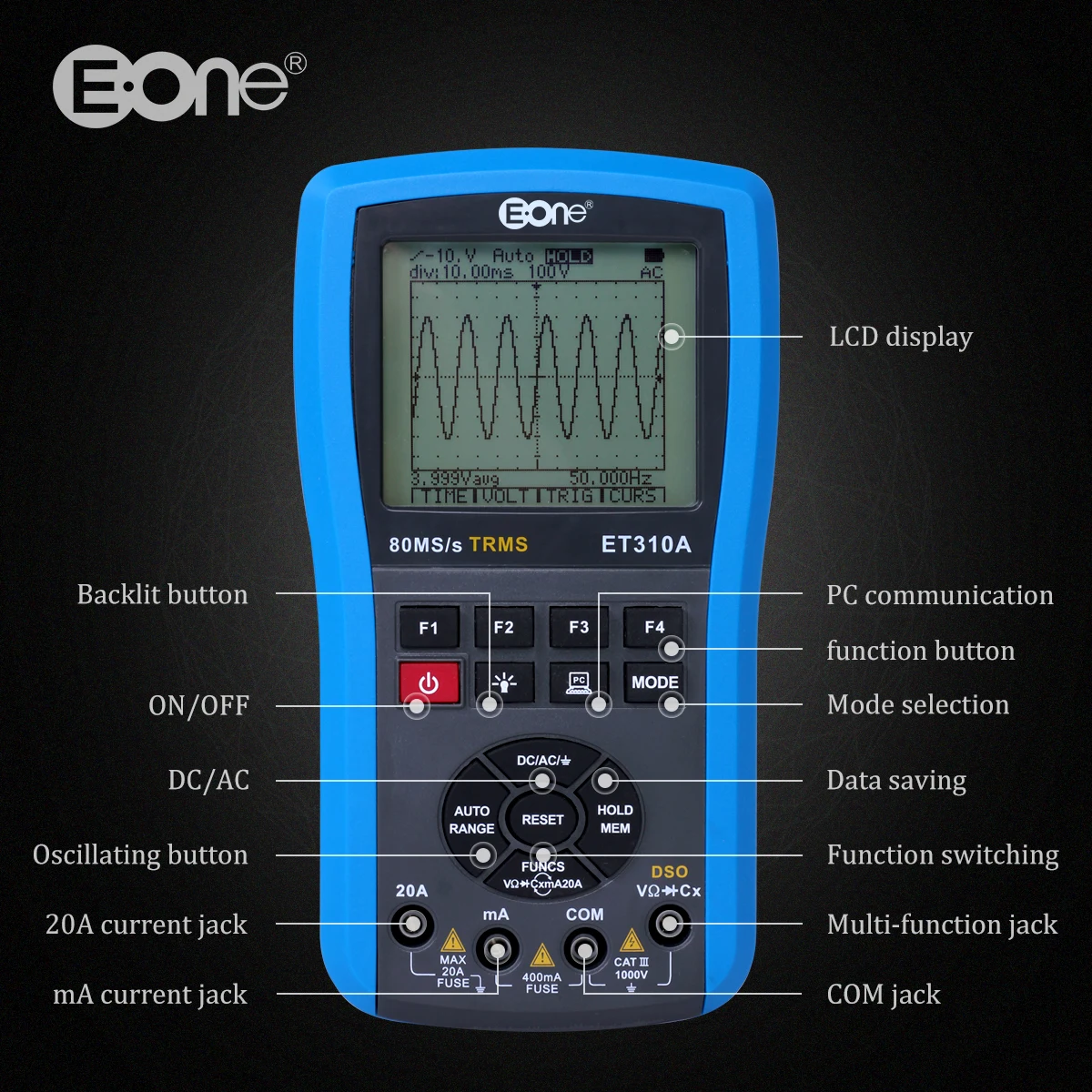

Software calibration technology, memory calibration factor; panel with all - silicone buttons for easy operation DSO realizes one-button (AUTO) automatic display of measurement

Features:

•


  LCD display Oscilloscope and TRMS Multimeter in 1 lab meter, portable design, more convenient and cost-effective for user.




•


  Connectable to computer, large screen display, more convenient and cost-effective.




•

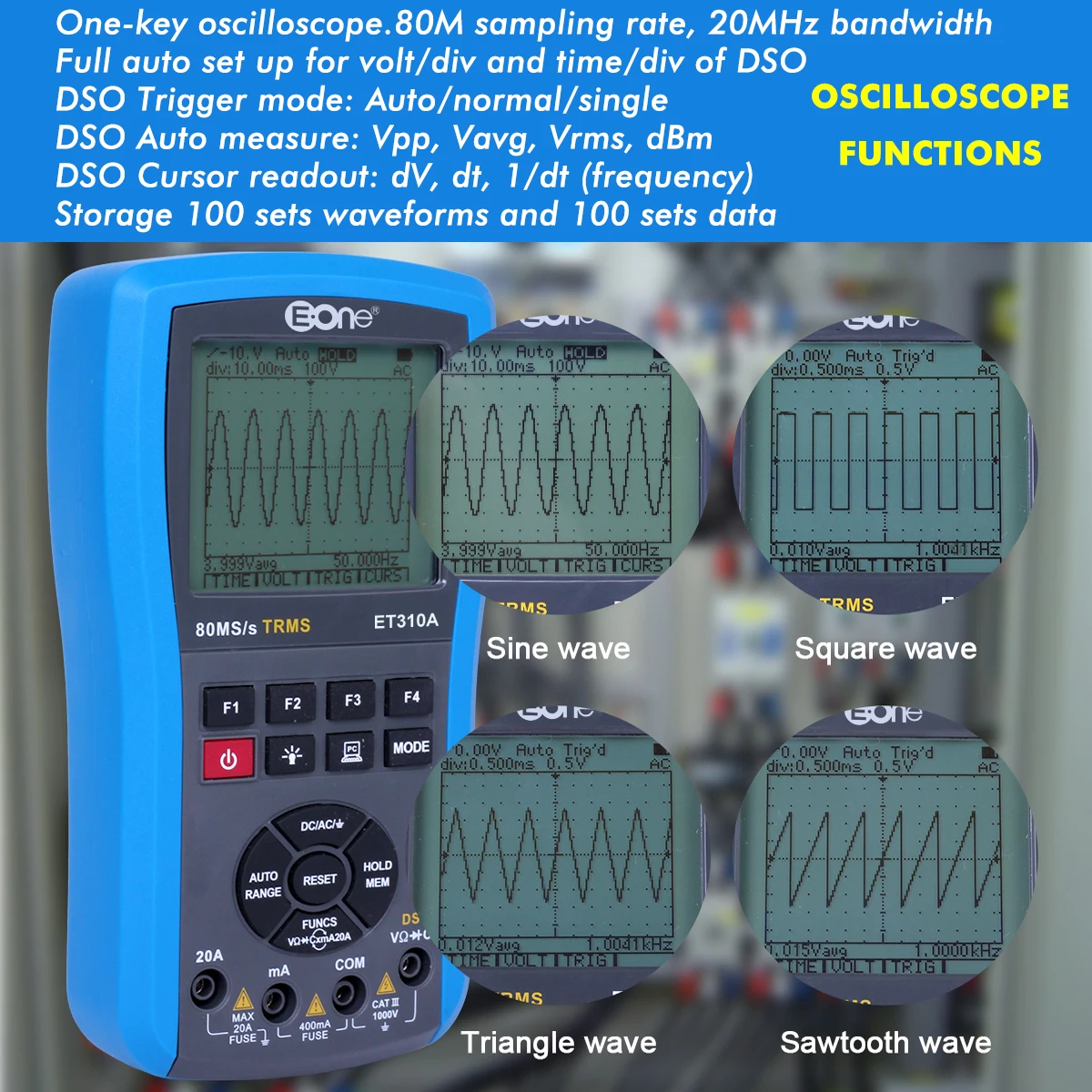

  Oscilloscope functions: 80M sampling rate, 20MHz analog bandwidth, one-key oscilloscope, auto waveform capture, three trigger modes: single, normal, auto.




•

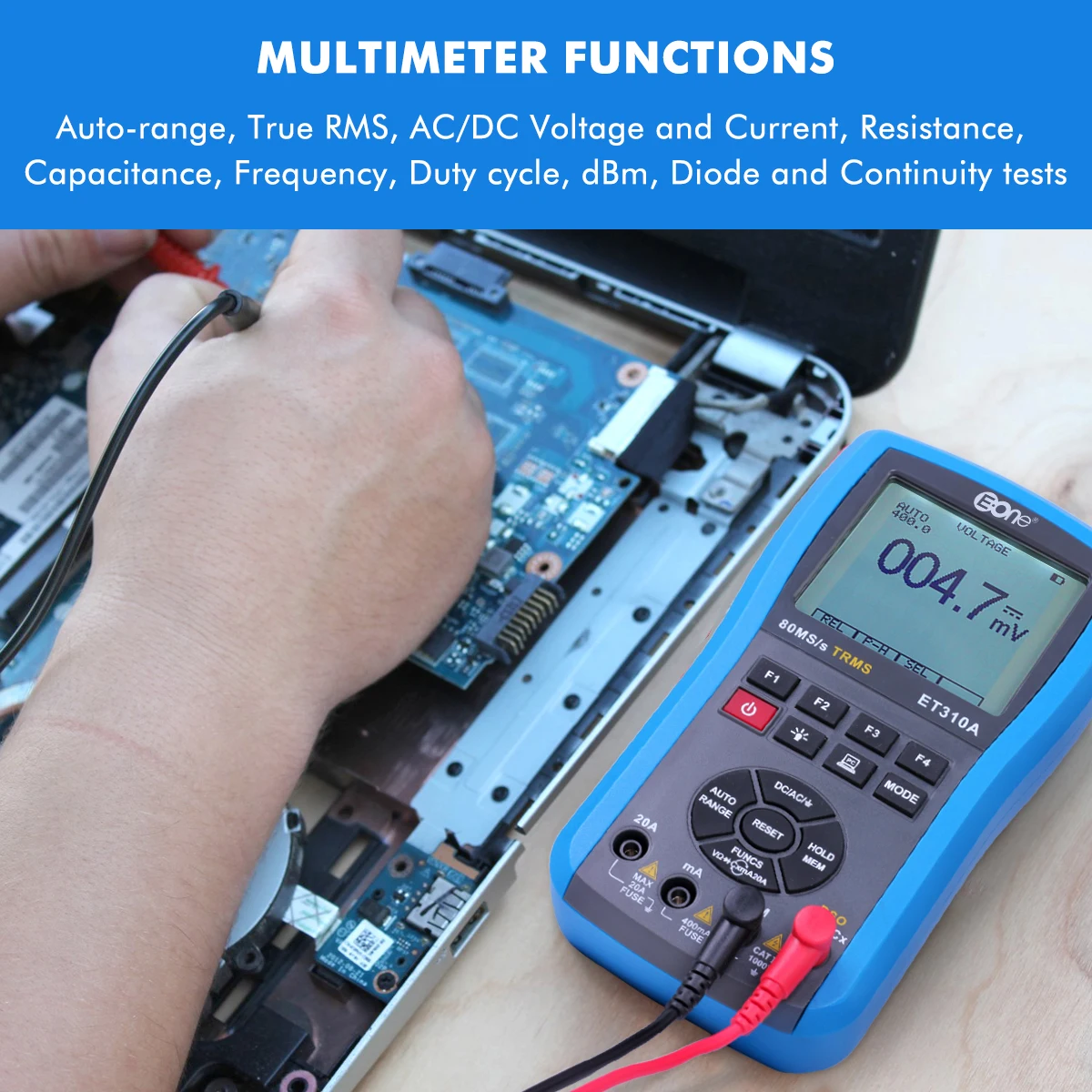

  Multimeter functions: 4000-counts, automatic range, TRMS, AC/DC voltage, AC/DC current, resistance, frequency, capacitance, diode test, duty ratio, continuity test.




•


  Display maximum value, minimum value, difference value and relative value on the same screen. Storage/readout 100 sets waveform and 100 sets data.




Functions:

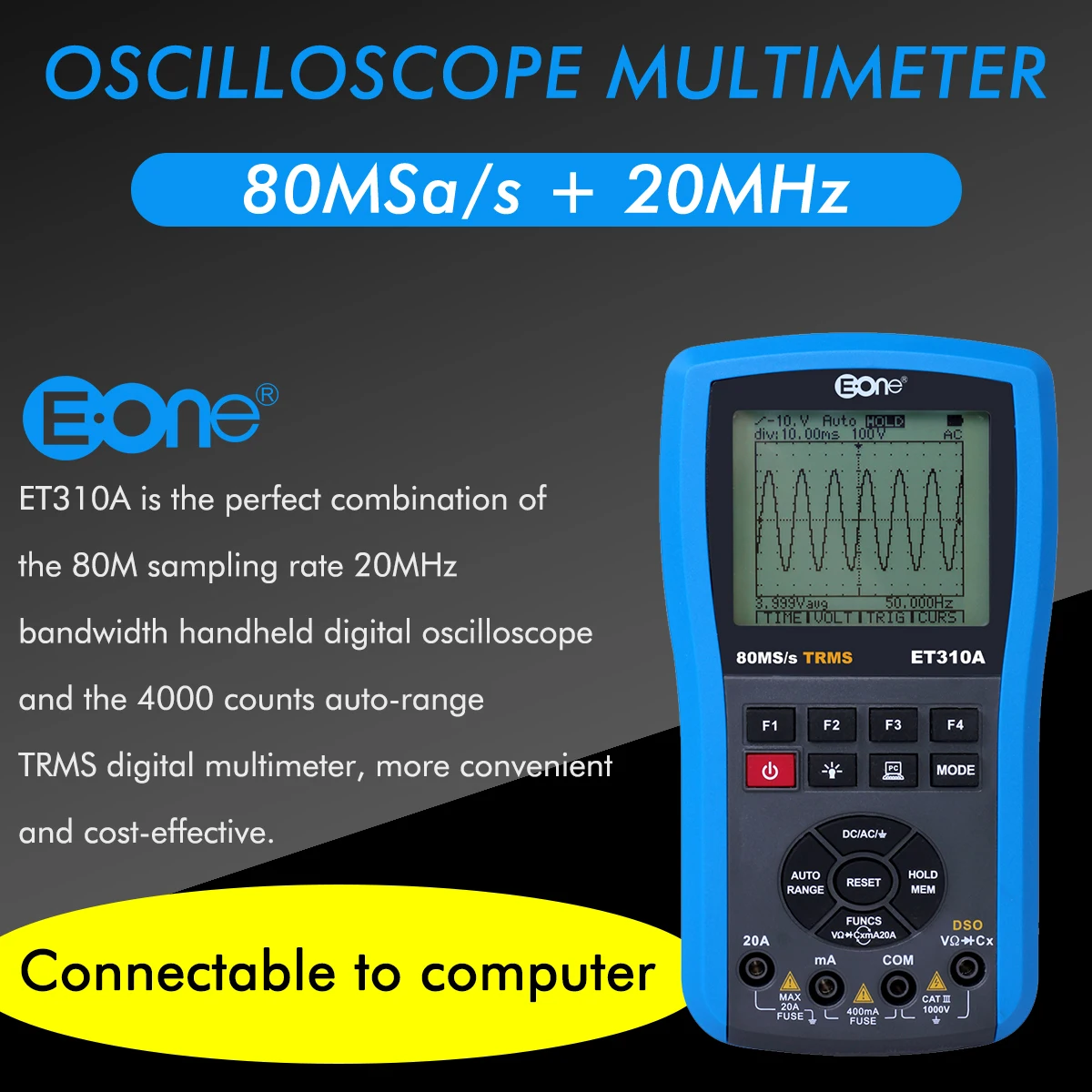

1· Combination of a 4000 counts auto-range True RMS digital multimeter and a 80M sampling / 20MHz bandwidth handheld Digital Storage Oscilloscope at the size and the cost of a multimeter.

2· DMM functions include True RMS AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, dBm, diode and continuity tests

3· Full auto set up for volt/div and time/div of DSO

4· DSO Trigger mode: Auto/normal/single

5· DSO Auto measure: Vpp, Vavg, Vrms, dBm

6· DSO Cursor readout: dV, dt, 1/dt (frequency)

7· Screen hold function

8· Save and recall up to 100 sets waveforms and 100 sets datas

9· High contrast FSTN LCD with white LED backlight

10· Auto power off in 5~60min or continuous on

11· Inner Polymer Li-Ion Battery with AC adapter

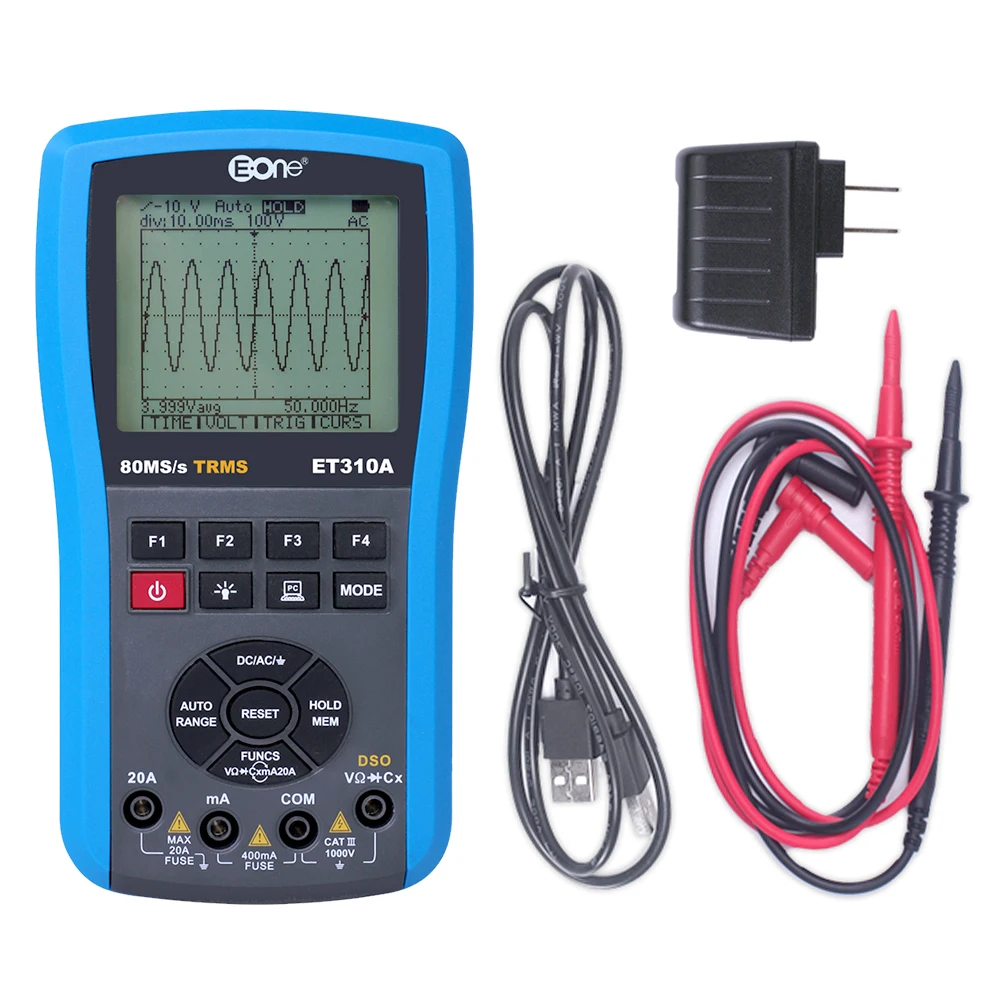

Package list:

1* ET310A oscilloscope multimeter

1* PC310 for connecting with computer

1* User manual

1* Charger

1* Convenient carrying bag

2* Standard test leads

1.  Free maintenance provided within one year.

2.  Technical guidance provided for life, including manuals, videos etc.

3.  If any questions, please feel free to contact with us at:  kaho @eairpack.com
