Мини-машина для подачи листов пневматический вакуумный питатель
- Категория: Машины для выпрямления металла >>>
- Поставщик: Shenzhen,Lihao,Machine,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.25 $* | 0.15 $* |
| Aug-20-2025 | 0.80 $* | 0.78 $* |
| Jul-20-2025 | 0.40 $* | 0.3 $* |
| Jun-20-2025 | 0.95 $* | 0.77 $* |
| May-20-2025 | 0.12 $* | 0.63 $* |
| Apr-20-2025 | 0.58 $* | 0.40 $* |
| Mar-20-2025 | 0.19 $* | 0.83 $* |
| Feb-20-2025 | 0.54 $* | 0.47 $* |
| Jan-20-2025 | 0.63 $* | 0.81 $* |
Характеристики

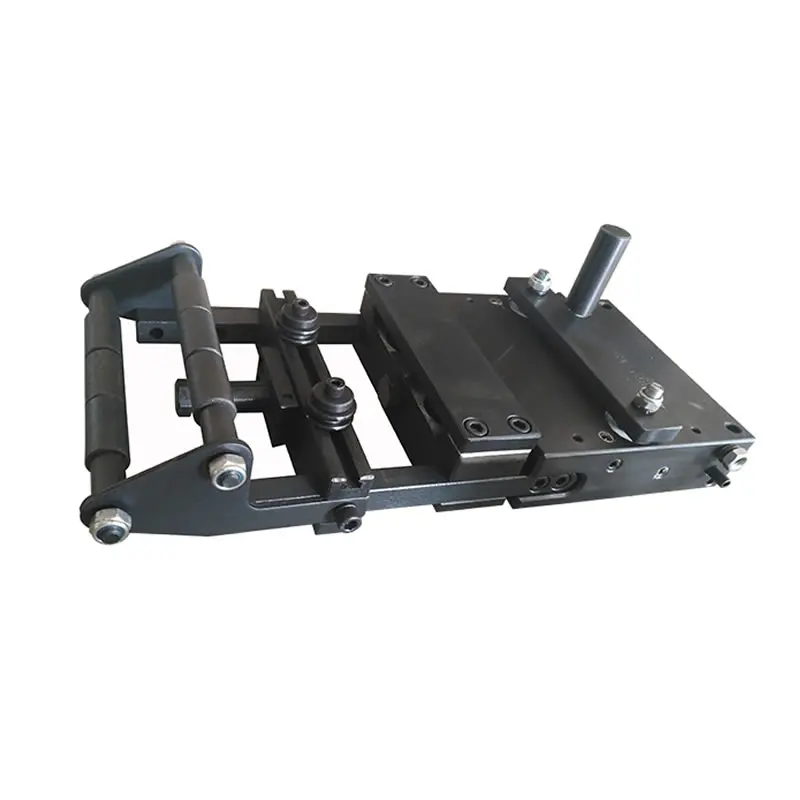

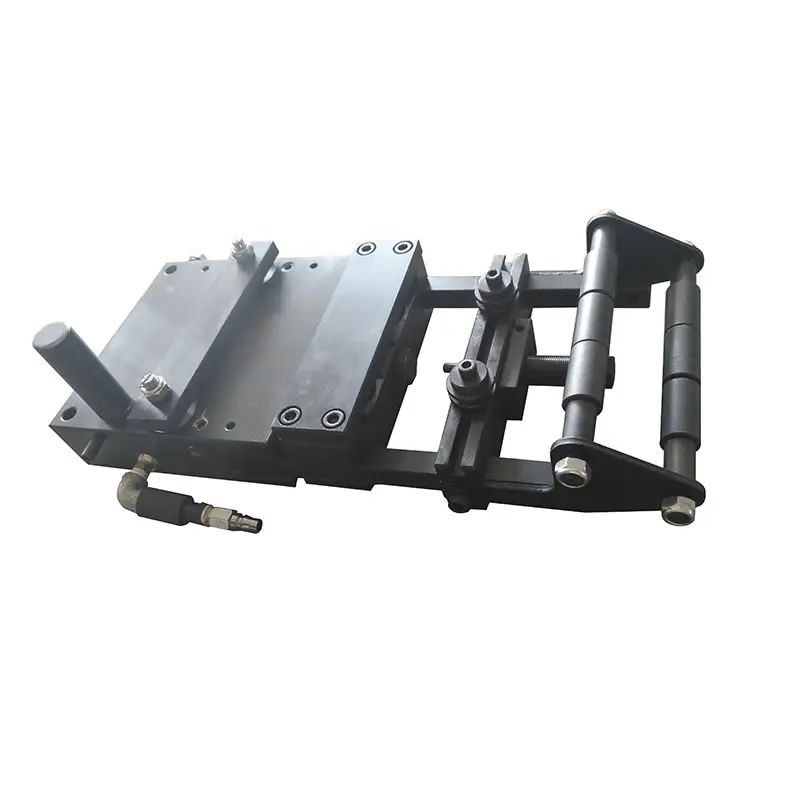

Pneumatic air feeder hot sale air feeding machine for press punching machine
Product Description
1. High efficiency, low friction valve, increase speed efficiency
2. All the seals are imported from Japan

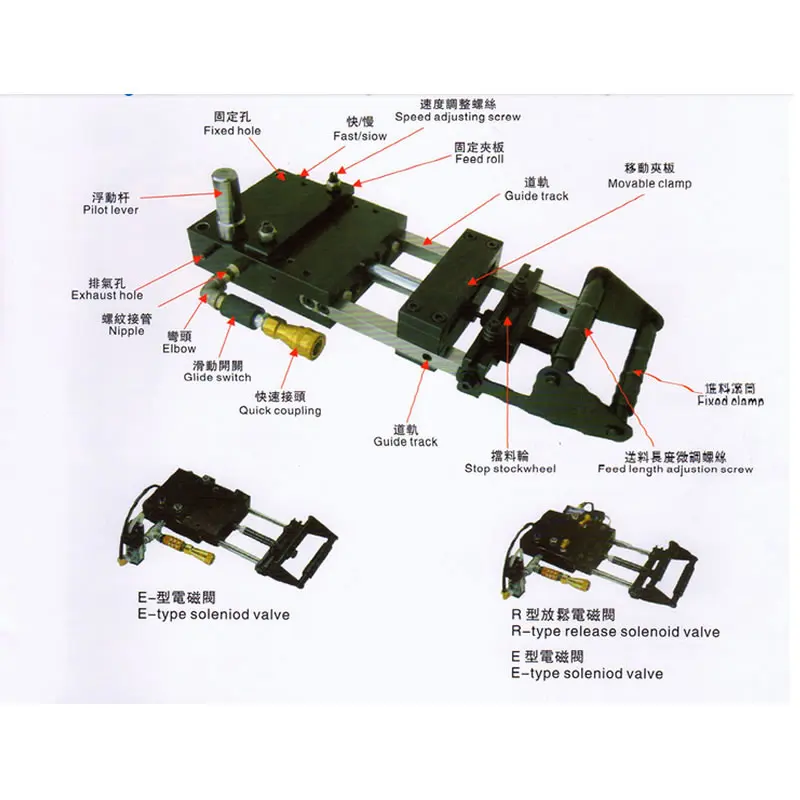

3. The novel floating rod adopts a two-position three-way valve structure, the problem of easy air leakage in the position of floating rod is completely solved.
4. Low failure rate,adopts 45 degree steel by CNC finishing, so it is not easy to have problems.
5. Minimal floor area, simple structure and easy to installation.
6. The operation process is stable and the feeding accuracy is high.
7. Compact overall structure,with high precision and fast speed;all machines will go through strict test before shipping.
8. Any size and length can be customized.
Specification:
model |
| AF-1C | AF-2C | AF-3C | AF-4C | AF-5C | AF-6C | AF-7C | AF-8C | AF-9C |
Max.feeding width | mm | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
Max.feeding length | mm | 50 | 80 | 80 | 130 | 150 | 200 | 250 | 300 | 350 |
Thickness | mm | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2 | 2.5 | 2.5 | 3 |
Pneumatic pressure | kg/cm2 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Fixed clamp friction | kg | 10 | 27 | 40 | 55 | 78 | 78 | 90 | 100 | 119 |
Moving clamp friction | kg | 30 | 49 | 65.5 | 72.5 | 144.5 | 169 | 200 | 217 | 220 |
Tension force | kg | 14 | 16.5 | 19.5 | 25.5 | 41 | 41 | 67 | 74 | 77 |
Air consumption | L/min | 26.5 | 38.5 | 47 | 58.6 | 100.5 | 108.5 | 152 | 162.5 | 174.2 |
weight | kg | 8.8 | 9.6 | 12.8 | 19.6 | 38.4 | 52.4 | 80 | 95 | 156 |
