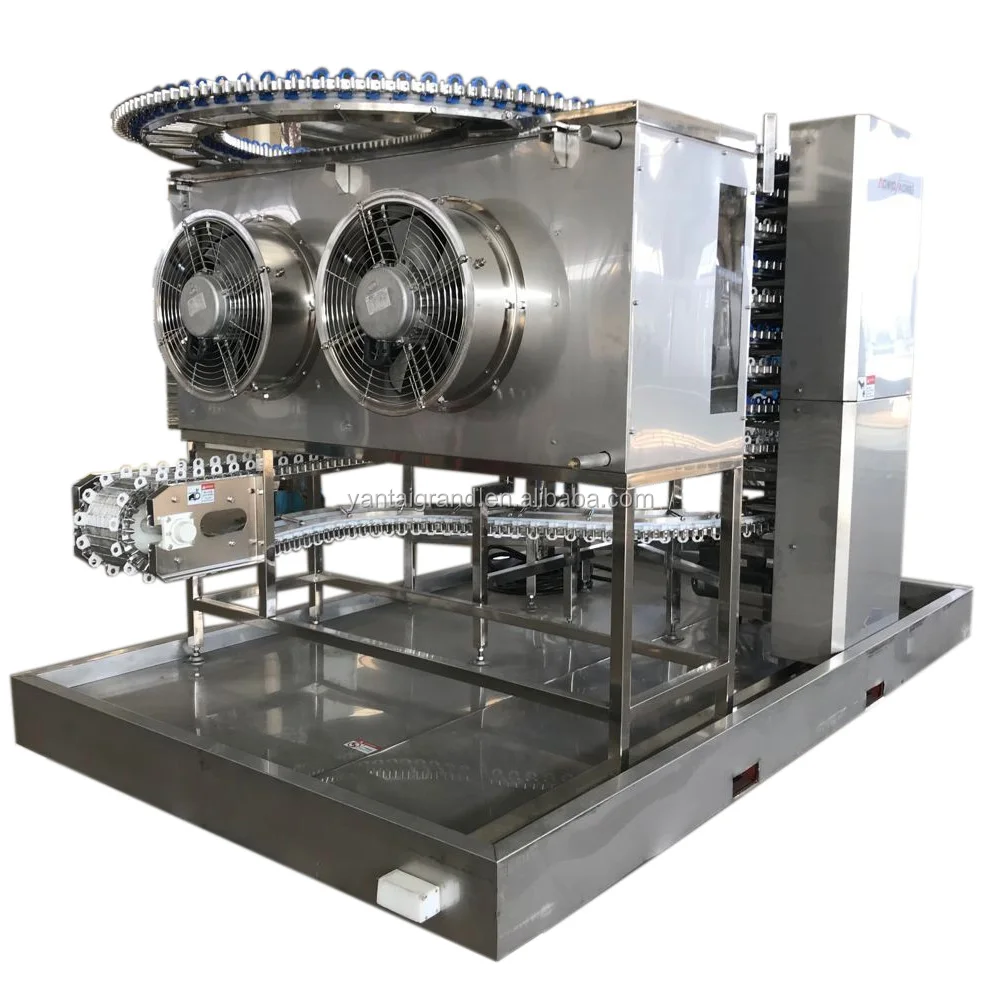

500 кг/ч Одиночная спиральная морозильная камера

The IQF spiral freezer is widely used in the quick frozen for prepared foods, packaged foods, intersected meats, ice creams etc. It is also applicable for sea foods, fruits, and other vegetables which is with bigger size.

The great advantage of GRAND spiral freezer is space  saving by taking fully use of the height space;special air distribution system ensure good temperature in the chamber.Modular control systems ,easy operation and maintenance

Main Features

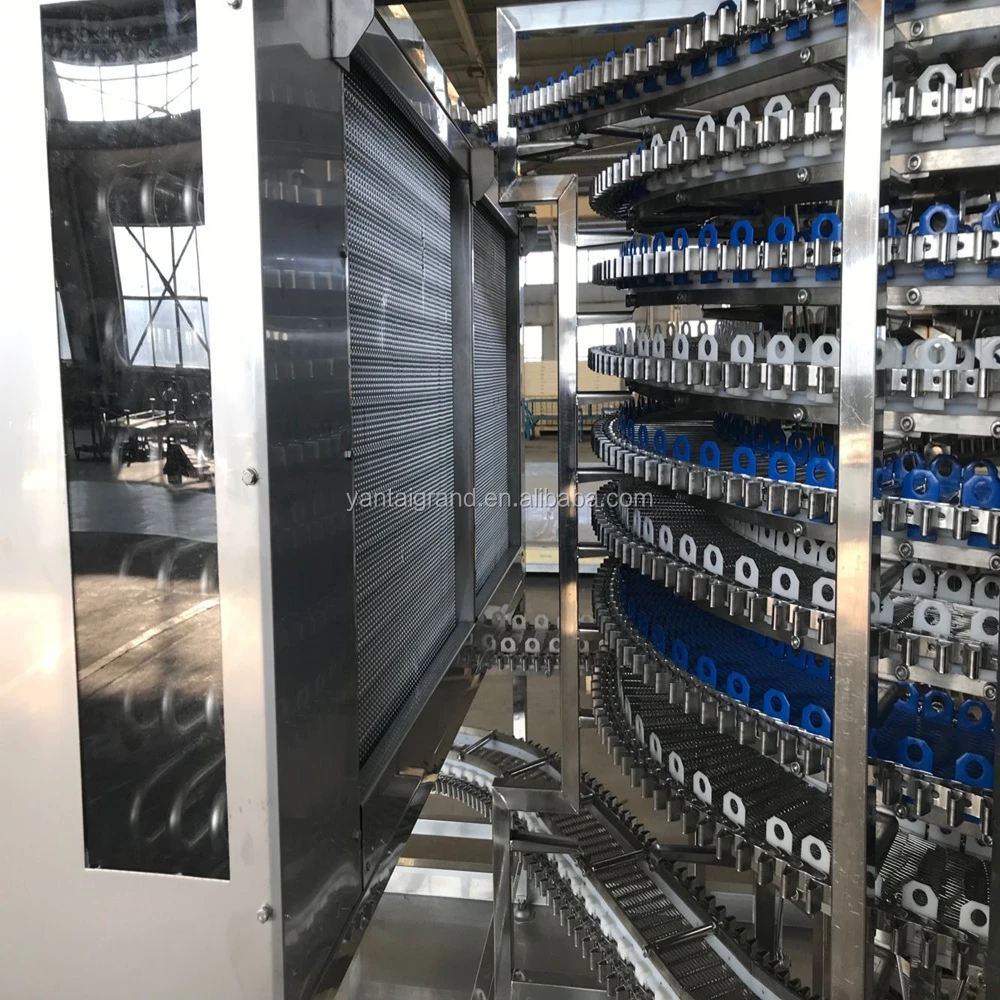

(1) Aluminum evaporators, different fin pitches; SUS304 stainless steel frame construction;

(2) Axial fans: stainless steel air box, aluminum blades. Closed type, moisture and water proof motor;

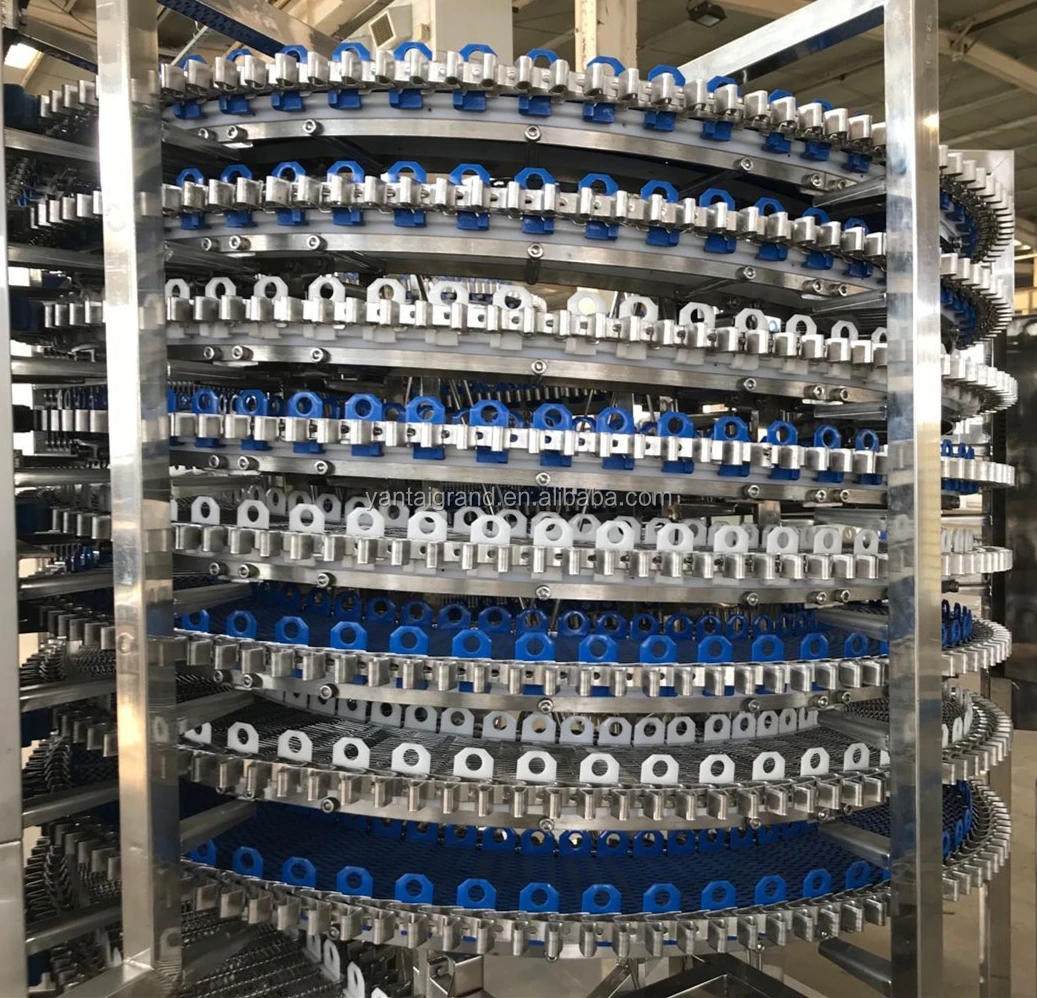

(3) Spiral tower and bracket made of stainless steel, the pontes between the mesh belt is made of macromolecule polyethylene anti-frication material;

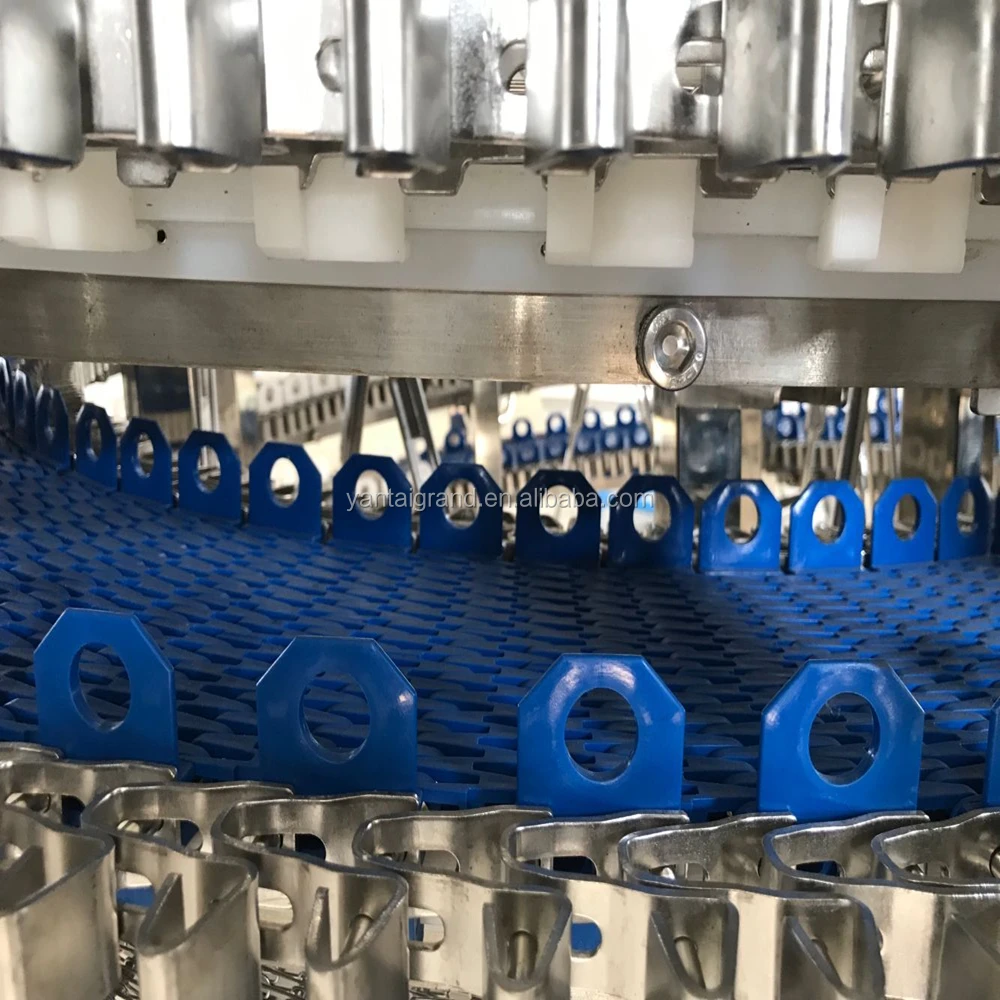

(4) Stainless steel conveyor belt, equipped with safe guard both sides;

(5) Drive motor installed outside of the refrigerator with no oil inside the refrigerator and convenient to maintain;

(6) Sandwich PUF panels laminated by stainless steel sheet both sides;

(7) The bottom panels are equipped with drainage slot in the bottom board to prevent ponding and avoid cold bridge;

(8) Door is equipped with frame heating device;

(9) The wind drum, inlet device, outlet device and all structure parts are made of stainless steel;
