Double Stage Insulating Transformer Oil Purification
- Категория: Machine Oil Purifier >>>
- Поставщик: Chongqing,Blossom,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1699116.2 $* | 1733098.99 $* |
| Jul-15-2025 | 1378024.28 $* | 1405584.84 $* |
| Jun-15-2025 | 1672359.72 $* | 1705806.16 $* |
| May-15-2025 | 1658980.96 $* | 1692160.4 $* |
| Apr-15-2025 | 1324508.71 $* | 1350998.41 $* |
| Mar-15-2025 | 1632222.66 $* | 1664866.66 $* |
| Feb-15-2025 | 1618843.40 $* | 1651220.45 $* |
| Jan-15-2025 | 1605464.50 $* | 1637573.90 $* |
Характеристики
Double Stage Insulating Transformer Oil Purification Plant
Product Description
What is dehydration of transformer oil?
Dehydration is one of the methods to improve the efficiency of Transformer. In Dehydration process Transformers is dried up so that the moisture and sludge could be removed out from winding. Filtration: Filtration is the process in which the oil being filtered with the help of High Vacuum Filtration Machine.
Application
Series ZYD Double Stage Insulating Transformer Oil Purification Plant can quickly remove the water, gas, and other contaminants such as solid particles in the waste insulating oil, transformer oil, capacitor oil, switch oil, mutual inductor oil, etc. The breakdown voltage of the oil after processed can be improved by 35KV or above just for one-time. It is mainly suitable for the power transmissions equipment whose voltage is 110KV or above.
Technical Parameters
Model | ZYD | 6 | 10 | 20 | 30 | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
Flow Rate | L/min | 6 | 10 | 20 | 30 | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
Vacuum Degree | MPa | ≤133 | |||||||||||
Working Pressure | MPa | ≤0.5 | |||||||||||
Continuous Working Hour | H | ≥200 | |||||||||||
Trouble-free Working Hour | H | ≥5000 | |||||||||||
Working Temperature | ℃ | 40~70 | |||||||||||
Power Supply | 380V,50HZ, 3Phase(Customizable) | ||||||||||||
Residual Water | ≤3PPM | ||||||||||||
Impurity Size | ≤1-3 micron | ||||||||||||
Residual Gas | ≤0.05% | ||||||||||||
Breakdown Voltage | ≥75KV | ||||||||||||
Transparent | |||||||||||||
Working Noise | dB(A) | ≤65 | |||||||||||

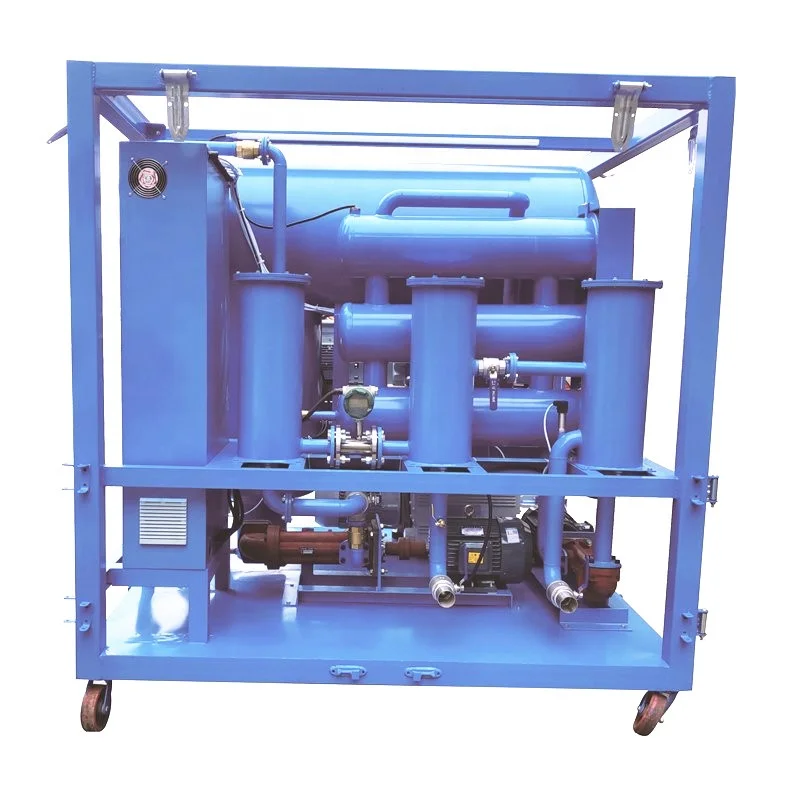

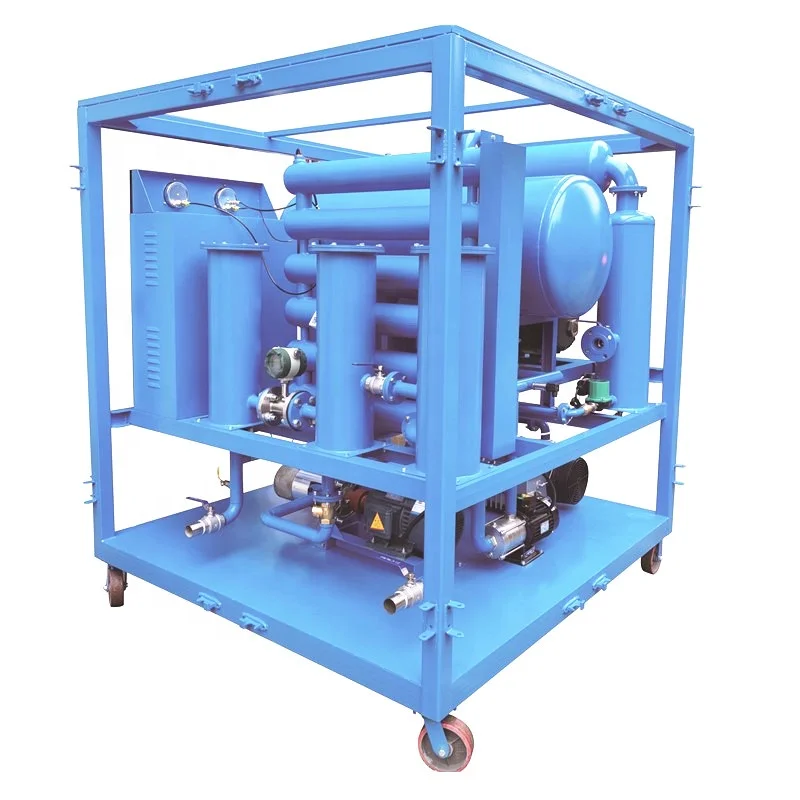

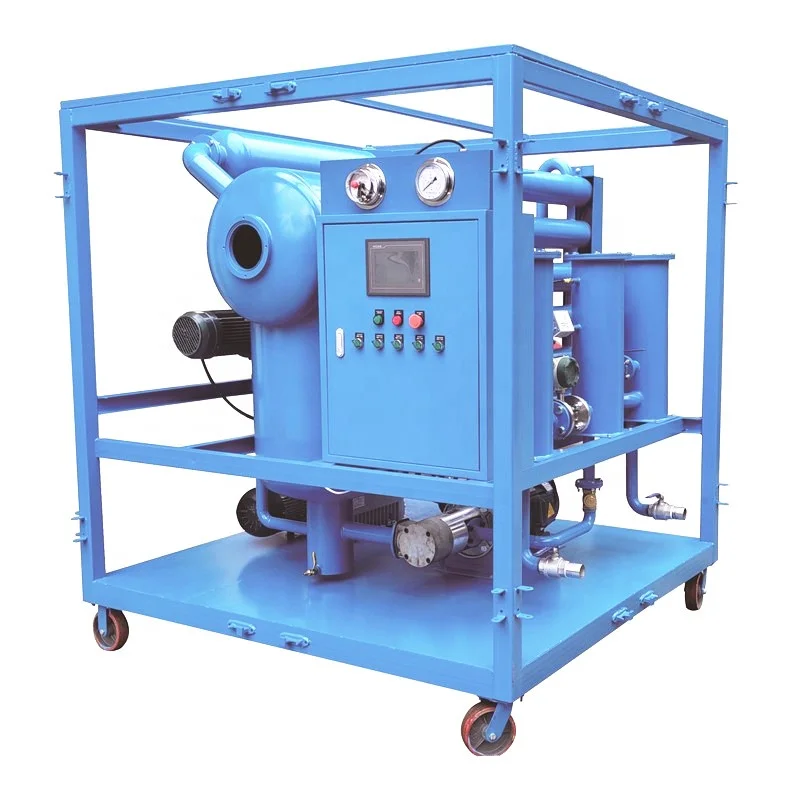

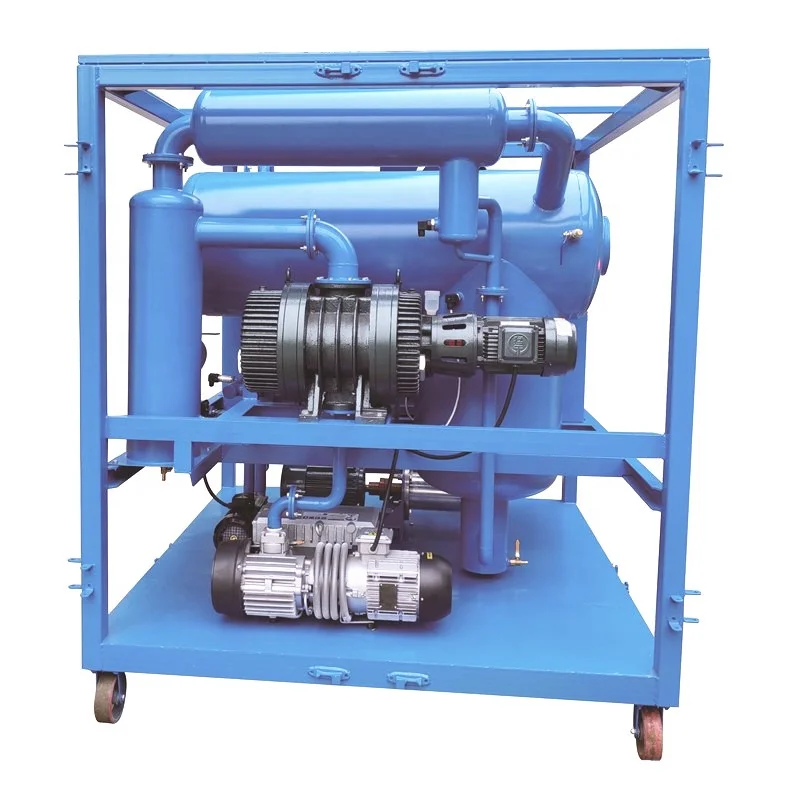

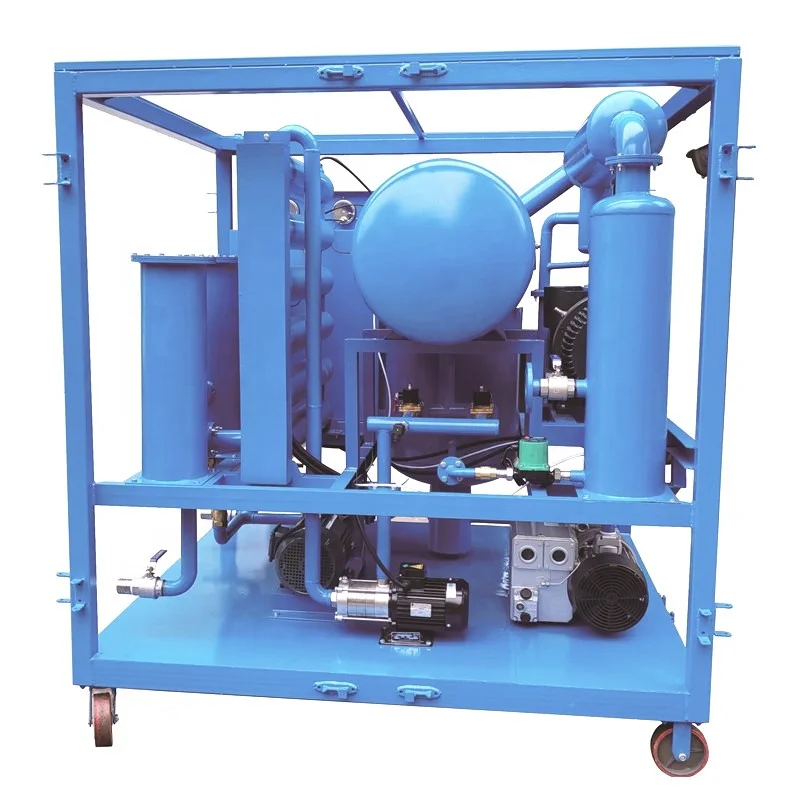

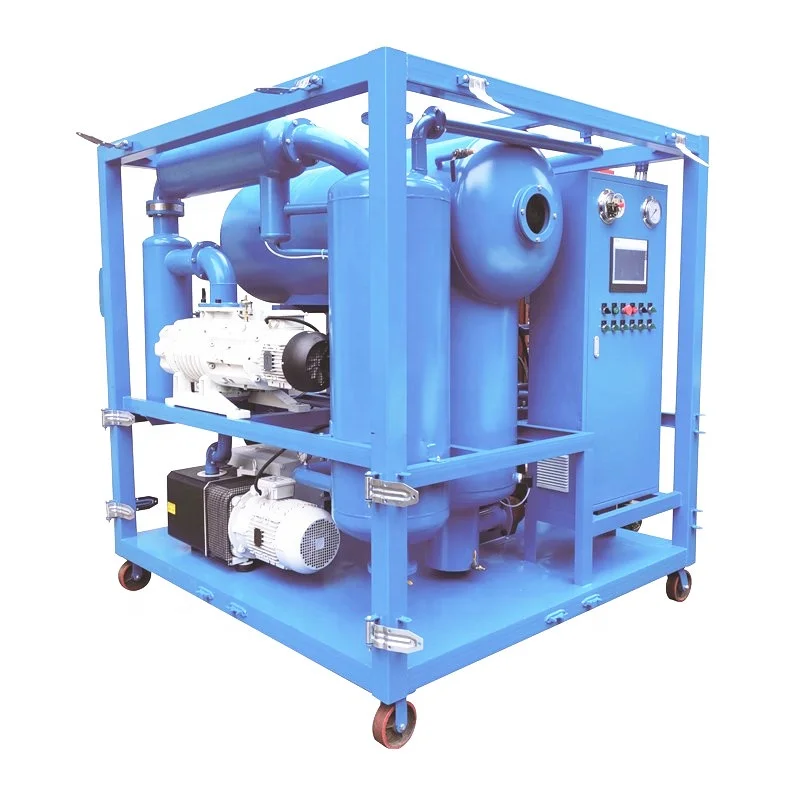

More Images
Process from production to delivery
Insulating Oil/Transformer Oil Testers
1.Transformer Oil Dissolved Gas Analyzer/ Gas Chromatograph GC-2000
2.Insulating Oil Breakdown Voltage/ Dielectric Strength Tester BDV-165
3.Dielectric Loss/ Volume Resistivity Tester/Tan Delta/ Power Factor Tester BLS-924
4.Multi-function Oscillation Tester BLS-429
5.Fully Automatic Interface/ Surface Tensiometer BLS-971
Packaging & Shipping
1. Outside package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.
2. Inside package: strength film and foams.
Delivered by sea, by train, by air, by truck, by express such as DHL, TNT, FedEx, Ups etc.
Company Information
Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment and electric hoist, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.
Manufacture
