Паровой стерилизатор серии

Категория: Other Chemical Equipment >>>
Поставщик: Shinva,Medical,Instrument,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.47 $*	0.76 $*
Aug-15-2025	0.34 $*	0.19 $*
Jul-15-2025	0.80 $*	0.89 $*
Jun-15-2025	0.90 $*	0.49 $*
May-15-2025	0.29 $*	0.89 $*
Apr-15-2025	0.89 $*	0.32 $*
Mar-15-2025	0.81 $*	0.4 $*
Feb-15-2025	0.64 $*	0.35 $*
Jan-15-2025	0.71 $*	0.49 $*

Характеристики

Overview

As the sole national R&D center for disinfection & sterilization equipment, SHINVA is the main drafting unit for national and industry standard for sterilizing equipment. Now SHINVA is the greatest manufacturing base for sterilizing and disinfection equipment in the world. SHINVA has passed the certification of ISO9001 quality system, CE, ASME and pressure vessel management system.

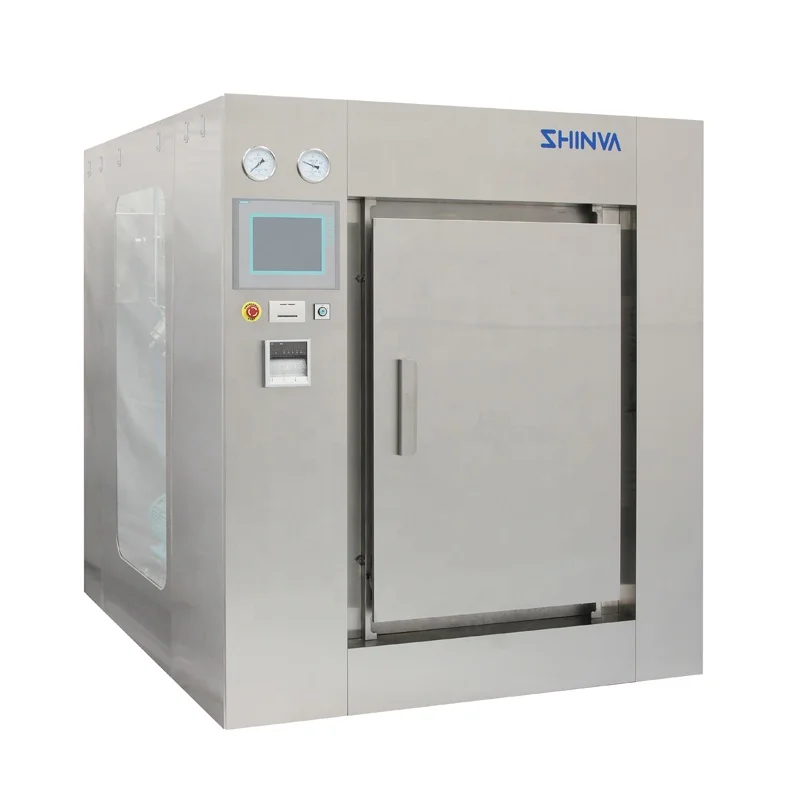

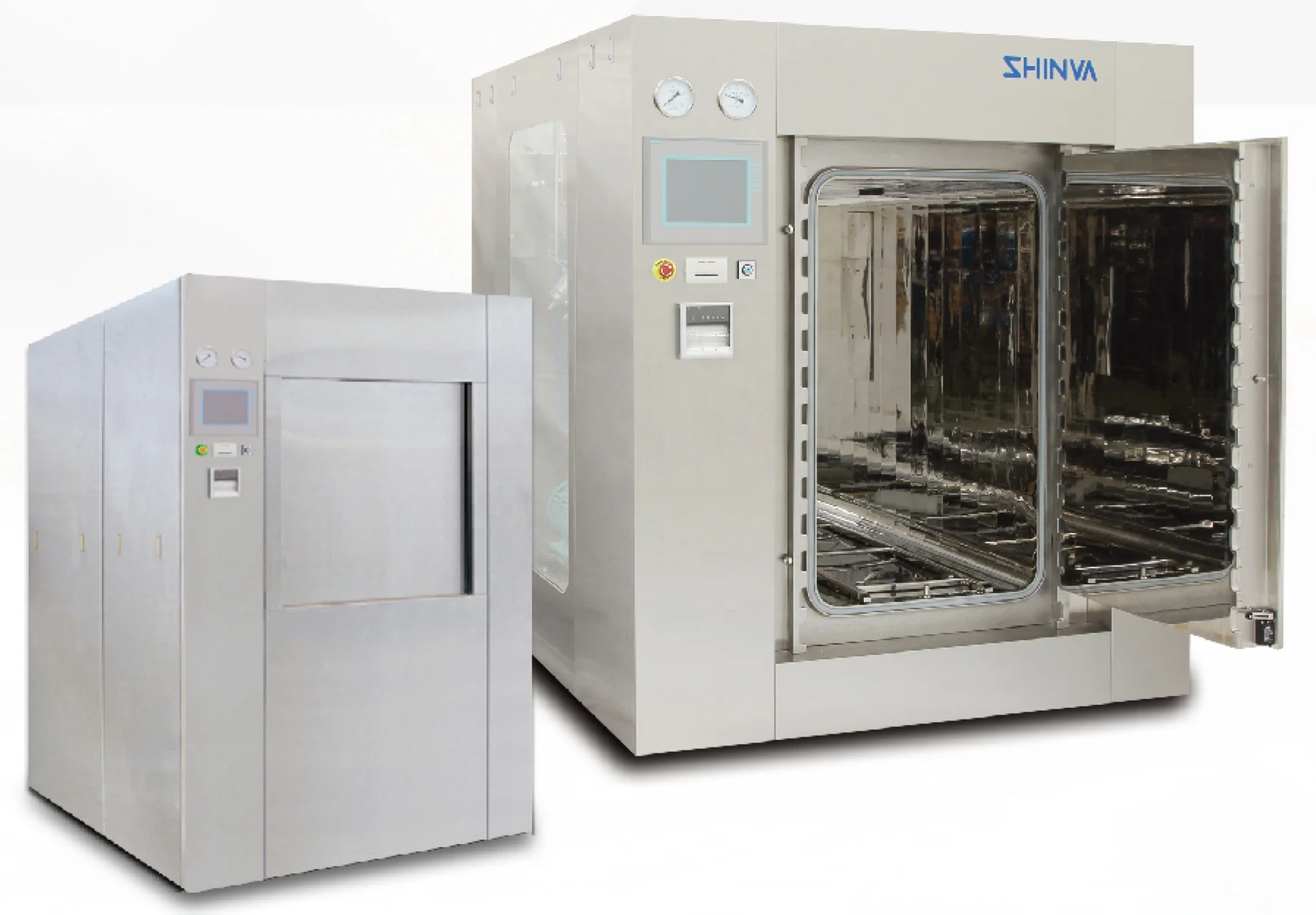

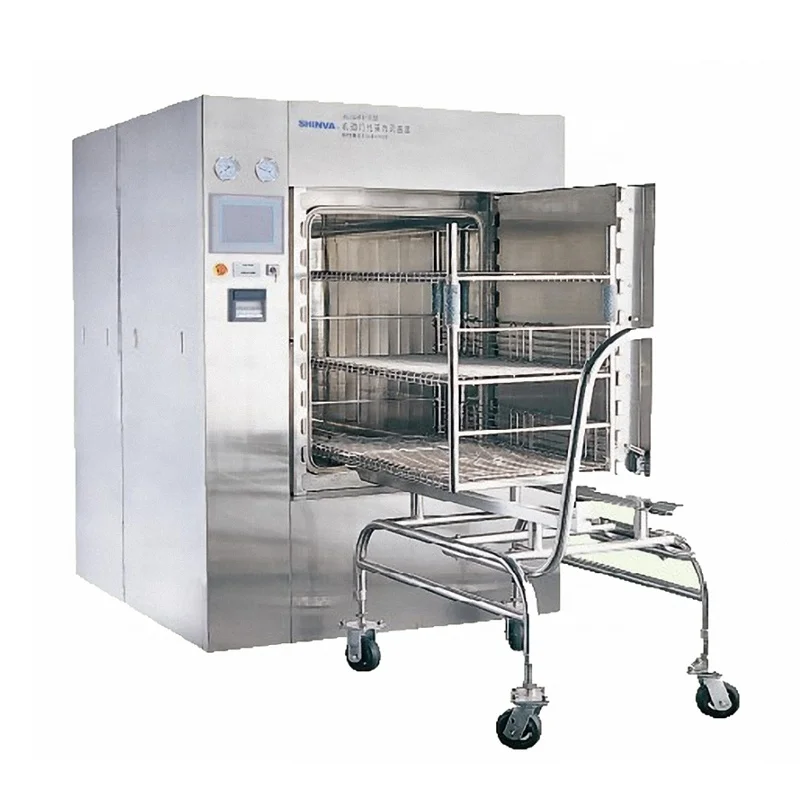

SGL series general steam sterilizer fully meets the requirements of GMP standard and is widely used for the sterilization of tools, sterile garments, rubber stoppers, aluminum caps, raw materials, filters and culture medium in areas of pharmaceutical engineering, medical and health care, animal laboratory and so on.

Parameters

No.	Item	Description
1	Design service life of main body	15 years (30,000 sterilization cycles)
2	Chamber design pressure	-0.1/0.3MPa
3	Jacket design pressure	0.3 MPa
4	Chamber operating pressure	-0.1/0.25 MPa
5	Jacket operating pressure	0.25 MPa
6	Chamber hydraulic test pressure	0.39 MPa
7	Jacket hydraulic test pressure	0.52 MPa
8	Design temperature	144℃
9	Sterilization temperature	105℃~139℃
10	Temperature uniformity	±0.5℃
11	Leak rate	≤1.3kPa/10min
12	Surface temperature	Outer surface temperature is not 25°C higher than ambient temperature

Utilities

No.	Item	Description
1	Power supply	380V±10% V, 50 Hz
2	Control power supply	220V±10% V, 50 Hz
3	Pure steam	0.25 MPa ~0.35 MPa
4	Industrial steam	0.3 MPa ~0.5 MPa
5	Softened water	0.15 MPa ~0.3 MPa
6	Compressed air	0.4 MPa ~0.7 MPa
