Food Processing Ultrafiltration Machine with Cheap Price
Best Selling Plant
ZYCJ Desalination Plant ZYRO RO Plant ZYCL UF Plant ZYRO Water Purification System
Product Description

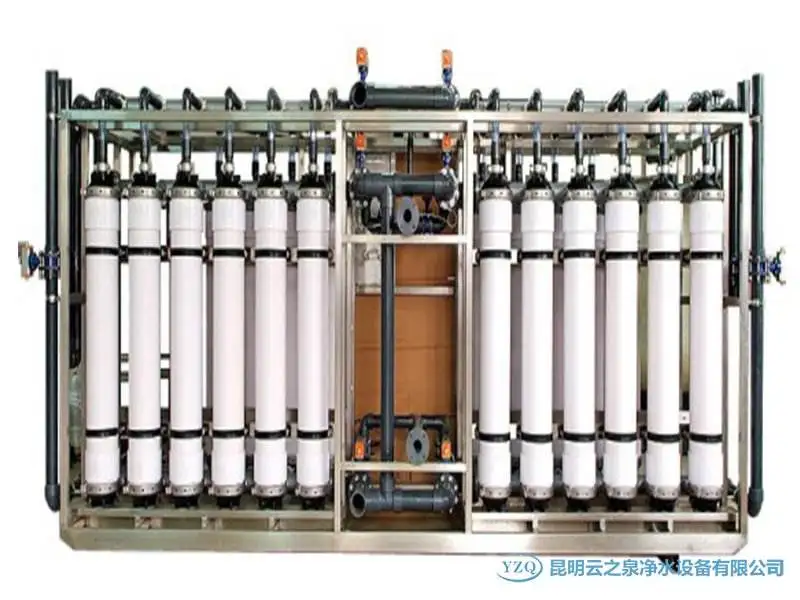

ZYUF Ultrafiltration Machine
The ZYUF ultrafiltration machine uses UF membrane to arrive at purification and separation. It can effectively filtrate bacteria, endotoxin, virus, rust, colloid and most big macromolecular substance what's diameter is bigger than 0.001um in the water and retain trace elements that are beneficial to human health. So the UF system usually can be used for industrial seperation, concentration, purification, water purification, sewage water treatment, etc.
Technical Parameters of Ultrafiltration Machine:
| Water production | 0.5m3-100m3according to customers' requirement |
| UF membrane DN | 0.001-0.01um |
| Inlet water temperature | 10-40℃ |
| Working pressure | 0.2-0.5MPa |
| Back-washing pressure | <0.1MPa |
| Back-washing flow | 200L/m2/hr |
| Back-washing time | 30-60sec |
| Back-washing frequency | 15-60min according to your raw water quality |
- Ultrafiltration membrane aperture is small, high precision;
- Using vertical cross filter principle, can be automatically washed, not easy to dirty block, long service life;
- Water production capacity, can achieve water production at the same time to meet the water demand;
- With water protection, high and low voltage protection and other functions;
- Low cost, practical and strong;
- Simple structure, small footprint, less ancillary equipment, easy to expand and increase the components
- Simple operation, fast start, esy to maintain, easy to control

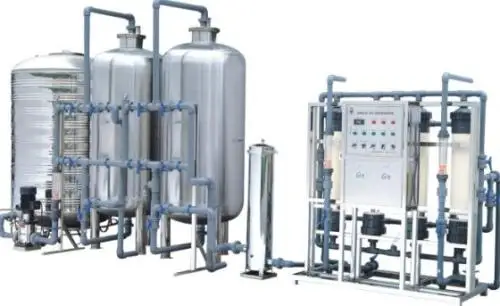

The Working Flow of Ultrafiltration Machine:
1. Booster pump-- provide the pressure to pre-treatment filters.
2. Multi-media filter-- get rid of turbidity, suspended matter, organic matter, colloid, rust, silt, ect.
3. Active Carbon filter--Adsorb the free chloride, color, odour, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Cartridge filtration--prevent large particles, bacteria, viruses into RO membrane, accuracy only has 5um.
6. High pressure pump-- Provide the high pressure to RO membrane.
7. UF membrane--filtrate bacteria, endotoxin, virus, rust, colliod and other microorganisms what pore size is bigger than 0.001um.
Model List of Ultrafiltration Machine:
| No. | Model | Water yield (L/H) | Voltage/Power (V/Kw) | Body Size (L*W*H mm) | Water Tank (L/Material) |
| 1 | ZYCL-500 | 500 | 380/1.5 | 1500*600*1500 | 500/stainless steel/PE |
| 2 | ZYCL-1000 | 1000 | 380/1.5 | 1500*600*1500 | 1000/stainless steel/PE |
| 3 | ZYCL-2000 | 2000 | 380/1.5 | 1500*800*1600 | 2000/stainless steel/PE |
| 4 | ZYCL-3000 | 3000 | 380/1.5 | 1600*800*1600 | 3000/stainless steel/PE |
| 5 | ZYCL-4000 | 4000 | 380/2.0 | 1600*800*1600 | 4000/stainless steel/PE |
| 6 | ZYCL-5000 | 5000 | 380/2.0 | 1700*800*1600 | 5000/stainless steel/PE |
Note: Customization is available.
Water Application of Ultrafiltration Machine:
1. Bio-Phamaceutical industry, Chemical industry, Electrical industry, Electronic industry, Textile industry, Recycle industry, Environmental industry;
2. Beverage, Food, Tap water, Wine, Commercial water, Spring water, Dairy and tap water industry;
3. Sewage water treatment, industrial water purification, sea water purification.

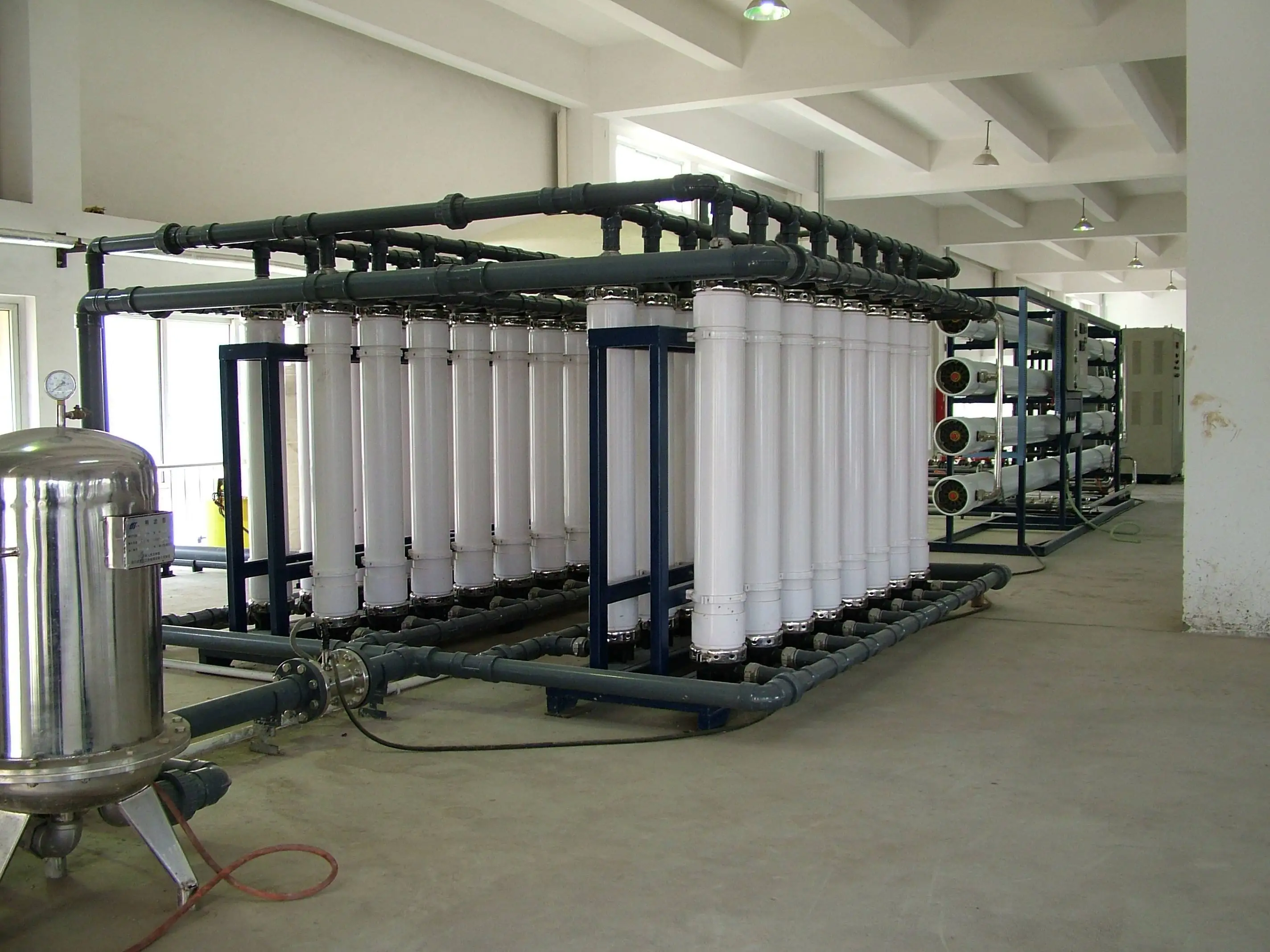

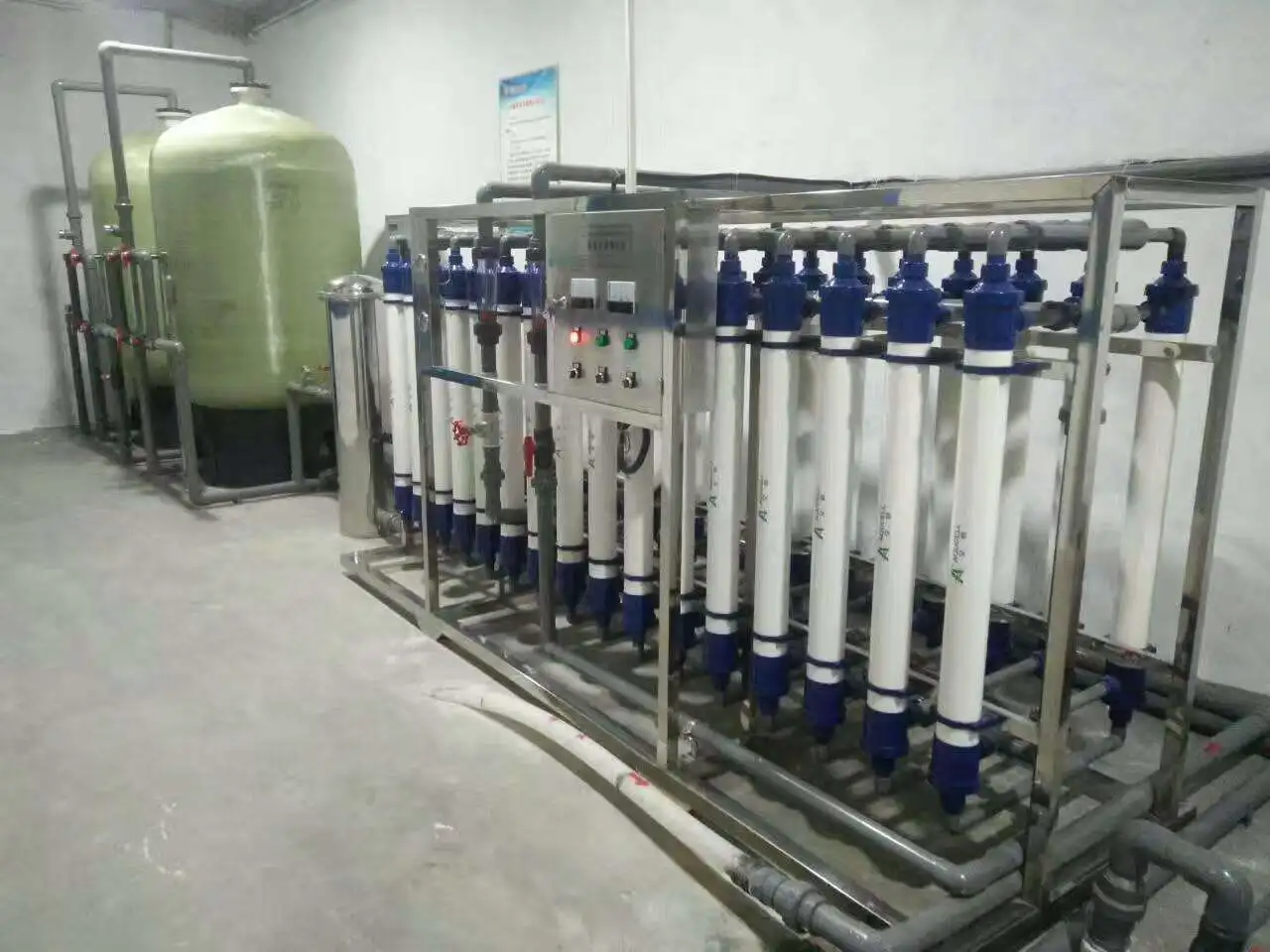

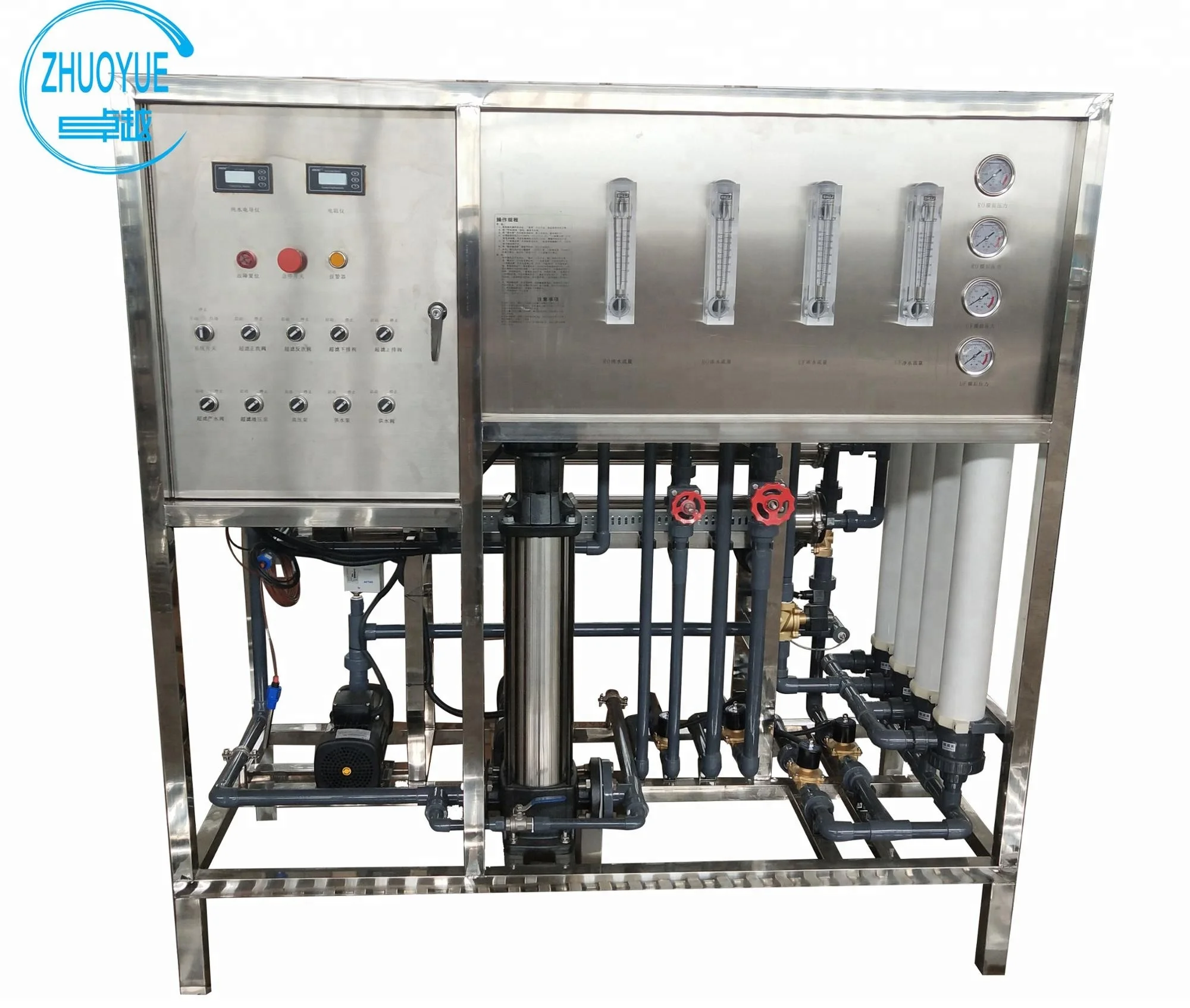

More Details of Ultrafiltration Machine:
Company Information
Ultrafiltration Machine

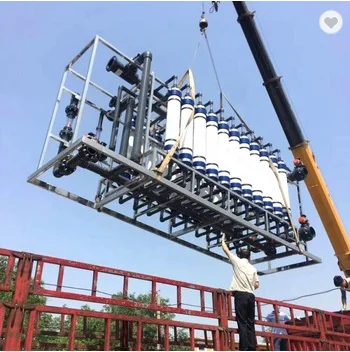

Packaging & Shipping
Ultrafiltration Machine
Why choose us :
1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
