Машина для переработки коллоидной мельницы с кунжутом орехов миндаля молока Для Производства арахисового


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.27 $* 0.59 $*
Aug-15-2025 0.8 $* 0.54 $*
Jul-15-2025 0.52 $* 0.57 $*
Jun-15-2025 0.43 $* 0.37 $*
May-15-2025 0.34 $* 0.23 $*
Apr-15-2025 0.92 $* 0.38 $*
Mar-15-2025 0.35 $* 0.86 $*
Feb-15-2025 0.46 $* 0.59 $*
Jan-15-2025 0.0 $* 0.56 $*

Характеристики



Products Description


Features
Sanitary food-grade stainless steel. Except motor part, all contact parts are made of stainless steel, especially both dynamic grinding disc and static grinding disc are reinforced, making them better properties of corrosion-resistance and wear-resistance. In that case, the finished materials are non-pollution and safe.








Working Principle


The basic work principle of colloid mill is that fluid or semi-fluidmaterials pass the gap between fixed tooth and rotation tooth which are relative high-speed interlocking to make materials bear strong shearing force, frictional force and high-frequency vibration force. Grinding is by the relative motion of toothed bevels, one rotates at high speed, the other keeps static. In that case, materials passing the toothed bevels are greatly sheared and rubbed. At the same time, those materials are under forces of high-frequency vibration and high-speed vortex, which make them ground, emulsified, crushed, mixed, dispersed and homogenized, finally fine finished products are achieved.


Spiral Feeder:For feeding materials of large particles to the mill disc.
Blade Feeder:For fluid of small particles, semi-fluid
and emulsion materials.


Static Disc:It makes materials greatly sheared and
rubbed when passing though toothed bevels
Rotation Disc:Making materials effectively ground, emulsified,

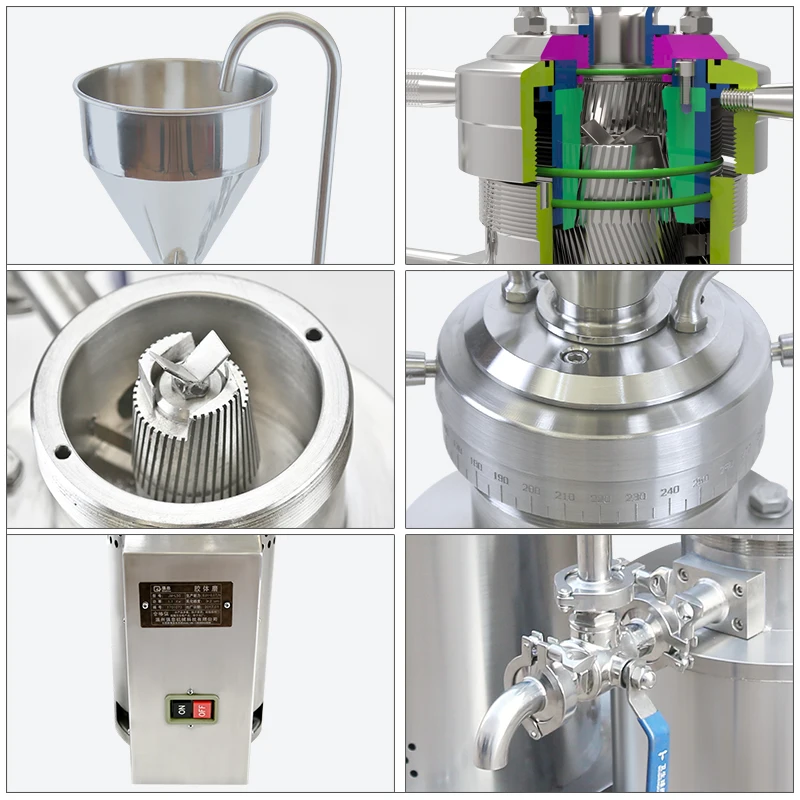

Product details


Note: The standard hopper capacity is 4 - 12 liters, and the customized capacity is acceptable.


Circulation Pipe / Hopper
Stainless steel mill cores


Cooling Pipe Fittings / Adjust Disc
Internal structure


Quick connector / Outlet
Square outlet


Motor
Strengthen the base


Company Profile


Wenzhou Qiangzhong Machinery Technology Co., Ltd. is a professional manufacturer of processing machines, located in Wenzhou City, China, near Longwan International Airport.


We offer complete sets of service from research and development, production, sales, after -sales to maintenance, in accord with GMP, QS, and HACCP. As a pioneer and innovator, Obtain 25 National Patents, Audited by SGS / TUV / CE / ISO9001.


Thanks to advanced technologies and production equipment, strict meeting industry standards, our quality is well-developed continuously. So far, our products have been sold not only all around China but also globally, such as Europe, America, Australia, Southeast Asia, Middle East, etc.


Packaging & Shipping


Strict packing process to ensure the safety and completeness of the goods
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require.
