SV100 pump for solar system 750 watts MPPT 3Phase control solar water pump inverter for farmland irrigation solar pump system
Product Description
Introduction

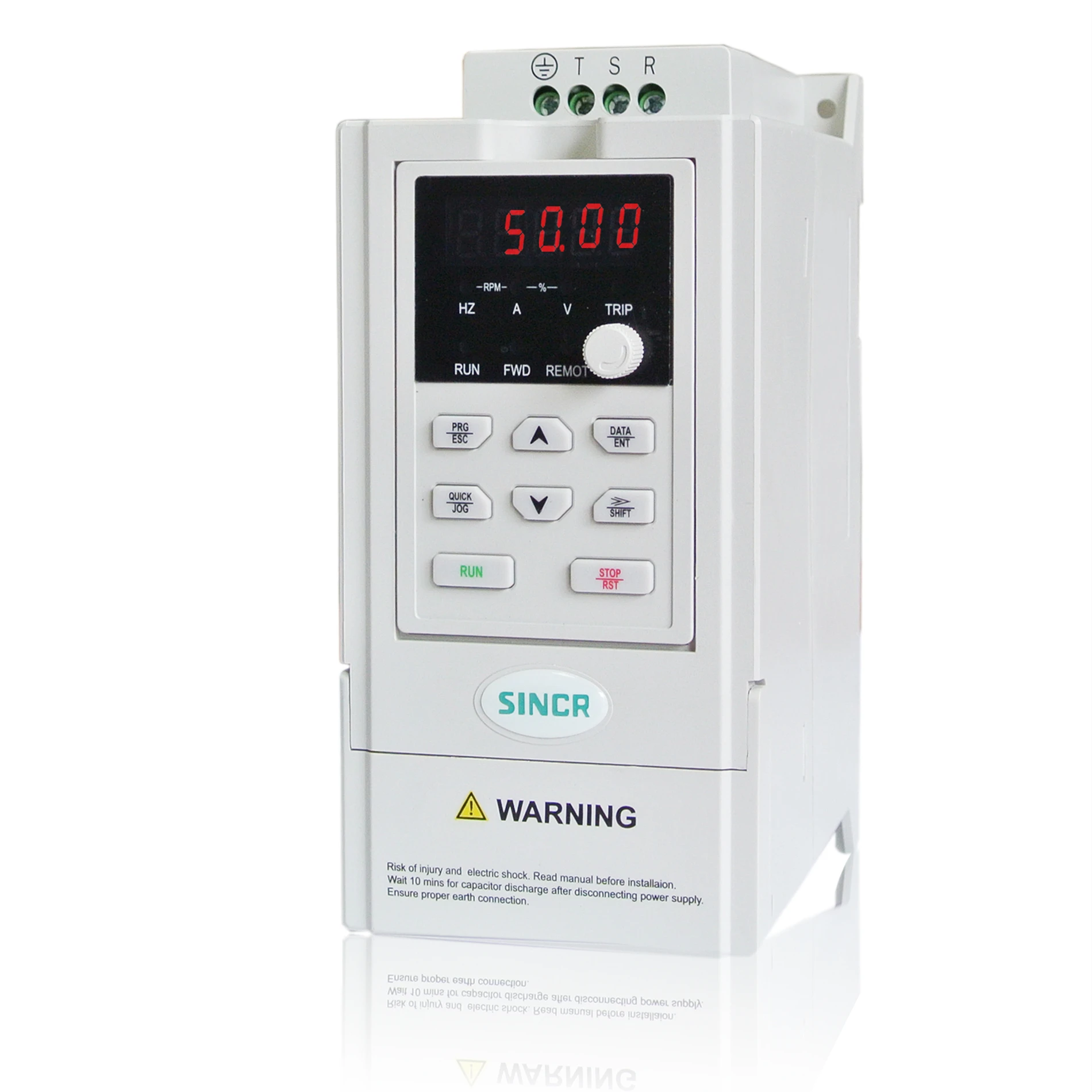

SV100-0R7-2SB Using IP20 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight.
Solar pump inverter transfer solar DC current to be AC to drive the water pump to work. With light weak sleep, light intensity wake-up, protection for well lack of water,protection for tank full of water, underload protection, photovoltaic and grid automatic switching, unattended automatic operation and other control and protection functions. No need for batteries, water storage instead of battery, easy installation, low cost and low maintenance, economical and environmental protection, zero carbon emissions, widely used in solar agricultural irrigation, irrigation station renovation, domestic water supply, desert greening, etc.area.
Features
MPPT power automatic tracking.
Intelligent monitoring and management.
simplify maintenance work. (1) Deep well: By the water level sensor, automatically stop when shortage of water,and automatically restart when with enough water. (2) Reservoir: By the water level sensor, automatically stop when full of water,and automatically restart when with shortage of water. (3) Automatically sleep when the light is weak, such as sunset; automatically restart when the light intensity is strong, such as sunrise.
Full digital control.
Easy to install.
Model No.
Model No.
AC input voltage (V)
MPPT voltage range (Vmp)
Output power (KW)
Input current (A)
Output current (A)
SV100-0R7-2SB
Single phase 220~240V AC
280~360V DC
0.75
8.2
4.5
SV100-1R5-2SB
1.5
14.2
7
SV100-2R2-2SB
2.2
23
10
SV100-0R7-2TB
3 phase 220~240V AC
280~360V DC
0.75
5
4.5
SV100-1R5-2TB
1.5
7.7
7
SV100-2R2-2TB
2.2
11
10
SV100-0R7-4TB
3 phase 380~480V AC
500~700V DC
0.75
3.4
2.5
SV100-1R5-4TB
1.5
5
3.7
SV100-2R2-4TB
2.2
5.8
5
SV100-004-4TB
4
10
9
input DC votlage range(VOC)
Single phase: 220V~240V
Input Max open circuit voltage (VOC)
2S:450V DC
MPPT efficiency
>99%
Over-load capacity
150%:60S;180%:10S;200%:1S
Ouput frequency
0~600HZ(Default:50/60HZ)
On grid/Generator input
Yes
Automatic switch between on grid/generator
Yes
Working temperature
-10℃~+40℃; when 40~50℃ or altitude above 1000m, derating as required
Cooling Method
Fan Cooling
Communication port
Standard isolater RS-485, Modbus protocol
IP grade
Standard:IP20(can customized IP54 or IP65)
Built-in protection
shortage of water protection for deep well,full of water protection for tank, light weak sleep, light intensity wake-up, lightning protection, overvoltage protection, undervoltage protection, overcurrent protection, dry pumping protection, overload protection, phase loss protection, short circuit protection, overheat protection
Wiring diagram

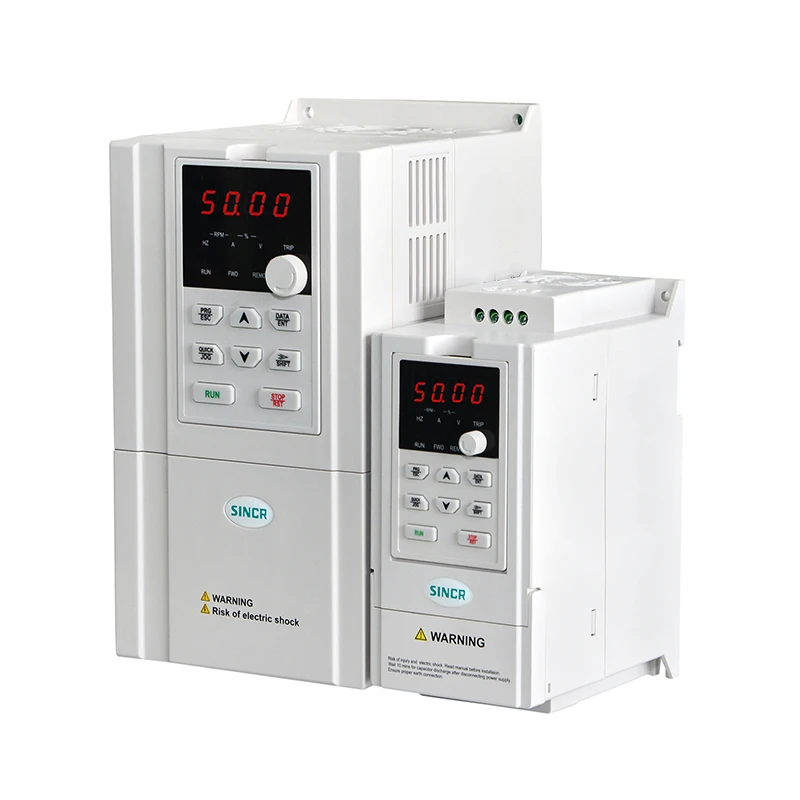

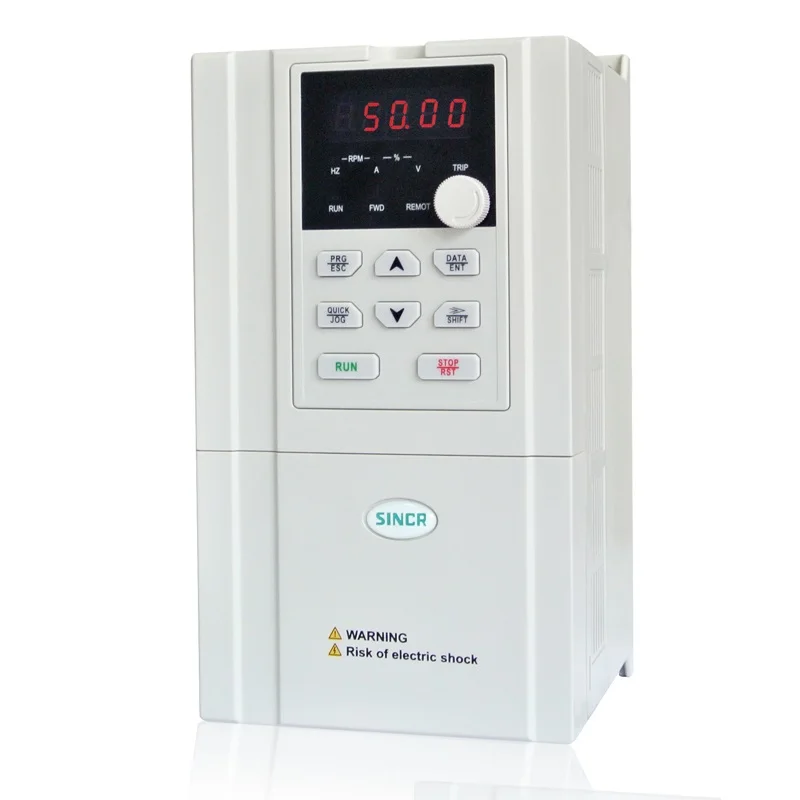

Photos

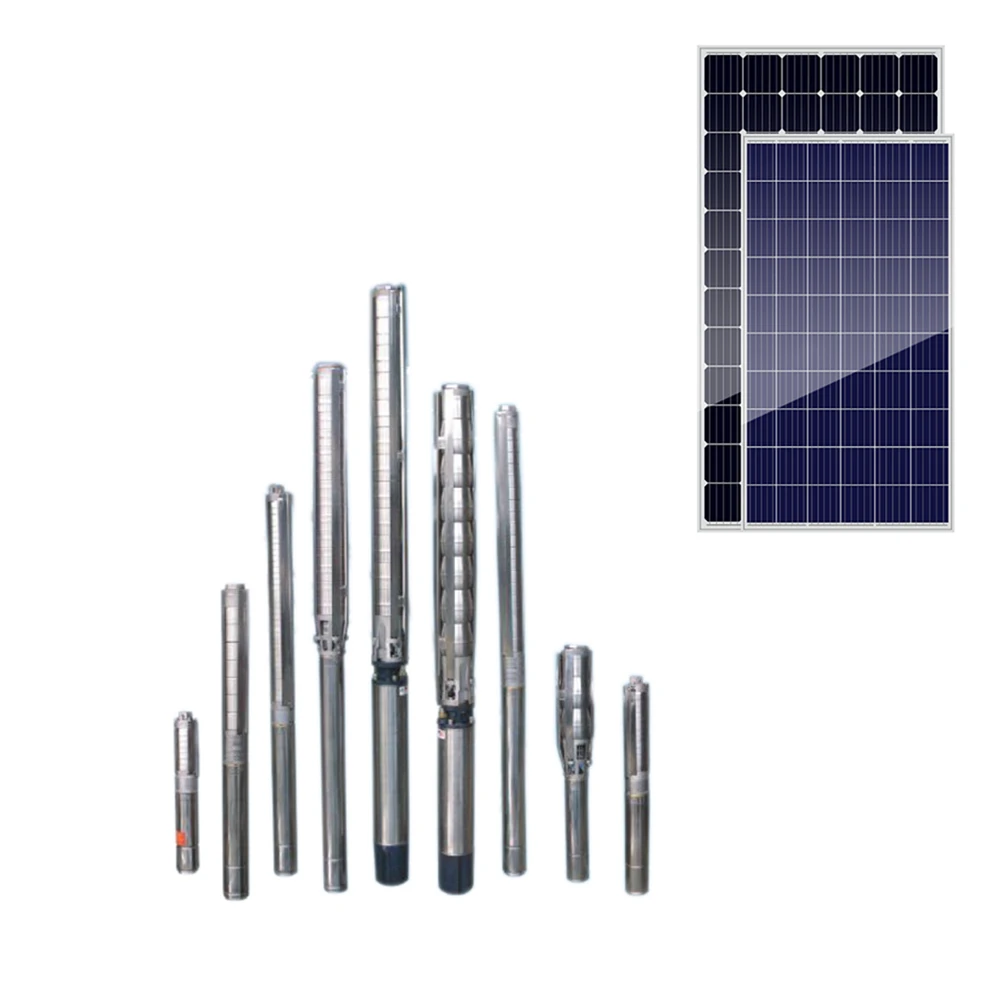

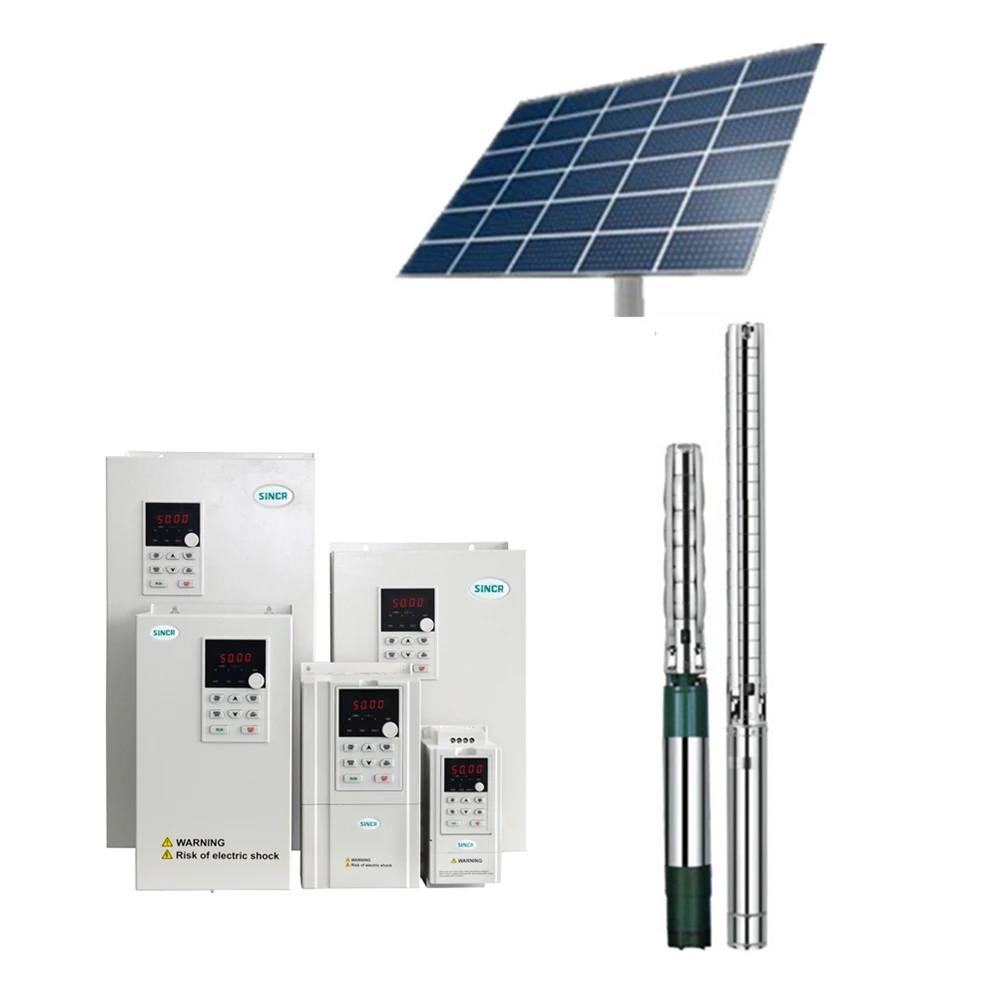

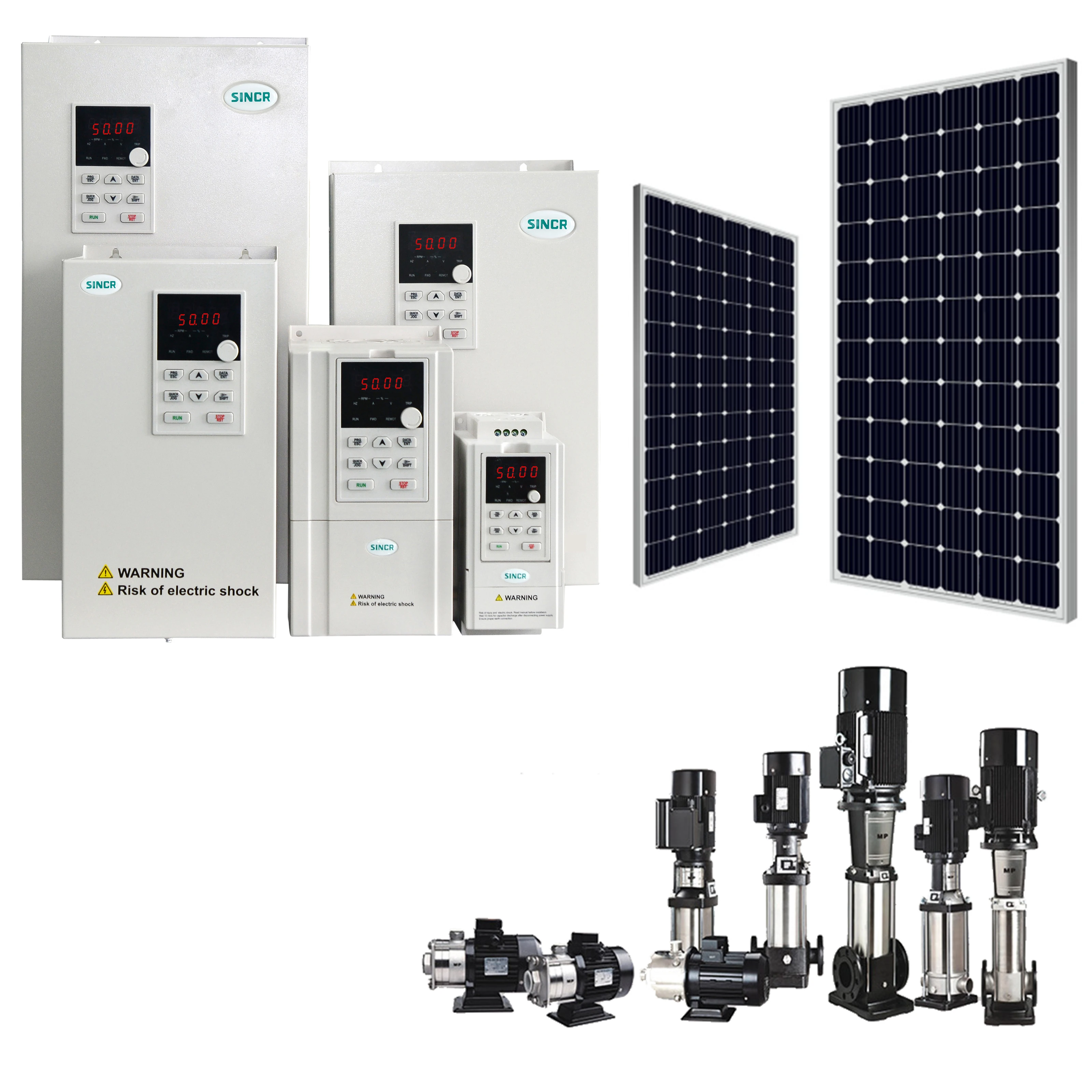

System Compositio
Packaging & Shipping
Packaging
Packaging
Carton
Suitable for 0.75KW~45KW Solar Pump Inverter
Woodenbox
Suitable for ≥45KW Solar Pump Inverter
Shipping
Shipping
By Sea
Delivery from Shenzhen port or Guangzhou port
By Express
TNT/DHL/UPS/FedEx/EMS
