JTCQ-D Dakiou автоматическая печать бумажных стаканчиков и штамповочная машина в
- Категория: Paper Processing Machinery >>>
- Поставщик: Ruian,Daqiao,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.48 $* | 0.85 $* |
| Aug-15-2025 | 0.83 $* | 0.99 $* |
| Jul-15-2025 | 0.35 $* | 0.27 $* |
| Jun-15-2025 | 0.83 $* | 0.30 $* |
| May-15-2025 | 0.47 $* | 0.58 $* |
| Apr-15-2025 | 0.21 $* | 0.68 $* |
| Mar-15-2025 | 0.64 $* | 0.93 $* |
| Feb-15-2025 | 0.66 $* | 0.52 $* |
| Jan-15-2025 | 0.26 $* | 0.58 $* |
Характеристики
Products Description

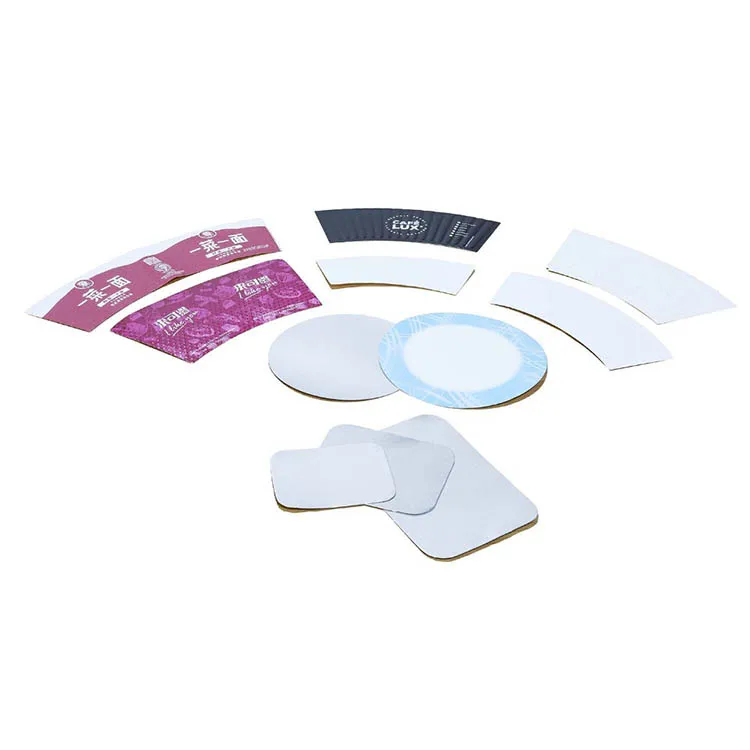

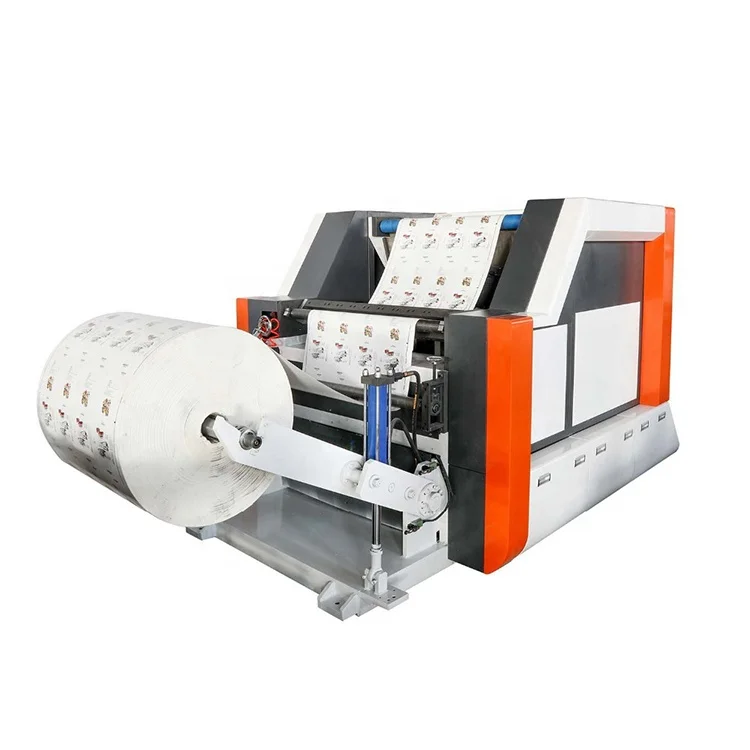

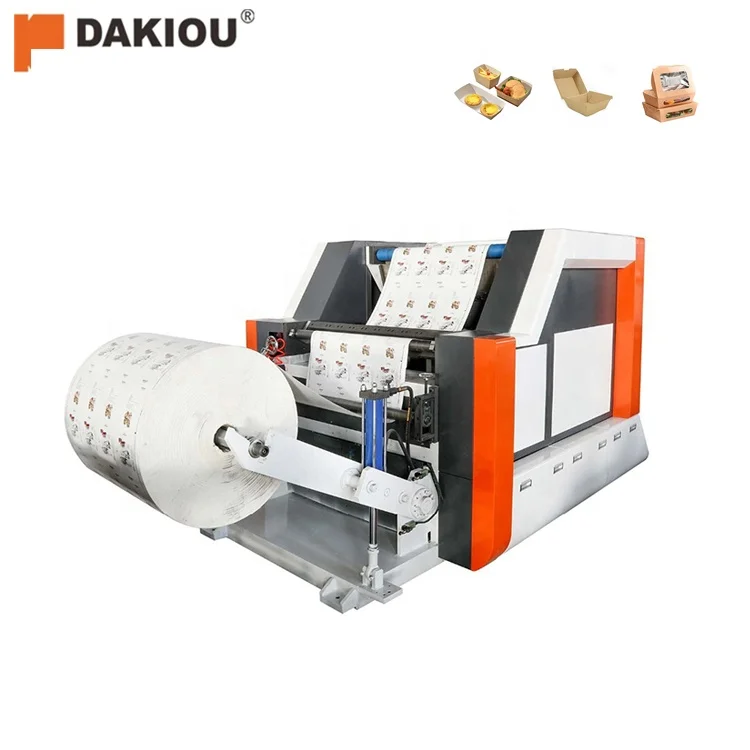

JTCQ-D Roll automatic punching machine is a good choice for punching paper cup fan,paper lid with different sizes by changing molds.High speed and good performance with stripping.It is a good partner for the flexo printing machine.
Technical Specification: | ||
Type | JTCQ-D high speed | |
Cut Precision | ± 0.10mm | |
Production capacity | Metal die made in Germany/Switzerland: 300-380 times/min Metal die made in China: 200-240 times/min | |
Metal die life | Metal die made in Germany/Switzerland: 600.000.000 times Metal die made in China: 200.000.000.times | |
Max die cutting size | 870*350mm 1150*350mm(optional) | |
Suitable Material | 120-450g/m2 PE coated paper, white cardboard paper | |
Total Power | 9KW | |
Total Weight | 3580KGS | |
Overall Dimension | 3200 x 1800 x 1600 mm | |
Working Air Source | Air pressure 0.4-0.5Mpa | |
The advantages of new type:
JTCQ-D Roll automatic

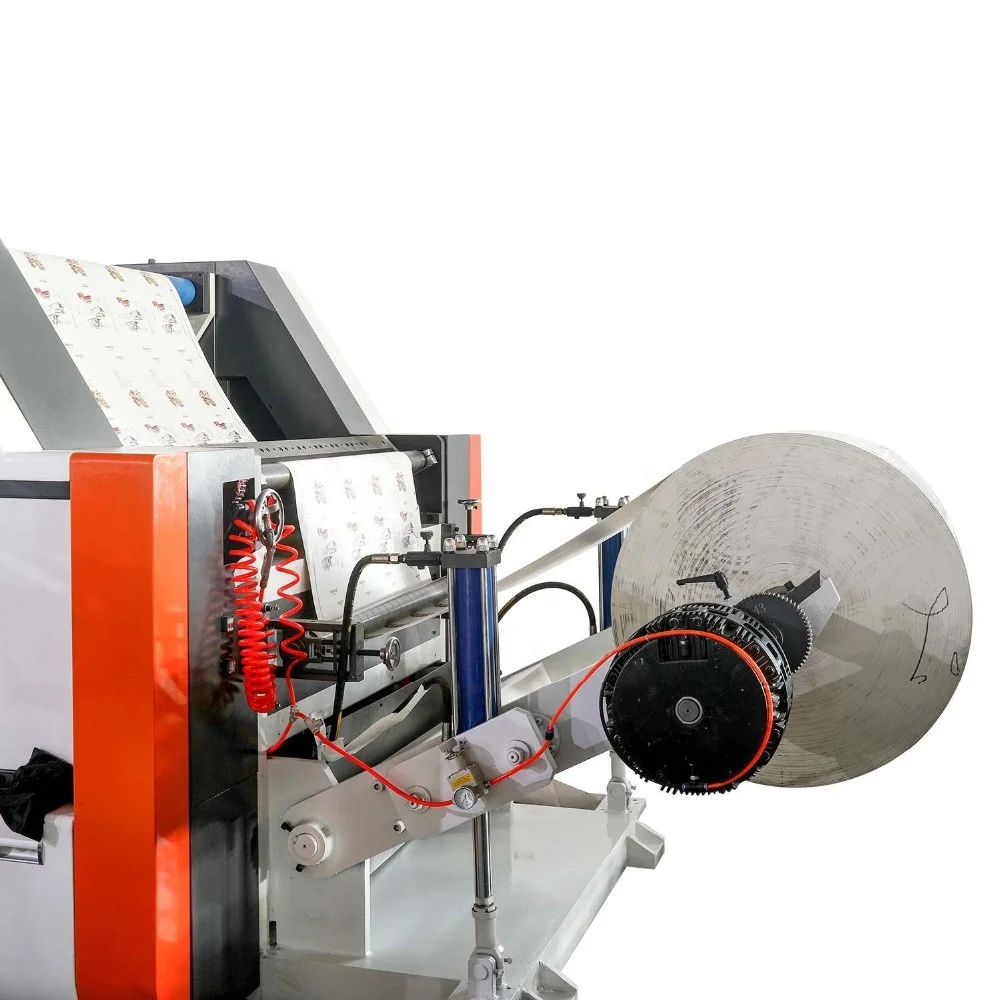

* The center gravity of rubber roller move forward to stabilize the machine structure, and shorten the distance of feeding paper.That minimizes jitter; makes sure paper feeding stable and fast.
* The front rubber roller adjusts the balance of paper in horizontal direction.
* Instead of two links, new type die punching machine adopts four links. The metal die
* Automatic oil injection system. It can be set by two hours one time, to reduce the machine abrasion, prolong machine life.
* The center gravity of rubber roller move forward to stabilize the machine structure, and shorten the distance of feeding paper.That minimizes jitter; makes sure paper feeding stable and fast.
* The front rubber roller adjusts the balance of paper in horizontal direction.
* Instead of two links, new type die punching machine adopts four links. The metal die
connected by four joints, the support force enhanced. It prolongs machine life, improves the stability; and significantly reduces the noise when machine is running.
* Automatic oil injection system. It can be set by two hours one time, to reduce the machine abrasion, prolong machine life.

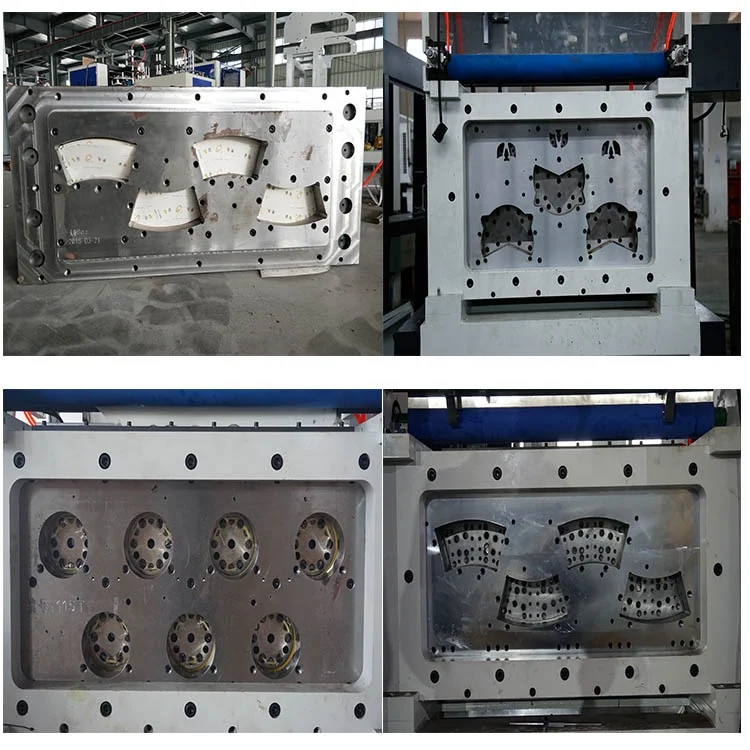

Metal die:
