Китайский бренд Jindun No1 высокопроизводительный двухцелевой пожарный грузовик для дорожного рельса на
- Категория: Fire Trucks >>>
- Поставщик: Shanghai,Jindun,Special,Vehicle,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 178500.21 $* | 187425.9 $* |
| Aug-17-2025 | 177000.38 $* | 185850.87 $* |
| Jul-17-2025 | 148500.12 $* | 155925.95 $* |
| Jun-17-2025 | 174000.29 $* | 182700.40 $* |
| May-17-2025 | 151500.12 $* | 159075.28 $* |
| Apr-17-2025 | 171000.76 $* | 179550.13 $* |
| Mar-17-2025 | 169500.14 $* | 177975.71 $* |
| Feb-17-2025 | 168000.67 $* | 176400.51 $* |
| Jan-17-2025 | 166500.4 $* | 174825.89 $* |
Характеристики

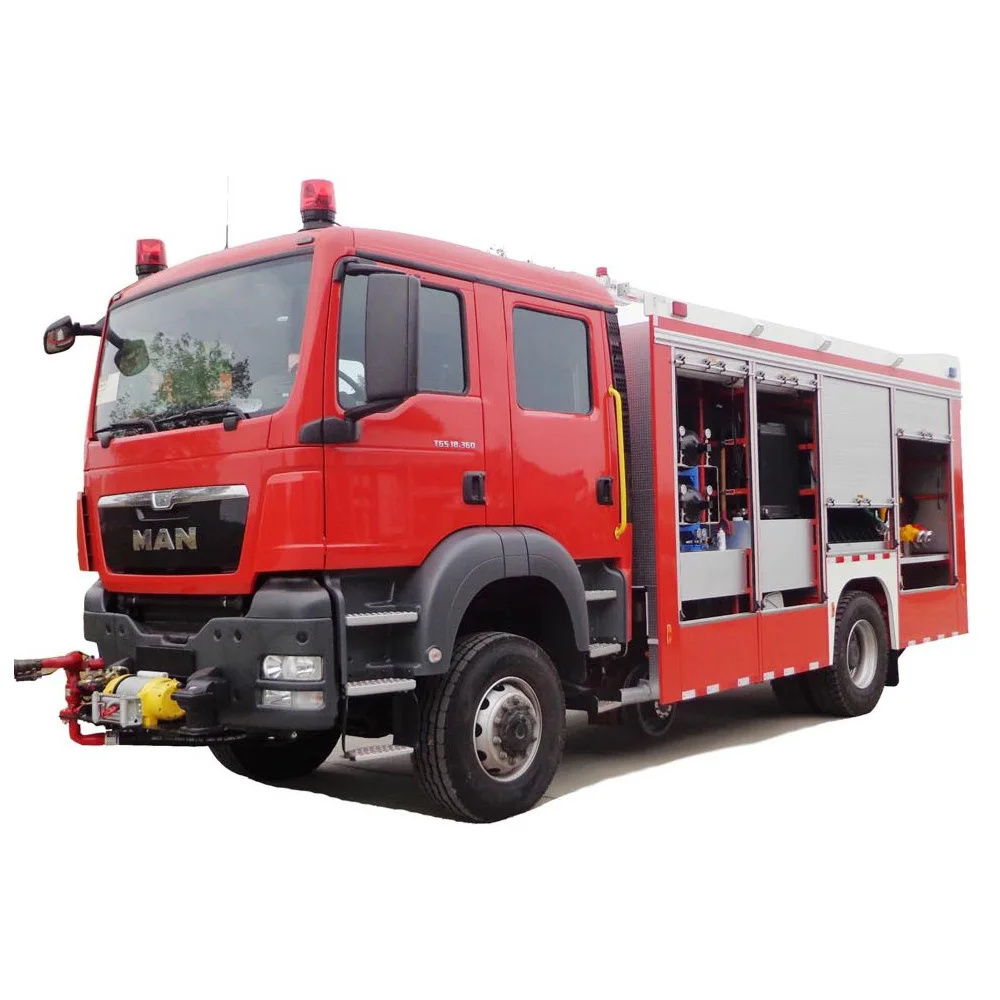

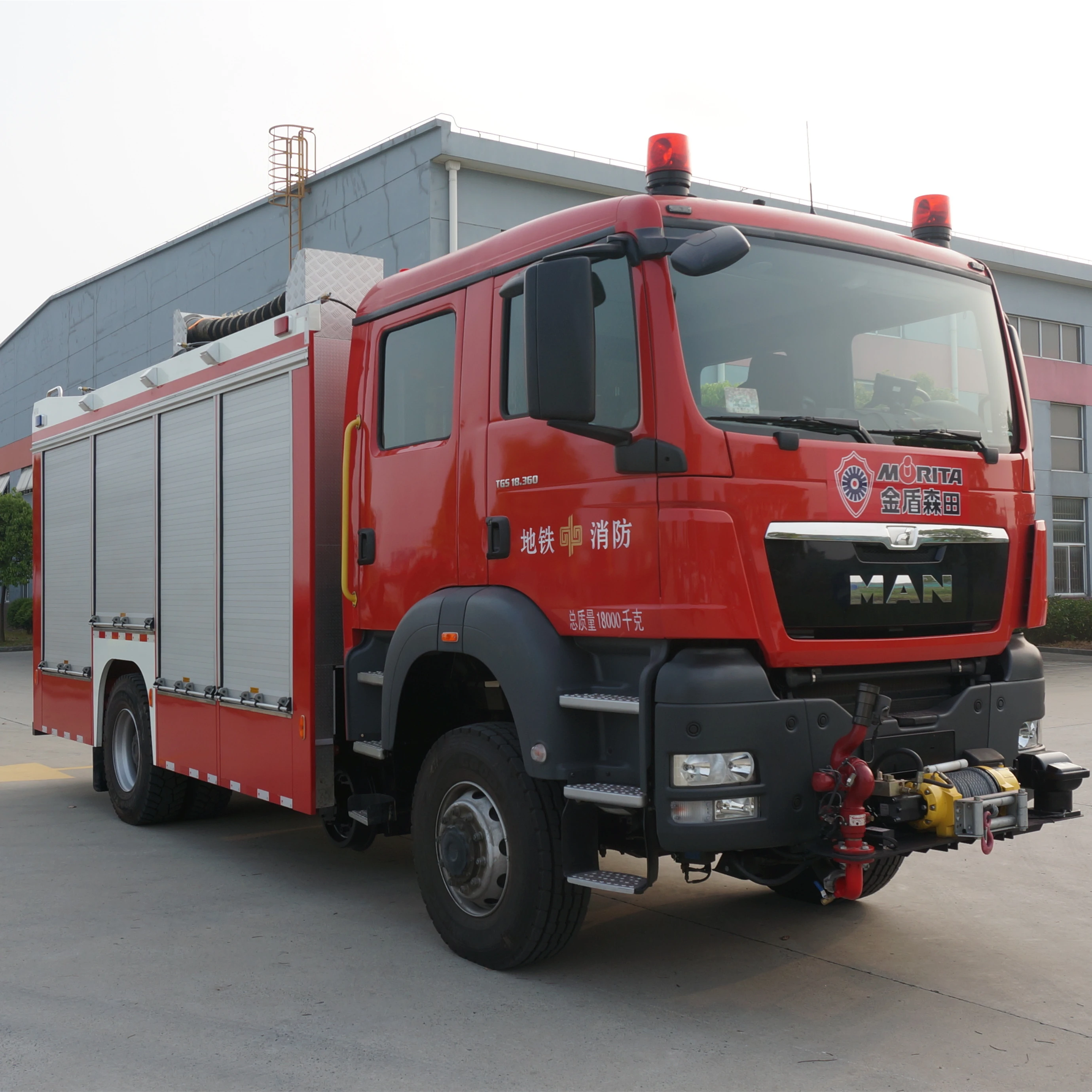

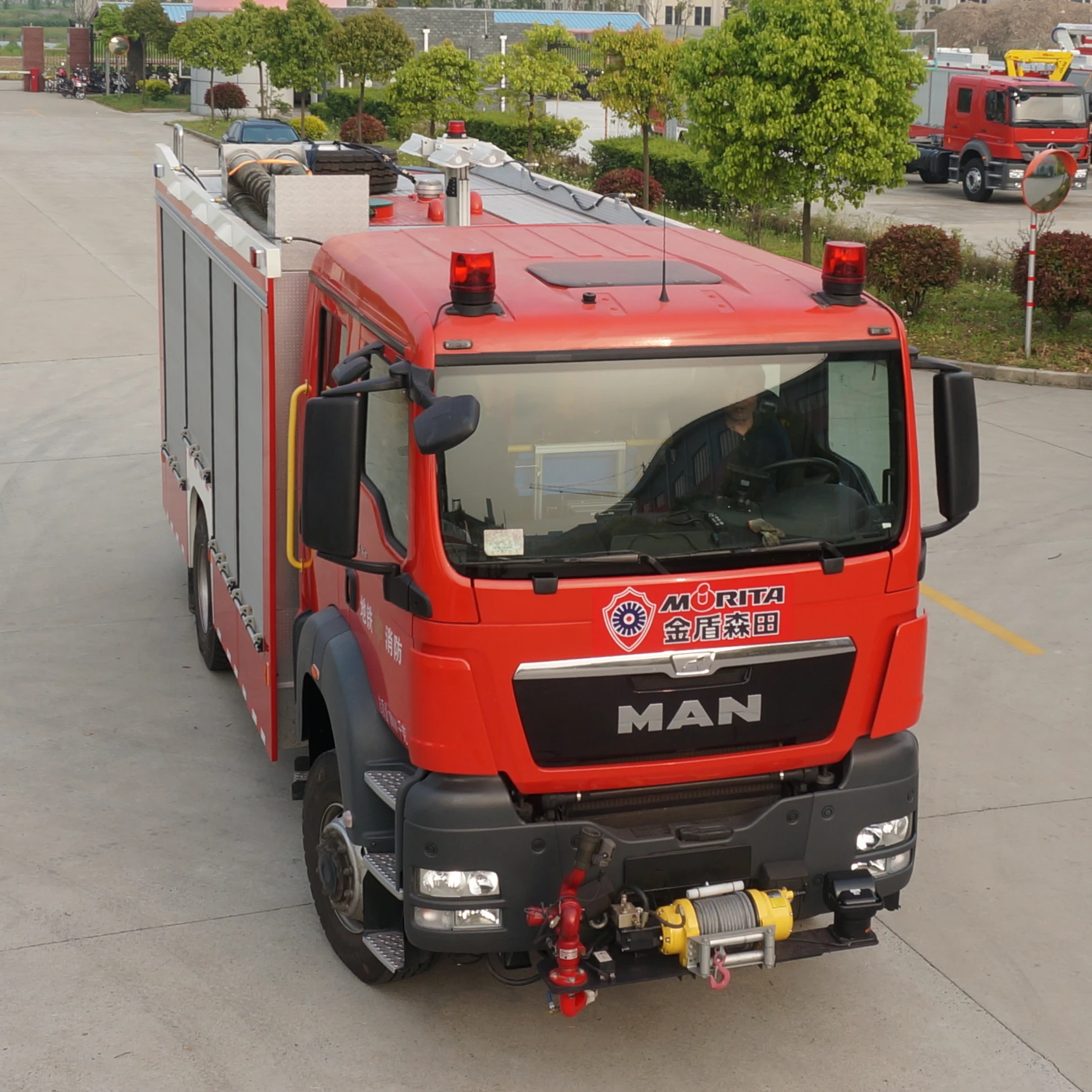

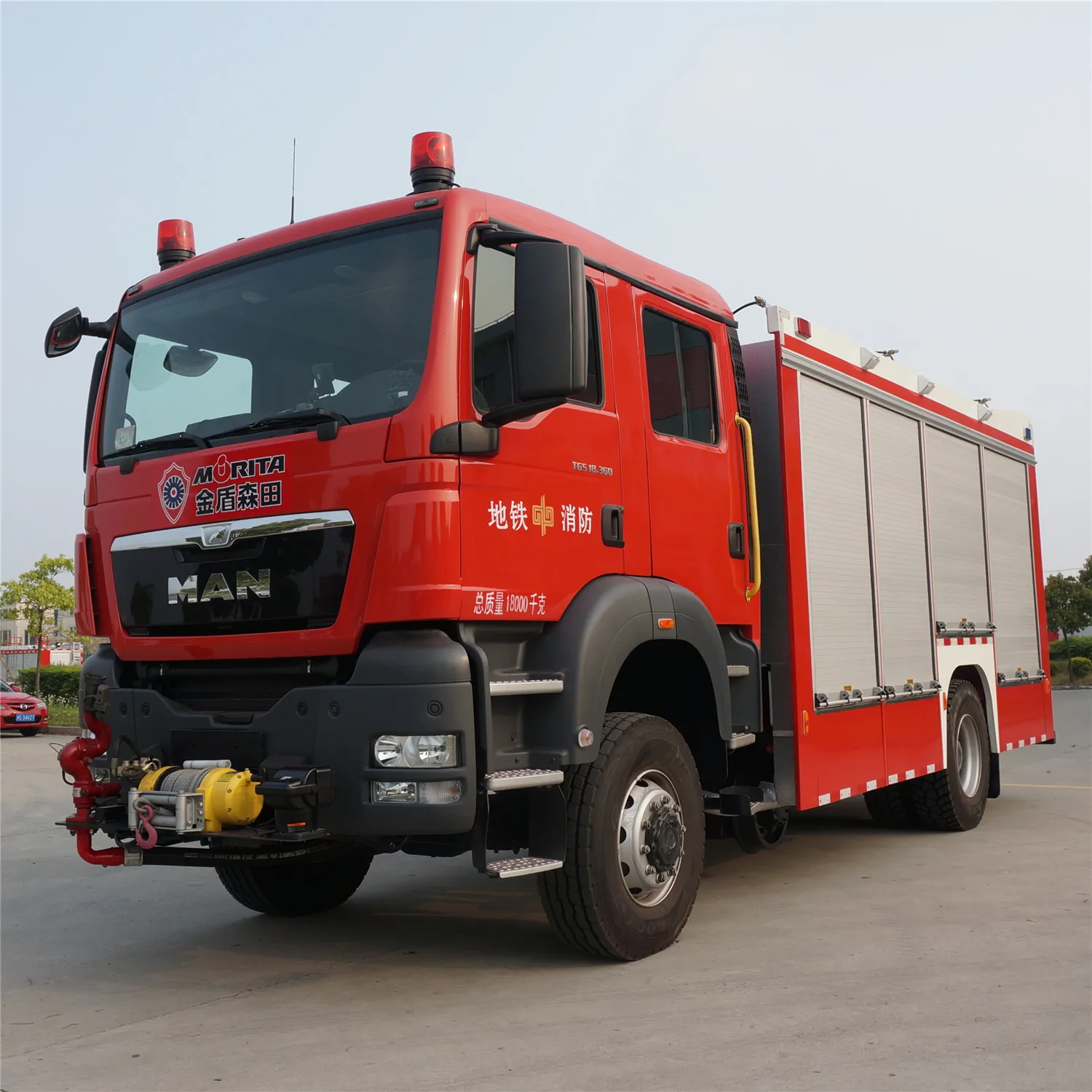

Chinese No1 brand Jindun high performance road-rail dual purpose fire fighting truck for sale
Product Description
1. The vehicle
Max. speed | Road: 90km/h(electronic speed limit) Rail: 30km/h |
Min. turning diameter | 18m Rail: 100m |
Approach angle | 19° |
Departure angle | 10° |
Seat | Cab: 2 Compartment:8 |
1.1 Dimension data
Overall | mm | 9850×2500×3200 |
Front overhang | mm | 1500 |
Wheel base | mm | 5100 |
Rear overhang | mm | 2750 |
Front Protraction | mm | 500 |
Tread | mm | Front:1990 Rear:1804 |

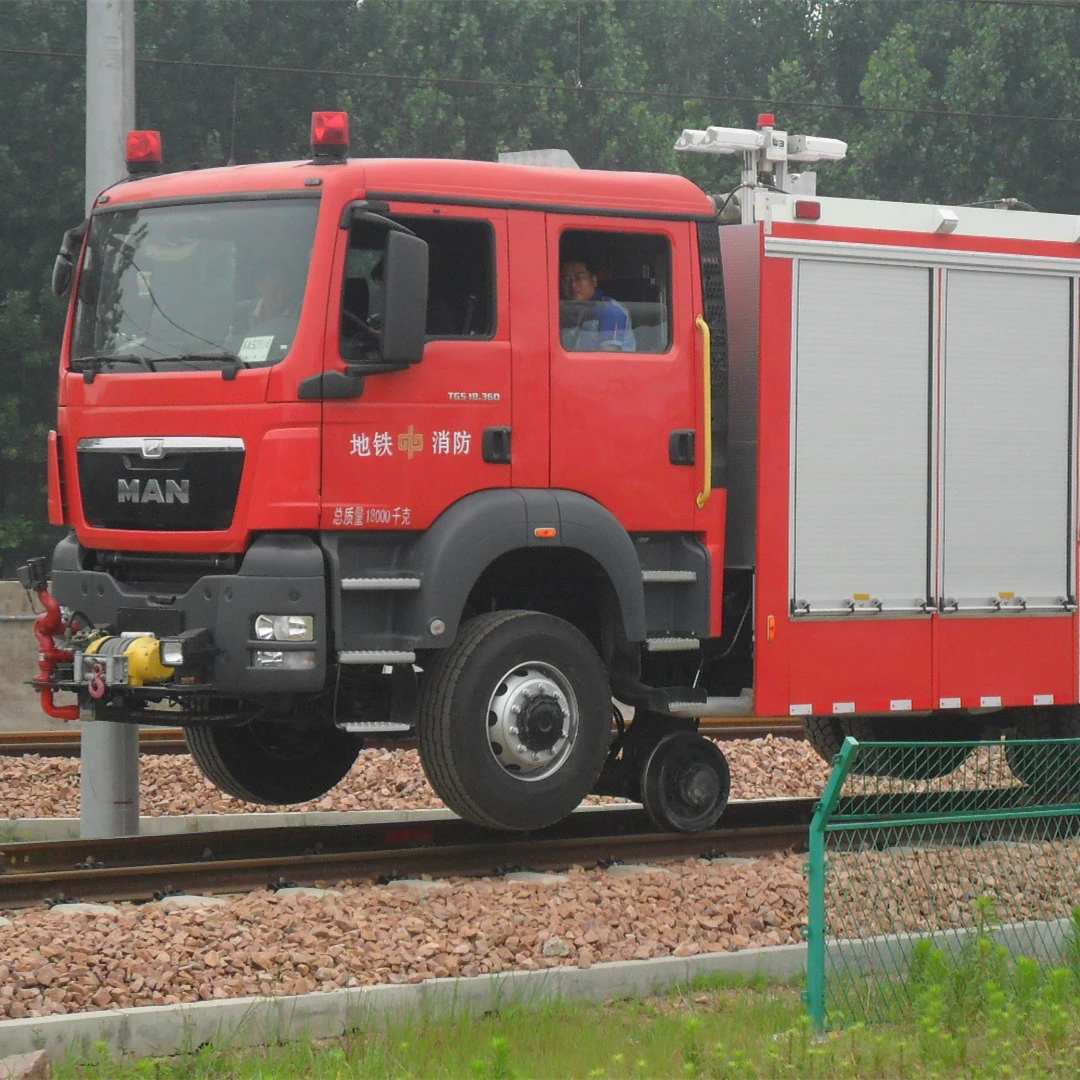

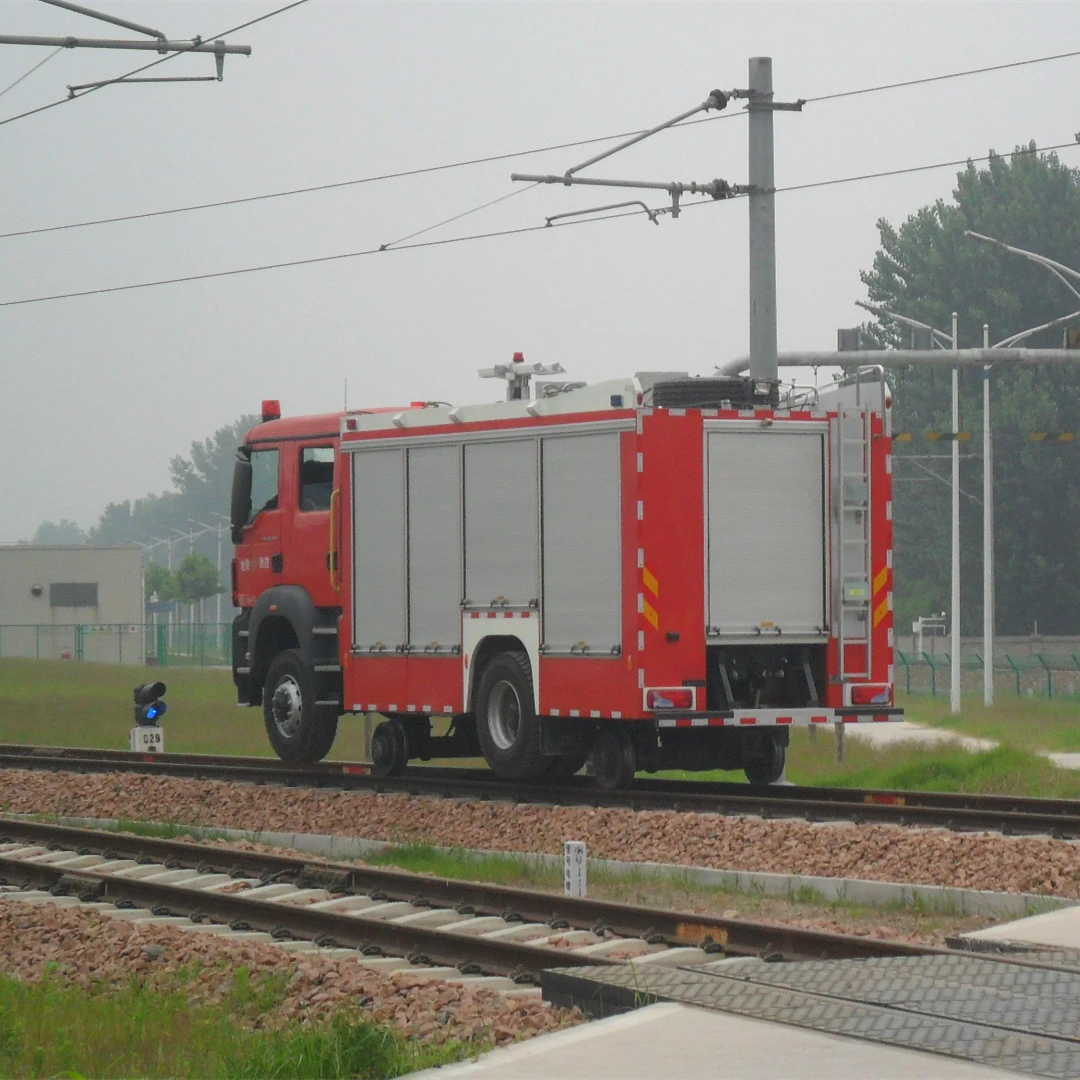

1.2 Rail system performance
Max. speed | Km/h | 30 |
Lifting time on rail | S | ≤60 |
Fold time of rail wheel | S | ≤60 |
0-30km/h Acceleration time | s | ≤30 |
0-30km/h Acceleration distance | m | ≤160 |
30-0km/h Braking time | s | ≤8 |
30-0km/h Braking length | m | ≤80 |
2. Chassis
Model | TGS18.360 |
Manufacturer | MAN |
Cab | TGSM standard cab |
Seat | 6 |
Driver’s seat | Comfortable air springs seat |
Copilot’s seat | Single adjustable seat |
Air-condition | Automatic temperature control system(R134A refrigerant, Freon-free) |
Car window | Electric window |
Rearview mirror | Electric heating |
2.1 Engine
Model | MAN D2066LF46 |
Type | Inline six-cylinder, water-cooled, electric control common rail injection diesel engine |
Displacement | 10.518L |
Max. power | 265kW(360hp)@1900rpm |
Max. torque | 1800Nm@1000~1400rpm |
Emission standard | China IV |
Noise | 82dB de-noise processing |
Gearbox | ZF 16S-252 OD |
Type | Manual, 16 forward gear, 2 reverse gear |
Oil pump PTO | NF221/10 |
1.35 | |
Direction of turning | Contrarotate (same as engine) |
Max. output torque | 870Nm |
Fire pump PTO | NMV221 |
Speed ratio | 1.5 |
Direction of turning | Contrarotate (same as engine) |
Max. output torque | 1300Nm |
Steering system | Hydraulic power assisted |
Braking system |
|
Front axle | Disc brake |
Rear axle | Disc brake |
Other | EBS, ABS, Heating air drier |
Fuel tank |
|
Capacity | 400L |
Other | Strainer, lock for fuel tank cap |
Packaging & Shipping
Nude packed, with waxing by roro ship or bulk ship.
Our Services
1. We always supply a professional service team on fire fighting trucks.
2. Any questions for fire fighting trucks will be replied within 24 hours.
3. Good quality, competitive & reasonable price, the fast lead time.
4. Our chassis are direct from other factories. There is no middle man, no high markup. Meanwhile, we research and develop with MORITA CORPORATION. So we can provide good quality fire vehicles for you with competitive prices.
5. We guarantee that all our trucks has gone through strict quality control and testing report to ensure that it is in good condition before shipment. We strive for 100% customer satisfaction on every sale we complete.
6. We provide 12 months warranty for fire vehicle.
7. We supply spare parts in time for customers.
8. It is our mission to provide good quality to save lives.
9. e.g. the military fire truck in China's Aircraft Carrier made by us.
