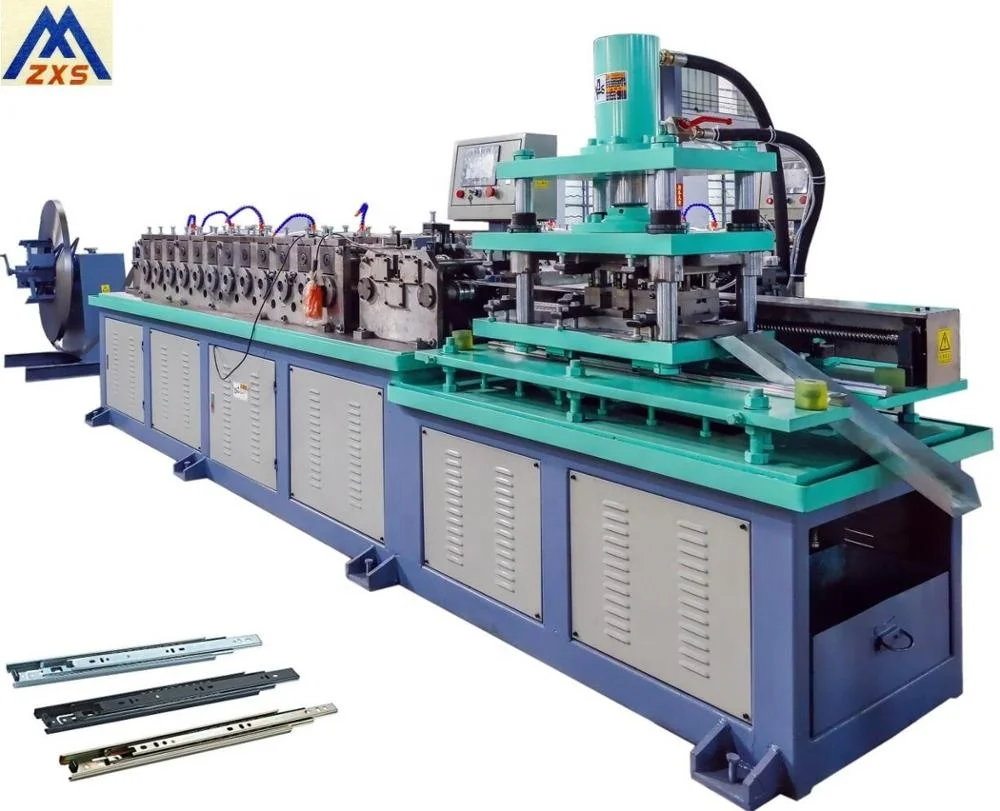

Автоматическая формовочная машина для
- Категория: Other Machinery & Industrial Equipment >>>
- Поставщик: Foshan,Zhongxingsheng,Automatic,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.54 $* | 0.12 $* |
| Aug-19-2025 | 0.33 $* | 0.18 $* |
| Jul-19-2025 | 0.27 $* | 0.6 $* |
| Jun-19-2025 | 0.51 $* | 0.31 $* |
| May-19-2025 | 0.24 $* | 0.3 $* |
| Apr-19-2025 | 0.42 $* | 0.61 $* |
| Mar-19-2025 | 0.30 $* | 0.97 $* |
| Feb-19-2025 | 0.15 $* | 0.10 $* |
| Jan-19-2025 | 0.18 $* | 0.49 $* |
Характеристики
Product Description
1. Advanced design, simple operation, forming stable, high precision and high efficiency.
2. Parameters:10’’,12’’,14’’,16’’,18’’,20’’,22’’,24’’(8 parameter in all)
2. Parameters:10’’,12’’,14’’,16’’,18’’,20’’,22’’,24’’(8 parameter in all)
3. 10-24inch slide flat hole can be formed once and matched with the fixed-length closely.
4. Adopt humanized touch-screen control panel, using PLC and inverter speed regulation control support, make the equipment with a stable automatic performance and easy adjustment.
4. Adopt humanized touch-screen control panel, using PLC and inverter speed regulation control support, make the equipment with a stable automatic performance and easy adjustment.
5. This 1 SET of Forming Mahince inculdes 3 machines: Inner rail forming machine, middle rail forming machine and outter rail forming machine.
6. Each forming machine includes: feeding rack, main engine and hydraulic on-line automatic punching part.
Machine Components
Decoiler | 1 Set | ||||||
Guide Rack | 1 Set | ||||||
Roll Forming Machine | 1 Set | ||||||
Correction | 1 Set | ||||||
Hydraulic Cutting Device | 1 Set | ||||||
Collection Table | 1 Set | ||||||
Electrical Control System | 1 Set | ||||||
Technical Parameters
Machine Frame | 100*100 Rectangular tube welding; 35mm steel plate on top; Integrally build. |
Roller station | 14 stations |
Material of roller | CR12mov, CNC machining after heat treatment |
Line speed | 0--15 meter/min |
Speed adjustment | By THINKDRIVE Converter |
Shearing mode | Servo shearing online |
Thickness of material | 1.0--1.4mm |
Computer adopts | PLC, Panasonic |
Motor power of hydraulic station | 7.5kw (60 Ton Single cylinder hydraulic station) |
Producing Process Sketch

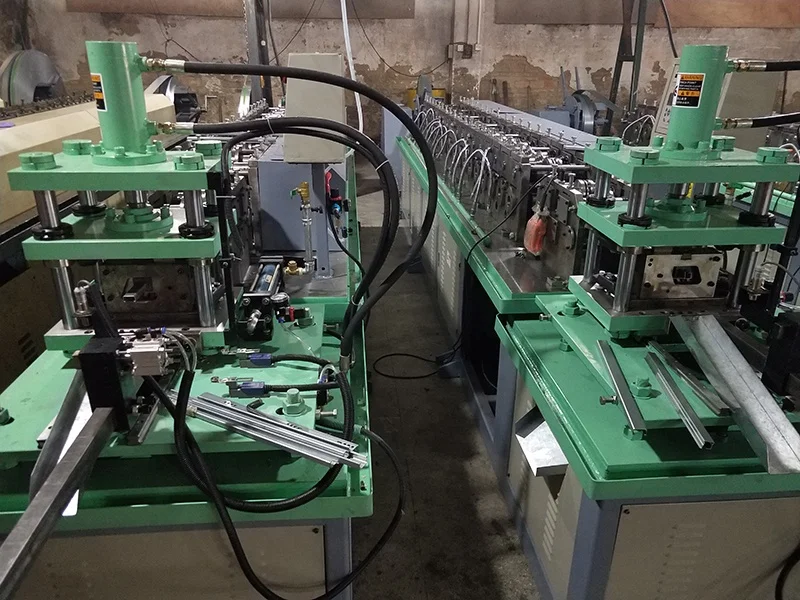

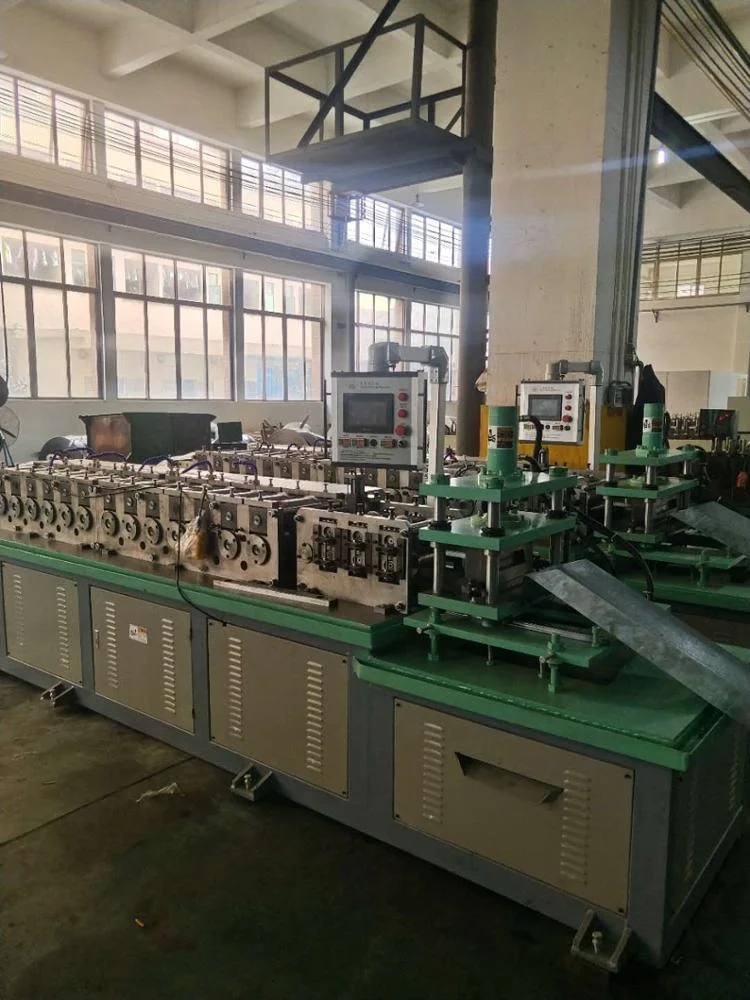

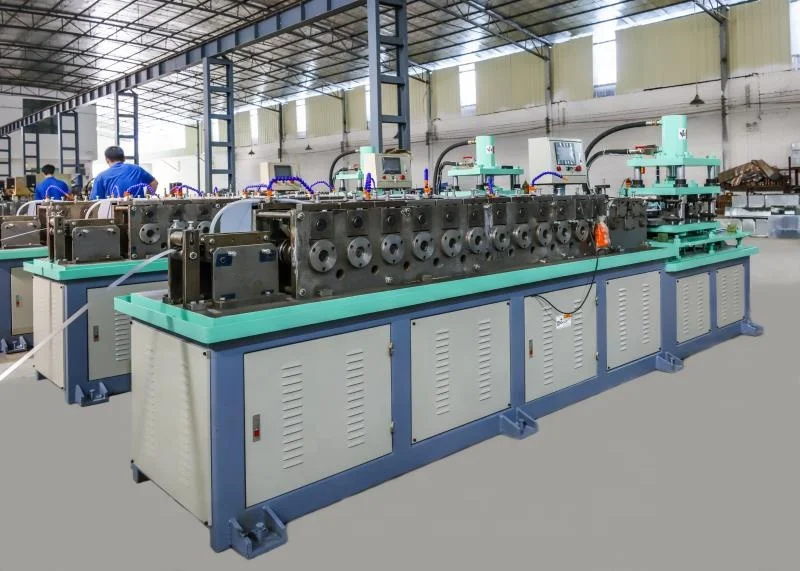

Workshop
Our Customers
FAQ
1. How To Test Your Machine?
Suggestion: We would like you to pay attention to the angle, size, knurled side, the symmetry of the R-angle and whether the panel tilts to one side or cocks up and down to ensure high quality machine.
2. How do you recognize the Machine manufacturing standard?
Before delivery, every machine must be strictly inspected and tested to be sure its excellent working and loading condition, every part, including feeding part, transmission part and main structure of the machine will be fastened and inspected by our technical department to guarantee the machine works well at your place.
3. Do you have after-sales support services?
Yes, we have. We would like to give advice to you first if there are some unexpected problems, we also have skilled technicians available across the world. We need your machines running and also keep your business running well.
4. How long is your product warranty?
Products are warranted for one full year from the date of purchase with products are not being damaged by man-made factors. If it includes no oiling for bearings, overloaded motor, overworn belt which are caused all losses should be paid by user.
5. What can you do if the machine is broken?
If the machine is broken or damaged during warranty period, we have our technicians provide online technical assistance first. If it is still unfixed, we will arrange for our technicians to solve the problem at your position.
Suggestion: We would like you to pay attention to the angle, size, knurled side, the symmetry of the R-angle and whether the panel tilts to one side or cocks up and down to ensure high quality machine.
2. How do you recognize the Machine manufacturing standard?
Before delivery, every machine must be strictly inspected and tested to be sure its excellent working and loading condition, every part, including feeding part, transmission part and main structure of the machine will be fastened and inspected by our technical department to guarantee the machine works well at your place.
3. Do you have after-sales support services?
Yes, we have. We would like to give advice to you first if there are some unexpected problems, we also have skilled technicians available across the world. We need your machines running and also keep your business running well.
4. How long is your product warranty?
Products are warranted for one full year from the date of purchase with products are not being damaged by man-made factors. If it includes no oiling for bearings, overloaded motor, overworn belt which are caused all losses should be paid by user.
5. What can you do if the machine is broken?
If the machine is broken or damaged during warranty period, we have our technicians provide online technical assistance first. If it is still unfixed, we will arrange for our technicians to solve the problem at your position.
