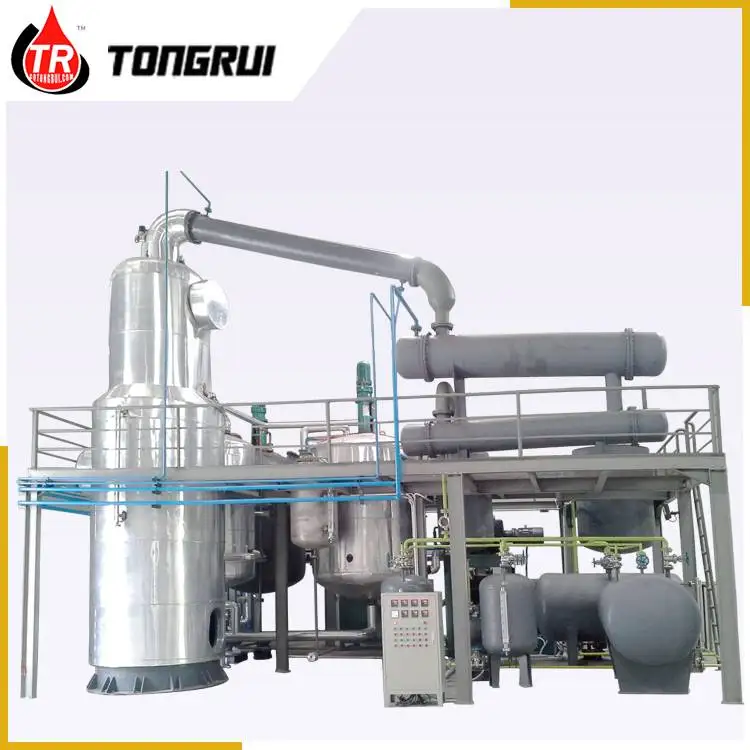

Newest technology with high oil output engine oil distillation plant

Our main business include all kinds of oil purifier,oil filtration,oil recycling plant,diesel and black engine oil distillation.

Widely used in electric power, petrochemical, car oil,metallurgy, chemical, machinery, mining and other industries

Warranty 2 year, For details, please contact with me by email or whatsapp:
Anne:(+86)15215080377(whatsapp)

skype:wu.jianglan









Advantage:

Distillation is the physical separation of components of lubricating oil by boiling range. Depending on the type of distillation, the boiling ranges can produce gases and gasoline at the lower boiling points with heavy lubricating oils being distilled at higher boiling points. Distillation is the core process for a facility capable of producing re-refined base-oils to virgin base-oil quality.



It’s easy to produce waste residue and bad smelling by traditional vitriol distilling, which will bring potential secondary pollution, moreover, it’s easy to change the color to black and produce the odor due to the recycled oil react with the oxygen. But after we use the alkaline complex catalyst refines the oil, the recycled oil haven’t change the color and haven’t create the odor. What’s more important, you can use the residue to be as the fuel to heating the oil, without any pollution. And the machine is easy to operate; only 1-2 workers is enough to control the machine.



Features:

1. Easy to operate, low operation cost

2. Environmentally friendly, without secondary pollution.

3. The machine can recycle gasoline oil, diesel oil, engine oil, rubber oil and other lubricant oil to clean oil.

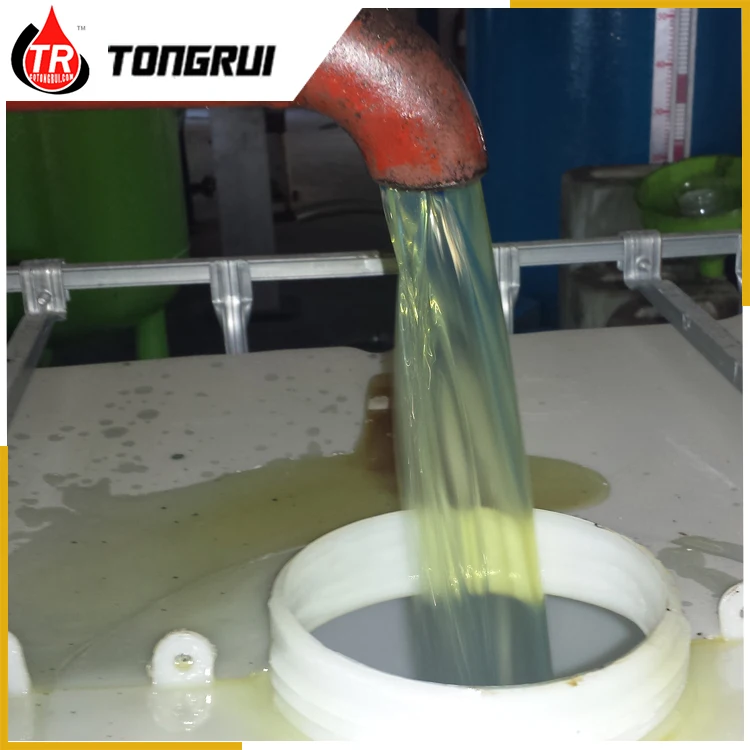

4. High quality refined oil, no any discoloration caused by oxidation, no any bad smelling.

5. Low cost contain:

1) only need the catalyst chemical, the cost is less thanUS$30 to refine one ton waste oil.

2) Heat consumption: 10⁵kcal per ton waste oil

3) Power consumption: 40Kwh to recycle 1 ton waste oil

6. High degree of automation.



Main Components:

1. Catalyst system: Catalyst Reactor, blender;

2. Chemistry treatment system: Chemistry reactor, blender, oil pump

3. Heating distilling system: distilling tower, distilling kettle, heater, circle pump;

4. Cooling system: refrigerating machine, water pump, water tank, cooler I, cooler II, Condenser;

5. Vacuum system: Vacuum water receiver, vacuum pump, vacuum cooler

6. Degasification system: vacuum exhauster, exhaust fan, degasification plant, water pump, radiator, deodorizer.

7. Oil storage system: distilling storage tank

8. Control system: all kinds of gauge( vacuum gauge, pressure gauge etc.) and electricity controller tank

Recovery Rate:

Component	Percentage(%)
water	1.5%
Gasoline/diesel oil	7%
Light Lubrication oil	42%
Heavy Lubrication oil	43%
Residue	6.5%
Total	100%



Treated Oil Analysis (take the waste diesel engine oil for example)

Item	Heavy Lube oil	Light Lube Oil
Appearance	lucidity	lucidity
Color                        ≤	1.5	1
Viscosity (40°C)mm2/s	49.57	26.86
Viscosity Index                ≥	96	95
Anti-oxidation 150°C,min      ≥	180	180
Deemulsification,54°C	5min	5min
Flash Point(Open)°C            ≥	228	224
Pour Point  °C                 ≤	-12	-16
neutralization value (mgKOH/g)  ≤	0.02	0.02













More Products and Configuration please contact Anne Wu:
