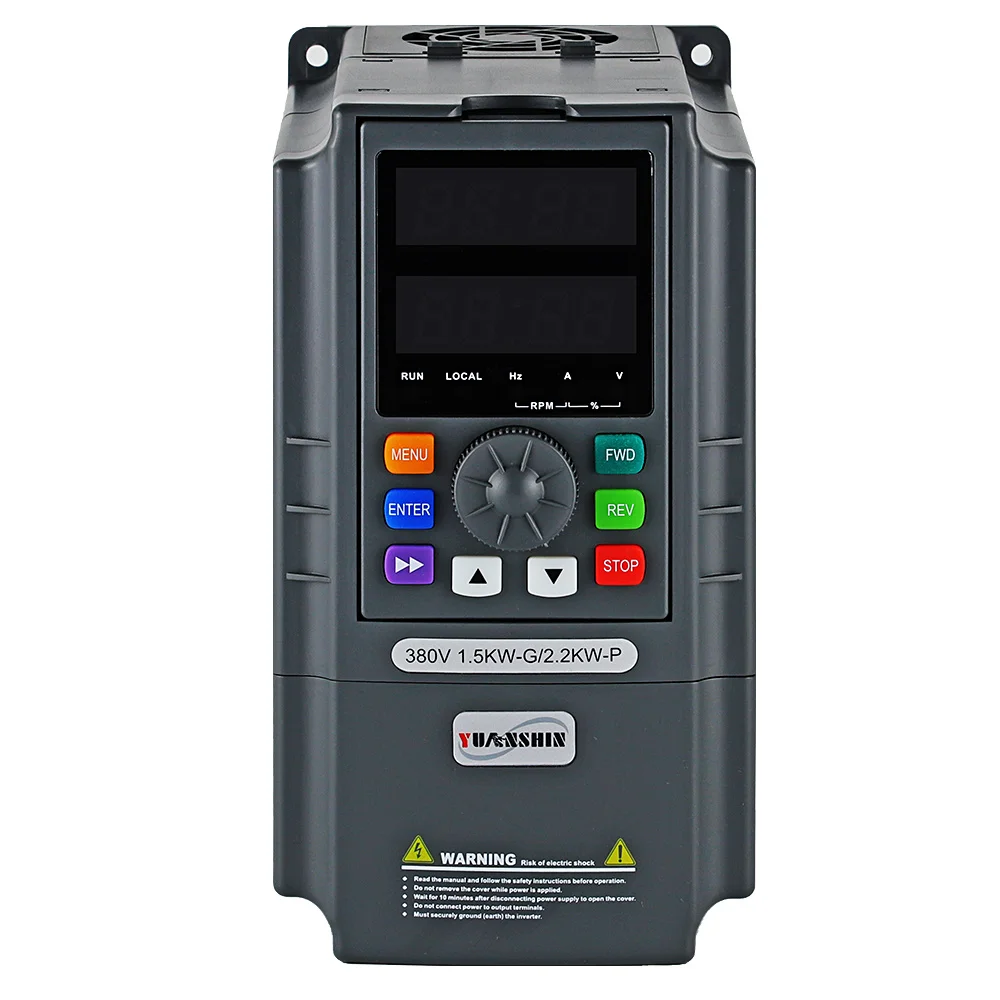

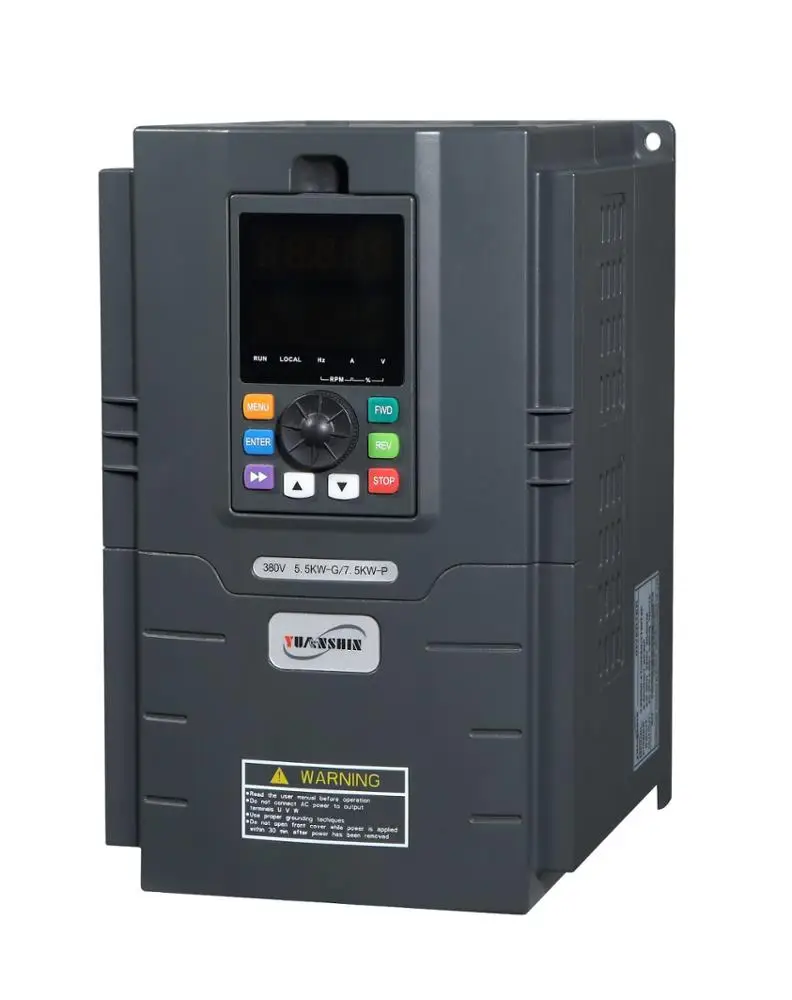

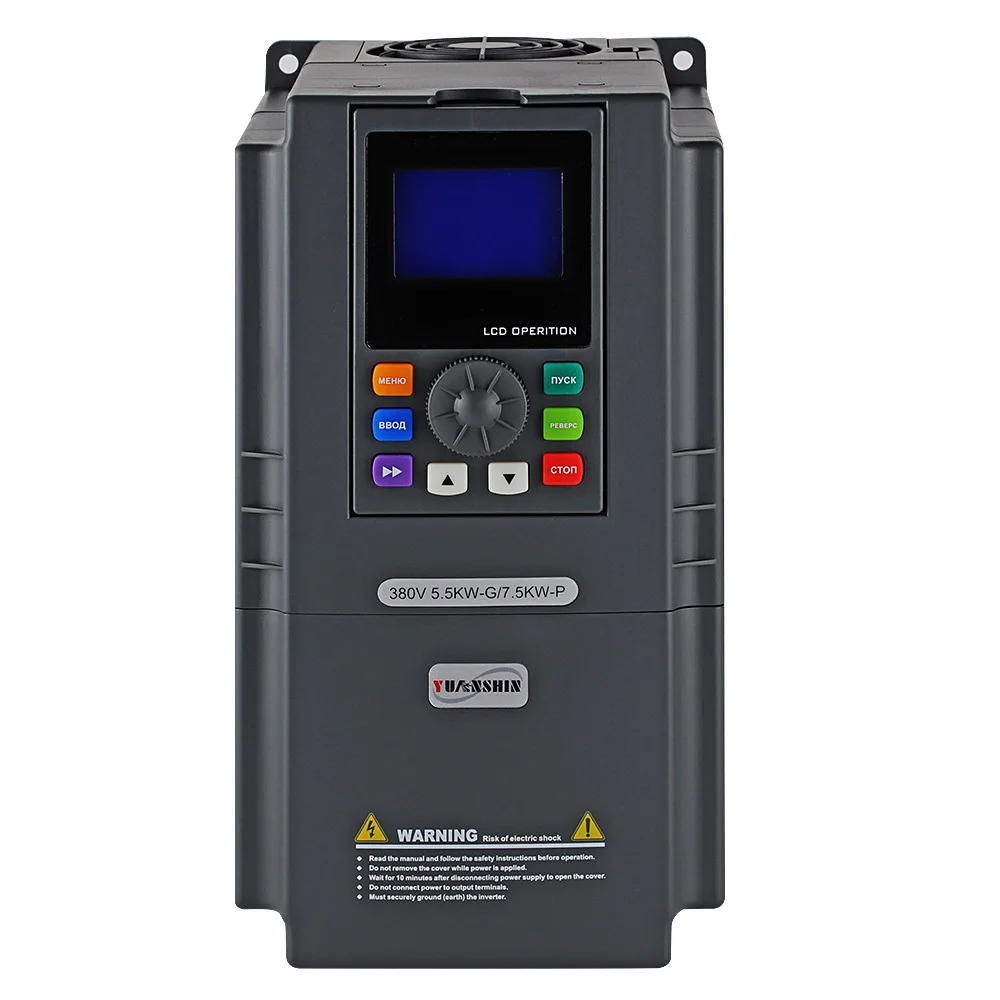

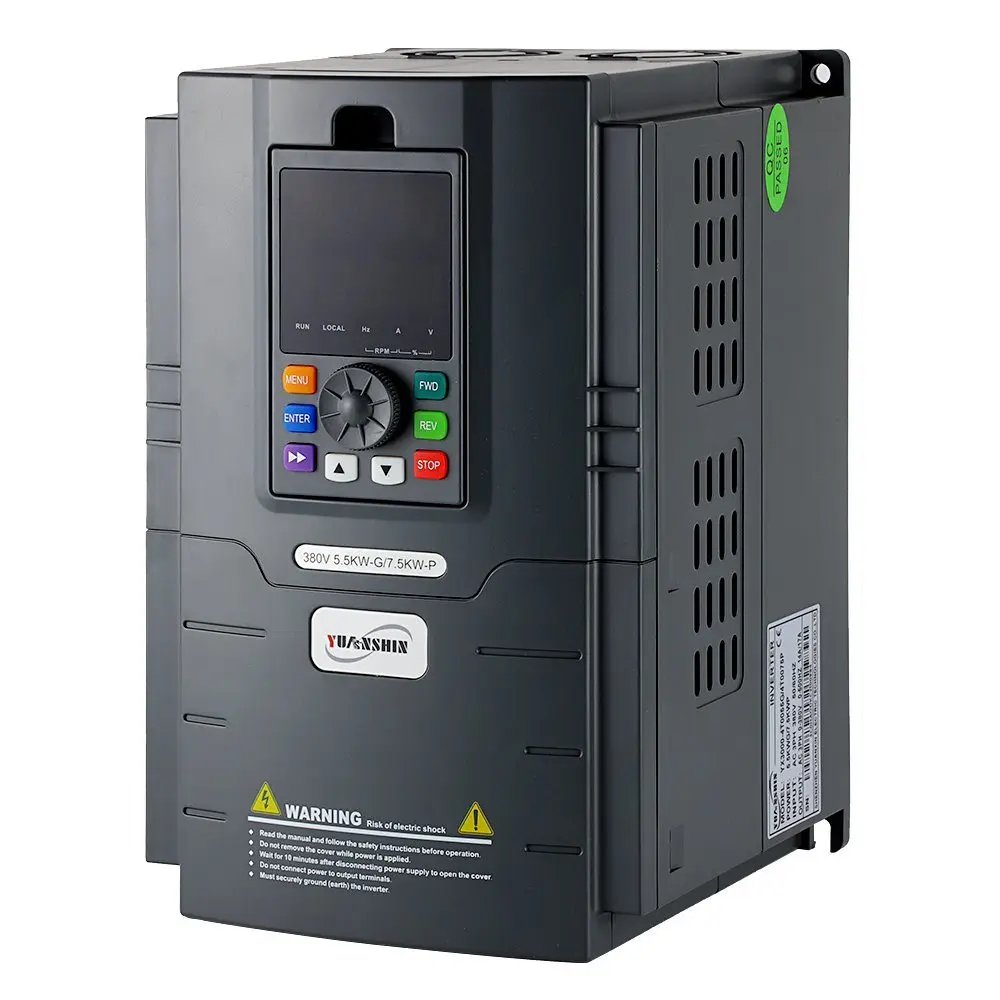

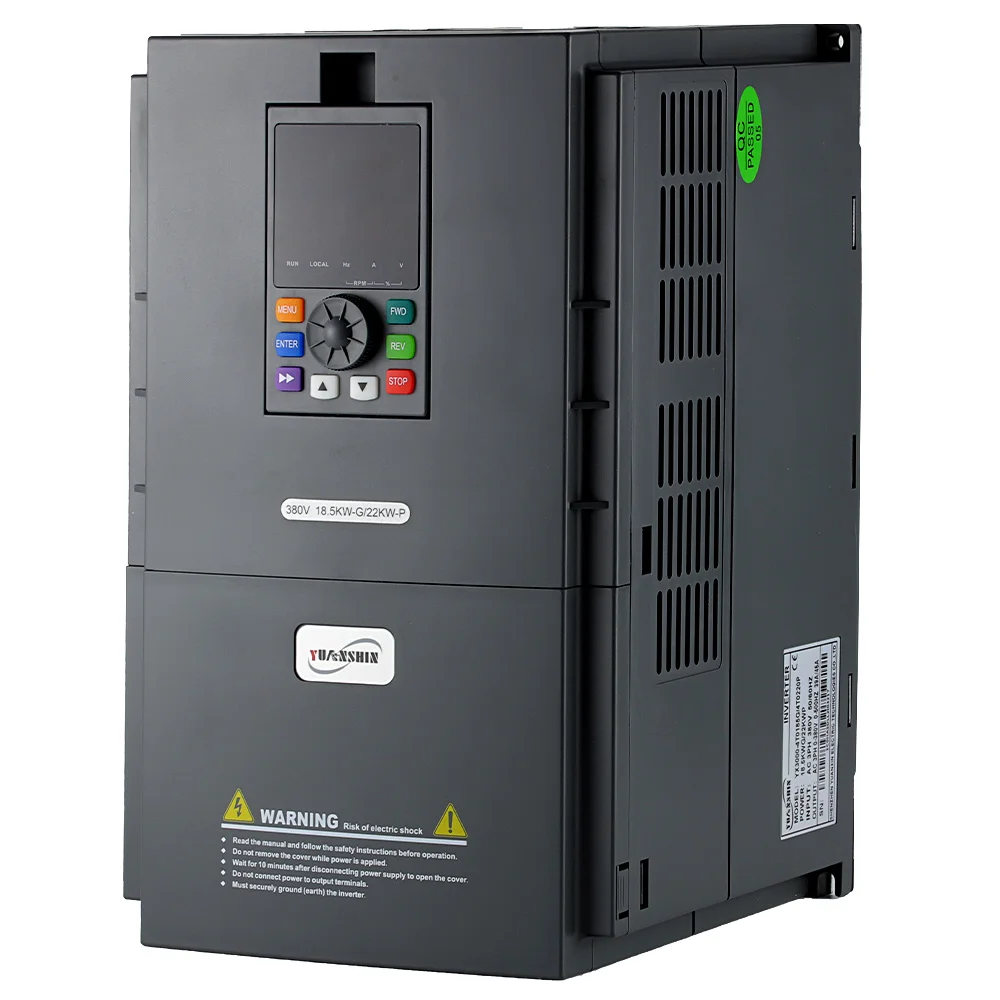

OEM 380V 3.7KW solar pump inverter with MPPT





Yx3900 series inverters for photovoltaic pumps use a new hardware technology platform and an optimized global MPPT algorithm to maximize the efficiency of equipment conversion and output communication. Applicable to all kinds of constant water pump; support DC and AC input. When there is no solar energy, the controller can be switched to a single-phase or three-phase AC input such as a generator or utility power.



YX3900 Solution Diagram:



Product feature:

Maximizing power generation efficiency of solar modules with the use of advanced MPPT control technology.



Advantages:

With auto-boost function to meet the requirements of low-voltage work, can reduce the solar panel configuration and lower system costs;

Adding a AC/DC power supply transfer board can realise AC/DC  power supply automatic switch(in optional);

With control and protection functions, such as: maximum power tracking, weak light sleep, light intensity wake, high water level sleep, overload protection, etc.;

Support automatic and manual switch function;

Adaptable for single phase motor 220V.



Technical  Specification:



Items	Specifications
Recommended MPPT voltage range	3 AC 220V / 150~350V DC ( Recommend 310V DC ) 3 AC 380V / 350~750V DC ( Recommend 530V DC )
MPPT efficiency	99.9%
Power	0.2KW~132KW
Rated output voltage	3AC 220V/ 380V
Output frequency range	0~60Hz
Cooling method	Air cooling
Protection degree	IP20/54























PowPower Degree:

Model ( 380V)	Max  DC input current  ( A)	Rated  output  current  ( A)	Applicable  water pump  ( KW)
YX3900-4T0007G/0015P	4.2	2.5	0.75
YX3900-4T0015G/0022P	6.1	4.0	1.5
YX3900-4T0022G/0037P	7.1	6.0	2.2
YX3900-4T0037G/0055P	16.5	9.6	3.7
YX3900-4T0055G/0075P	23.9	14.0	5.5
YX3900-4T0075G/0110P	30.6	17.0	7.5
YX3900-4T0110G/0150P	39.2	25	11
YX3900-4T0150G/0185P	49	32	15

Factory:





Certificate:

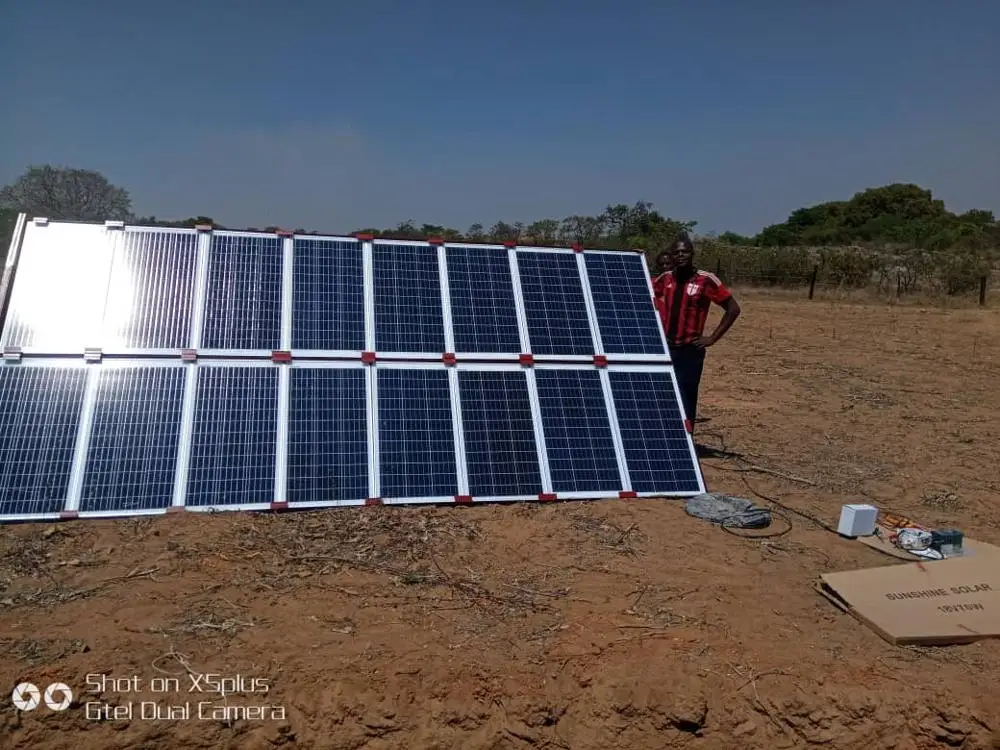

Application:
