Заводская машина для производства дробилок хорошего качества дробилка древесины большой
- Категория: Машины для лесного хозяйства >>>
- Поставщик: Gongyi,Xiaoyi,Mingyang,Machinery,Plant
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 9651.81 $* | 9844.43 $* |
| Jul-19-2025 | 7827.22 $* | 7984.35 $* |
| Jun-19-2025 | 9499.63 $* | 9689.75 $* |
| May-19-2025 | 9423.78 $* | 9611.67 $* |
| Apr-19-2025 | 7523.45 $* | 7673.24 $* |
| Mar-19-2025 | 9271.54 $* | 9456.9 $* |
| Feb-19-2025 | 9195.52 $* | 9379.62 $* |
| Jan-19-2025 | 9119.26 $* | 9301.53 $* |
Характеристики
Product Description
The High Capacity Wood Chipper machine is the special equipment of making high quality wood chips for flakeboard, the base of production and export of fiberboard, and papermaking and wood chips plant. It is widely used in stock workshop section of industrial manufacture.
Model | MY-BX215 | MY-BX216 | MY-BX218 | MY-BX2113 |
Inter size (H*W) | 160*400 | 230*500 | 300*680 | 450*700 |
Blades number (pcs) | 2 | 2 | 2 | 2 |
Roller speed (tum) | 592 | 590 | 650 | 500 |
Max Diameter(mm) | 160 | 230 | 300 | 450 |
Woodchips size (mm) | 30 | 30 | 30 | 38 |
Capacity (t/h) | 3-4 | 7-8 | 12-15 | 15-30 |
Main motor power (kw) | 45 | 55 | 110 | 200-250 |
Feed roller motor power | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
Oil pump power (kw) | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 |
Weight (kg) | 2990 | 5030 | 7000 | 11840 |
Machine size (mm) | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 |
Converyor power (kw) | 3 | 3 | 3 | 3 |
Working Principle

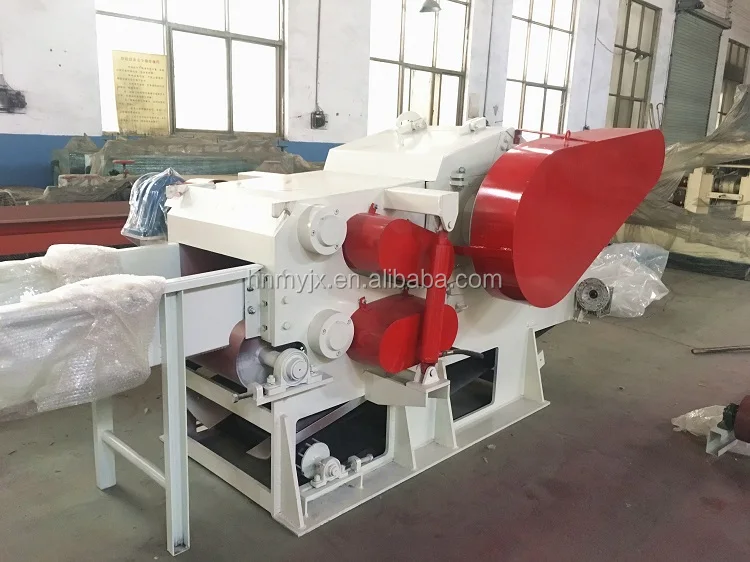

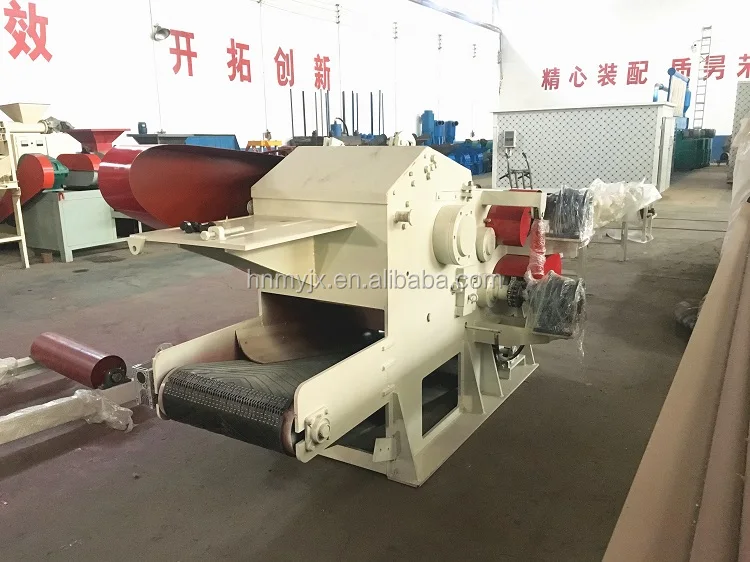

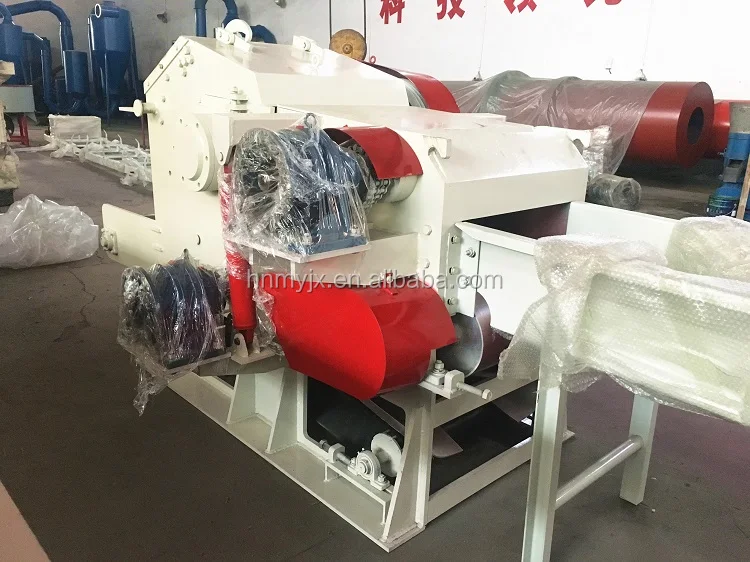

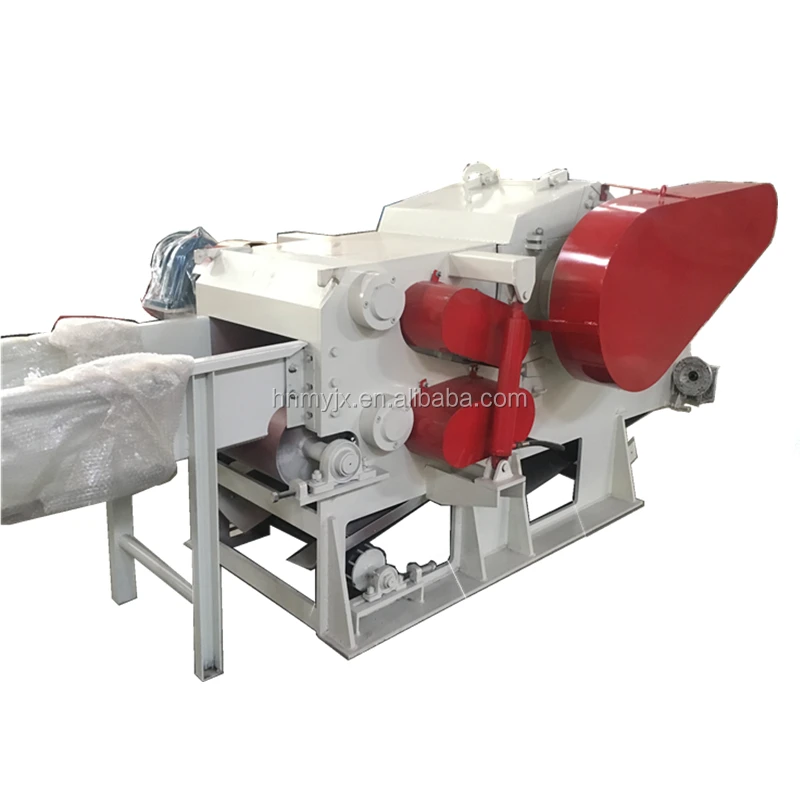

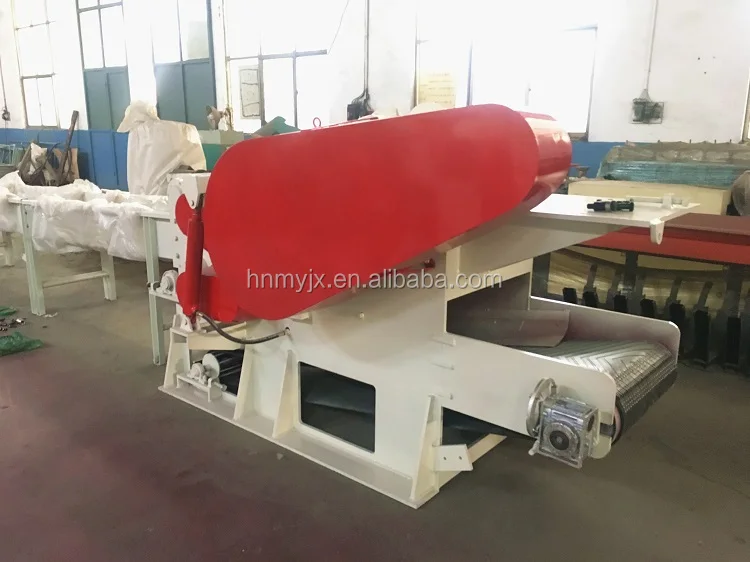

Drum wood chipper machine is the special equipment of producing wood chippers, it included the
machine body, knife/blade roller, the upper and lower feed rollers, belt conveyor, and hydraulic
systems. Knife roller will install two or four, six rotary knives, according to the different thickness
and diameter of the materials which cut. The upper feed roller assembly can use the hydraulic
system to fluctuate within a certain range.
machine body, knife/blade roller, the upper and lower feed rollers, belt conveyor, and hydraulic
systems. Knife roller will install two or four, six rotary knives, according to the different thickness
and diameter of the materials which cut. The upper feed roller assembly can use the hydraulic
system to fluctuate within a certain range.
Working Basic:
The raw materials is clamped and transmitted to the crushing space by the feeding system, then crushed by the fast rotating blades on the roller frequently. The larger wood chips will be processed for several time before discharged from holes on the screen. At last, the wood chips are discharged.
The cut-off qualified pieces fall through the mesh screen hole and are discharged at the bottom. The large material pieces will be cut in the machine again.
Test Machine Before Shipping
Raw Material
Wood materials: it can chip undersized branches, slabs, plump wood, panels manufacturing, leftovers of furniture factories, plant fibers and so on; Non-wood materials: drum chipper is fit for sugarcane stalk, bulrush and bamboo
Wood materials: it can chip undersized branches, slabs, plump wood, panels manufacturing, leftovers of furniture factories, plant fibers and so on; Non-wood materials: drum chipper is fit for sugarcane stalk, bulrush and bamboo
Related Products

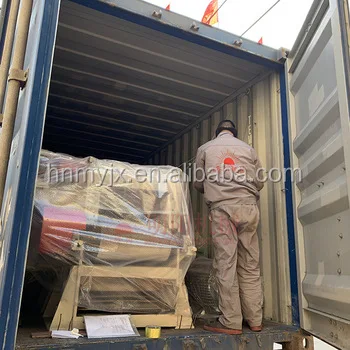

Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 3.5t | |
Packaging Details | The machine need one 20 feet container | |
Company Profile
Gongyi xiaoyi Mingyang Machinery Plant
Our company is located in Zhengzhou City,which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipment and related machinery. After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. Our products are widely accepted in both domestic and world markets, and also are exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam,etc. We have lots of experience to export and cooperate with all over the world, and we also sincerely welcome you to come to our factory to visit and watch our products and factory.
