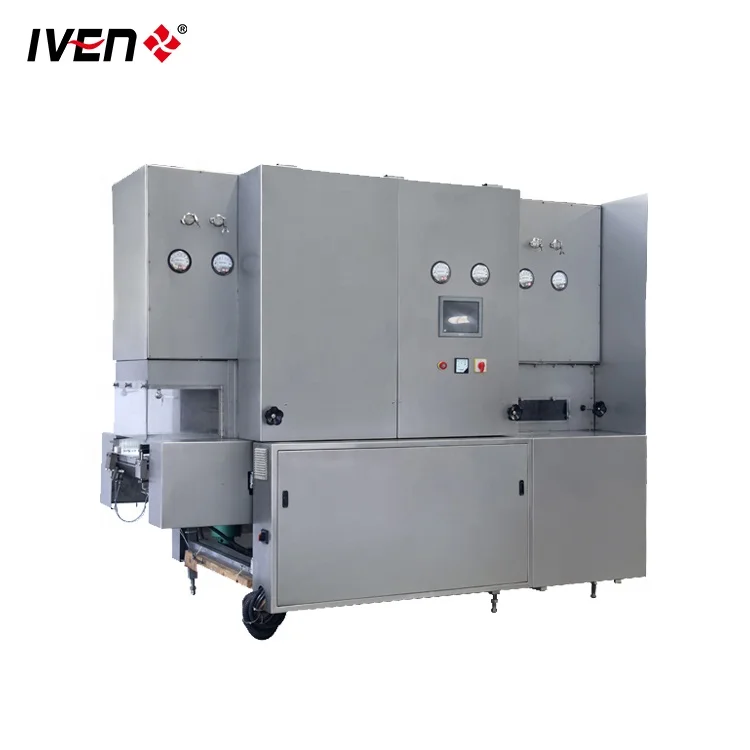

It is mainly used for sterilizing and drying of ampoules, vials, oral liquid bottle, and other glass bottle in the pharmaceutical industry.
Machine can automatically complete whole procedure of bottle in-feeding, pre-heating, sterilizing, cooling and bottle out-feeding . Use laminar flow principle and hot air high-speed disinfection technology; make container in the sealed tunnel achieve the national cleanliness Class A standard. With the good heat distribution and depyrogenation, currently it’s the most popular and best drying and sterilizing equipment .
This unit can be used separately, also can be combined into a production line with bottle washing machine and filling machine.
The innovative structure is easy for maintenance
Adopts new mesh belt with side plates conveying, use sprocket chain drive, avoid bottle drop, bottle broken and bottle collapse caused by the bottom belt and side belt deviation or crawling off.
High-temperature hot air blower use water circulation cooling system, take away bearing’s heat through the water circulation.
Stainless steel electrical heating, heat rapid and well-distributed.
Hinge type heating seat, maintenance more convenient.
Wide-open heating area, make equipment cleaning and maintenance more convenient.
Drawer type filter mounting seat, make replacement and maintenance more convenient.
RSM series technical parameters
Model
Length (mm)
Width (mm)
Height (mm)
Heating power
RSM420/27
2800
1300
2400
27KW
RSM620/38
2800
1660
2400
38KW
RSM620/60
4300
1600
2400
60KW
RSM900/80
5260
1960
2480
80KW
RSM900/100
6800
1960
2480
100KW
