Аппарат для запечатывания стеклянных
- Категория: Фармацевтическое оборудование >>>
- Поставщик: Shanghai,Iven,Pharmatech,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.81 $* | 0.40 $* |
| Aug-18-2025 | 0.11 $* | 0.1 $* |
| Jul-18-2025 | 0.37 $* | 0.23 $* |
| Jun-18-2025 | 0.79 $* | 0.64 $* |
| May-18-2025 | 0.72 $* | 0.23 $* |
| Apr-18-2025 | 0.32 $* | 0.35 $* |
| Mar-18-2025 | 0.60 $* | 0.57 $* |
| Feb-18-2025 | 0.19 $* | 0.21 $* |
| Jan-18-2025 | 0.41 $* | 0.20 $* |
Характеристики
Product Description
Brief Introduction

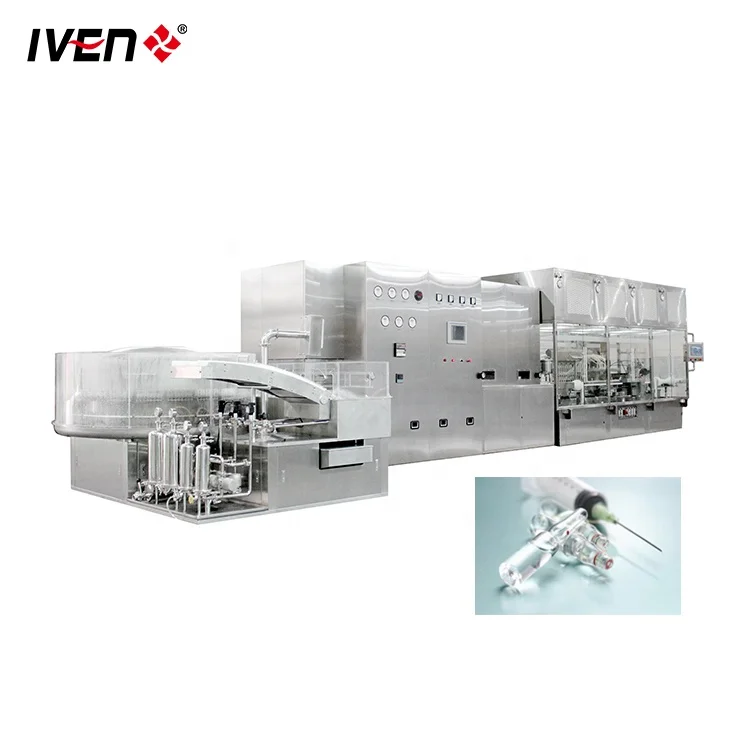

BXAZ ampoule cleaning, drying, filling and sealing compact production line is a new type of ampoule production line which adopted the advanced international technology, combined several FE Pharmatech’s patents and according to the domestic ampoule production situation.

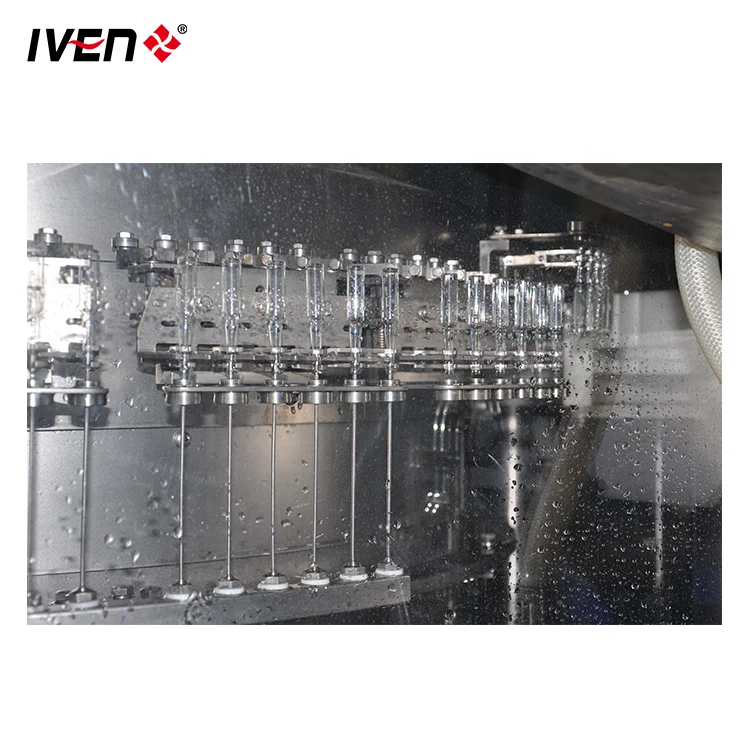

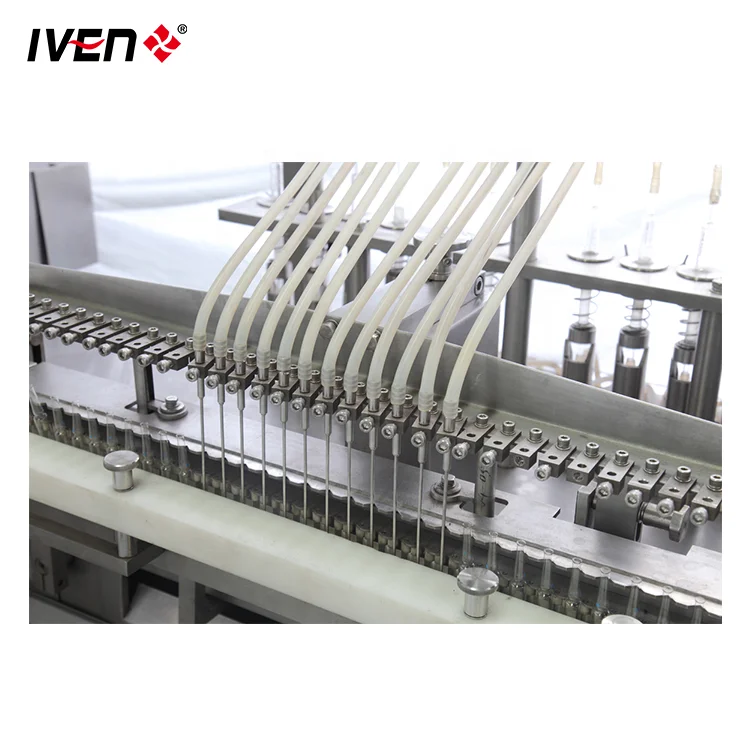

This line is composed by CLQ vertical ultrasonic cleaning machine, RSM sterilizing drying machine and AGF filling and sealing machine. It is divided into cleaning zone, sterilizing zone, filling and sealing zone.
This compact line can work together as well as independently.
Technical Parameters
| Applicable specifications | 1-20ml B type ampoules which meets the standard of GB2637. |
| Maximum capacity | 7,000-10,000pcs/h |
| WFI consumption | 0.2-0.3Mpa 1.0 m3/h |
| Compressed air consumption | 0.4Mpa 50 m3/h |
| Electric capacity | CLQ114Vertical ultrasonic washing machine:15.7KW |
| RSM620/60 Sterilizing and drying machine 46KW, heating power: 38KW | |
| AGF12 Ampoule filling and sealing machine 2.6KW | |
| Dimensions | CLQ114Vertical ultrasonic washing machine:2500×2500×1300mm |
| RSM620/60 Sterilizing and drying machine:4280×1650×2400mm | |
| AGF12 Ampoule filling and sealing machine:3700×1700×1380 mm | |
| Weight | CLQ114Vertical ultrasonic washing machine:2600 Kg |
| RSM620/60 Sterilizing and drying machine:4200 Kg | |
| AGF12 Ampoule filling and sealing machine:2600 Kg |
