Автоматическая машина для резки проволоки и
- Категория: Машины для выпрямления металла >>>
- Поставщик: Hebei,Kaiye,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2654.56 $* | 2787.88 $* |
| Aug-16-2025 | 2631.63 $* | 2763.58 $* |
| Jul-16-2025 | 2208.36 $* | 2318.59 $* |
| Jun-16-2025 | 2587.46 $* | 2716.0 $* |
| May-16-2025 | 2252.85 $* | 2365.74 $* |
| Apr-16-2025 | 2542.48 $* | 2669.39 $* |
| Mar-16-2025 | 2520.95 $* | 2646.43 $* |
| Feb-16-2025 | 2498.93 $* | 2623.16 $* |
| Jan-16-2025 | 2475.25 $* | 2599.59 $* |
Характеристики
PRODUCT DESCRIPTION

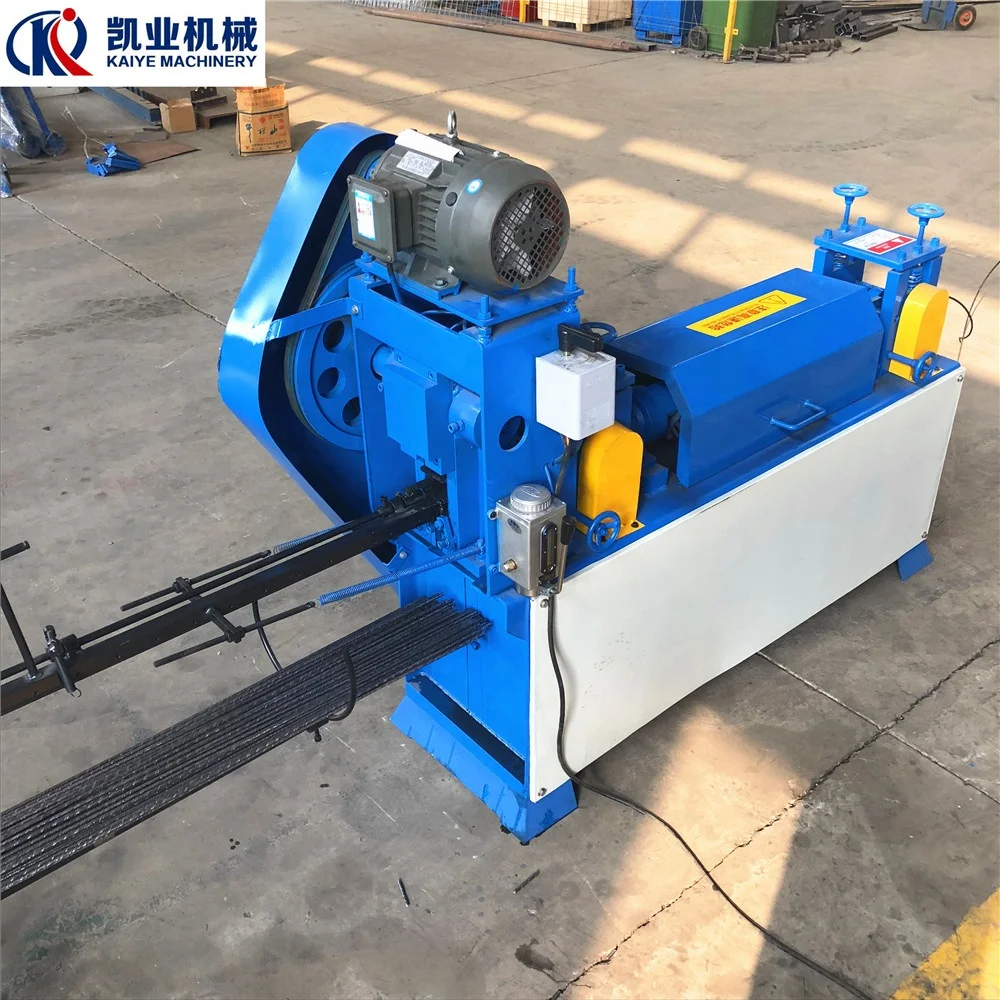

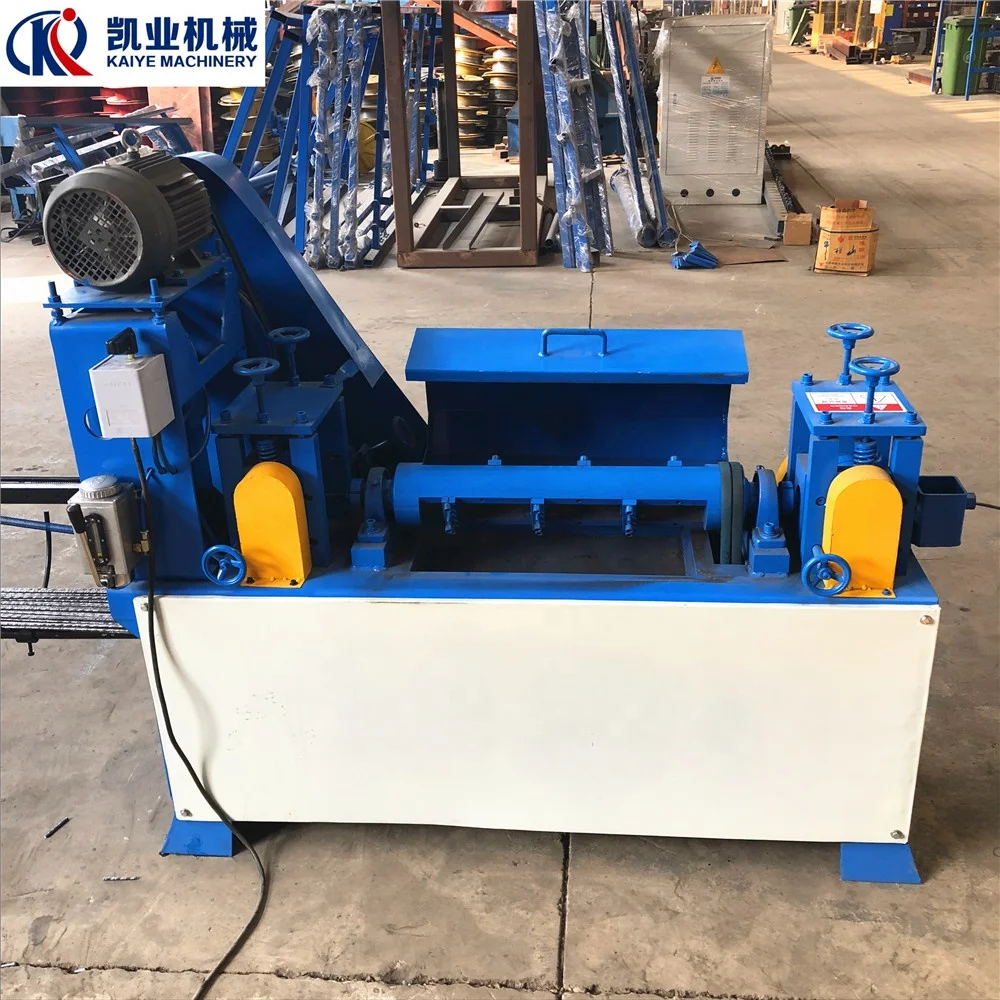

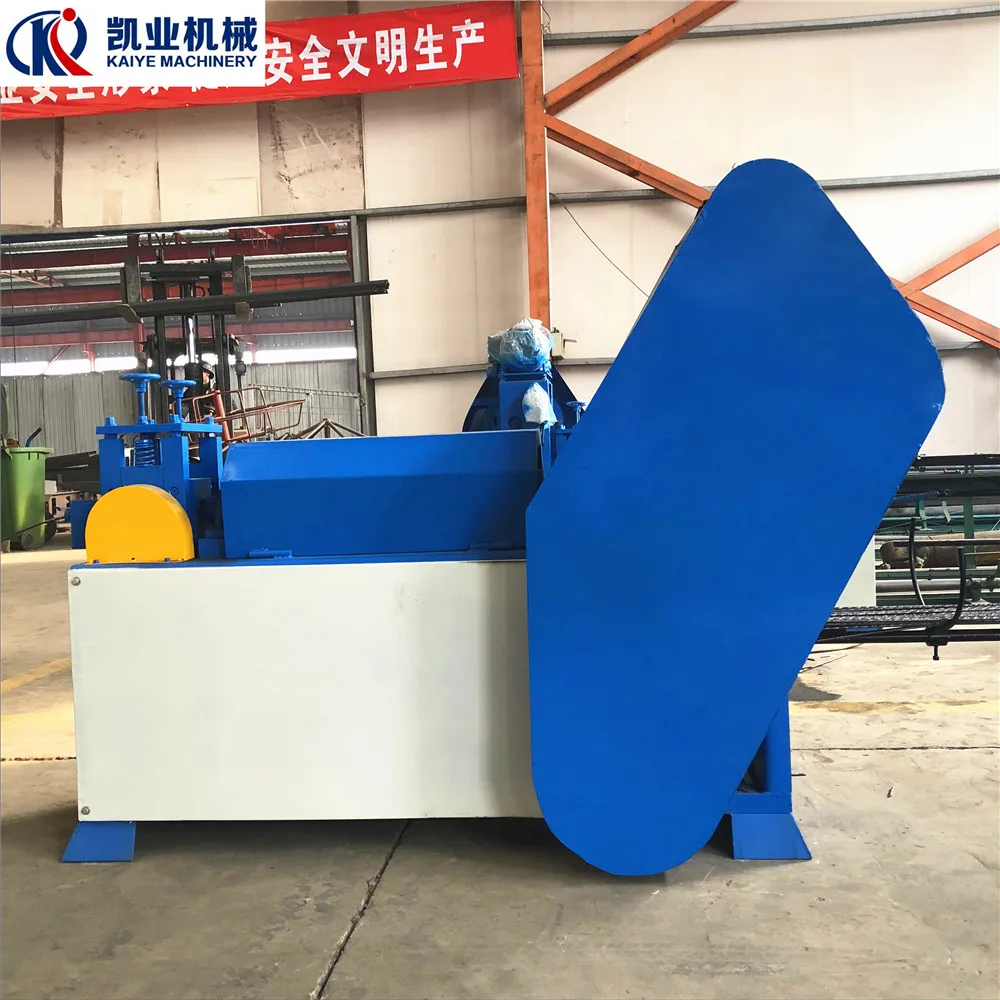

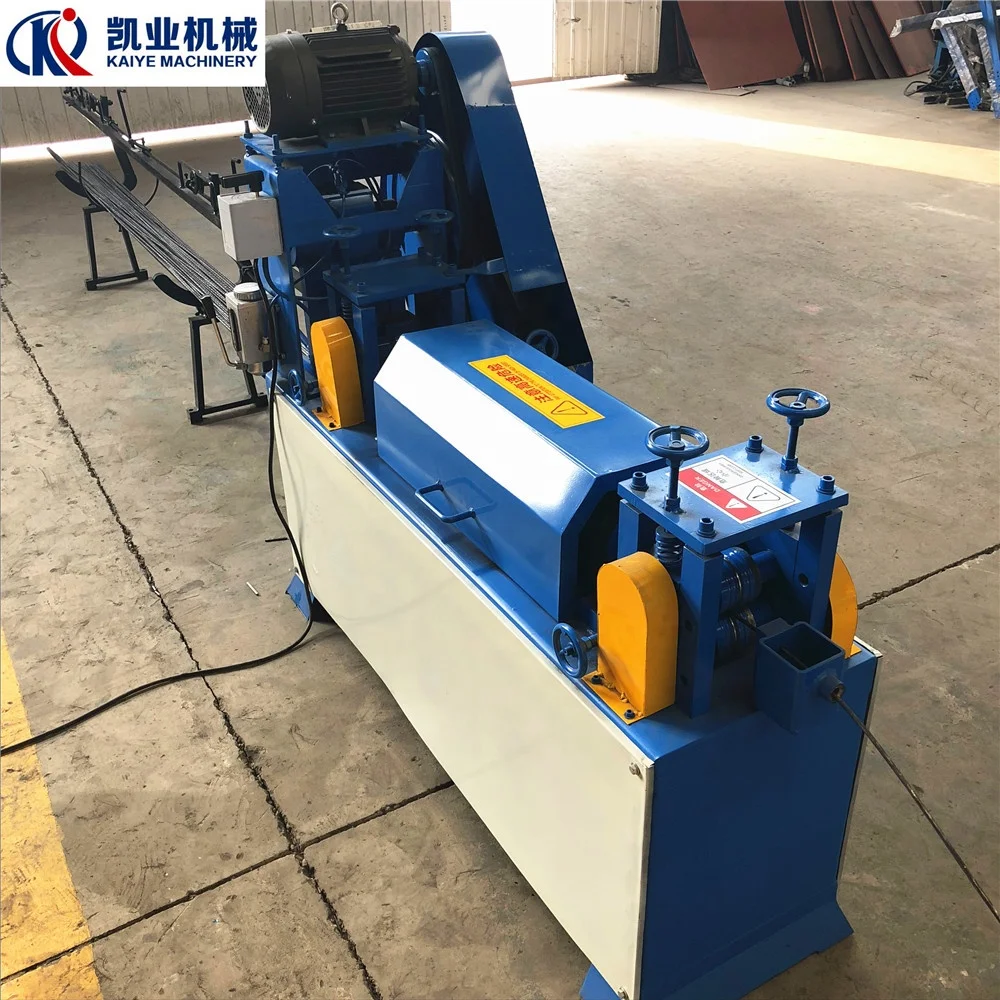

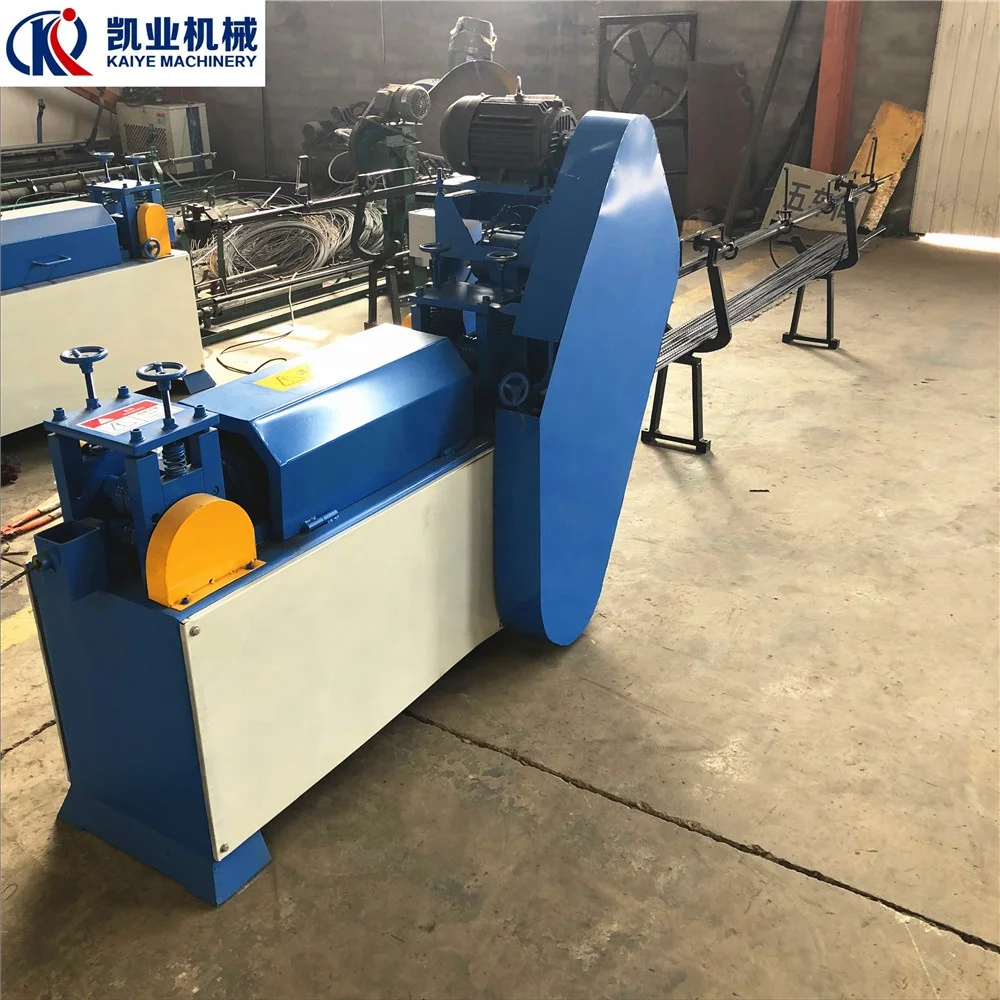

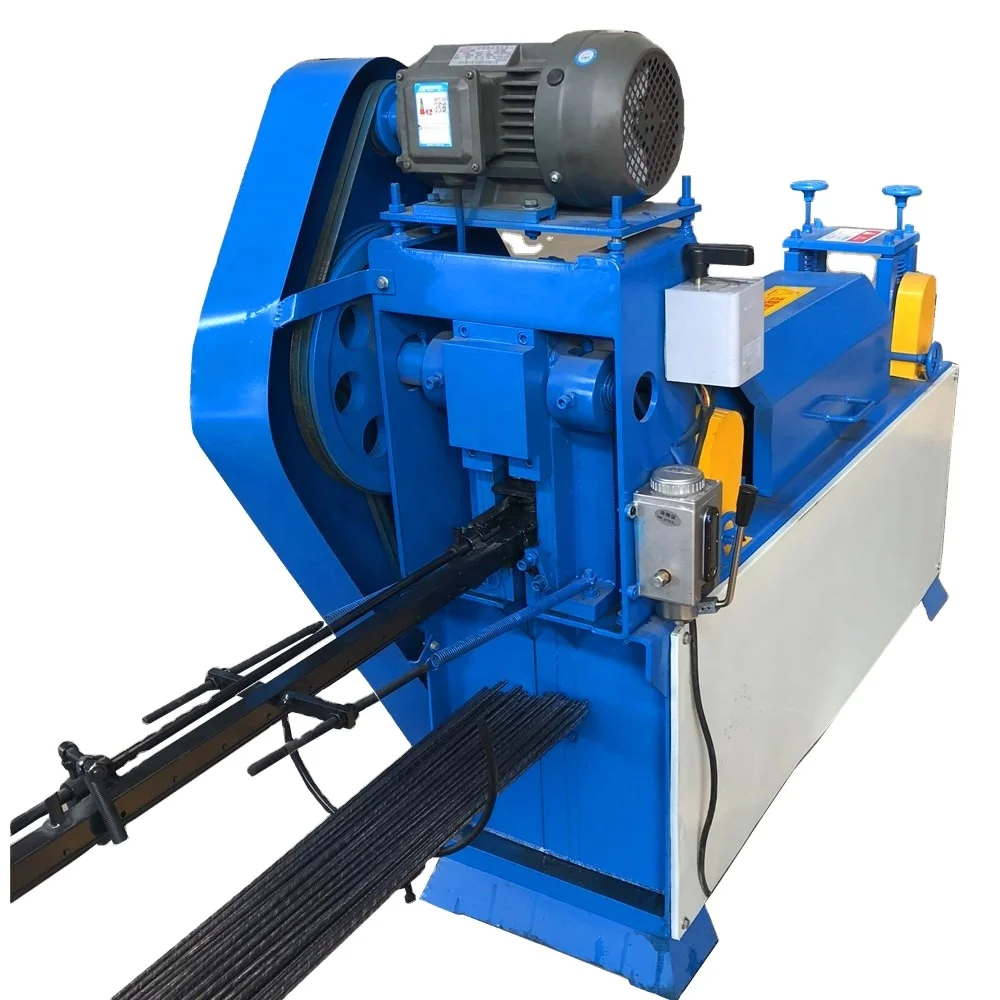

Wire Straightening and Cutting Machine.
(1)Application: Wire Straightening and Cutting Machine is specially used for automatically straighten stainless steel wire, galvanized wire, aluminum wire, cooper wire, and cut automatically according to the preset length.
(2)Material: Stainless steel wire, alloy steel wire, low/middle/high carbon steel wire .
(3)The straightening machine is composed of a frame, a straightening mechanism, a feeding mechanism, a cutting mechanism, a linear gun and a wire frame.
(4)The straightening part is composed of a straightening shaft, a straightening pressing block and two bearing blocks to complete the straightening work of the wire, the power is the motor mounted under the machine frame, and the straightening shaft is rotated at a high speed by the triangular tape.
(3)The straightening machine is composed of a frame, a straightening mechanism, a feeding mechanism, a cutting mechanism, a linear gun and a wire frame.
(4)The straightening part is composed of a straightening shaft, a straightening pressing block and two bearing blocks to complete the straightening work of the wire, the power is the motor mounted under the machine frame, and the straightening shaft is rotated at a high speed by the triangular tape.
Main Features.
1. Adopt the totally enclosed type case, featured with high security.
2. The straightening motive power came from the large power motor which can ensure a long time stable operation.
3. The installation of traction and straightening motive power adopt adjustable structure, which is easy to maintain.
4. Adopt cartridge valve, featured with compact structure and convenient adjustment.
5. The oil-way controlling part is hidden under the panel which can resist dust effctively.
5. The oil-way controlling part is hidden under the panel which can resist dust effctively.
6. The feed inlet adopt rotary scuff sleeve, featured with simple structure and easy change.
7. Part of the funnel structure was closed which is convenient for dust-cleannig.
8. The structure of the cradle is more resonable, as well as new appearance.
MACHINE PARAMETER
Model | KY-C-3/5 | KY-C-4/8 |
Wire Diameter | 3-5 mm | 4-8 mm |
Cutting Length | ≤3000mm (Customizable) | ≤3000mm (Customizable) |
Cutting error | ±1mm | ±1mm |
Cutting Speed | 20-40m/min | 20-40m/min |
Straightening accuracy | ≤1 mm | ≤1 mm |
Motor power | 2.2kw+0.75kw | 3.0kw+1.5kw |
Weight | 480 KG | 680 KG |
Mechanical dimension | 4800mm*800mm*1200 mm | 5800mm*800mm*1200 mm |
MACHINE FEATURES
Design
The mechanical structure and appearance design are very reasonable, and the overall technology has been very mature.
Operation safety.
All moving parts of the machine are wrapped in protective covers to ensure the safety of the machine.Adopt the totally enclosed type case, featured with high security.
Straightening system.
The straightening system adopts special structure to reduce the wear on the wire surface, so that the wire is smooth and flat. Machines can straighten wires of different materials.
Linear gun system.
The standard wire cutting length is less than 2000 mm, we can increase the wire cutting length to less than 6000 mm according to customer requirements.
CERTIFICATION
OUR SERVICE
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
PACKING AND SHIPPING
PACKING.
All machinery and accessories will be packed and fixed in wooden cases.
Delivery.
The wooden cases will be sent to the port in time. We will let you receive the goods as soon as possible.
CUSTOMER AND MARKET
Main products and markets.
We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields. The company's machinery and equipment sell well in China, and are exported tonearly 100 countries and regions such as Romania, Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
The main products of the company are wire mesh welding machine, reinforcing mesh welding machine, fence mesh welding machine, 3D EPS panel welding machine, gabion mesh machine, hexagonal mesh machine, wire drawing machine, galvanized wire production line, grassland fence machine, chain link fence machine, rebar bending machine, barbed wire making machine, wire straightening machine etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere tothe tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.
The main products of the company are wire mesh welding machine, reinforcing mesh welding machine, fence mesh welding machine, 3D EPS panel welding machine, gabion mesh machine, hexagonal mesh machine, wire drawing machine, galvanized wire production line, grassland fence machine, chain link fence machine, rebar bending machine, barbed wire making machine, wire straightening machine etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere tothe tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.
FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of origin, Certificate of quality etc, your customs clearance will be no problem.
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of origin, Certificate of quality etc, your customs clearance will be no problem.
If you are interested in our products, please contact us now.
